Four side planer FUTURA MODUL 4

FUTURA modul 4

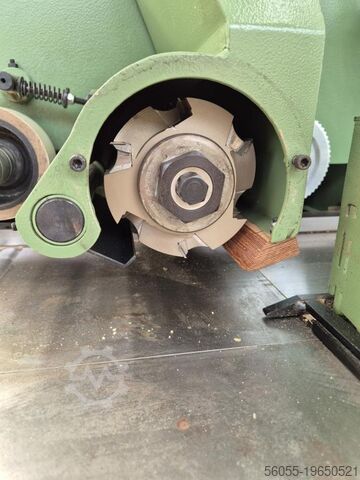

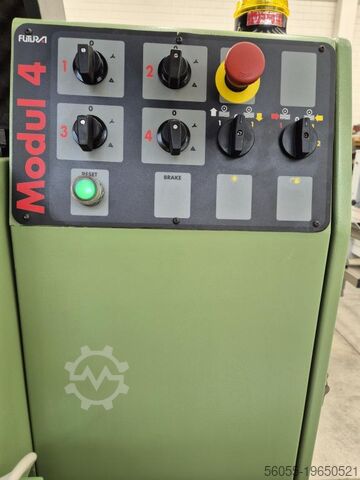

Condition: excellent (used), functionality: fully functional, FOUR SIDE PLANER machine model FUTURA MODUL 4 220 second hand machine working conditions : excellent n.4 spindles ( n.4 indipendent motors ) CE mark : YES volt. 380/50 Crsdpfx Ahew Dz T Ho Ijc with tools : Yes . n.04 tools with interchangeable knives composition machine ( 4 spindles , 4 indipendent motors ) : 1° spindle : planer . motor power Hp 5,5 (Kw 4) 2° spindle : vertical right . motor power Hp 4 (Kw 3) 3° spindle : vertical left . motor power Hp 4 (Kw 3) 4° spindle : thickness planer . motor power Hp 5,5 (Kw 4) technical details : 2 speed feed . motor power Hp 1,3 / 1,7 (Kw 1 / 1,3) spindle rotation speed rpm 6000 feed speed : 8 / 16 mt./min max. useful working width mm. 220 max. useful working height mm. 120 shaft diameter mm.40 inlet length mm. 2300 lubrication system electric height adjustment . motor power Hp 0,25 (kw 0,2) total installed power: 18.6 HP (14 kW) instruction manual CE certification

Condition: excellent (used), Year of construction: 2016, Steton 5-head four-sided planer. Steton 5-head four-sided planer. The machine after the review does not require a financial contribution. Technical data: - max width of the workpiece 23 cm - max height 13 cm spindle diameter 40mm - 1 - Horizontal bottom 23 cm - 2 - vertical right 13 cm - 3 - vertical left 13 cm - 4 - horizontal upper 23 cm Crsdpfsi Apuhex Ah Ijc - 5 - universal 360 degree soundproofing cabin - electric setting of planing thickness - two types of feed speed

Condition: reconditioned (used), Year of construction: 1996, functionality: fully functional, machine/vehicle number: 96123, Connected load 380V 46A planing width 180 mm planing height 120 mm length of table 2300 mm 4x Leitz reversible knife heads with 4 knives each 2x feed speeds electric height adjustment 4x star-delta switch 2x low pressure holder 1x side pressure holder Csdeh U Db Iepfx Ah Isrc 2x steel feed shafts 1x rubberized pull-out roller Suction connection 4x120 mm

Condition: repair required (used), Year of construction: 2004, Schneider compressed air screw compressor defective System needs to be repaired. Machine is being sold cheaply because it needs to be repaired. Engine power: 11 KW Crodjvmivcopfx Ah Isc Volume flow: 1500 liters/min Compressor pressure: 10 bar Location: from warehouse 54634 Bitburg Machine is being sold as defective Without guarantee - without warranty -

Condition: excellent (used), Weinig Unimat 23 four-sided planer Working width 230mm Working height 160mm Crsdpfxstxxwdj Ah Ioc Number of spindles 5 Arrangement of spindles Bottom 5.5kw Right Left 7.5kw Top 11kw Bottom 5.5kw Pneumatic material presses divided into 4 sections Feed speed adjustable by variator 4-24m/min Length of input table 1980mm Drive on cardan shafts Thick soundproof cabin Machine dimensions 380x226x178cmH CE certificate

Condition: new, Year of construction: 2026, SCV11300TC VIBER BIG-BAG is a modern industrial dust extractor designed for intensive operation in woodworking shops and manufacturing facilities. The unit stands out thanks to its two high-capacity BIG-BAG containers, significantly improving waste management efficiency. Equipped with advanced filtration and protection systems, it ensures effective extraction of sawdust, dust, and wood chips even during long-term continuous operation. Key Advantages Two BIG-BAGs – a unique market solution increasing waste collection capacity VIBER system – automatic filter shaking ensures consistent extraction performance TC housing – fully enclosed, sound-insulated design reducing noise and vibration DAMAGE PROTECT – mechanical protection safeguarding the impeller against damage from larger objects REHEAT – heat recovery from exhaust air, improving the facility’s energy efficiency Construction and Technology The SCV11300TC VIBER BIG-BAG is equipped with a reinforced 11 kW motor and a precisely balanced impeller, ensuring stable, trouble-free operation and high suction performance of up to 11,300 m³/h. The housing is designed for effective acoustic insulation and maximum suction system tightness, resulting in cleaner and warmer air in the workplace. Precision and Performance With 64 polyester filters rated at 5 microns and the option to install an additional HEPA filter, the unit guarantees safe and highly efficient air purification. The high suction velocity (28–32 m/s) enables efficient removal of chips and sawdust from multiple workstations simultaneously. Applications The SCV11300TC VIBER BIG-BAG model is an ideal solution for: woodworking shops furniture factories operators of panel saws, edge banders, and sanders other facilities requiring a central dust extraction system Standard Equipment VIBER automatic filter cleaning system Two BIG-BAG containers Control cabinet with operator panel TC housing with acoustic insulation DAMAGE PROTECT safety system Optional Equipment HEPA filter for ultra-fine particles BIG-BAG fill level sensors Automatic fan reverse system Technical Specifications Power supply voltage: 400 V Power: 11 kW Motor speed: 3000 rpm Filter type: Polyester, 5 microns / filter category “G” Filter dimensions: Ø160 × 960 mm Number of filters: 64 pcs Filtration area: 30 m² Inlet diameter: 350 mm Outlet diameter: 500 mm Codpjudav Njfx Ah Ierc Capacity: 11,300 m³/h Vacuum pressure: 3000 Pa Air velocity: 40 m/s Noise level: 80 dB Number of BIG-BAGs: 2 pcs BIG-BAG capacity: 1250 L each / 2500 L total Dimensions (L × W × H): 3250 × 1100 × 3700 mm Weight: 820 kg

Condition: like new (used), working width 230mm working height 120mm 5 heads head arrangement bottom 5.5kW right 5.5kW Cjdpfxewlk Ebe Ah Isrc left 5.5kW top 7.5kW bottom 5.5kW head speed 6000 rpm head adjustment in two axes smooth feed speed adjustment year of production 2001 power supply 400v

Year of construction: 2001, condition: like new (used), Max. workpiece dimension 220 × 120 mm Min.worked dimension 8 × 5 mm Min. Workpiece length (with pre-planing) 380 mm Max. planing height 10 mm Length of the feeding table 2000 mm Spindle diameter 40 mm Lowering under the table 10 mm The diameter of the planing heads 125 mm Head height 125 × 23 mm Profile head spindle height 125 × 130 mm Diameter of the profiling cutter with 2nd and 3rd spindles 120 ÷ 140 mm Diameter of the profiling cutter with 4 spindles 125 ÷ 140 mm Profiling cutter diameter 145 × 12 mm Spindle speed 6000 g / 1 ' Feed speed 8 m / 1 ' Diameter of the feed rollers 140 mm Diameter of 2 extraction nozzles 100 mm The diameter of 2 extraction nozzles is 120 mm Motor power of 1 spindle 5.5 (4) hp (kw) Motor power 2/3 spindle 7.5 (5.5) hp (kw) Codpfeih H Ndox Ah Ierc Motor power 4 spindles 5.5 (4) hp (kw) 3 feed motors 2.25 (1.65) hp (kw) Net weight 1,220 kg Noise level 80-86 db (A)

Condition: excellent (used), Kaeser TC 44 Crjdpfew Rcmgex Ah Ijc In very good condition.

Condition: new, - NEW -Description:- Robust welded steel construction- Workpiece is automatically fixed with each cut by saw blade cover- The saw blade is moved upwards via a pneumatic cylinder and dips back into the machine body after each cut- Saw blade feed infinitely variable via adjusting screw on the front of the machine- Effective chip and intrusion protection made of Plexiglas- High operating safety due to two-hand control- Standard with 1m roller conveyor to the left and right of the machine, and material stop with scale- Saw blade change via large side doorTechnical data:General informationSaw blade speed(s) 3000min¯¹Saw blade diameter 500mmSaw blade bore 30mmSaw blade thickness 4mmMitre angle noSuction nozzle diameter 125mmSound pressure level89dB(A)Dimensions and weightsLength (product) approx. 3000mmWidth/depth (product) approx. 1600mmHeight (product) approx. 1500mmWeight (net) approx. 700kgElectrical dataPower drive motor 6kWMotor speed 2900min¯¹Total power consumption 15.5ASupply voltage 400VMains frequency 50 - 60HzStandards and approvalsEMC class APneumatic connectionAir consumption approx. 33l/minPneumatic working pressure 6 - 8barCutting areasCutting capacity 0° (square) solid material 160 x 160mmCutting capacity 0° (rectangular) solid material 400 x 100mmScope of delivery:- 1 m infeed roller conveyor, to the right of the machine- 1 m outfeed roller conveyor including manual material stop with scale, to the left of the .: 5651500 Crodpfevwfluex Ah Isc
