Vertical panel saw

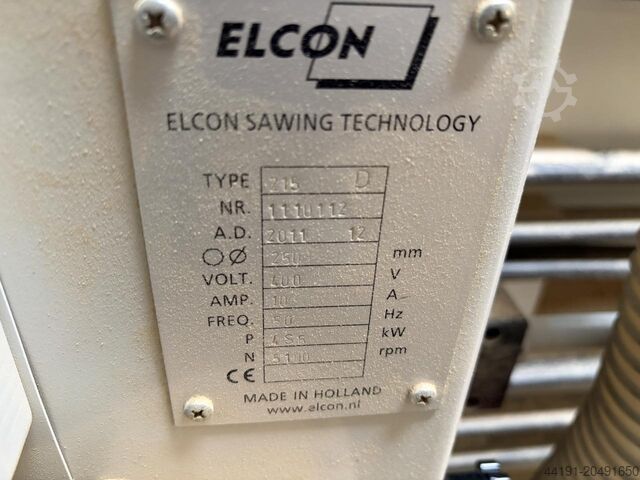

Elcon D 215

Condition: used, Year of construction: 2001, Used machine Year of manufacture: 2001 Equipment and technical data: - Cutting length: 5,300 mm - Cutting height: vertical 2,150 mm, horizontal 2,100 mm Fpsdpfjxvnpcox Ac Hep - Maximum cutting depth: 60 mm - Saw blade diameter: 250 mm; bore: 30 mm - Motor: 4 kW - Speed: 5,100 rpm - Material support with rollers - Fixed support elements for stable positioning of workpieces - Central support: robust support elements at working height, can be folded out individually by hand - Measurement readouts for: - Horizontal saw cuts via scale - Horizontal saw cuts via strip stop from 50–500 mm - Vertical saw cuts via stop from 0–1,300 mm - Compressed air connection for pneumatically retractable slatted frame (required air pressure: 6 bar) - Scoring system: achieved by double cut of the main saw blade. The plunge depth of the saw blade is limited by simply repositioning a stop, allowing the blade to score the workpiece along the feed direction. Availability: Approx. end of January 2026 Location: Hesse

Condition: used, Cutting length 4300 mm Cutting height 2150 mm automatic , ELCON precision panel saw type D 215 ----- Cutting height: vertical 2,150mm, horizontal 2,100mm Cutting length: 4,300mm ----- Technical description: Cutting depth: max. 60mm Saw blade outlet behind the plate: max. 25mm Saw blade: diameter 250mm, bore 30mm, Z=48 hollow roof tooth Saw blade rotation: 5,100 rpm. Motor: 4 kW (S 6) Measurement reading for: horizontal saw cuts: via scale and strip cutting stop vertical saw cuts: above scale Extraction nozzle: 100 & 80mm Required air pressure: 6 bar Features: -Material support with 1 roll per meter of cutting length, switched on and off Fpsdsi Hc S Dspfx Ac Hjp by foot pedal suspendable -1 infeed and outfeed roller -pneumatically yielding slatted frame -Central support, 1 support element per meter of cutting length, individually manually fold out -Scoring system: double cut of the main saw blade - Torsion-free, free-standing machine frame -Two folding stops for vertical saw cuts (above and below the middle support) ----- Special price "Partnership Edition" ex works in this version: on request! ----- plus pre-freight, freight, installation and instruction (if the machine does not have to be dismantled) Applies only within Germany. Unloading and cross transport to Installation location is determined by the customer. Price: EUR 1,900.00 plus statutory VAT ----- Options with extra charge: Cutting length 5,300mm instead of 4,300mm Order number: ELCO0075/O049 Surcharge: EUR 2,590.00 plus statutory VAT ----- Technical information according to the manufacturer - without guarantee!
