Thickness Planers

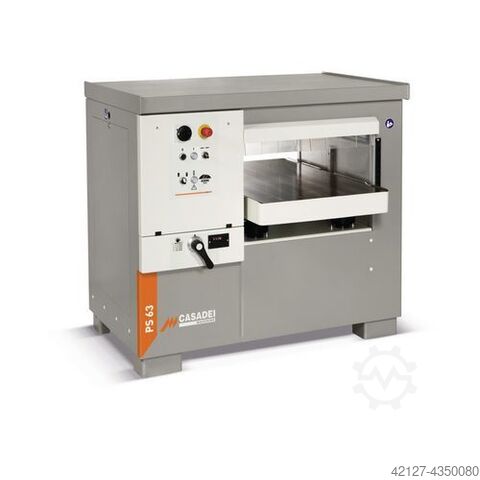

Casadei / SCM PS 63 Tersa - sofort verfügbar -

Motorized thicknessing table stroke with two speeds
Numerical display for working height
Grey cast iron thicknessing table

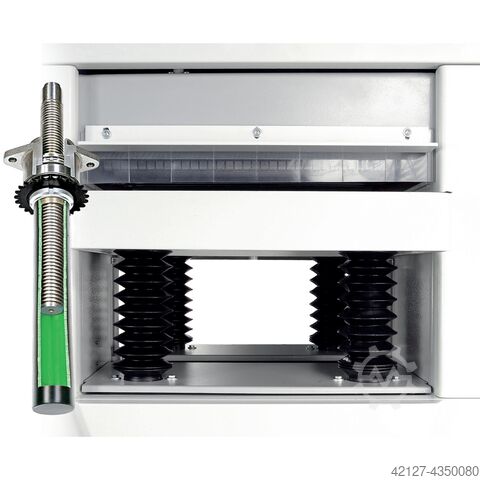

The thicknessing table is mounted on four large trapezoidal thread spindles for maximum stability and precision
Four feed speeds
Optional with two rollers in the thicknessing table
Noise and chip protection curtain at workpiece infeed and outfeed as standard
Bjdpfx Abjff Efaocolp
Adjustable roller contact pressure
Front infeed roller with helical toothing
Pull-out roller with rubber coating
Powerful industrial engine
Equipment details
Models TERSA with Tersa planer blade shaft
Planer blade change in seconds
When the machine is started, the planing knives are automatically clamped by centrifugal force - self-locking
The blade projection adjusts automatically without using setting gauges
Work table
The work table is supported on four large trapezoidal threaded spindles, which ensure maximum stability in all working conditions
With electrical table adjustment as standard
Due to the special lifting device, the table position is maintained even without locking

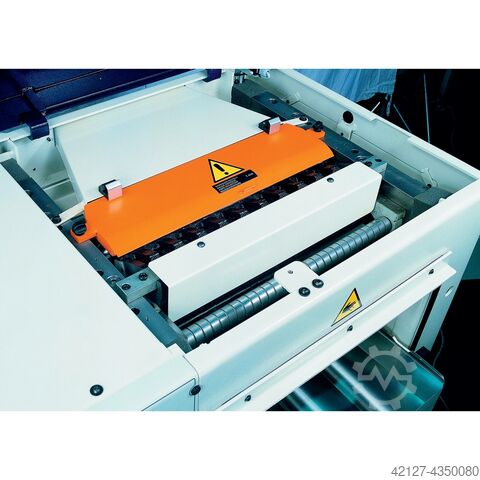

Helical toothed steel feed rollers for a constant and even wood feed
second, rubberized feed roller at the outlet
Massive recoil protectors prevent the recoil of workpieces
A 4-knife shaft ensures an optimal planing pattern
Dimensions and weights
Length approx. 1305 mm
width/depth approx. 1080 mm
Weight approx. 750 kg
Dust extraction connection
Suction nozzle diameter thickness 150 m

The listing was translated automatically. Translation errors are possible.
