Used door manufacturing machinery for sale (18)

Condition: used, Year of construction: 1980, Lock width xx mm Motor output 1,5 kW Second-hand machine Year of manufacture: 1980 Rcjdpfxszk N Aaj Ah Dof Features and technical specifications: - Lock case milling unit - Handle hole drill - Face milling cutter - 1.5 kW motor - 2,800 rpm Availability: at short notice Location: 63934 Röllbach

Condition: new, CNC machine Manufacturer: Comec Rcsdjzvfl Iopfx Ah Dsf Type: MD JAMB New machine 3 machining supports for cutting to miter angles, milling recesses for corner connectors, and door lock plates. A complete door frame element with decorative trim and rabbet trim is machined in a single clamping operation. This allows a complete door frame to be machined in approximately 2.5 to 3 minutes. The machining equipment can be individually adapted to customer requirements. Quick search Offer machines Sign up for newsletter Unsubscribe from newsletter Contact us Overview

Condition: used, Door panel postforming line Note: The line began series production in 2022; at this point, all machines were technically synchronized and, if necessary, overhauled. Door panel postforming line consisting of: Portal loading system Manufacturer: Kraft Year of manufacture: 2019 Technical data - with vacuum lifter - 2 infeed roller conveyors - one transport roller conveyor for further transport Wide belt sanding machine Manufacturer: Costa Type: KK7 CT CT 1350 Year of manufacture: 2018 Rcedpfozuziyox Ah Djf consisting of: Wide belt sanding machine, sanding from below Technical data - contact roller - electronic shoe sanding unit - cleaning brush - intermediate transport belt, length approx. 3000 mm Wide belt sanding machine, sanding from above Technical data - identical equipment Complete formatting, laminating and postforming line consisting of: Roller conveyor system Manufacturer: Kraft Year of manufacture: 2019 Technical data - 3 individual elements - centering station Double end profiler Manufacturer: IMA Type: FBA/II/740/A Year of manufacture: 2018 Technical data - equipped with infeed conveyor and aligning station - saw unit below - trimming unit - edge trimming unit - prism milling cutter - joint milling cutter - cross edge milling unit - 3 profile milling units - brushes Laminating line consisting of: Infeed conveyor Manufacturer: Kraft Year of manufacture: 2019 Glue application machine Manufacturer: Bürkle Type: DAK1300 Year of manufacture: 1992 Technical data - mechanically overhauled in 2018 - control system completely overhauled in 2022 - with infeed table, manufacturer Kraft - steel platform with stairs and various pumps - glue melting unit GWK Eco 03A Infeed table for laminating line Manufacturer: Kraft Year of manufacture: 2019 Laminating line Manufacturer: Bürkle Type: EKMH 1300 Year of manufacture: 1998 Technical data - new Siemens Simatic KMG Touch control system - Bürkle GLK press calender - incl. film holder and saw for overhang - working width 1300 mm - 2 temperature control units GWK - column swivel crane for loading paper rolls - extraction conveyor Postforming line Manufacturer: Homag Technical data - infeed table - with 2 saw units, horizontal and vertical - intermediate buffer with 4 levels - infeed to the postforming machine - 2 identically constructed processing sides with glue application - PU pre-melting unit Nordson / VersaBlue, year 2020 and 2004 - pressure zone with revolving magazine for various profiles - various milling units and flap brushes - 2 cooling units BEKO Bekoblizz LC, year 2020 Belt conveyor with inspection system - swivel arm with vacuum suction cup - inspection station for optical inspection of the workpiece Portal destacking system Manufacturer: Kraft Technical data - with vacuum portal and 3 destacking stations Note: The technical data and descriptions are copies of the original order confirmation. The information provided is for informational purposes only and is non-binding.

Condition: used, Door panel production line Note: The system started its series production in 2023; at this point, all machines were synchronized and overhauled as needed. Used door panel production line consisting of: Double-end profiler Manufacturer: Kraft Technical data - 2 scissor lift tables - 2 vacuum grippers - Infeed roller conveyor with belt conveyor - New Siemens touch control 13 roller conveyor elements Manufacturer: Kraft Technical data - Driven, approx. 3000 mm each Continuous insert material supply Special insert line HPL - Portal feeding system Manufacturer: Kraft Year of manufacture: 2023 Technical data - For singulating, aligning, and placing HPL Glue application machine Manufacturer: Bürkle Year of manufacture: 1990 Glue application machine Manufacturer: Kuper Year of manufacture: 2018 Lay-down table Technical data - Pneumatic fixing (centered on the center axis) - Device for automatic laying of battens - Fixed stop in the direction of travel, to the left of the timing belt conveyor - Positioning of the battens against the end stop for transfer with the suction system - Servo-motor driven and movable on the Y and Z axes - Uptake of the battens via a suction bar - Vacuum generation via ejector Stapling station Technical data - Servo-motor driven width adjustment of the stapling units, centered on the center axis - from min. 430 mm - max. 1,300 mm - 4 support brackets for holding the stapling components and guide units - 4 pneumatic guide units for holding the stapling units - and for the feed movement / pressure pad on the Z-axis - 4 feed slides with pneumatic pressure to fix the battens during stapling - 4 stapling units, manufacturer BEA - 2 pneumatic end stops Scoring saw Technical data - 2 units: Saw units at the top (right/left) - For creating ventilation slots - Mounted on a linear axis system for centering on the cutting width manually - Pneumatic feed of the saw units, sensing the center of the upper edge - Continuous multi-daylight press Manufacturer: Bürkle Optima 1428/50 Year of manufacture: 2017 Technical data - Start of series production in 2023 - 2 x 4 platens with a press area of 1400 x 2800 mm - With automatic feeder, manufacturer Bürkle - Removal device, manufacturer Bürkle Trimming station Technical data - For trimming overhanging edges on the top and bottom of the doors Buffer system Rjdpszuzh Aofx Ah Decf Technical data - For intermediate buffering of semi-finished door panels - Total length approx. 14,000 mm - Solid steel construction - Approx. 200 individual compartments Label printer Technical data - Automatic label printer for labeling in-line Storage and transport system Manufacturer: Kraft Technical data - Driven storage and transport roller conveyor - Roller width 1000 mm - Total length approx. 120 meters Note: The technical data and descriptions are copies of the original order confirmation. The information is provided for informational purposes only and is non-binding.

Condition: used, Year of construction: 1998, - Lengths: 1,800 - 2,300 mm Rodpfx Ahezuzgrs Docf - Widths: 500 - 1,300 mm - Thicknesses: 35 / 40 / 44 mm Door pressing system Manufacturer: Wild Year of manufacture: 1998 For door dimensions: - Lengths: 1,800 - 2,300 mm - Widths: 500 - 1,300 mm - Thicknesses: 35 / 40 / 44 mm Consisting of the following sections: 1. Continuous door panel gluing with frame assembly station / 2. Pressing line with hardboard facing station Section 1 consists of: - Gantry loading system - Angle transfer with longitudinal and cross saws - Loading and feeding of the longitudinal and transverse frame parts from magazines - Longitudinal cutting station for the longitudinal frame parts - Connecting station of the frame parts with the door panel core. With clamping devices - Conveyor belt angle transfer with shuttle transfer of the door panel cores onto the glued hardboard Section 2 consists of: - Loading of the hardboard - Brush cleaning machine - Hardener application machine from below - Glue application machine from below - Roller conveyor - Angle transfer for the lower hardboard - Vacuum reversing device for the upper hardboard - Automatic facing station for hardboard and door panel cores - 2 door presses, each with 2 x 4 pressing stations, arranged parallel to each other - Both presses are loaded at the infeed with 1 shuttle loading basket - Both presses are unloaded at the outfeed with 1 shuttle unloading basket - Angle transfer to the infeed into a hedgehog buffer - Angle transfer at the outfeed of the hedgehog buffer and feeding to the stacking station - One-sided vacuum stacking with protective plate space Note: The technical data and descriptions are a transcript of the original order confirmation. The data is for informational purposes only and is not binding.

Year of construction: 2006, condition: ready for operation (used), An inspection is possible. Rodpfx Ahjqvnmbs Decf

Condition: used, Year of construction: 2020, The Centauro Alfa NC is your go-to solution for comprehensive machining operations on doors and frames. Whether you're working on hinge recessing, lock slots, keep plates or 3-point locks, the Alfa NC is a versatile addition to any door and frame manufacturing process. With a solid track record of delivering reliable performance and exceptional results, this highly popular machine is trusted by industry leaders. Achieve perfect hinge placements with precise recessing operations, create exact lock slots and keep plates for secure installations, and manufacture intricate handle holes, key slots and euro grooves with ease. The Centauro Alfa NC is designed with user convenience in mind, with simple programming via the TOP12 graphic touch screen controller, allowing quick setup and easy adjustments with pre-installed macros, making it accessible for both experienced operators and newcomers to CNC machinery. Experience the difference in quality that this exceptional machine brings to your production line and join the many satisfied customers who trust the Centauro Alfa NC for their door and frame machining needs. Rcjdpfx Asy H Iq Reh Dof Specification: Axis capacity – X 2800mm – Y400 mm – Z 150mm X axis positioning speed 35 m/min Y and Z axis positioning speed 6m/min Maximum work table dimensions 3000mm x 618mm Main router head 3.3kw – rpm 0 to 18,000 – ER32 collet 2 x front pneumatic retractable positioning stops 2 x front support legs for doors Elco TOP 12 colour graphic touch screen controller CE side / rear safety guards with front light beam 2020 CE C/W Optional Extras: Y axis stroke 400mm in lieu of 180mm ISO 30 Quick change manual pneumatic toolchanger

Condition: ready for operation (used), Year of construction: 2006, A Reichenbacher CNC 5-axis twin-head machining center for the door manufacturing industry is available. Spindle power: 15kW, Speed: 24000rpm, Tool interface: HSK-F63, Tool positions: 60, Milling spindle spacing: 1040mm, Spindle housing dimension: 150mm, Travel X/Y/Z: 5100mm/2100mm/2650mm, Tool change stroke: 550mm, Max. travel speed X/Y/Z: 60m/min/90m/min/20m/min, Clamping beam speed: 40m/min. Vacuum support rails: 2, Vacuum cups: 2×30, Stop stroke: 150mm, Stop pin diameter: 30mm, Through-feed stop 1/2: 300mm/700mm, Max. veneer overhang: 5mm, Max. veneer thickness: 5.5mm. Workpiece length range: 800mm-3200mm, Workpiece width range: 600mm-1400mm, Workpiece thickness range: 38mm-72mm, Max. workpiece weight: 200kg. Chip conveyor belt width: 700mm, Infeed roller conveyor dimensions X/Y: 6000mm/1600mm, Outfeed roller conveyor dimensions X/Y: 6350mm/1600mm. Overall system dimensions X/Y/Z: approx. 18300mm/9750mm/3500mm, Machine dimensions X/Y/Z: approx. 4200mm/1600mm/3000mm, Machine weight: approx. 10500kg, Control system: Siemens Sinumerik 840D power-line. Including fully automatic infeed and unloading, 2×gantry cranes, safety equipment, various tools and a self-lowering roller table. This system was modernized in 2016. Documentation vorhanden. An on-site inspection is possible. Rcjdpfxezqu Hwo Ah Djf

Condition: repair required (used), functionality: limited functionality, Electronic depth gauge. Rcodpfezgbgcex Ah Djf

Condition: excellent (used), Year of construction: 1998, functionality: fully functional, Bacci Lignum horizontal drilling machine with oscillation, pneumatic table, adjustable Rcjdswyghbepfx Ah Djf

Condition: good (used), Code: 0253 Brand: LARI E LARI - ITALY Model: FR 20 - TA - CE Standard Working center for milling and boring on wood or plastic and composite materials, wooden doors, window frames - CE Standard Technical data: X-axis working stroke 3250 mm Y-axis working stroke with 90° cutter 130 mm Z-axis working stroke with 0° cutter 290 mm Z-axis working stroke with 90° cutter 175 mm X-axis working speed mt/min 40 Y-axis working speed mt/min 30 Z-axis working speed mt/min 30 Hinge boring inserting unit: Male/Female Speed control inverter Probe Tool holder collet ER 25 Power of anuba head drilling electric spindle 2,2 Kw Anuba head inclination -10 +90° Electric spindle for milling: 2,7 Hp at 18,000 rpm Collet chuck ER 32 Rcedpfox A Hdxjx Ah Dsf Variable speed via inverter Inclination from 0 to 90° for both vertical and horizontal machining Machine computer: numerical control - Windows XP operating system - color video - alphanumeric keyboard - USB port - interpolation Work table with 3 sliding clamps for locking workpieces Installed power 12 Kw Suction mouth diameter 120 mm Compressed air 7-8 bar Overall dimensions for transport mm 4100 x 1500 x 2100 h Machine weight 1400 kg Electrical panel 250 kg

Year of construction: 1990, condition: good (used), I sell the door production machine MAKA, year 1990. Combined oscillating mortiser and drilling machine. Redpegiwl Defx Ah Docf Available immediately

Condition: excellent (used), Line for door jambs (frames), with END-CUTTING, ROUTERING for COUNTER-PLATE and HINGE INSERTION (Anuba). Composed of: X10030A) Loading Conveyor Rjdpfxsqwycls Ah Dscf X10030B) Transfer Conveyor X10030C) Double-end cutting and drilling machine "AMS" - Left-side Cutting 45° - Drilling - Cutting 90° - Right-side Cutting 45° - Drilling X10030D) Angular Conveyor (90°) X10030E) Anuba Inserting Machine "MASTERWOOD" Mod. MULTITEC X10030F) Strike Plate Routering Machine "MASTERWOOD" Mod. Teknomat 3000

Condition: excellent (used), Year of construction: 2000, CHAIN MORTIZER for door production Max slot length : 300 mm Max slot depth : 170 mm Transversal head stroke : 100 mm Head tilting Chain engine : 5,5 Hp 2 x horisontal drills , Ø : 38 mm, CC distance : 75 mm Rodpfx Aeyryyajh Decf 2 x vertical drills : CC distance : 85 mm Pneumatic clamping.

Condition: excellent (used), Year of construction: 1995, upon request Rcodpsfxgmgofx Ah Dsf

Condition: excellent (used), Max workpiece length: 3600 mm Min workpiece length: 350 mm Max workpiece width: 200 mm Min workpiece width: 70 mm Max workpiece height: 100 mm Min workpiece height: 25 mm Total machine height: 1900 mm Minimum worktable height: 950 mm Worktable guide length: 4000 mm Redsxvmttepfx Ah Decf Worktable guide width: 170 mm Total saw blade unit guide length: 110 mm Max table stroke: 110 mm Max drill head stroke: 150 mm Number of drill spindles: 5 pcs (spacing 32 mm) Saw blade diameter: 350 mm Drill head motor: 2 x 1.5 HP Saw blade motor: 2 x 3 HP

Condition: excellent (used), Year of construction: 2006, CNC WORKING LINE FOR DOOR FRAMES, comprising: 1 HORIZONTAL LOADING TRANSFER MOTORIZED, model 0190 T.C Loading buffer with horizontal transversal belts and motorized rollers with variable speed control. 1 gasket insertion unit on a horizontal groove, consisting of: - 2 motorized gasket roll holders - 1 pressure roller insertion unit - 1 cutting unit positioned near the end of the profile 1 cutting/drilling machine for finished cuts, model 01TFRD SPECIAL, referencing the upper workpiece. Suitable for cutting, drilling, milling, and hinge (anuba) insertion on door jambs. MACHINE CONFIGURATION: Worktable constructed of a solid steel frame, with a fixed left section and a movable right section. Electronically controlled positioning system, supporting a total of 6 machining units: 2 on the right, 2 on the left, and 2 on the upper bridge. 1 CENTRAL MOTORIZED SHUTTLE with CNC control for milling the ends of jambs. 1 HORIZONTAL RADIAL CUTTING STATION, 0-45°, quick tilting with selector, featuring 2 groups (one per side). Each side with its own motor, including a timed entry system to prevent double cutting positions. Cutting motor power: 5 HP – 3000 rpm – inverter-controlled. Cutting blade bore: 30 mm. Saw blade diameter: 370 mm. Adjustable extraction hoods and safety guards. 1 HORIZONTAL HEAD DRILLING STATION 0-45°, fast vertical tilt with selector, with 2 groups (right and left). 2 HP motor, 3000 rpm. 7-spindle drilling head with 32 mm pitch. Individually selectable spindles. Groups travel on linear guides for increased speed and drilling accuracy, with longitudinal and vertical adjustment capability. Rjdpfx Ahjygcmfe Docf 1 UPPER VERTICAL ROUTING (PANTOGRAPHING) STATION, on a transverse bridge, with 1 motor for counterplate slotting, 2 HP, 12,000/18,000 rpm. Vertical, horizontal, and depth (x-y-z axis) movements are CNC-controlled, utilizing precision linear guides and recirculating ball carriages. Equipped with tool holder collet. 1 HORIZONTAL ANUBA DRILLING STATION, with 1 CNC-positioned motorized unit moving in conjunction with the router. Includes a drilling unit, custom Anuba inserting unit, and custom Anuba feeder with approx. 35 piece capacity (depending on Anuba diameter). 1 LINE CONTROL COMPUTER Capable of importing data (CSV or ASCII) via MMC (Memory Card). Note: The imported data will be used for automatic positioning and execution of processing steps as per the job list. Workpiece dimensions: Minimum length: 580 mm (45° internal for frame) Maximum length: 3000 mm (45° external for frame) Minimum thickness: 30 mm Maximum thickness: 60 mm Minimum width: 75 mm Maximum width: 300 mm

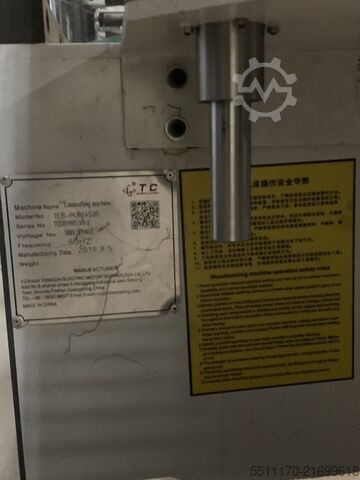

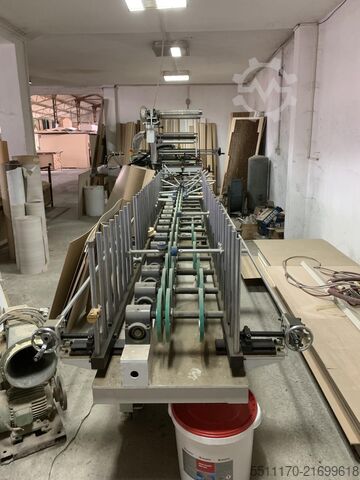

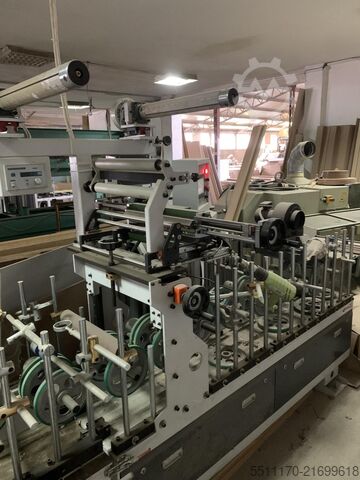

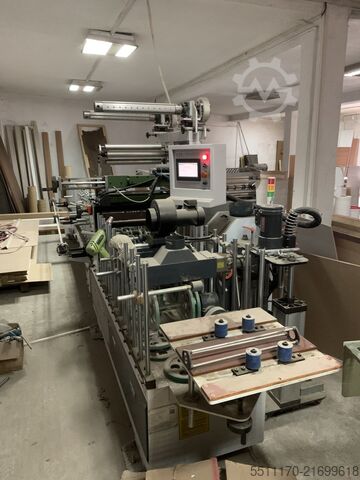

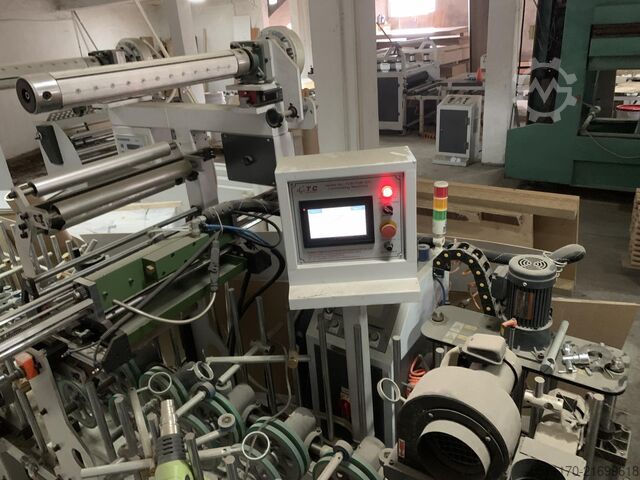

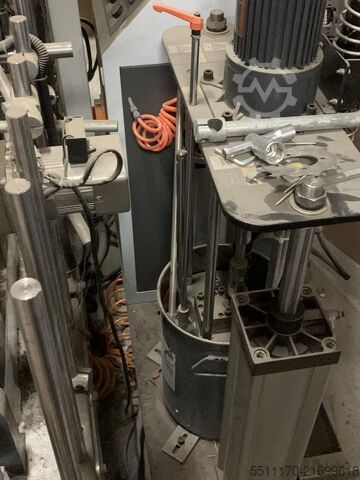

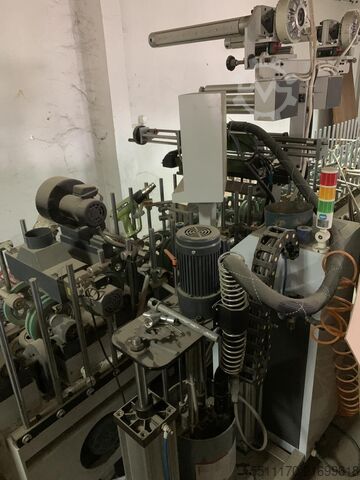

Condition: like new (used), Year of construction: 2019, functionality: fully functional, Barberan laminating machine for door frames Rcsdpfx Asy Aibcsh Dof
