Coordinate measuring machine

Zeiss SMM

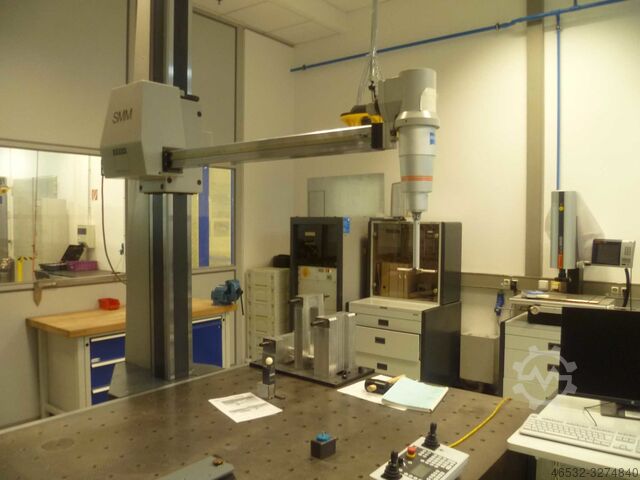

Year of construction: 1999, condition: good (used), Technical data Type: SMM-D Manufacturer company: ZEISS Type of construction: single- and multi-pedestal design Drives: Highly dynamic DC servo drives, electronically monitored in all axes Control system: Multi-microcomputer system with 3-axis vector control for optimum control behaviour 4th and 5th axis rotary-pivot device DSE 05 Control panel for operation at remote measuring location Manual control of measuring device and DSE 05 via control lever with progressive characteristic, switchable to creep speed Protection class IP 54 for control and operating panel Display of the workpiece or device coordinates by display on the control panel or via the screen on the computer Measuring plate X = 16000 mm Y = 6100 mm Measuring volume X = 8000 mm Y = 3100 mm Z = 2700 mm Scanning head rotary swivel unit DSE 05 Motorized rotation in two orthogonal axes by +- 180° each Incremental measuring system with 0.5* resolution Angular speed up to 40°/second Angular position deviation +- 3 max. Torque: 140 Nm Max. Sensor weight: 1000g Repeatability <=1µm/200mm Performance data Length measuring systems: electro-optical incident light system, resolution 1µm Travel speed: Automatic mode: 0 - 150 mm/s set-up mode: 0 - 80 mm/s Installation and commissioning by our service partners possible. Price: on request Nsdpecilvvsfx Aaxecl We will be happy to provide you with a detailed offer. Note: Our offer is directed at

Condition: refurbished (used), Used modernised 3D CNC coordinate measuring machine. ZEISS Prismo 16 - second-hand system Equipment freely selectable . . Measuring machine in moving portal design Granite table Equipment can be arranged individually to your requirements. Further details on request Measuring range X =1600 mm - Y = 3000 mm - Z = 1000 mm Measuring accuracy: depending on the selected measuring system Price: on request - please let us know your equipment requirements ᐳᐳᐳ Single item - as long as available ᐸᐸᐸ Nodpfx Aewptpksaxjcl Pease ask for our detailed offer. Of course, we provide all services such as installation, maintenance, service, training. Programming etc. as for a new machine

Condition: good (used), Technical data Technical data coming soon. The machine can be upgraded to customer specification with new software. Price: On request! Setup and commissioning possible! We can make you a detailed offer! Note: Our offer is aimed exclusively at professionals! Ncedpjdl Hdmjfx Aaxsl (Changes and errors in the technical data, information and prices and subject to prior sale!)

Year of construction: 1998, condition: excellent (used), Technical data Manufacturer: ZEISS / Stiefelmayer Year of construction: 1998 Manual double stand measuring system Measuring plate is centered Measuring plate X = 5000 mm Y = 2620 mm Measuring range X = 4400 mm Ncsdpfx Aaod Adx Sjxsl Y = 1200 mm Z = 1800 mm The machine can be upgraded to customer specification with new software. Price: On request! Setup and commissioning possible! We can make you a detailed offer! Note: Our offer is aimed exclusively at professionals! (Changes and errors in the technical data, information and prices and subject to prior sale!)

Year of construction: 1999, condition: excellent (used), Technical data Manufacturer: Carl Zeiss Type: Carmet CNC RDS Duplex Year of construction: 1999 Measuring plate X = 6000 mm Y = 3000mm Measuring range X = 5000 mm Y = 2600 mm Z = 2100 mm Equipment Ncjdofgumcepfx Aaxol C99 (current Zeiss control) RDS turn-and-pivot head for TP Control panel Dynalog The machine can be upgraded with new accessories according to customer requirements. Price: on request! Assembly and commissioning possible! We would be happy to provide you with a detailed offer! Please note: Our offer is directed exclusively to professional customers! (Changes and errors in the technical data, information and prices as well as prior sale reserved)

Year of construction: 2000, condition: excellent (used), Technical data Manufacturer: ZEISS Type: SMM-C Nsdpfef S A Afsx Aaxocl Year of construction: 2000 Double-Station CMM Measuring range X = 6000 mm Y = 2 x 1100 mm Z = 2400 mm Equipment Control C99 The machine can be modernized with new accessories according to customer requirements. Price: on request! Installation and commissioning possible! We would be happy to provide you with a detailed offer. Please note: Our offer is directed exclusively to professional customers. (Changes and errors in the technical data, information and prices and subject to prior sale)

Year of construction: 1996, condition: used, Technical data Horizontal type Joint plate, but both measuring arms run in single-stand operation SMM1, serial No. 7057760595(1), year 1995 SMM2, 96346 serial number, year of manufacture 1996 Measuring plate X = 3500 mm Nedpfx Aodtf I Hjaxjcl Y = 2000 mm Measuring volume SMM1 X = 2500 mm Y = 1600 mm Z = 1800 mm Measuring volume SMM2 X = 2500 mm Y = 1200 mm Z = 1500 mm Software 1 x, Holos CNC dongle operated Prof license light, extended and geo with Windows 7. 2 x interface licenses HOLOS QS-STAT 2 x control software CMM OS CNC 5-axis units The machine can be upgraded to customer specification with new software. Price: On request! Setup and commissioning possible! We can make you a detailed offer! Note: Our offer is aimed exclusively at professionals! (Errors and omissions in the technical data, information and prices and subject to prior sale!)

Year of construction: 2004, condition: good (used), Technical data Type: Pro Select Manufacturer: Zeiss Year of manufacture: 2004 The machine can be equipped with new software and control system according to customer requirements. Measuring range X = 14000 mm Y = 3080 mm Z = 3000 mm Measurement inaccuracy U3 Duplex=(68+L/35)µm <= 150µm Probe Probe: Renishaw MIH Renishaw TP 6 probe Software - Equipment Holos NT 2.4.22 On customer request the machine can be equipped with new software Other Double-ender system Installation and commissioning by our service partners possible. Ncjdpfeb Twi Nex Aaxjl Price: on request We will be happy to provide you with a detailed offer. Note: Our offer is aimed exclusively at professional customers. (Changes and errors in the technical data, specifications and and prices as well as subject to prior sale)

Year of construction: 2001, condition: excellent (used), Technical data Manufacturer: ZEISS / Stiefelmayer Type: SMM C Year of manufacture: 2001 Measuring range X = 12000 mm Y = 2 x 1400 mm Z = 2100 mm Njdpfxeiwurcj Aaxjcl Measurement uncertainty U3 = (50 + L/40) µm

Condition: good (used), machine/vehicle number: 565301951 / 565201951, Accessories Nedpfxsdfddze Aaxscl Actuators BWF SII 40 pieces Measuring system Renishaw Measuring plate 1 X = 8100 mm Y = 1750 mm Z = 300 mm Measuring plate 2 X = 8100 mm Y = 2000 mm Z = 300 mm Measuring volume X = 7300 mm Y = 1600 mm Z = 2800 mm The machine can be upgraded to customer specification with new software. Price: On request! Setup and commissioning possible! We can make you a detailed offer! Note: Our offer is aimed exclusively at professionals! (Changes and errors in the technical data, information and prices and subject to prior sale!)

Year of construction: 1999, condition: excellent (used), Technical data year of construction 1999, modernized to CNC capability in 2005 1 pair of stands Plate is one-piece and inherently rigid Total weight: approx. 12t max. axial speed: 150 mm/s Measuring plate X = 7000 mm Y = 2850 mm Z = 600 mm Measuring volume X = 6200 mm Y = 1600 mm Z = 2100 mm Measurement accuracy Test report dated 20.04.2017: E = 50 + 40 µm/m, max. 120 µm EM = 70 + 40 µm/m , max. 140 µm P = 50µm Accessories Control panel Dynalog P2 incl. stand Nsdeff Eaqspfx Aaxscl Control C99 2 RDS CAA Panheads with CAA File 2 sets of RDS plates Zeiss RST connection Miscellaneous Holes for staking out system: several fitting holes Ø 22 mm in rows Y+- 300 in 300 mm increments in rows Y+- 700 and Y+- 900 in 200 mm increments Electrical supply machine: 230 V System requires 6 bar compressed air The machine can be upgraded with new software according to customer requirements. Price: on request! Assembly and commissioning possible! We would be happy to provide you with a detailed offer!

Year of construction: 1999, condition: excellent (used), machine/vehicle number: 105220 / 105221, Technical data Manufacturer: ZEISS & Stiefelmayer Type: SMM C Year of construction: 1999 Measuring plate Length = 6000 mm width = 2500 mm Weight = approx. 10 t Equipment 2 SMM stands incl. RDS heads Njdpfofrbg Isx Aaxjcl Control cabinets 2 ZEISS Dynalog P3 control panel Climbing aid left and right The machine can be upgraded with new accessories according to customer requirements. Price: on request! Installation and commissioning possible! We would be happy to provide you with a detailed offer. Please note: Our offer is directed exclusively to professional customers. (Changes and errors in the technical data, information and prices and subject to prior sale)

Year of construction: 1999, condition: excellent (used), machine/vehicle number: 105220 & 105221, Technical data Manufacturer: ZEISS Type: SMM-C Year of manufacture: 1999 Double stander CMM Machine number: 105220 & 105221 Measuring plate Stiefelmayer measuring plate X = 6000 mm Y = 3000 mm Ncedpfx Aajgi D Nlexsl Equipment ZEISS control system year of construction 2007 The machine can be modernized with new accessories according to customer requirements. Price: on request! Assembly and commissioning possible! We will be happy to provide you with a detailed offer. Note: Our offer is directed exclusively at specialist customers. (Changes and errors in the technical data, information and prices as well as and prices as well as subject to prior sale).

Year of construction: 1983, condition: excellent (used), Equipment Touch probe: ZEISS RDS (touch trigger, continuous rotary/swivel unit) CNC control 16Bit Probe changing device: optional Ncodpfxeff Ea Ds Aaxol Optional various probes on measuring machine The machine can be upgraded with new software according to customer requirements. Measuring range X = 4000 mm Y = 2000 mm Z = 2100 mm Price: on request! Assembly and commissioning possible! We would be happy to provide you with a detailed offer! Please note: Our offer is directed exclusively to professional customers! (Changes and errors in the technical data, information and prices as well as prior sale reserved)
