Used Frigoscandia Tunnel Freezer for sale (8)

Condition: good (used), functionality: fully functional, Frigoscandia FloFreeze MX62 IQF tunnel freezer in good condition, operating on NH3 (ammonia). Suitable for rapid, individual quick freezing of products such as vegetables, berries, shrimp, and pasta. Supplied complete with infeed/outfeed systems, shaker, optional glazing conveyor, evaporators, control cabinets, Danfoss frequency converters, and Siemens TP1200 Comfort HMI (upgraded in 2020). Products are placed on the infeed shaker (approx. 1200 mm high), where they are separated and desticked. They are then transported into the freezer via a blue plastic conveyor belt. The belt is approximately 7400 mm long and 1190 mm wide, featuring a lowering mechanism that redistributes products and removes ice. The discharge height is 912 mm. The optional Innotec Systems glazing belt can apply a protective ice coating. The MX62 is equipped with two NH3 evaporators and six centrifugal fans, each driven by an ABB M2AA160MA-2 motor (50 Hz, 13.2 kW, 2897 rpm). Cold air is blown up through the conveyor to prevent product sticking. The evaporators can be defrosted with hot air via spray nozzles. The freezer is fitted with three inspection hatches. Includes the original control cabinets with frequency converters and Siemens control system. The FloFreeze MX62 specifications: - Dimensions: 7400 x 4700 x 3000 mm (L x W x H) - Effective belt length: 7400 mm - Effective belt width: 1190 mm - Infeed height: 1200 mm - Discharge height: 912 mm Tunnel freezer capacity (examples): Product: Green peas - Capacity: 3,600 kg/h - Infeed temperature: +10°C - Discharge temperature: -18°C - Evaporator temperature: -40°C Product: Cauliflower - Capacity: 2,520 kg/h - Infeed temperature: +10°C - Discharge temperature: -18°C - Evaporator temperature: -40°C - Piece size: 25 to 40 mm Product: Tomatoes - Capacity: 1,440 kg/h - Infeed temperature: +10°C - Discharge temperature: -18°C - Evaporator temperature: -40°C - Piece size: approx. 30 mm Product: Strawberries - Capacity: 2,520 kg/h - Infeed temperature: +10°C - Discharge temperature: -18°C - Evaporator temperature: -40°C - Piece size: 25 to 35 mm Product: Potatoes - Capacity: 1,800 kg/h - Infeed temperature: +10°C - Discharge temperature: -18°C - Evaporator temperature: -40°C - Piece size: approx. 25 mm Product: Meat - Capacity: 2,340 kg/h - Infeed temperature: -3°C - Discharge temperature: -18°C - Evaporator temperature: -40°C Ledpfxexz Eace Am Toac - Piece size: cubes of 20 mm

Condition: used, functionality: fully functional, The FRIGOSCANDIA FF-2-RMA IQF (Individual Quick Freezing) tunnel freezer is a continuous freezing system designed for food products that require individualized quick freezing, such as seafood, fruit, vegetables, sliced meats or pre-cooked products. Its linear design with forced air flow guarantees homogeneous cooling, avoiding block formation and preserving product quality. Applications: Fishing industry: Shrimps, prawns, fish fillets, mollusks. Fruit and vegetable industry: Whole or chopped fruit, vegetables, pulses. Meat and meat preparations: Meatballs, chicken strips, vegetable burgers. Precooked products: Pasta, rice, ready-to-cook mixes. Production depends on the product, in peas for example it would give: 850 kg/h. Inlet temperature: +15ºC Lajdpfxown Hd Sj Am Toc Outlet temperature: -18ºC Production may vary depending on the product.

Condition: good (used), Tunnel for sale – The self-stacking spiral freezer Frigoscandia GYRoCOMPACT is the most compact, hygienic, and efficient spiral freezer. Lajdpfx Amow Tc Iis Tec

Condition: excellent (used), Frigo GYRoCOMPACT 600 Classic spiral freezer, 34 tiers. Had only run for 14,000 hours when the factory closed. Beautiful condition. North South configuration. 34 tiers, 80mm tier height so perfect for burgers, sausages, chicken nuggets, fish fingers, spring rolls, hash browns etc. Laodpfx Ajwztmaom Tec

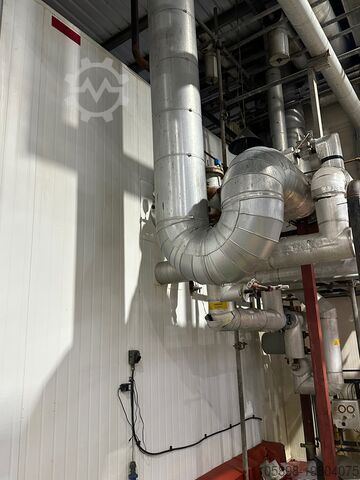

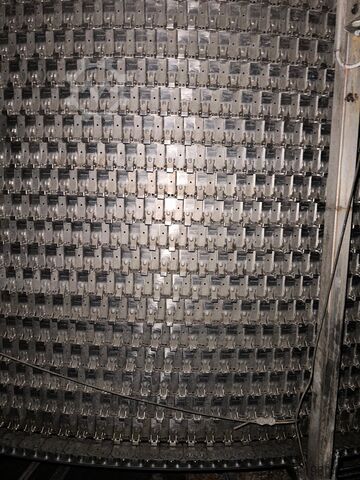

Condition: good (used), Large Frigoscandia GC92 spiral freezer available for sale. 880mm wide self stacking belt, 65mm product height. 22 tiers Laodpjw Rn Snofx Am Tsc Enclosure footprint 10m x 8.2m. Has had new belt and rebuilt control panel (Mitsubishi screen) for a factory upgrade and not used very much since. Photos to follow.

Condition: used, Spiral Freezer Frigoscandia GyroCompact GCA76A-6-20-15 // 20 Layers // Effective Belt Width: 720 mm // Belt Width: 760 mm // Product Clearance: 50 mm // Belt lenght: 236 mtr. // Stainless steel mesh FRIGoBELT Laedpferlk Injx Am Tjc

Condition: used, Year of construction: 1993, operating hours: 48,000 h, Self-stacking spiral freezer belt, Frigoscandia FRIGoBELT - replaced in 2010 Link height: 80mm / max. product height: 65mm / Net belt width: 580mm / Belt width between infeed covers; 535mm / belt stack with 24 tiers / Belt mesh: M13-1.5 / 24 tiers (possible to put more tiers) Layout N-S CCR Evaporators SS/AL / number of coils: 1 / number of fans: 2 Standard -replaced in 2011 CIP belt cleaning system Enclosure: W/W (white inside and white outside) - replaced in 2010 Chain, balls and plastic guides replaced in 2017 Lajdpfxevf Iuze Am Tsc Refrigerant: ammonia / refrigeration: R717 Max total heat removal 252 kW/h ProCare service till 2018 Documentation available Stop running in 2018 Possibility of dismantling and preparation for transport for an additional fee

Condition: excellent (used), Year of construction: 2016, Evaporators SS/AL (Sequential Defrost) / number of coils: 3 from M7 freezing tunnel Refrigerant: CO2 Unit name: 3xGCO K/16/16/.../2920/G/V/V/3 Unit serial number: 404429274/32.01317 Ljdpfxex H Sacj Am Toac Volume (V): 284,9 l Year of manufacture: 2016
