Ardekas UAB

Condition: good (used), Year of construction: 2016, KEY ADVANTAGES • Hybrid printing system combining offset and flexographic printing • Large printing width of 670 mm for versatile label and packaging formats • Wet-on-wet offset technology for excellent print quality • Flexographic units for coatings, varnishes, and special applications • Explosion-proof flexographic units suitable for solvent-based applications • Automatic print register ensuring high production accuracy Typical applications include: • Pressure sensitive labels • Wrap-around labels • Shrink sleeve labels • Flexible packaging • Laminated packaging materials _____ TECHNICAL DATA Manufacturer Omet Model Varyflex V2 670 Year of manufacture 2016 Printing width 670 mm Machine type Hybrid printing press (offset / flexo) Dusdpfx Aeytgt Neb Dsp Current counter approx. 27,500,000 linear meters Machine condition In production Location Europe _____ CONFIGURATION • Unwinder 1000 mm unwinder Double-sided corona treatment Double-sided web cleaning system Printing system • Offset units 5 wet-on-wet offset printing units Flexographic units • 1 flexo unit with cooled UV curing cylinder • 1 flexo unit with cooled UV curing cylinder • 2 vertical flexo units with cooled cylinders • UV or hot air drying system • Explosion-proof enclosure Drying system • Cooled dryer cylinder with two UV lamps Additional equipment • Web reversing unit • Automatic print registration system _____ MACHINE CONDITION • Machine currently in production • Well-maintained industrial printing equipment • Inspection possible by appointment • Reliable system suitable for continuous industrial production _____

Condition: good (used), Year of construction: 2010, Omet Varyflex VF-670 F1 Year of manufacture 2010 Printing width 670 mm Machine type Flexographic printing press with UV curing Machine condition In production Location Europe _____ CONFIGURATION Printing units 10 flexographic printing units UV curing system 11 UV lamps – 12 kW each Drying system Cooled UV drying cylinders Explosion protection Stations 1, 6, 7, 8, 9, and 10 equipped with explosion-proof protection Air drying system Air drying for stations 6 – 10 Printing registration Automatic register control Ink system Automatic ink viscosity control system for stations 1 and 6 – 10 Dusdpfx Asytgtijb Djp Reverse printing Mobile reverse printing unit Unwinder 1000 mm diameter Web treatment Double-sided corona treatment Web cleaning Double-sided web cleaning system _____ MACHINE CONDITION • Machine currently in production • Well-maintained industrial printing equipment • Inspection possible by appointment • Reliable production system, ready for immediate use _____

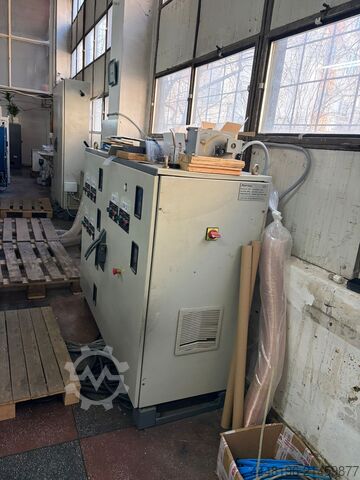

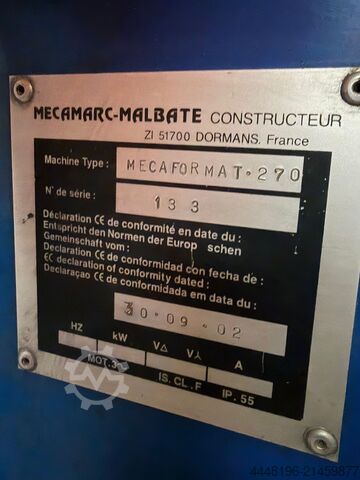

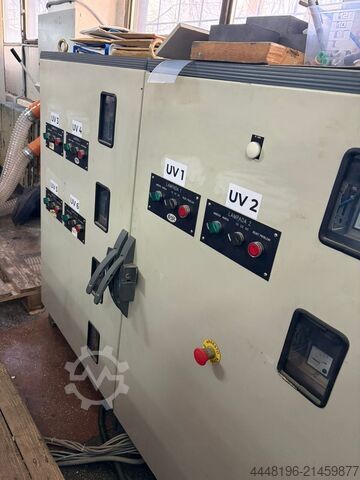

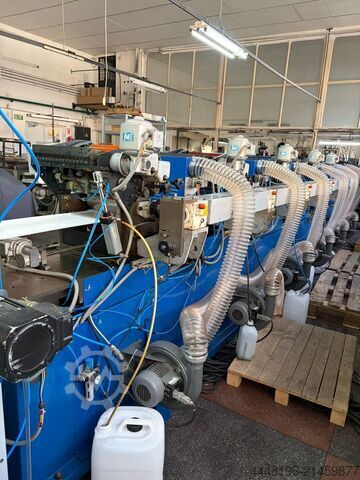

Condition: excellent (used), Year of construction: 2002, functionality: fully functional, machine/vehicle number: 133, product width (max.): 270 mm, working width: 270 mm, type of input current: three-phase, Equipment: documentation/manual, MALBATE Mecaformat 270 semi-rotary flexo printing machine. 5 colour units + 1 unit for varnish + rotary magnetic die-cutting. UV drying – 6 drying units. The machine is in production. Inspection can be scheduled by appointment. Dedeyr R Sgspfx Ab Dsup

Condition: ready for operation (used), functionality: fully functional, machine/vehicle number: uz 4386, Industrial Flexo Printing Machine for Sale Brand: Bielloni Castello S.p.A. Model: SABA 1413 Origin: Italy Duedpfeyr Rvlsx Ab Dsp Technical Specifications 6-Color CI Flexo Printing Machine Central Impression Drum (CI) Repeat Range: 380 – 700 mm Anilox Rollers: 10 pcs included Voltage: 380 V Frequency: 50 Hz Installed Power: 154 kW Machine Condition Machine is in working condition Currently available for inspection Well maintained during production Applications Suitable for: Flexible packaging Plastic film printing Food packaging materials 📍 Location: Turkey 💰 Price: On request / Negotiable

Condition: ready for operation (used), functionality: fully functional, machine/vehicle number: uz 4386, Industrial Flexo Printing Machine for Sale Brand: Bielloni Castello S.p.A. Model: SABA 1413 Origin: Italy Technical Specifications Djdpeyr Ru Iefx Ab Deup 6 Color CI Flexo Printing Machine Central Impression Drum (CI) Repeat Range: 380 – 700 mm Anilox Rollers: 10 pcs included Voltage: 380 V Frequency: 50 Hz Installed Power: 154 kW Machine Condition Machine is in working condition Currently available for inspection Well maintained during production Applications Suitable for: Flexible packaging Plastic film printing Food packaging materials 📍 Location: Turkey 💰 Price: On request / Negotiable

Condition: ready for operation (used), functionality: fully functional, machine/vehicle number: uz 4386, Industrial Flexo Printing Machine for Sale Brand: Bielloni Castello S.p.A. Model: SABA 1413 Origin: Italy Technical Specifications 6 Color CI Flexo Printing Machine Central Impression Drum (CI) Repeat Range: 380 – 700 mm Anilox Rollers: 10 pcs included Voltage: 380 V Frequency: 50 Hz Installed Power: 154 kW Duedpfx Absyr Ruus Dep Machine Condition Machine is in working condition Currently available for inspection Well maintained during production Applications Suitable for: Flexible packaging Plastic film printing Food packaging materials 📍 Location: Turkey 💰 Price: On request / Negotiable

Condition: ready for operation (used), Year of construction: 1999, operating hours: 35,600 h, functionality: fully functional, machine/vehicle number: uz 4386, product width (max.): 1,200 mm, working width: 1,200 mm, roll width: 800 mm, Industrial Flexo Printing Machine for Sale Brand: Bielloni Castello S.p.A. Model: SABA 1413 Dedpfx Abjyr Ruhj Doup Origin: Italy Technical Specifications 6-Color CI Flexo Printing Machine Central Impression Drum (CI) Repeat Range: 380 – 700 mm Anilox Rollers: 10 pcs included Voltage: 380 V Frequency: 50 Hz Installed Power: 154 kW Machine Condition Machine is in working condition Currently available for inspection Well maintained during production Applications Suitable for: Flexible packaging Plastic film printing Food packaging materials 📍 Location: Turkey 💰 Price: On request / Negotiable

Condition: like new (used), Offer for COMEXI FP flexographic printer, 8-color gearless, 1200 mm width, with updated SIEMENS SIMATIC electronics in 2017 Djdpfoyrz Ekox Ab Deup

Condition: excellent (used), Year of construction: 1995, functionality: fully functional, working width: 1,400 mm, FLEXO PRINTER SCHIAVI ARIES 6 COLORS Geared central drum flexo printer 6 colors Materials that can be printed plastic films and paper Max. printing width 1400 mm Print repeat min/max 320/1080 mm Automatic turret rewinder Drying unit by gas Dusdpfx Abjyrnmus Dsp Equipped with sleeves and aniloxes Year 1995

Condition: used, Year of construction: 2016, General technical data: Machine type: Flexographic printing press Web width: 430 mm Number of colors: 6 Equipment & Configuration: • 1-side tape cleaner • 1-side corona treatment • 3 die-cut stations Djdpfxoyn Sb Us Ab Dsup • 2 gap master units • Delivery: reel or sheet with folding table • 6 UV IVT lamps • Turning bar • Delam/Relam unit – 1 color • 3 sets of sleeves • 6 anilox rollers • 3 magnetic cylinders

Condition: used, Year of construction: 2014, functionality: fully functional, EVO System all-in-one washing line, currently in use in our plant, year of manufacture: Dec 2014 Max plate dimensions: 132x203.2 cm Touchscreen for automatic/manual control 8 independent automatic drying drawers UVA exposure system 8 drawers for stacking Total dimensions: Washout unit: 426 x 227 x 167 cm (167.7 x 89.4 x 65.7”) Exit table for plate: 274 x 227 x 167 cm (107.8 x 89.4 x 65.7”) Dryer: 277 x 228 x 227 cm (109 x 89.7 x 89.3”) Dujdpfx Abjymyhys Djp Exposure/Stacker: 458 x 228 x 227 cm (180.3 x 89.7 x 89.3”)

Condition: excellent (used), Offer for UTECO ONYX GO flexo press, year 2024, 1300 mm width, like new, very little use Dusdpfx Aboymwkro Dsp

Condition: excellent (used), Year of construction: 2012, functionality: fully functional, product width (max.): 433 mm, working width: 430 mm, • 8 UV printing units • 2 rotary top loading die-cutting units Dedpfjymr Sqox Ab Dsup • Waste shaft with additional pressure roller • GEW UV curing system • 2 additional hot air curing units • Sensotec printing register system • Insetting system • Cooled anvil drums • 2 rail-mounted cold foiling or laminating sections with interchangeable positions • Aditional Oil-heated rotary Hot-foil unit • Belt Conveyor for sheet output • Automatic sheet collection and stacking table/elevator • Splise recognition sensor • Web breakage sensor • End of the roll sensor • Erhardt+Leimer Web guiding system • TekNek web cleaning unit • Slitting knives • Rotary Embossing Cylinder 31 anilox roller 550 aluminium printing cylinders 13 magnetic cylinders 3 cross cutting cylinders

Condition: good (used), Year of construction: 2005, Printing width: 1050 mm Material width: 1100 mm Print repeat: 350 – 750 mm Mechanical speed: up to 400 m/min Materials: PE, PP, OPP, PET, Paper Unwinder: Dodpfx Aoymdatob Deup • Turret unwinder, non-stop • Max. roll diameter: 1000 mm • Expanding shafts: 3”, 5” Winder: • Double unwinding shaft with dancing rollers • Max. roll diameter: 1000 mm • Expanding shafts: 3”, 5” Drying System: • Gas drying Inking System: • 10 pneumatic pumps Control & Equipment: • Motorized longitudinal register • Doctor blade system • Video system: BST • Web guides before CI and before winder • Dancing rollers system • New BST IPQ print control/view system (installed 2023) Retrofit (2022): • Main OCS computer replaced • Valve island for CI replaced • Valve island for winder and rewinder replaced

Condition: good (used), Year of construction: 2000,  Printing technologies installed: • 3 x Flexographic printing units • 3 x Screen printing units • Gravure capability (cylinder formats available) Maximum mechanical speed: 150 m/min Maximum web width: 417 mm Minimum web width: 166 mm Maximum print width: 407 mm Substrate thickness range: approx. 0.008 – 0.18 mm  Repeat ranges Flexo: 228.6 mm (Z72) up to 609.6 mm (Z192) Screen: 269.875 mm (Z85) up to 533.4 mm (Z168) Gravure: 304.8 mm (Z96) up to 609.6 mm (Z192)  Die Cutting Section Flat die cutting: Die cutting width: 407 mm - Repeat: 254 mm (Z80) up to 609.6 mm (Z192) Rotary die cutting capability installed. Unwind / Rewind Section Unwinder: • Martin nonstop unwinder • Core diameters: 76 / 152 mm • Maximum unwind diameter: 1000 mm • Maximum roll weight: approx. 485 kg Dujdpfx Abjylypuo Dop Rewinder system installed. Electrical Data Nominal current: 500 A Connected load: 275 kW General Condition The machine is designed for web label production and represents a robust hybrid combination press with flexo and screen printing capability. The press is available for inspection by appointment.

Condition: used, Super offer: COMEXI FP 1808 flexo press, 8 colors, with gears, year 1998, 1200 mm width Dusdpfx Ajyky Twjb Dsp

Condition: excellent (used), Super offers on flexo KBA EVO XD 8 Colors gearless from 2018 with 1300 mm working width Duodpfx Abjyky Sae Djp

Condition: excellent (used), Offer for COMEXI F4 gearless flexo press, 8 colors, year 2015, 980 mm web width Dujdpfx Aeyknc Hsb Dop

Condition: used, Control system retrofit: 2016 • 8 flexographic printing units • Dual-drive system on all print stations • Maximum print width: 250 mm • Motorized remote-controlled longitudinal and lateral register adjustment • Register control system for up to 10 stations (Sensotec) Die-Cutting & Converting • 3 die-cutting stations - 2 stations equipped with adjustable counter-pressure cylinders (Spilker Variabase) • Additional counter-pressure cylinders for thin and thick substrates • Slitting and rewinding options for roll-to-roll and single-label output • Discharge conveyor for single labels • Traction unit between printing and converting sections • 2 nip rollers Anilox & Ink Systems • 46 anilox rollers for various applications • 4 chambered doctor blade quick-change systems • Complete with peristaltic pumps • 16 doctor blade holders • Ink circulation and control suitable for flexographic inks • Insert register control for pre-printed rolls Additional Printing & Finishing Units • Screen printing unit • Reversing station mounted on rail system • Lamination unit mounted on rail system • 3 lattice rewinders mounted on rail system • Additional lattice rewinder • BG 74 infeed rewinder Drying & Surface Treatment • 8 UV curing units Uviterno • Output: 240 W/cm • Includes spare lamps and accessories • Corona treatment unit: 1 kW • Web cleaning system: Teknek • Complete anti-adhesive roller equipment Web Handling & Control • Web edge guiding system: Erhardt + Leimer - 2 ultrasonic sensors - 1 line sensor • BST video inspection system • Tension control station between printing and converting sections • Double-spindle rewinder for roll-to-roll operation Auxiliary Equipment & Tooling • Worktable with shelving and drawer systems for: - Tools - Anilox rollers - Magnetic cylinders Duodpfx Abjyi Aclo Dop - Accessories • Various spare parts and accessories

Condition: used, Year of construction: 2005, Web width: 330 mm 6 x flexographic printing units DIE CUTTING Central impression concept Corona VETAPHONE treatment unit Web cleaning system UV drying system with exhaust and ducting Technotrans temperature control / ink cooling unit Web guiding system Djdpfeyiu Ndjx Ab Dsup Infeed and rewinder units Control panels per printing unit Safety guards and emergency stop system Central electrical cabinets Printing cylinders/Anilox rollers

Condition: good (used), Year of construction: 2006,  6 x flexographic printing units  Die cutting unit Djdpfx Asyhpmbeb Doup  Central impression design  VETAPHONE corona treatment unit  Web cleaning system  UV drying system with exhaust and ducting  Technotrans temperature control / ink cooling unit  Web guiding system  Infeed and rewinder units  Control panels per printing unit  Safety guards and emergency stop system  Central electrical cabinets  Printing cylinders  Anilox rollers

Condition: excellent (used), Year of construction: 2021, functionality: fully functional, COMEXI ML2 Laminating machine, manufactured 2021 for sale! Designed to work with solvent and water-based adhesives or lacquers TECHNICAL INFORMATION The machine general structure · Primary unwinder · Application unit · Drying tunnel · Secondary unwinder · Lamination unit · Rewinder Solvent base and water-based section (Rotogravure application trolley) Flexo printing section (application trolley in flexo) Dodpfxjyhnbks Ab Doup APPLICATION Mechanical speed: 450 m/min (1476 ft/min) (Production speed depends on the support and adhesives used). • Maximum web width: 1.330 mm (52”) • Maximum laminating width: 1.315 mm (51.7”) • Minimum width of web to be laminated: 500 mm (19.6”) PRIMARY & SECONDARY UNWINDERS Maximum roll diameters: 1000 mm (40”) Maximum roll weight: 1000 kg (2204 lb) Mandrel diameters: (76 / 152 mm) 3", 6" Minimum web tension: 20 N Maximum web tension: 550N REWINDER Maximum roll diameters: 1000 mm (40”) Maximum roll weight: 1000 kg (2204 lb) Minimum web tension: 40 N Maximum web tension: 550N DRYAING TUNNEL One blower fan of 7500m3/h One extraction fan of 7500m3/h ELECTRICS Voltage 3x400V+-10%// 50Hz HEATING SYSTEM Gas burners Heating power of each heating source 300kw PNEUMATICS · Pressure 6-9 bar · Consumption with pump and stirrers 420l/min. · Feed line :1/2” HYDRAULICS Hydraulic power source (heating units) · Water pressure 3 bar max. · Consumption in cooling 900l/h max · Feed tube ½” CHILL ROLL · Water pressure 3 bar max · Water temperature 15-20˚C · Temperature difference 4 ˚C · Pressure difference 2.5 bar · Flow rate 2000l/h · Feed tube 1/2” Materials · LDPE, LLDPE 30-200mkm · NYLON CAST 30-80mkm · OPA 10-50mkm · PET 10-50mkm · PP CAST 30-200mkm · PAPER 40-200gsm · BOPP 12-80mkm ADDITIONALLY INCLUDED 6KW CORONA TREATER for primary unwinder 6KW CORONA TREATER for secondary unwinder ANTISTATIC BARS for primary unwinder ANTISTATIC BARS for secondary unwinder ANTISTATIC BARS for rewinder

Condition: used, functionality: fully functional, Flexographic Printing Press FlexiCOLOR 1700/1400 (2 colors), Cooper System – Year 2013 – EXCELLENT condition, preserved Price: 6,000 EUR Location: Ostrava, Czech Republic Year of manufacture: 2013 Condition: Used (briefly in operation), decommissioned long-term – wrapped in anti-corrosion film and stored in a crate Description For sale: FlexiCOLOR 1700/1400 (2-color) flexographic printing machine designed for sheet material printing, ideal for plywood and cardboard. The machine was used only for a short period, then decommissioned, preserved, wrapped in anti-corrosive film, and stored in a shipping crate – suitable for safe transport and storage. Duodjyghzhspfx Ab Djp The machine is equipped with a Cooper system (quick cliché change and precise registration) and stepless speed adjustment via frequency inverter. It uses water-based inks (ink pan + two-roller system, easy draining and cleaning). Main Advantages - Barely used, then preserved (anti-corrosion foil + crate) - 2 colors, suitable for standard marking/printing of plywood and boards - Cooper system – fast cliché change, stable print registration - Frequency inverter – smooth speed control - Water-based inks – easy operation and maintenance Option for irregular shape printing (independent feeder adjustment / guiding chains) Technical Specifications Model: FlexiCOLOR 1700/1400 Number of colors: 2 Printable media width: 1700 mm Printing cylinder width: 1400 mm Cylinder circumference: 905 mm Max. speed: up to 1800 pcs/h Motor power: 0.75 kW Dimensions (L × W × H): 3700 × 1850 × 1100 mm Weight: 540 kg Application: printing on thick sheets, up to approx. 30 mm thick Delivery / Inspection The machine is available in Ostrava. Delivery includes protective packaging (anti-corrosion film) and crate.

Condition: excellent (used), Offer for flexo printing machine W&H SOLOFLEX, 8 colors, year 1998, 620 mm width, can be seen in operation in excellent condition Djdpfxsygg Uye Ab Deup

Condition: good (used), Year of construction: 2005, UV Flexographic Printing Press Year of Manufacture: 2005 Servo-driven UV flexographic printing press Working Width: 330 mm / 13" Configuration and Equipment → Unwind → Web guiding system → Splice table → Corona treater → Web cleaner → Delamination / relamination unit with web turn bars Duodpfx Aoyf Iausb Djp → 6 flexographic printing units → 6 GEW UV dryers → Automatic register control → Chill rollers → Rotary die-cutting station → Waste matrix rewind → BST web inspection camera → Product rewind
