WP 80

WITTMANN

Condition: excellent (used), Year of construction: 2017, operating hours: 1,437 h, functionality: fully functional, machine/vehicle number: 137949-100, clamping force: 2,100 kN, screw diameter: 65 mm, displacement volume: 913 cm³, injection pressure: 1,600 bar, overall weight: 10,500 kg, controller model: UNILOG B8, The machine was serviced and upgraded to the latest standards by the manufacturer in 2021! It has not been used since and is therefore in very good condition! The machine is offered complete with 2 Kistler modules for cavity pressure control! TECHNICAL DETAILS Plastic type: Thermoset Clamping force: 2,100 kN Screw diameter: 65 mm Screw stroke: 275 mm Screw L/D ratio: 22 Max. screw speed: 278 rpm Screw torque: 1,920 Nm Tie bar spacing (HxV): 670 x 620 mm Mold installation height: 350 mm Platen daylight: 1,100 mm Opening stroke: 750 mm Ejector stroke: 200 mm Kodpfx Aeyi Ailehwoln Ejector force: 65 kN Theoretical shot volume: 913 cm³ Specific injection pressure: 1,600 bar Max. plasticising rate: 62 g/s Nozzle stroke / nozzle force: 400 mm / 100 kN Free-shot injection rate: 419 cm³/s Barrel heater power: 27 kW Number of heating zones incl. nozzle: 5 MACHINE DETAILS Control system: UNILOG B8 Hydraulics Hydraulic oil tank capacity: 600 liters Oil temperature min/max (HLP 32): 30 °C / 40 °C Oil temperature min/max (HLP 46): 40 °C / 50 °C Oil cooling activation temperature (HLP 32): 35 °C Oil cooling activation temperature (HLP 46): 45 °C Electrical Drive power hydraulic pump: 37 kW Max. screw barrel temperature: 350 °C Cooling water system Cooling water consumption: approx. 0.5 - 1.5 m³/h Max. cooling water supply temperature: 35 °C Cooling water return: max. 10 bar Ambient temperature: °C Noise level: 65 dB(A) Weight: 10,500 kg Operating hours: 1,437 h EQUIPMENT Kistler module for cavity pressure control, range 1: 20,000 pC Kistler module for cavity pressure control, range 2: 10,000 pC

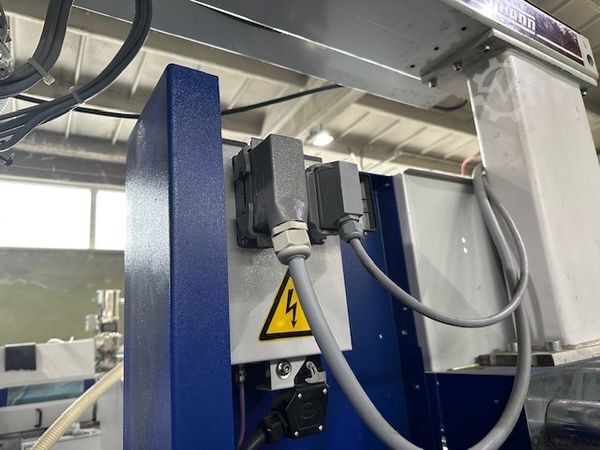

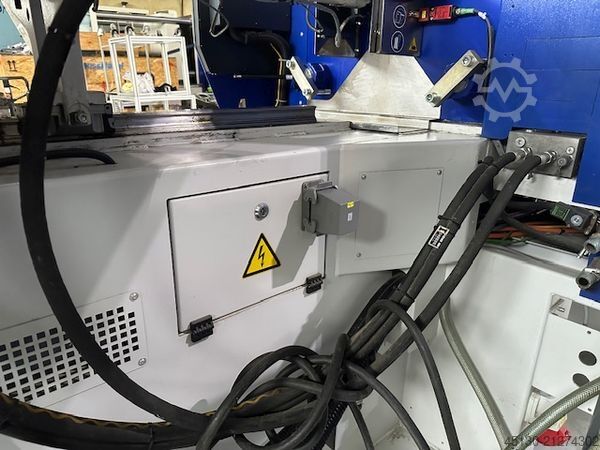

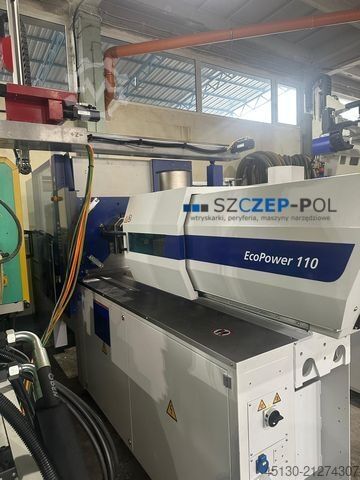

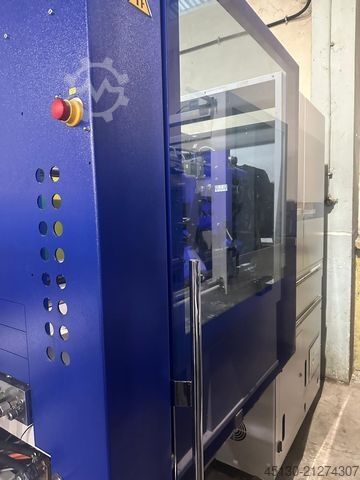

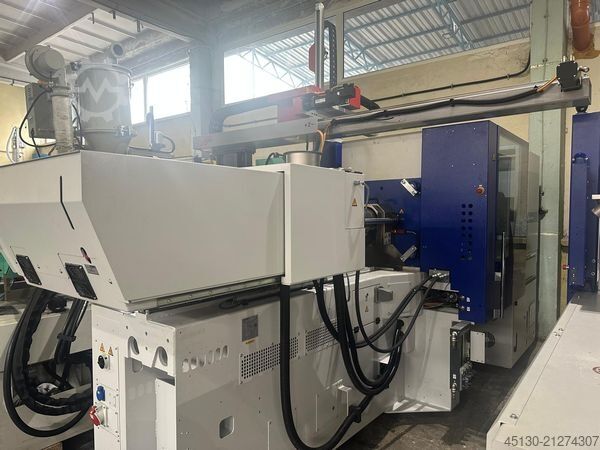

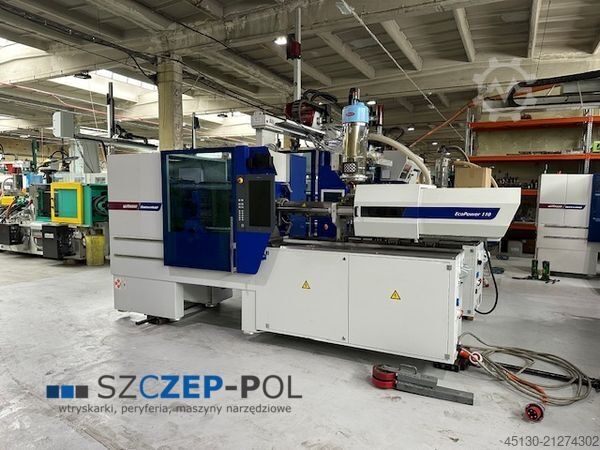

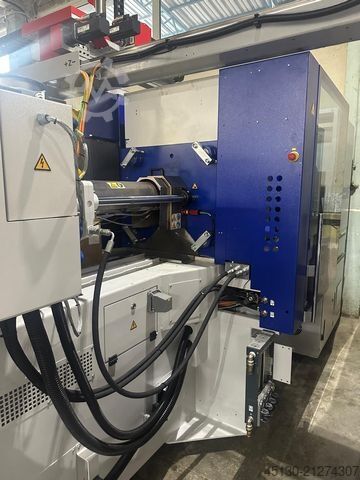

Condition: excellent (used), Year of construction: 2019, Wittmann Battenfeld EcoPower 110/350 / All-Electric Machine / Operating hours: approx. 15,000 in automatic mode Year of manufacture: 2019 Injection Unit: Screw diameter: 35 mm Shot weight: 153.8 g Injection pressure: 2083 bar Dosage volume: 168 cc Clamping Unit: Clamping force: 110 t Tie bar spacing: 470 x 420 mm Platen size: 682 x 682 mm Ejector: electric Clamping unit: toggle lever Control system: UNILOG B8 - Touchscreen Additional features: Machine in excellent technical condition All-electric machine: energy-efficient and very quiet Operating hours: approx. 15,000 in automatic mode Total operating hours: 21,800 Euromap 67 Robot interface Air valve x 1 Hydraulic core pull x 1 Hot runner control system Injection unit is wear-resistant and corrosion-resistant Klsdpfeyli Adox Ahwen Central lubrication Dimensions: Weight: 4,800 kg Length/Width/Height: 4.91 x 1.42 x 2.10 m All machines offered are started up by our service technicians prior to sale. It is possible to receive a video of the technical tests of the selected machine or to participate in live technical tests at our facility in Łódź. Price: On request

Condition: excellent (used), Year of construction: 2014, Wittmann Battenfeld HM 150/750 Servo Power / Hybrid Machine / Operating hours: approx. 29,000 in automatic mode Year of manufacture: 2014 Injection unit: Screw diameter: 50 mm Injection weight: 402.2 g Injection pressure: 1,714 bar Shot volume: 442 ccm Clamping unit: Clamping force: 150 t Tie bar distance: 520x470 mm Dimensions of platens: 760x755 mm Ejector: hydraulic Clamping unit: hydraulic Control system: UNILOG B6P - touchscreen Ksdoyliz Hopfx Ahwsln Additional equipment: Machine in very good technical condition Electric machine: energy-saving and very quiet Operating hours: approx. 29,000 in automatic mode Total operating hours: 36,714 Euromap 67 Robot interface Air valve x 1 Hydraulic core pull x 1 Injection unit is wear-resistant and corrosion-resistant Main drive motor - servo motor driven by inverter - energy saving Dimensions: Weight: 6,600 kg Length/Width/Height: 4.82x1.42x2.20 m All machines offered are started up by our service technicians before sale. It is possible to obtain a video of the technical tests of the selected machine or to participate in live technical tests at our facility in Łódź. Price: On request

Condition: excellent (used), Year of construction: 2017, Wittmann Battenfeld EcoPower 110/350 with the Wittmann W818 robot / Electric machine / Operating hours: approx. 16,000 in automatic mode Year of manufacture: 2017 Injection unit: Screw diameter: 35 mm Injection weight: 153.8 g Injection pressure: 2083 bar Dosing volume: 169 cc Clamping unit: Clamping force: 110 t Bar spacing: 470x420 mm Size of the clamping plates: 680x660 mm Ejector: electric Clamping unit: toggle lever Control: UNILOG B8 - touchscreen Additional equipment: Perfect technical condition Electric machine: high-speed, energy-saving and very quiet Operating hours: approx. 16,000 in automatic mode Euromap 67 Robot interface Control with Air valve Hydraulic core pull x 1 Control with hot runners Injection unit is wear-resistant and resistant to corrosion Central lubrication Ksdpfjyliz Tjx Ahwjln Automatic tool height adjustment Parallel movements The machine was serviced in Germany Robot Wittmann W818 Year of manufacture: 2015 4-axis robot: 3 axes are driven by servo motors (electric); axis C - pneumatic Travel paths in axes: X-420, Y-1200, Z-2000 Touch control panel The safety package for robots Robot with adapter, conveyor belt and protective housing Purchase of the robot and the conveyor belt for an additional charge Dimensions: Weight: 4800 kg Length/width/height: 4.91x1.42x2.10 m All machines offered are started by our service technicians before sale. It is possible to receive a video of the technical tests of the selected machine or to take part in live technical tests in our company in Łódź. Price: On request

Condition: excellent (used), Year of construction: 2015, Wittmann Battenfeld VM 150/525 R1280 Servo Power / Vertical Injection Moulding Machine with Rotary Table Year of manufacture: 2015 Injection Unit: Screw diameter: 35 mm Shot weight: 175.6 g Injection pressure: 2743 bar Dosage volume: 193 ccm Clamping Unit: Clamping force: 150 t Tie bar distance: 0x0 mm Platen size: 1280 mm Ejector: hydraulic Clamping unit: hydraulic Control system: UNILOG B6 Additional equipment: Vertical injection moulding machine with rotary table Hybrid machine: high-speed, energy-saving, and very quiet Air valve x 5 Hydraulic core pull x 1 Hot runner control x 12 Injection unit is wear-resistant and corrosion-resistant Rotary table diameter: 1500 mm Rotary table driven by a servomotor, controlled by an inverter Dimensions: Weight: 11,300 kg Length/Width/Height: 3.83x1.50x4.07 m All machines offered are started up by our service technicians prior to sale. Kledpfoyliycjx Ahwon It is possible to receive a video of the technical tests of the selected machine or to participate in live technical tests at our company in Łódź. Price: On request

Condition: ready for operation (used), Year of construction: 2007, travel distance X-axis: 100 mm, travel distance Y-axis: 550 mm, Manufacturer: Wittmann Kjdpfxjyk U Hrs Ahwjln Model: W 702 Year of manufacture: 2007 Can be inspected and tested!

Condition: ready for operation (used), Year of construction: 2007, travel distance X-axis: 100 mm, travel distance Y-axis: 550 mm, Manufacturer: Wittmann Kledpfeyk U Enjx Ahwon Model: W 702 Year of manufacture: 2007 Can be inspected and tested!

Condition: ready for operation (used), Year of construction: 2007, travel distance X-axis: 100 mm, travel distance Y-axis: 550 mm, Manufacturer: Wittmann Model: W 702 Kjdpfxoyk U D Dj Ahwjln Year of manufacture: 2007 Can be inspected and tested!

Year of construction: 2006, condition: ready for operation (used), Manufacturer: Wittmann Klsdpfx Aeyk Uwkshwen Model: TP-PLUS -2:90

Year of construction: 2008, condition: ready for operation (used), Manufacturer: Wittmann Model: TP-PLUS -2:90 Klsdpfx Ahjyk Uvmjwen
