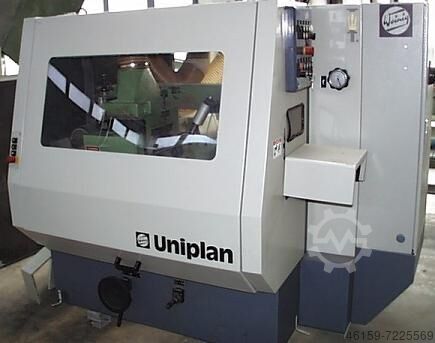

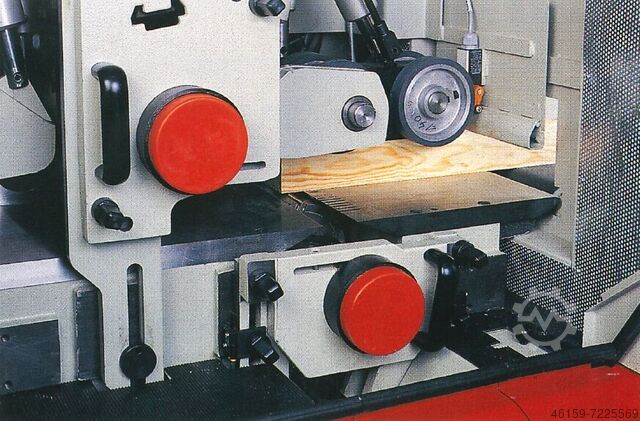

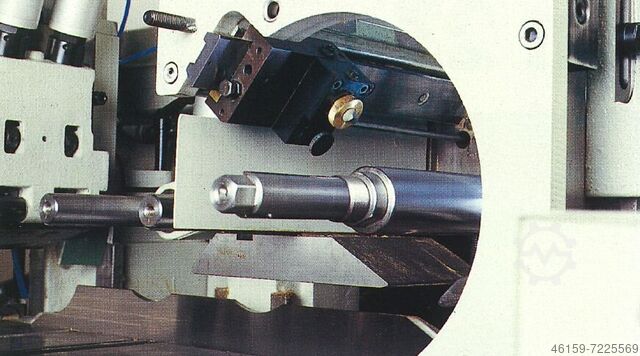

Fine planing machine Weinig type Uniplan 23

Weinig Uniplan 23

Condition: used, Year of construction: 2005, Unimat 23 E: Working width (with cutter circle 140 mm): 20 – 230 mm. Working height (with cutter circle 163 mm): 8 - 120 mm. 1st spindle lower horizontal spindle: 7.5 kW, 2nd spindle right vertical spindle: 11 kW (shared with left vertical spindle), 3rd spindle left vertical spindle, 4th spindle upper horizontal spindle: 7.5 kW. Each spindle diameter: 50 mm. Each spindle speed: 8,000 rpm. Feed system: 4 kW. Mechanical feed, steplessly adjustable: 5-24 m/min. Working table: 2.5 m long (incl. joining fence). Rodpfsvvkciox Af Sel Uniplan 23: Max. working width: 230 mm. Working height min.: 15 mm / max.: 120 mm. Feed: 3 kW. Horizontal spindles each 5.5 kW. Feed speed, steplessly adjustable: 6 – 36 m/min. Spindle speed: 6000 rpm. Spindle diameter: 50 mm. Tool clamping length: 240 mm. Max. tool diameter: 163 mm. Fixed lower chip removal: 0.5 mm. Short piece package for min. workpiece length: 280 mm. Mechanical spindle brakes up to 7.5 kW. Feed braking system up to 5.5 kW. 1st feed roller synchronized with photocell. Spindle speed 7200 rpm, incl. motor power 7.5 kW. Improved noise insulation of the full safety enclosure. Location: Customer

Condition: used, The Weinig Unimat 23EL planer and moulder is designed for four-sided planing and profiling of wood, featuring a mobile spindle for automatic adjustment, a grooved bed for short and curved workpieces, and a long planing table. spindles: 10 spindle 1: Bottom / 5.5 kW / 40 mm spindle 2: Right / 11 kW / 40 mm spindle 3: Left / Motor together with spindle 2 / 40 mm spindle 4: Right / 11 kW / 40 mm spindle 5: Left / 5.5 kW / 40 mm spindle 6: Top / 11 kW / 40 mm spindle 7: Bottom / 11 kW / 40 mm spindle 8: Top / 7.5 kW / 40 mm spindle 9: Bottom / 7.5 kW / 40 mm Spindle 10: Universal / 4 kW / 40 mm working width: 230 mm working height: 160 mm feed: 5.5 kW / 6 - 36 m/min Rodpfow H Iv Tox Af Sol

Condition: good (used), Year of construction: 2004, Weinig Unimat 23 EL Year of manufacture: 2004 Working width: 230 mm, Working height: 120 mm 1. Bottom spindle with 7.5 kW motor and spindle brake 2. Right spindle with separate motor, 7.5 kW and spindle brake Speed: 8,000 rpm with high-performance ball bearings, NC-axis with frequency inverter, axial stops milled to 35 mm height 3. Left spindle with separate motor, 7.5 kW, speed 8,000 rpm with high-performance ball bearings, NC-axis with frequency inverter, radial pneumatic pressure guide left for varying workpiece widths up to 200 mm 4. Top spindle with 7.5 kW motor and spindle brake, speed 8,000 rpm with high-performance ball bearings, NC-axis radial Pneumatic axial control, adjustment range 40 mm, glazing bead ejection, pneumatically cycled. - Infeed system with 4 kW motor and infeed brake - Short piece package - UC-Matic package consisting of: PLC control, central motor start, parts monitoring, operator terminal, free-standing control cabinet, free-standing operating panel, magnetic interlock for safety cover - Enhanced sound insulation - Automatic planing and feeding system for different workpiece lengths and widths Workpiece dimensions Length: 400 – 3,500 mm (4,000 mm) Width: 40 – 200 mm Thickness: 20 – 100 mm Powered conveyor belt Belt width 250 mm, conveying length 4,500 mm, additional photoelectric sensor for signal transmitter Rjdpfx Afewyuluj Sol Weinig Hydro Finish Planing Machine Uniplan 23 Year of manufacture: 2004 Working width: 230 mm, Working height: 120 mm 1. Bottom spindle with 7.5 kW motor and spindle brake, speed 7,200 rpm 2. Top spindle with 7.5 kW motor and spindle brake, speed 7,200 rpm, NC-axis radial - First feed roller cycled with photocells - NC-axis for separate feed height adjustment - Improved sound insulation - UC-Matic package - 2 hydro straight cutter blocks 501 with HSS strip planer knives 30 mm x 3 mm, max. 9,000 rpm, dimensions 163 mm x 230 mm x 50 mm, Z=4

Condition: used, Working width 230 mm Working height 15-120 mm Number of spindles 2 St. Weinig Hydro Planer Type Uniplan 23 ----- Machine was factory overhauled by Weinig in 2024. Description: For two-sided horizontal woodworking with two working spindles. Spindle arrangement: horizontal, bottom and top. The two horizontal spindles are equipped with hydraulically tensioned counterbearings without axial adjustment. Built-in straight jointers on both spindles with automatic stone feed, remotely controlled with the hood closed. Machine with continuous, chainless feed, equipped with rubber rollers. Electric up/down adjustment of the spindles according to a mechanical digital display (SIKO). On/off switch for limiting the up/down adjustment. Feed roller pressure pneumatic. Stops and table tops are not adjustable. Machine with steel table tops. Machine with full enclosure and integrated sound and dust protection including interior lighting. Electrical design according to DIN VDE 0113, electrical equipment of industrial machines EN 60204, IEC - 204 - 1. Other electrical regulations are not taken into account. Machine includes operating tools, but does not include machining tools. The Weinig Uniplan spindles operate at a speed of 7200 revolutions per minute. Before using existing tools, please check that they are suitable for the speed. Please also consider this when ordering new tools. Technical specifications Max. working width: 230 mm Min. working height: 15 mm, max.: 120 mm Feed: 3 kW (4 HP) Horizontal spindles each: 7.5 kW (7.5 HP) Infinitely variable feed speed: 6 - 36 m/min. Spindle speed: 7,200 rpm Rsdpfx Asxpn Tzef Ssl Spindle diameter: 50 mm Tool clamping length: 240 mm Maximum tool radius: 163 mm Fixed clamping clearance at bottom: 0.5 mm (Technical data according to the manufacturer - no guarantee!)

Condition: used, Year of construction: 2000, Weinig Unimat 23E planer and moulder for four-sided planing and profiling of wood, with a mobile spindle for automatic adjustment and a grooved bed (optionally without grooved bed) for short and curved workpieces, as well as a long planing table. Included: Set of grooved bed cutters Optional: Conversion to a conventional smooth table, available upon request. spindles: 5 spindle 1: Bottom / 40 mm / 5.5 kW spindle 2: Right / 40 mm / 7.5 kW spindle 3: Left / 40 mm / Common motor with spindle 2 spindle 4: Top / 40 mm / 7.5 kW Redpfx Ajwztw Ssf Ssl spindle 5: Bottom / 40 mm / 5.5 kW working width: 230 mm working height: 160 mm

Condition: used, Number of spindles 8 St. Working width 230 mm Working height 120 mm Weinig Planing and moulding line ----- Consisting of the following individual machines: Item 1: Weinig Profimat 23 E, four-side planer, stock number: 2803 5 spindles + glazing bead saw Item 2: Weinig Uniplan 23, stock number: 2804 Fine and hydroplaner with 2 horizontal spindles Item 3: Weinig RF 15, stock number: 2805 Longitudinal-cross-longitudinal conveyor with workpiece return to the operator Rjdpfxoxpn Tuj Af Sjl Detailed descriptions of the machines can be found under the mentioned stock numbers. (Technical specifications according to the manufacturer, without guarantee!)

Condition: used, SECOND-HAND 4+1 SPINDLES MOULDER STETON MOD. FAST 5S - CE RULES - S/N 25 906/001 Rodomxliaepfx Af Sel

Condition: good (used), Year of construction: 1998, functionality: fully functional, spindle diameter: 40 mm, working width: 230 mm, feed rate X-axis: 5 m/min, feed rate Y-axis: 36 m/min, planing width: 20 mm, height adjustment type: electric, planing height: 160 mm, working height: 8 mm, Equipment: cabin, motor brake, Weinig Unimat 23 E 6 Head planer moulder. Bottom head - 10hp Fence + near head -15hp (common motor) 1st top head - 15hp 2nd top head - 15hp 2nd bottom head - 10hp Spindle speed - 6000rpm Feed speed - min/5 + max/36 meters per minute Working width - min 20mm + max 230mm Working height - min 8 mm + max 160mm Rodpfx Ajv A Rpcof Sjl Spindle diameter - 40mm The machine is currently still in use and viewing is more than welcome.

Condition: used, Year of construction: 1992, functionality: fully functional, cutting height (max.): 160 mm, saw blade diameter: 500 mm, total length: 7,600 mm, overall weight: 1,500 kg, type of input current: three-phase, input voltage: 400 V, extraction connection diameter: 160 mm, feed length X-axis: 6,000 mm, working height: 160 mm, – year of production 1992 – smooth cutting speed adjustment TECHNICAL PARAMETERS: – cutting length: 6000 mm – max. cutting width: 580 mm – max. cutting height: 160 mm – main engine: 11 kW – max. blade diameter: 500 mm – unit travel speed adjustment – linear laser – quick blade return – power supply: 400V – nozzle diameter: 160 mm Rsdpfx Aevntdmjf Sel – work table dimensions: 1110 x 7300 mm – pawl – hydraulic pump: 4 kW – machine dimensions (length / width / height): 760 / 160 / 210 cm – weight: ~ 1500 kg

Condition: used, Solid pneumatic gluing press with perforated plate for flexible arrangement of the press cylinders. One cylinder without a pressure shoe. pressing surface: approx. 2,800 x 1,000 mm Redpfsviwqmex Af Sjl Pressing surface: approx. 2,800 x 1,000 mm press cylinder: 6
