Used Eisele for sale (117)

Year of construction: 1996, condition: good (used), machine/vehicle number: 9182, Offer 23168 Technical data: - Notching possibilities + miters in 3 planes - right-angled, one-sided + two-sided + three-sided oblique . - Can be used as a shift cut crosscut saw - Pneumatic profile clamping Machining with semi-automatic sawing units - Saw blade dimensions - vertical 500 x 3,5 x 40 mm positive - horizontal 500 x 3,5 x 40 mm negative - notching width / notching height at 90° 300 / 285 mm - vertical saw blade 60° - 90° - 25° mot. positioning with digital display - Swiveling range saw blade horiz. with vert. saw blade Saw blade Cgedpfemb U E Ajx Ahtjw - 45° - 90° - 45° mot. positioning with digital displays - Notching height adjustment with digital displays - profile stop shoulder manually tiltable 30° - 90° - 45° - pneumatic coolant check device - air connection 6 bar - drive 400 V / 2 x 3 kW - space requirement approx. W 2400 x H 2000 / D 1400 mm - weight approx. 1200 kg

Condition: good (used), Year of construction: 1980, machine/vehicle number: 2038, Offer 24272 Cjdpjt H Ibmofx Ahtegw Technical data: - Saw blade dimension 300 mm - Saw blade speed 2800 rpm - Cutting range - at 90° 160 x 20 mm - 100 x 80 mm - at 45° 100 x 40 mm - Drive 400 V / 1.5 kW - Space requirement approx. W 400 x H 800 x D 600 mm - Weight approx. 80 kg - Table base W 900 x H 750 x D 500 mm

Condition: good (used), Year of construction: 2019, machine/vehicle number: 250-19, Offer 25283 Technical Specifications: - Saw blade speed, frequency controlled, for very fine cutting - Saw blade diameter: 200 mm - Automatic operation cycle - Pressure stop with SICO counter for setting the glass pressing force - Simulation - Pneumatic connection: 6 bar - Drive: 400 V / 0.8 kW - Required space: approx. W 400 x H 1200 x D 700 mm - Weight: approx. 80 kg Cjdpfx Ajw Nhumjhtogw - Machine stand

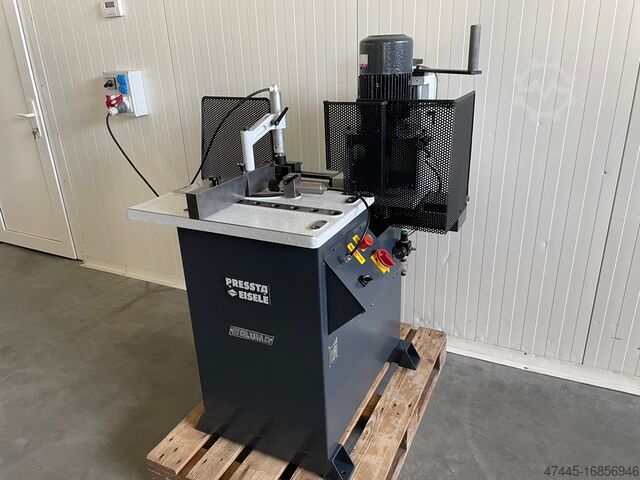

Condition: good (used), Year of construction: 2009, machine/vehicle number: 9155, Offer 24245 Technical data: - Pneumatic feed of the milling unit - Work table height adjustable via handwheel - Horizontal and vertical material clamping - cutter diameter up to 300 mm - max. profile height 190 mm Cjdpfx Ajtq Takehtogw - max. milling depth 110 mm - max. milling length 400 mm - Angle-adjustable stop Li + Re 20 90 20 ° - milling spindle speed 2800 rpm - Drive 400 V / 2.2 kw - Compressed air connection 6 - 8 bar - Air consumption per work cycle approx. 10 l - ELGO digital display for material cross stop - Pneumatic profile clamping - Spraying device - Space requirement approx. W 1100 x H 1500 x D 700 mm - Weight approx. 300 kg

Condition: good (used), Year of construction: 2019, machine/vehicle number: 252-19, Offer 25269 Cgsdpfxew R S Nwj Ahtow Technical specifications: - Saw blade speed, frequency-controlled for ultra-fine cutting - Saw blade diameter: 200 mm - Automatic work cycle - Pressure stop with SICO counter for setting glass contact pressure – simulation - Pneumatic connection: 6 bar - Drive: 400 V / 0.8 kW - Required space: approx. W 400 x H 1200 x D 700 mm - Weight: approx. 80 kg - Machine stand

Condition: excellent (used), Year of construction: 2017, functionality: fully functional, Fully automatic operation Drive 7.5 kW, S6, 400 V, 50Hz, 2850 rpm For use with saw blades D 550 mm Cutting range 270x140 mm (width x height), D 185mm Max. profile width 270mm Control unit with display Including piece counter Cgedeyvtyvepfx Ahtew Including reversing device for a maximum cut length of 3000mm Automatic shut-off via limit switch when material ends Hydropneumatic saw blade feed, continuously adjustable, from bottom to top Vertical and horizontal clamping units, on both infeed and outfeed sides of the saw head Pneumatic dosing spray device Cutting gap extension on both sides of the saw blade Electronic material feed unit 3-600mm feed length, with ball screw spindle and servomotor Including pneumatic horizontal and vertical clamping device Remnant piece from 75mm, depending on profile 2 extraction ports D 100 mm Safety guard over the saw head and feed unit A suitable extraction system can also be offered!

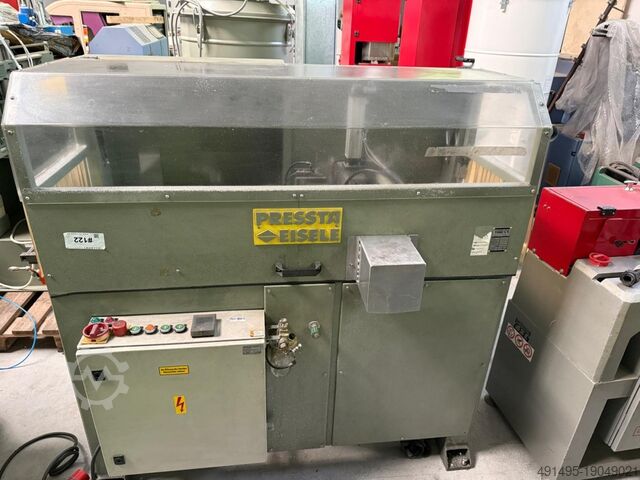

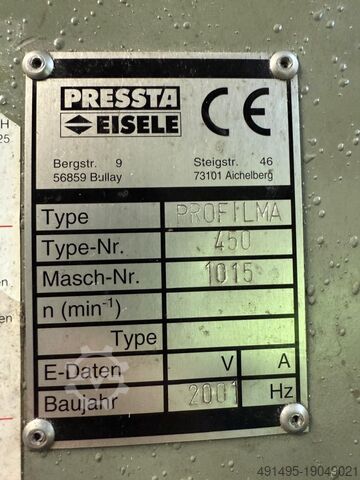

Condition: excellent (used), Year of construction: 2001, functionality: fully functional, machine/vehicle number: 1015, profiles with dimensions (HxB) up to 100x195mm, 80x200 mm automatic work cycle driven by a 3 kW/400 V, 2850 rpm motor cutting disc d=450x3.8x40mm, z=110 horizontal and vertical material clamping on the feed side dosing spray system horizontal material clamping in the feeder moving both clamping jaws when retracting (prevents scratching of the profile) infinitely adjustable hydropneumatic cutting disc feed Cjdswgmv Sepfx Ahtogw cutting disc exiting from the rear length of cut sections adjustable in the range of 0-300mm (with reversing device 0-600 mm) setting the cutting length by a handwheel with a mechanical counter maximum width of the cut profile 200 mm cutting range (height x width) 100x195mm, 80x200mm automatic shutdown when material runs out possibility of connecting a dust extractor

Condition: good (used), Year of construction: 1985, Cold circular saw Eisele VMS III S.PV Saw blade feed: manual Vise Saw blade diameter max.: 350 mm Miter cuts from 90-30 degrees Cedoiyzccjpfx Ahtsgw Cutting capacity (straight cuts): Flat profiles: 200 x 90 mm Pipes: 120 mm diameter Square tubes: 90 mm Solid material: 100 mm Cutting capacity (miter cuts): ◾Flat profiles: 140 x 90 mm Pipes: 120 mm diameter Square tubes: 90 mm Solid material: 100 mm Rotational speeds: 34/68 RPM

Condition: refurbished (used), Year of construction: 2007, functionality: fully functional, Semi-automatic circular saw for aluminium and non-ferrous metals with PD200-E-7 length measuring system Completely overhauled and fully functional Features: - Large cutting range with saw blade Ø 700 mm - Maximum profile width up to 530 mm, profile height up to 270 mm - Saw blade feed hydro-pneumatically adjustable from the outside - Radial feed movement from bottom to top - Saw motor drive power 7.5 kW - Infinitely variable blade speed adjustment - Metered spray unit - 2 vertical and horizontal clamping devices, each with pressure reduction - Infinitely adjustable feed rate of the saw unit - Manually operated safety guard Technical data: Codpfxsx Eb Anj Ahtjgw - Drive: 7.5 kW - Speed: 1300 - 2000 rpm - Cutting speed: 48 - 73 m/sec - Air pressure: 6 - 8 bar - Working height: 970 mm - Weight: 1250 kg - Dimensions: H 1900 x W 1400 x D 1700 mm - Height with guard open: 2450 mm PD200-E-7 length measuring system - Usable as a stop as well as a pusher - Measuring length: 6 m - Positioning control for automatic positioning - Easy-to-read LED display for target length, actual length, and quantity - Positioning accuracy 0.1 mm/m - Piece counter for number of completed pieces / cuts

Year of construction: 2023, condition: ready for operation (used), An aluminium mitre saw Eisele including a mobile extraction unit AS Sägetechnik is available. 1) Mitre saw Pressta Eisele GS 600, year of manufacture: 2023, saw blade diameter: 600mm, detent positions: 22.5°/45°/90°, mitre adjustment: 20°/-90°/-20°, material stop adjustment: 200mm, working height: 970mm, extraction nozzle diameter: 100mm, weight: approx. 650kg. 2) Mobile extraction unit AS Sägetechnik 460VT-2, suction nozzle diameter: 100mm, air flow rate: 1400m³/h, machine dimensions X/Y/Z: approx. 750mm/800mm/1800mm, weight: approx. 100kg. Documentation available. An on-site inspection is possible. Cgodpfsw D Et Rjx Ahtow

Condition: like new (used), Year of construction: 2024, Overhauled: 2024 Year of manufacture: 1994-2000 Saw blade 560 mm Motor power 6,5 / 8,0 KW Speed 1500/3000 min-1 Cutting speed 2100 - 4200 m/min Saw height control: electronic Working range square max.: 170x170 mm Working range flat max.: 300x150 mm Working range round max.: 200 mm Saw feed 0 - 40 mm/s infinitely adjustable Cutting length 5-950 mm (9999 mm multiple stroke) Feed speed max. 500 mm/s Weight approx. 1900 kg Dimensions LxWxH 2200mm x2700mm x1950mm The machine is in mint condition, both technically and visually, following a completed retrofit. Due to its equipment and design, the machine can be used very efficiently for a wide range of applications. The programmed HMI control system ensures simple and very profitable operation of the machine. The soundproof cabin reduces noise emissions to a minimum. The machine is generally overhauled in our company at the customer's request. Among other things the following points will be renewed: - Conversion to Siemens S7 PLC control - Conversion to Siemens HMI user interface - Replacement of the ball screw - Replacement of servo motor and servo inverter - New electrical components - New pneumatic lines - New pneumatic components - Overhaul or replacement of all pneumatic cylinders - Renewal of the valve terminal - Optimization of extraction performance - Overhaul of minimum lubrication system - Replacement of general wear parts - Overhaul of the cab The machine also has: Csdpfsuiy Hrox Ahtogw - Soundproof cabin - Splitting extension (for a high-quality cutting surface without return marks) - Height control fully electronic Warranty: Unless otherwise agreed, we provide a 6-month guarantee on all parts overhauled or replaced by us. Working time and wearing parts are excluded from the guarantee. Optional: - Mass clamping device for parallel sawing of several workpieces - Flat magazine for automatic feeding of up to 6 m long primary materials - Roller conveyors for primary material - Reinforced motor 18.0 KW (frequency-controlled) - Delivery and installation on your premises - Training of your employees

Condition: refurbished (used), Year of construction: 2025, Complete Overhaul 2025 Saw Blade: 350 - 400 mm Motor Power: 6.5 / 8.5 kW Speed: 1,500/3,000 rpm Cutting Speed: 1,650 – 3,800 m/min Saw Height Adjustment: Electronic Working Range Square, max.: 120x120 mm Working Range Flat, max.: 200x100 mm Working Range Flat, max.: 250x70 mm (for extra width only) Working Range Round, max.: 130 mm Saw Feed Rate: 0 – 40 mm/s, infinitely variable Cut Length: 5-600 mm (up to 9,999 mm with multiple strokes) Cedpfx Ahexpqzhstjgw Feed Speed, max.: 500 mm/s Weight: approx. 1,300 kg Dimensions (LxWxH): 1,800 mm x 1,300 mm x 1,950 mm The machine will be completely overhauled in our facility and will subsequently be in as-new condition. The following components, among others, will be renewed: - Conversion to PLC control - Conversion to Siemens HMI operator interface - Conversion to ball screw with servo drive - New electrical components - New pneumatic lines - New pneumatic components - Conversion to valve terminal - Optimization of extraction performance - New minimum quantity lubrication system - Replacement of general wear parts - Overhaul of the machine enclosure The machine additionally features: - Soundproof enclosure - Spacer extension (for high-quality cut surfaces without return marks) Optional: - Multiple clamping device for parallel sawing of multiple workpieces - Flat magazine for automatic feeding of raw materials up to 6 m long - 7.5 kW motor - 12 kW motor - Delivery and installation at your site - Training for your staff

Condition: excellent (used), Year of construction: 2007, Complete saw line consisting of loading unit, fully automatic circular saw, and unloading unit. Suitable for a wide range of applications, especially in the photovoltaic and automotive industries. Loading Unit: - Horizontal loading magazine model HLM - 4-strand timing belt conveyor - 6 compartments, each 285mm wide, for profile feeding - Maximum material height according to the saw cutting area; round material up to max. diameter 130mm - 3 sliding strips between timing belts as additional support - Profile length min. 2,700mm, max. 6,500mm Saw: - Fully automatic circular saw Pressta-Eisele model PROFILMA 510 E-SA - Saw blade diameter max. 500mm - Continuously variable speed adjustment - Hydro-pneumatic saw blade feed, infinitely adjustable, from rear to front - Siemens S7-300 control system with touchscreen - Reversing device with five-fold stroke up to max. 5,000mm - Electric material feed 3 – 1,000mm (single stroke) - Cutting gap extension on both sides - Pneumatic unloading slide - Scrap flap after saw for offcuts / remains - Cut length depending on profile, from 8mm Codpfx Ahoxvbvvotogw - Menzel minimum quantity lubrication system - Clamping pressure regulation - Two extraction nozzles for chip extraction Unloading: - Table size 1,500mm x 2,500mm - Pneumatic cross pusher

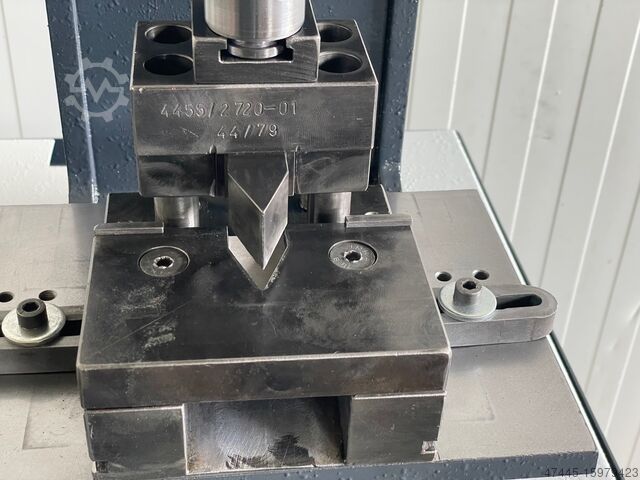

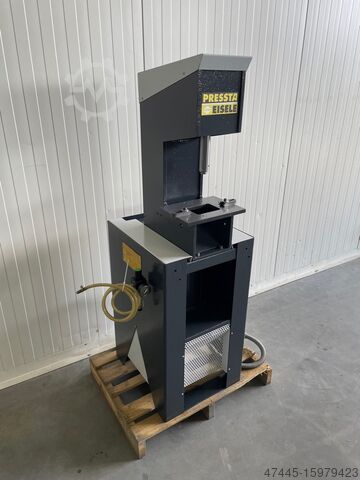

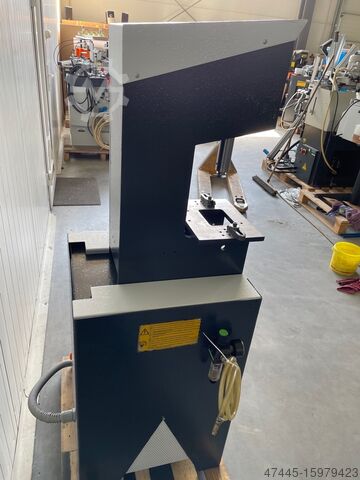

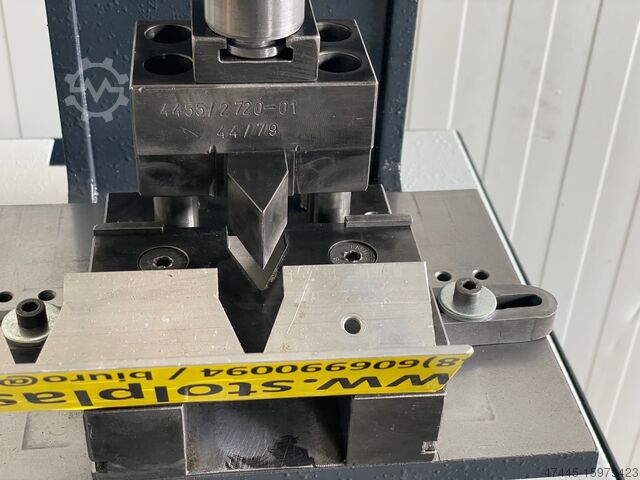

Condition: new, For processing all common aluminum window profile systems such as Schüco, Hueck, Heroal, Reynolds, etc. Universally applicable due to the double-adjustable punching tools. Codpfjhmfyhjx Ahtjgw For corner angles with a groove dimension of 25 - 60 mm and profile chamber offset of 0 – 40 mm. Infinitely adjustable buttons, punching blades, and stop inserts in height. Buttons and punching tools are marked with scales. Retractable stop for easy insertion of the profiles, with automatic adjustment when moving towards the profile. Hydraulic stop locking mechanism. Pneumatic pressing process via a lever system, ensuring a synchronous punching process. 2 pneumatic clamping cylinders for tensioning the profiles. 2 eccentric disks for positioning the frames. 2 pivoting profile support arms. Operation via 2 foot valves. Includes standard tools.

Condition: new, Available from stock / available in the short term! Speed: 17/34 rpm. For saw blades up to 350 mm in diameter. With pole-changeable three-phase motor, 1.4/1.9 kW, stationary base frame with integrated coolant system and chip drawer. Cjdpfx Ajllvpwjhtogw Cutting range: Flat 90° 170 x 100 mm Flat 45° 120 x 100 mm Flat 30° 85 x 100 mm (only to the right) Square 90° 100 mm Square 45° 95 mm Square 30° 85 mm (only to the right) Round 90° 120 mm Round 45° 120 mm Round 30° 100 mm (only to the right) Technical data: Length 895 mm Width 665 mm Height 1750 mm Weight 300 kg Table height 900 mm Options: Roller conveyors and length measuring devices (image = example, available in manual and automated versions, upon request) We recommend our coolant concentrate, which has been tried and tested for "Eisele" saws for decades, our microspray oil (for machines with a microspray system), as well as high-quality circular saw blades and band saw blades for your specific needs. Feel free to contact us for a non-binding quote!

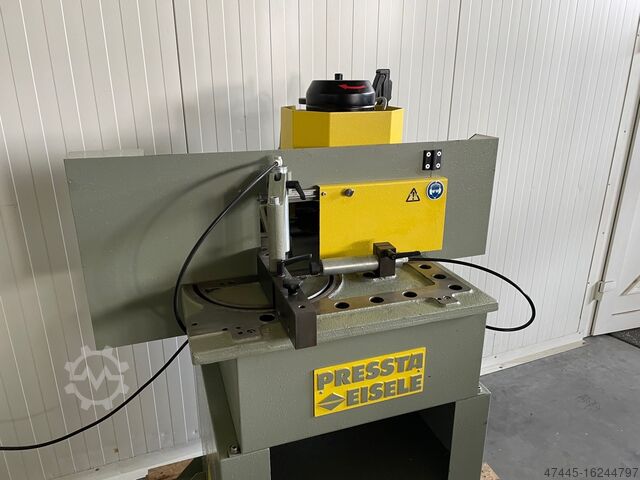

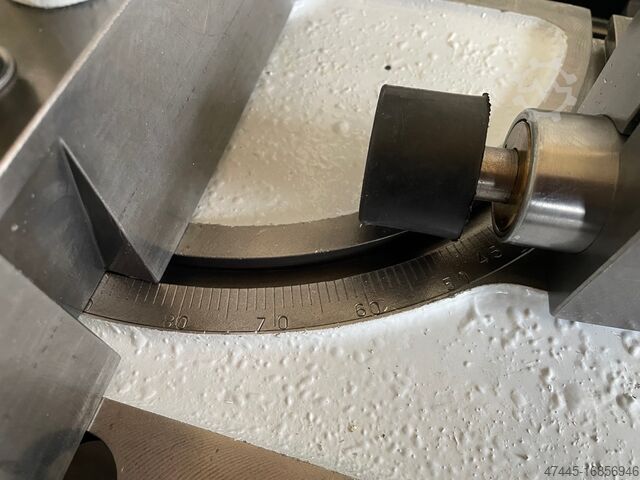

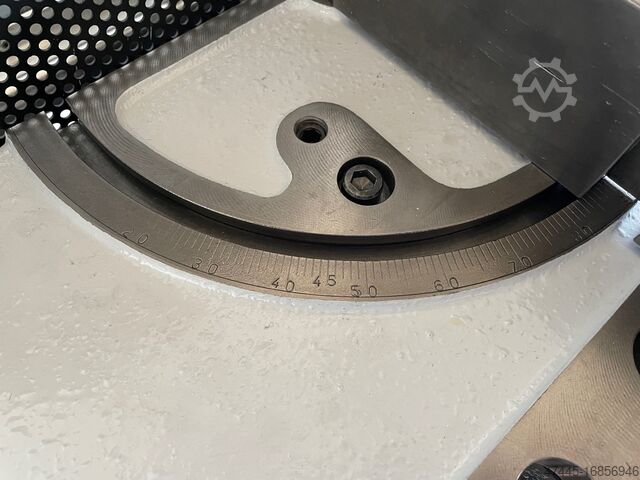

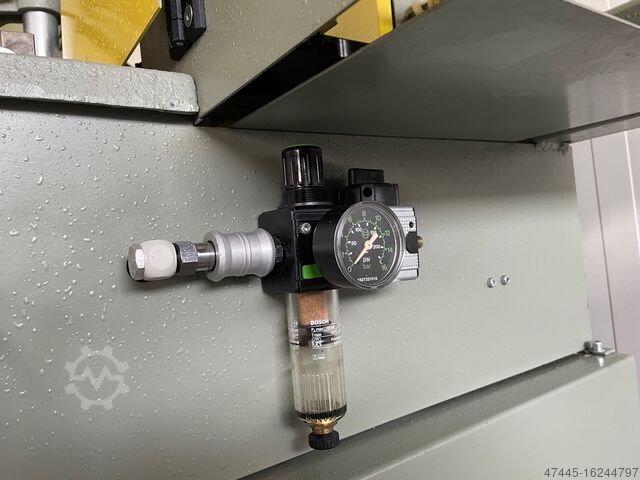

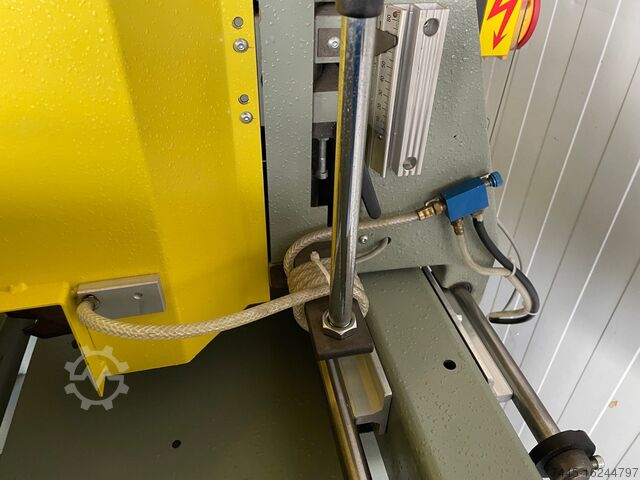

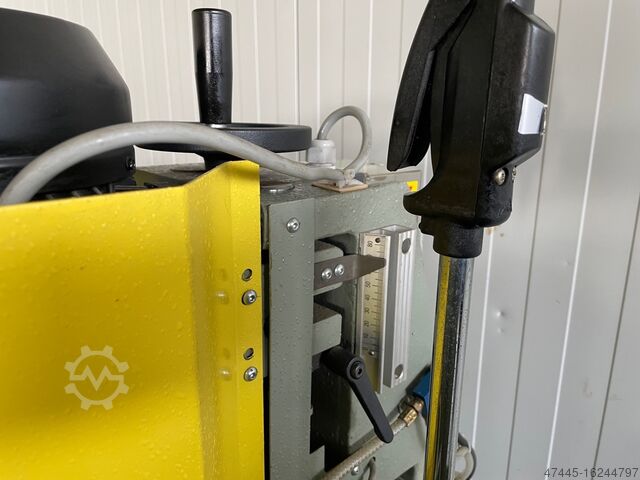

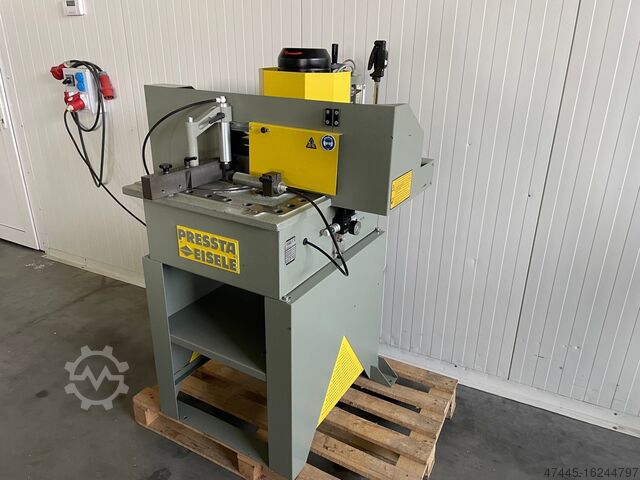

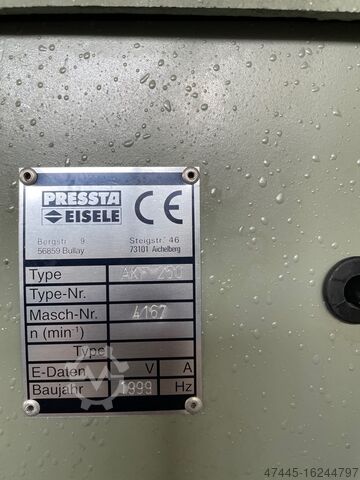

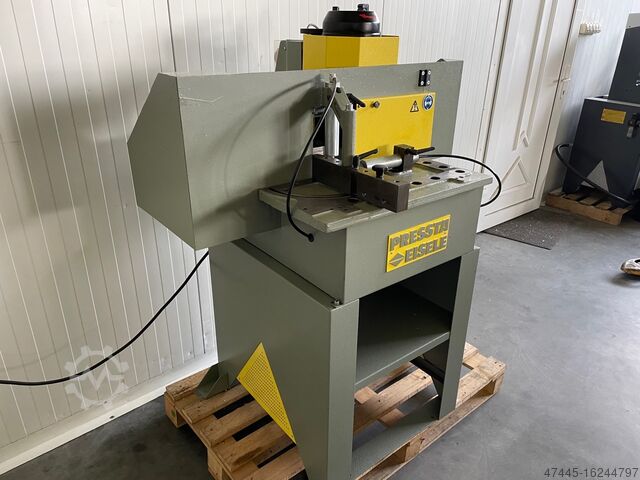

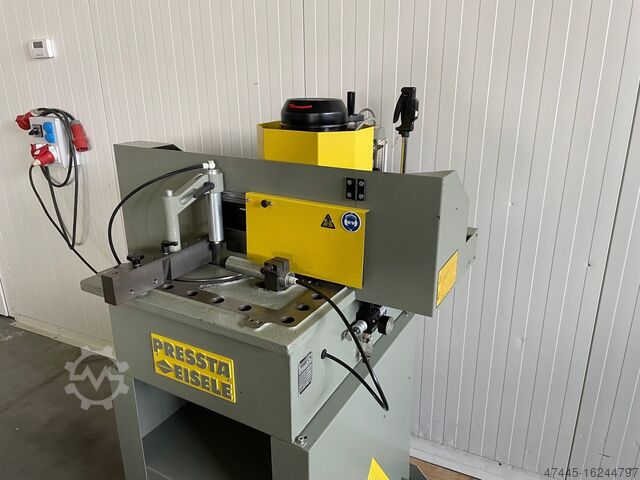

Condition: excellent (used), Year of construction: 1994, functionality: fully functional, Type: AKF 250 Csdpfx Ahoygdf Aotogw Motor: 400V 2.2kW Speed: 2800 rpm Cutter diameter: 250 mm Cutter arbor diameter: 40 mm Milling width: 300 mm Milling depth: 85 mm Profile height: 160 mm Weight: approx. 150 kg Dimensions (W x H x D): 950 x 1450 x 930 mm

Condition: as good as new (ex-display), Year of construction: 2018, saw blade diameter: 550,500 mm, Machine in perfect technical condition. Practically very little used. For processing aluminum and PVC profiles. Mitres possible in 3 levels and can be used as a splitting saw, manual adjustment of the horizontal saw blade by a maximum of 20 mm in front of the vertical saw blade. Notch options: rectangular, one-sided diagonal, two-sided diagonal, three-sided diagonal. Processing of profiles up to 300, width up to 90 °, bevels up to 30 °. Notch depth horizontally up to 185 mm, vertically up to 210 mm at an angle of 90 °. Notch width at 90 °: 300 mm, profile height 280 mm Manual adjustment of the notch and height, positioning using mechanical digital displays. Vertical saw blade rotation range 30° – 90° – 30°, (front/middle/back) manual, positioning via digital display. Cgodpfxovtarne Ahtew Vertical saw blade rotation range 30° – 90° – 30°, manual, positioning via digital display. The material stop (table top) can be manually rotated left and right within the range of 30° - 90° - 30°, positioning via measuring scale. The material depth stop can be manually adjusted via the sliding carriage and manual clamp, positioning via digital display.
