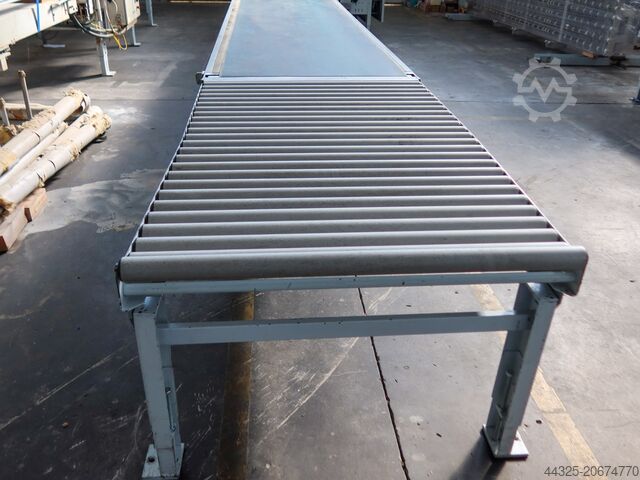

Panel Return Systems

LIGMATECH ZHR 05/R/095

Condition: good (used), Year of construction: 2020, Masterwood Project 351 L 3-Axis CNC machine Description Aircooled 3-axis milling motor 17,5HP (HSK-63F) Static frequency inverter for programming speed 1.500-24.000 t.p.m. Toolchanger with 22 positions 6 pneumatic countersinkable panel guides for loading/positioning heavy parts Prepared for install. clamps 2 horizontal clamps for beamwood 6 zero points over X-axis (positioning of panels at backside of the supports 8 zero points over X-axis (positioning of panels half-way the supports) Full reference at rightside over Y-axis Full reference at leftside over Y-Axis 2 workingfields 1 x 100m³ vacuumpump 24 vacuumcups Remote control with digital read-out Auto tool measuring system Transport waste belt Drill unit with 19 spindles (32mm center distance) 2,2kW - 7 vertical drillspindles in X-direction - 6 vertical drillspindles in Y-direction - 4 horizontal drillspindles in Y-direction - 2 horizontal drillspindles in X-direction (all drill spindles independently programmable) Control unit with PC SINCRO Software CAD/CAM MASTERWORK Technical specifiactions Working range in X - 5.130mm Working range in Y - 1.550mm Speed in X-Y 80 mtr./min. Speed in Z 25 mtr./min. Max. workpiece thickness 200mm Milling motor power 17,5 HP (S1) RPM milling motor 1.500 - 24.000 Drill unit 3HP Toolholdersystem HSK63-F Gujdpfxovu U Ito Ab Dea Toolchanger 22 positions Vacuumpump 100m³ Dustextraction 250mm Aircapacity 4.500m³/h Airspeed 30 mtr./sec. Compressed air 7 bar Compressed air consumption 300-500ltr./min. Fuse value 40 Amp. Weigth 7.000kg (All changes, mistakes in technical data, info and prices reserved. Availability subject to prior sales. No guarantee on printed data!) (Alle Änderungen und Irrtümer in den technischen Daten, Angaben und Preisen sowie Zwischenverkauf vorbehalten! Keine Garantie auf gedruckte Daten!) Best woodworkingmachines from the Netherlands Holland Die besten holzbearbeitungsmaschinen aus die Niederlande De beste gebruikte machines uit Nederland

Condition: like new (used), Year of construction: 2011, machine/vehicle number: 0-261-04-5736, functionality: fully functional, operating hours: 806 h, workpiece height (max.): 60 mm, edge thickness (max.): 8 mm, feed rate X-axis: 11 m/min, total length: 5,700 mm, Equipment: documentation/manual, Brandt AMBITION 1440 KDF Year of manufacture: 2011 Guodpeylvpqefx Ab Dsa Year of commissioning: 2013 In very good condition

Condition: ready for operation (used), Year of construction: 2007, travel distance X-axis: 4,600 mm, travel distance Y-axis: 1,935 mm, travel distance Z-axis: 275 mm, number of axes: 5, This 5-axis Biesse Rover C9.50 was manufactured in 2007. It features a large working area (X=4600 mm, Y=1935 mm, Z=275 mm), an automatic lubrication system, and a control unit for 5-axis interpolation. The machine includes a vacuum system, a conveyor belt for chip removal, and a liquid cooling unit. If you are looking to get high-quality CNC machining capabilities, consider the Biesse Rover C9.50 machine we have for sale. Contact us for more information. Worktable and clamping • 8 ATS plate holders (L = 1525 mm) and 24 slide rails • Automatic positioning of plate holders and slide rails (EPS X-Y) • Pneumatic locking system, divided into 2 working areas in X • 8 rear reference stops, stroke 115 mm • 8 stops, stroke 140 mm, positioned at 1175 mm (L = 1280 / 1525 / 1800 mm) • 8 stops, stroke 140 mm, positioned at 770 mm (L = 1280 / 1525 / 1800 mm) • 4 side stops, stroke 140 mm (2 left + 2 right), with pneumatic system • 4 removable center stops, stroke 140 mm (2 left + 2 right), with pneumatic system • Sensor for detecting lowered stops • Pneumatic system for lifting bar holders • 6 lifting bar holders for easy loading (H = 74 mm modules)Vacuum Guodpfxex D H Hcj Ab Dja • Vacuum system for a 250 m3/h pump • 250 m3/h rotary vane vacuum pump for standard vacuum systemMachining units and configuration • Composition C3-A1: • Device for mounting chip deflectors with pneumatic or inductive sensors on a 5-axis machining unit • Flange for mounting units on a work unit with 5 interpolating axes (units usable only when the electric spindle is vertical) • Composition C3-P2: • Additional Z slide for rear work units, controlled by an independent Z axis • 16 vertical and 4 horizontal boring spindles in Y-direction • Chain tool changer with 22 positions (180 mm center distance) • Iron gripper for chip deflector with pneumatic or inductive sensor, positioned in the chain tool changer • RH chip deflector with inductive sensor for standard electric spindle or 15 kW 5-axis electric spindle (requires device for chip deflector; requires flange for mounting units when using a 5-axis electric spindle; requires C-axis when using a standard electric spindle)Systems • Automatic lubrication system • Control unit with 5 interpolating axes Additional equipment • additional refurbished 5-axe main spindel available • Conveyor belt for removing chips and scrap pieces (chip conveyor) • Liquid cooling unit for liquid-cooled systems (can cool two electric spindles, or one electric spindle plus one liquid-cooled drilling head)Note: The technical data and descriptions are taken from the original order confirmation and are for information only; they are not binding.

Condition: used, Year of construction: 2002, functionality: fully functional, Cutting size 3,200 x 3,200 mm Maximum cutting height 50 mm Main saw motor 5.5 kW Main saw blade diameter 300 mm Scoring saw motor 1.1 kW Guedpfsyba Shjx Ab Dsa Scoring saw blade diameter 150 mm Saw carriage feed adjustable 6 - 32 m/min Program fence feed 18 m/min Number of clamping grippers: 6 pcs. Number of air cushion tables: 3 pcs. Manual angle return device for cuts 100 - 1,250 mm wide PC control based on Windows 2000

Condition: refurbished (used), functionality: fully functional, edge thickness (max.): 15 mm, overall weight: 4,000 kg, OTT edge banding machine type Strom+ Optional with return system TransCompakt or TransLift. The machine is factory reconditioned and is sold with warranty in Germany. New tools, new chain plates and belts. For PUR glue and EVA glue. Alternatively, we also have access to a Tornado+ and StrongEdge, both factory reconditioned. Godpfx Abjyn Am Ie Deua

Condition: reconditioned (used), Year of construction: 2014, functionality: fully functional, HOLZ-HER Edgebanding Machine ACCURA 1558 performance with BELT BRIDGE and intelligent equipment package for edge thicknesses up to 15 mm. Easy program selection and tool adjustment via the 18.5" color touchscreen (16:9). Short heating time for the GlueJet (GJ 301 automatic) adhesive system—around 2 to 3 minutes depending on adhesive type and ambient temperature. Always fresh glue thanks to the GlueJet adhesive application system and glue cartridges. Swapping PUR adhesive and cleaning the system is effortless and takes just a few minutes. Axis adjustment via high-precision, repeatable servomotors. Special configuration for protective film materials, such as high-gloss and super-matt! One of the absolute highlights of this machine is the multifunction package, which excels with businesses processing a wide variety of edges. The DIA tools are multi-stage and can switch between radius and chamfer as needed—from the longitudinal milling unit to corner copying and the profile scraper blade. The extendable workpiece support and the extended infeed area with air cushion table provide support for large workpieces. A guidance system assists in feeding small workpieces into the machine. Edge thickness (roll material): 0.4 – 3 mm (material dependent) Edge thickness (strip material): 0.4 – 15 mm Workpiece thickness: 8 – 60 mm Workpiece width: min. 65 mm Feed speed: 10 – 25 m/min Glue application with GlueJet in EVA and PUR quality, minimal effort required. Processes all standard edge types, including high-gloss & super-matt, as well as solid wood edges up to 15 mm. Motorized adjustment of the infeed fence Narrow part guidance system Gjdpfx Abeyfgrps Doua Prepared for connection to a RETURN system Motorized pressure bridge with top belt drive Multifunctional units for rapid changeover between radius, flush, and chamfer processing Spraying units, vertical & horizontal and much more. Delivery, installation, and commissioning of the machine can be offered directly by us for an additional charge. The machine is currently located at our delivery warehouse in Gratwein, Austria. In the event of discrepancies between the German version and any foreign-language version, the German version shall prevail. Our terms and conditions can be found on our website at holzher.de/en/terms-and-conditions.

Condition: good (used), Year of construction: 2008, functionality: fully functional, Used Panel Dividing Saw MAYER PS 2 Z - Year of manufacture: 2008 - Processing dimensions: 4300 x 2200 mm - Immediately available - Rear lifting table with powered heavy-duty rollers Gedpfx Abjx Tcyme Deua - Electronic pusher unit - All roller conveyors and air cushion tables included - Ideal for bundle cutting

Condition: ready for operation (used), Year of construction: 2006, operating hours: 27,750 h, overall weight: 8,100 kg, This 3-axis PANHANS POLYPAN 47 was manufactured in 2006. It features 4200 mm cutting length and width, maximum cutting heights of 72 mm at 0° and 40 mm at 47°, and a saw carriage speed up to 100 m/min. Main motor power is 13.5 kW, with a scoring unit. Weighs 8100 kg. If you are looking to get high quality sawing capabilities consider the PANHANS POLYPAN 47 machine we have for sale. Contact us for further details. • Configuration: Machine including control cabinet • Cutting length (SL): 4200 mm • Cutting width (SB): 4200 mm • Max cutting height (saw blade vertical 0°): 72 mm • Max cutting height (saw blade swiveled 47°): 40 mm • Cutting accuracy (saw blade vertical 0°): +/- 0.1 mm • Cutting accuracy (saw blade swiveled): +/- 0.2 mm • Angle accuracy (feed speed < 10 m/min): +/- 1 mm • Angle accuracy (feed speed > 10 m/min): +/- 2.5 mm • Feed speed (saw carriage forward/reverse): 0–100 m/min • Feed speed (width stop forward): 25 m/min • Feed speed (width stop reverse): 100 mm • Axis travels (minimum plate size): X = 300 mm, Y = 100 mm • Axis travels (maximum plate size): X = 2800 mm, Y = 750 mm • Max drilling diameter: 13 mm • Max total length: 115 mm • Number of tools: 1 drilling spindle • Tool holder: Quick-release chuck DM 1-13 • Connection values Godpfx Aox D Rtyob Doua • Total connection value: 21.0 kVA • Nominal current: 3x 32 A • Pneumatic connection: 8 bar (minimum 6 bar) • Air consumption: 3 liters/min per clamp • Sound pressure level (Lpa) at operator position: 86 dB(A) • Sound power level (LWA): 103 dB(A)

Condition: excellent (used), Year of construction: 2011, machine/vehicle number: -, functionality: fully functional, edge thickness (max.): 60 mm, Very good condition Gsdpfx Asxu U Rqeb Dsua

Condition: used, machine/vehicle number: 008324, Max. panel width: 1000 mm Max. panel length: 2500 mm Gusdpex Hpkrefx Ab Dsa Length of conveyor: 7000 mm Panel return for edgebander: Right
