3500 liter heatable/coolable pressure tank made of V2AIaeg
7733
Price & Location
- Location:
- Bremen
Technical details
- Tank capacity:
- 3,500 l
Details about the offer
- Listing ID:
- A203-49940
- Reference number:
- 7733
- Update:
- 23.10.2025
Description
Features: Crane lugs
Design: Vertical
Remarks: Armaflex insulation on the lid and upper cylinder area (see photos)
Speed: 395 rpm
Outer diameter: 1,660 mm
Inner diameter: 1,580 mm
Explosion protection: Motor is explosion-proof (compliance with applicable ATEX directives under local conditions must be verified)
Total height: 4,550 mm
Heating/Cooling: Available
Power: 6.8 kW
Max. permitted operating temperature: 15 °C
Max. permitted operating overpressure: 4.0 bar
Max. overpressure: 4.00 bar
Mechanical seal: Mechanical seal with thermosyphon vessel
Agitator: Propeller
Support design: Feet
Location: Bremen
Cylinder temperature control: Double jacket
Nameplate:
Vacuum: 1.00 bar
Volume: 3,500 litres
Double jacket volume: 320.0 litres
Product-contact material: V2A 1.4541 (AISI321)
Ledpfxexqa Uye Ad Djru
Condition: Used
Cylindrical height: 1,700 mm
Last application: Chemical industry
TANK
Max. tank operating temperature / °C: 120 °C
Number of feet: 4 pcs
HEATING/COOLING JACKET
Base temperature control: Double jacket
FEATURES
Outlet: Flange DN50
Note: minor residue
MATERIAL SPECIFICATIONS
Temperature control system material: V2A 1.4541 (AISI304)
Feet material: Steel

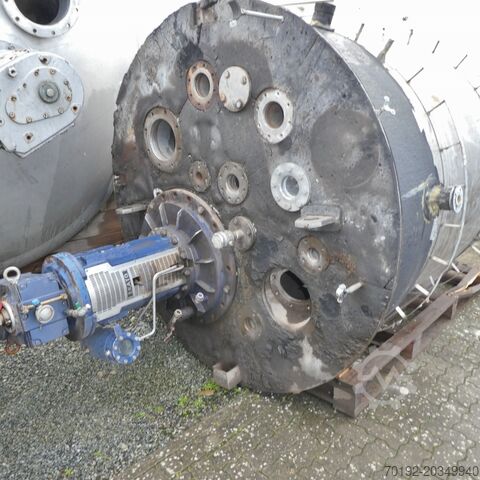

AGITATOR
Agitator manufacturer: Ekato
Voltage: 400/690 volts
Agitator arrangement: Eccentric, top-mounted
Agitator features: Protective cover above motor hood is bent
