Extraction Höcker Polytechnik 2006

Höcker Polytechnik

Condition: used, Year of construction: 2018, machine/vehicle number: 519553, Central extraction system Höcker Polytechnik with rotary valve and/or dust bins.(Option: rotary valve instead of dust bins) Manufacturer: Höcker Polytechnik Type: Multistar JQ6/5 131/20717A Year of manufacture: 11/2018 Dust properties: Dust and chips Material throughput: Unknown Jet cleaning of filters Volume flow: Approx. 22,000 m³/h Disposal type: Open Clean air duct: Air recirculation Residual dust content: 0.1 mg/m³ based on dust. 1 piece Filter system, galvanized - Year of manufacture 11/2018 - Multistar JQ6/5 131/20717A - Filter area: approx. 131m² - Filter bags: 120 - Filter bag diameter: 170mm - Filter bag length: 2,070mm - Filter cleaning Air Jet, compressed air - Filter housing made of galvanized sheet steel - Inspection door, access ladder, standing platform - Tested pressure relief areas - Raw gas section as large expansion chamber - Exhaust air connection according to local requirements - Filter base frame in welded steel construction, hot-dip galvanized. - Includes dry extinguishing line, C connection - *Optionally with 6 chip bins or large rotary valve*2 pieces Clean air fans DER 404/400/18.5-2 - Volume flow: 11,000 m³/h per fan - Directly driven fans - Galvanized sheet steel - Installed horizontally in Multistar series - Electrical power of each fan 18.5 kW - Total volume flow 22,000 m³/h - Total pressure increase: 4,600 Pa 1 piece Pipe components Air recirculation - Including galvanized ducts - Must be supplemented for a new location . 1 piece Control cabinet With PLC Siemens S7-1200 Dustproof sheet steel standard housing control cabinet as wall cabinet, built and completely wired, in accordance with VDE regulations 0100, 0113, and DIN 57113. The scope of delivery includes all components required for control components and the circuit igned for: · Jet cleaning control · Control of 2 fans · 6 automatic start-up of the fans when the machine starts · Pressure monitoring indicator light · 3 control butterfly valves · Rotary valve controlDimensions: - Length: 3,960 mm - Width: 3,380 mm - Height: 5,900 mm (may vary depending on equipment) Electrical connection value: Kdsdpsya Idvsfx Ahwsh - approx. 38 kW - 400 V/50 Hz - Control voltage 230 V AC/24 V DC Location at warehouse

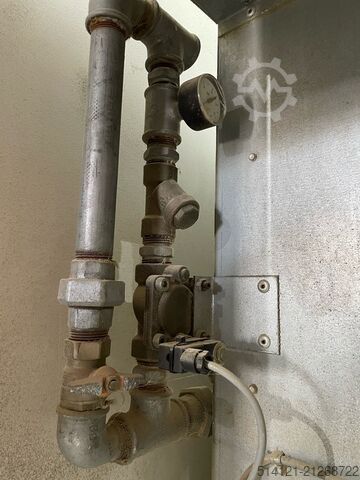

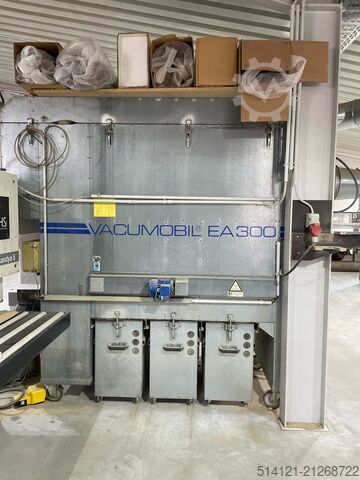

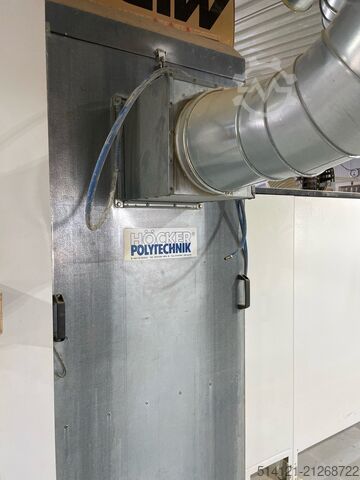

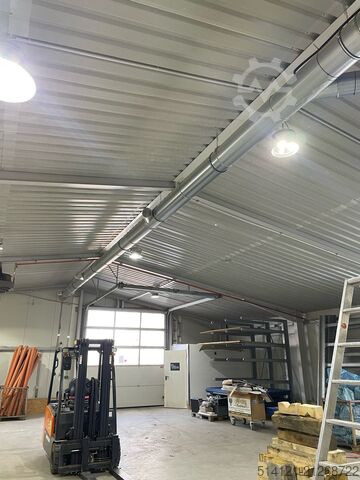

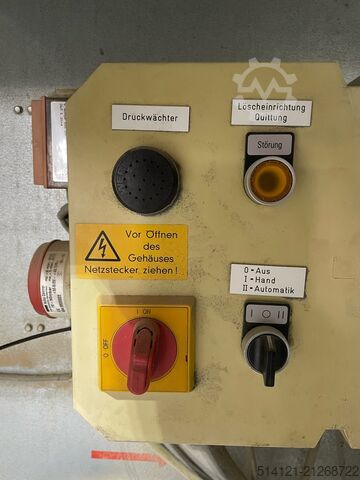

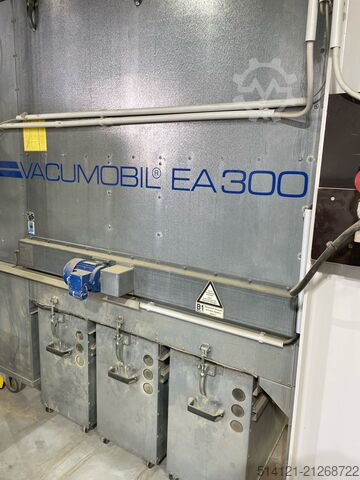

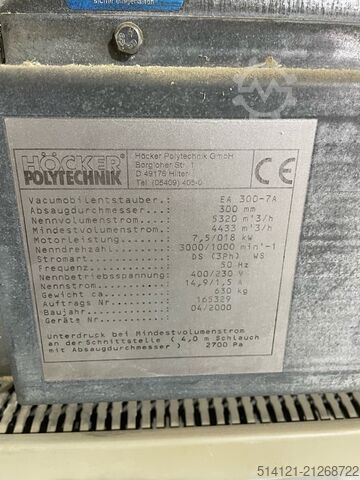

Condition: excellent (used), Year of construction: 2000, For sale is a very well-maintained extraction system from Höcker Polytechnik. The system operates perfectly. Further details to follow… Including pipework. Dismantling can be arranged at an additional cost. Sale on behalf of a customer. Kodpfxsylciwo Ahwedh Shipping available.

Condition: ready for operation (used), Year of construction: 2012, functionality: fully functional, Exhaust system Hocker Polytechnik Type MultiStar JP5 Year: 2012 Capacity: 20,000 m³ Motor: 30 kW with briquetting press BrikStar C-3 18 Negative pressure Filter area: 121.3 m² Filter bags: 100 pieces Bag length: 2300 mm Bag diameter: 170 mm (externally pressurized) Compressed air connection: 6.0 bar, 1" Operating pressure: 4.5 bar Compressed air consumption: approx. 216 Nl per bag row, at a pulse duration of 200 ms Noise level - Jet extraction: approx. 75 dB(A), depending on local conditions Footprint, L x W: 2540 x 2420 mm Required space, L x W: 3500 x 3380 mm Connection, bottom: 2300 x 2300 mm inside Total height: 4430 mm Weight, approx.: 1960 kg Duct bend 90° 2mm Ø 900 x 800mm, 1 pc Kodsyk Acbspfx Ahwjdh In bolted construction, made of galvanized sheet steel, 2 mm Duct dimension 1: 900 x 800 mm Duct dimension 2: 900 x 650 mm Shape: asymmetric 460406 Duct 2mm, 750mm long, 900 x 800mm, 2 pcs in bolted construction of galvanized sheet steel, 2 mm 1 blank cover 2mm 900 x 800mm 1 pc Y-piece for MS xP to BrikStar 1 pc 300 x 2300mm for existing briquetting press Manufacturer: Gross (approx. 1100 x 1100 mm / press height: 1260 mm)

Condition: used, Year of construction: 1998, Höcker Poly Technik chip extraction system 5.5 kW motor Year of manufacture: 1998 250 mm pipe connection Motorized filter cleaning Excellent condition Three chip containers Mobile unit €5,865.55 net €6,980 including VAT Kedpfeyki S Nsx Ahwodh Tel: 09803/696

Condition: used, Technical data: on request Paint room from Höcker Polytechnik consisting of: Kdedpfx Aoxvb Sqohwoh - Spray wall approx. 3 x 2.5 m - Supply air duct - Heat exchanger - EX lamps.

Condition: used, Year of construction: 2025, As-new demonstration unit! List price €8,200, including control panel (operator side), pressure regulating valve LR 1/2. The key design features are: galvanized steel sheet construction; space-saving due to compact design; ATEX-compliant; FSA-tested for pressure shock resistance; low energy consumption with high performance thanks to high-efficiency clean-air fan fitted with special impeller; two large-capacity collection containers with liner bags, collection volume 350 l; high operational safety and extended service life due to BGIA-tested filter bags; compressed air pulse cleaning (‘jet’ cleaning) with time-dependent control for filter surface regeneration; Alpha control system with automatic start (slide control available for a surcharge); connection cable, 5 m long, with plug; residual dust content in exhaust air below 0.1 mg/m³; passed GS-H0-14 "GS-H3" test. Suction nozzle arrangement: left. Rated air flow*: 1,447 m³/h; max. air flow: 1,900 m³/h. Negative pressure at interface (at rated air flow): 3,500 Pa; (at max. air flow): 2,700 Pa. Filter surface: 10 m². Suction nozzle: 160 mm. Motor – fan: 2.2 kW, 400 V, 50 Hz, IE3. Collection volume: approx. 350 liters. Compressed air connection: 1" (on-site). Sound pressure level: 72.0 dB(A). Dimensions (L x W x H): 1,840 x 1,020 x 1,990 mm. Location: Kdodpfxox Hwqgj Ahweh

Condition: used, Year of construction: 2000, functionality: fully functional,

Year of construction: 1998, condition: ready for operation (used), Volume flow: 13,600m³/h, pressure increase: 3100Pa, rotational speed: 1500/min, motor power: 18.5kW, weight: 790kg, with Chip Container STBB HAB S, including full documentation. Kdsdpfoi A Ix Hjx Ahwoh

Year of construction: 2014, condition: ready for operation (used), A mobile extraction and filter unit Höcker is available. Filter class: H3, motor power: 4kW, suction connection: 200mm, filter surface area: approx. 12m², max. volume flow: 3400m³/h, max. negative pressure: 2700Pa, collection container volume: 350l, machine dimensions X/Y/Z: approx. 2000mm/1100mm/2000mm, weight: approx. 420kg. On site inspection is possible. Kdedpfx Aheyg Nu Newoh

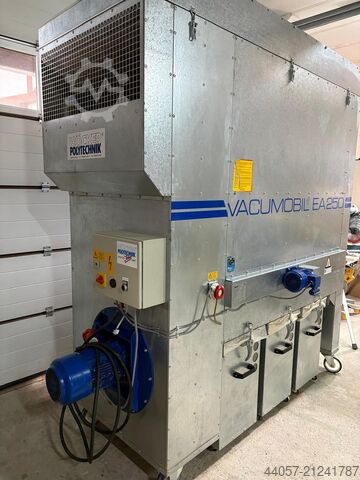

Year of construction: 1997, condition: ready for operation (used), Offered: Vacumobilmobilentstauber year 1997. Extraction diameter 250mm, nominal volume flow 4241m³/h, minimum volume flow 3534m³/h, negative pressure at minimum volume flow 2350Pa (measured at the interface with a 4.0m hose Ø250mm), motor power 4.0kW/0.18kW, nominal speed 3000min⁻¹/900min⁻¹, weight approx. 630kg. Inspection is possible by appointment. Kdjdpsxy R E Ijfx Ahweh
