Crosscut and miter saw

Graule ZS 200 N

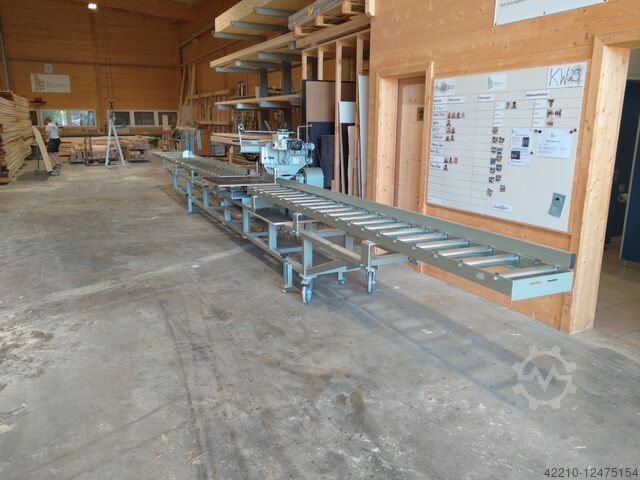

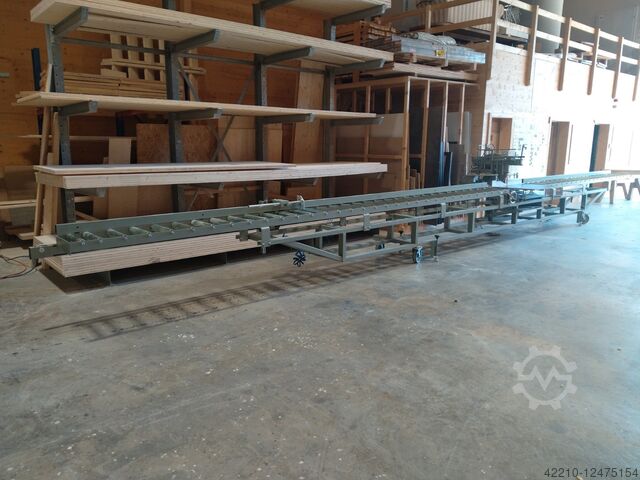

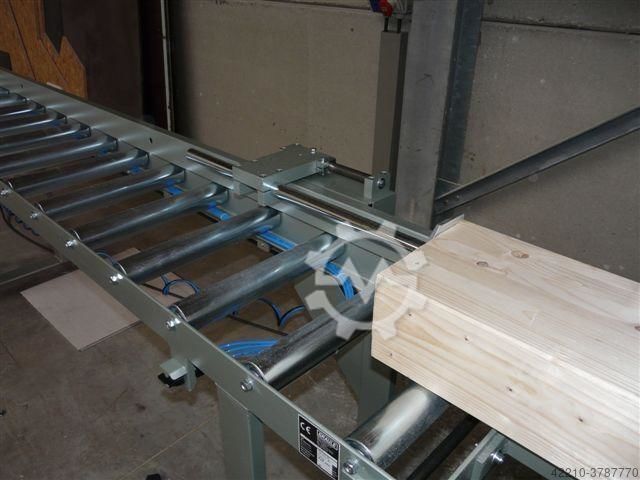

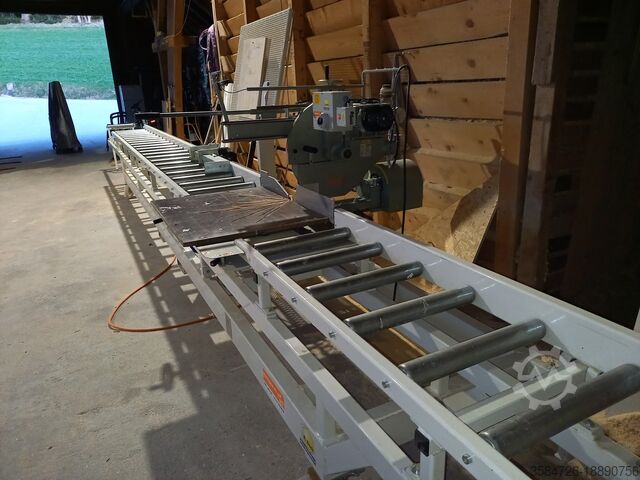

Condition: used, Year of construction: 2014, machine/vehicle number: ZS 200 N / 2014/53/40, functionality: fully functional, cutting height (max.): 200 mm, saw blade diameter: 520 mm, rotational speed (min.): 2,800 rpm, cutting length (max.): 420 mm, length stop: 7,000 mm, For sale: GRAULE ZS 200 N, crosscut and mitre circular saw with control panel, motorised swivel and tilt adjustment, including roller conveyors of 7000 mm and 4000 mm with manual stop, as well as a chip extraction system. The machine has been regularly maintained by a specialist company and is in very good condition. Bcedpfx Asyannzof Uow

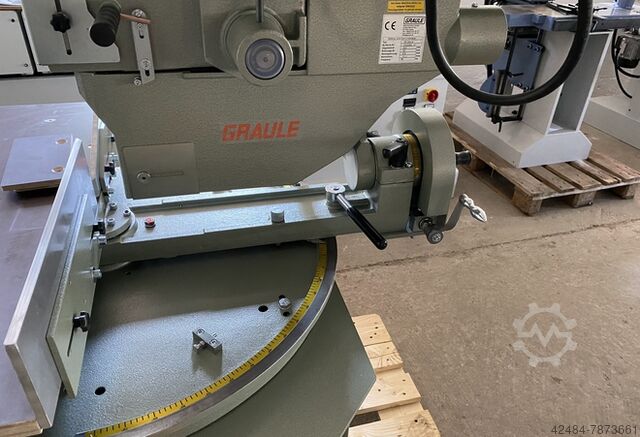

Condition: excellent (used), Year of construction: 2015, functionality: fully functional, power: 3 kW (4.08 HP), input voltage: 400 V, type of input current: three-phase, saw blade diameter: 520 mm, saw blade bore: 50 mm, total length: 1,750 mm, total width: 1,030 mm, total height: 1,800 mm, overall weight: 400 kg, Equipment: documentation/manual, GRAULE ZS 200 N Crosscut & Mitre Saw – Ø 520 mm – Year 2015 – Digital Angle Displays – 400 V For sale is a very well-maintained and robust industrial crosscut and mitre saw from the quality manufacturer GRAULE. Bedpfx Aeym Egnef Uscw This machine is clearly aimed at professional users in timber construction, metalworking, aluminium/non-ferrous profile machining, workshop, and maintenance sectors who require reproducible, precise mitre cuts. —— Manufacturer / Model Manufacturer: GRAULE Model: ZS 200 N Year of manufacture: 2015 Operating voltage: 400 V / 50 Hz —— Technical Data Saw blade diameter: 520 mm Saw blade bore: 50 mm Motor: HIMMEL 3.0 kW Rated current: 6.4 A Weight: approx. 400 kg —— Digital Angle Displays (ELGO / GRAULE Z-60) A key advantage of this machine is the integrated digital angle readouts: – Display of horizontal mitre angle (turntable) – Display of vertical bevel angle (tilting action) – Switchable between incremental/absolute modes – Zeroing/referencing function – Parameter settings directly on the device Result: faster setup times, reduced waste, high repeat accuracy for series cuts. —— Equipment – Heavy-duty industrial construction, smooth operation – Large mitre range via turntable – Pneumatic functions available – Coolant/minimal-quantity lubrication system in place – Digital display mounted on stand – Solid clamping and stop system – Extraction port available —— Condition Very well-maintained overall appearance. No makeshift repairs, fully assembled. Age- and use-related wear present. Technically serviced. Inspection and test run available by appointment and highly recommended. —— External dimensions (approx.): Width: 160 cm Depth: 120 cm Height: 190 cm —— Price €7,490 net plus 19% VAT —— Terms – Sale on behalf of a customer – Invoice with VAT shown separately – Location: 72229 Rohrdorf – Loading by overhead crane possible – Delivery available at additional cost —— Documentation – Original GRAULE ZS 200 / ZS 200N operating manual – Z-60 digital angle display manual – Brochures/information sheets for the series —— Conclusion: A professional, robust GRAULE industrial saw with digital angle display – ideal for companies that value precise mitre cuts, repeatable accuracy, and efficient setup times.

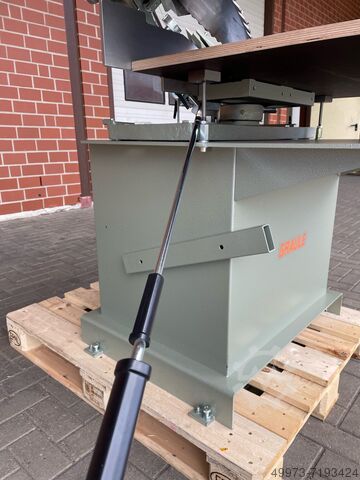

Condition: used, Year of construction: 1999, power: 3 kW (4.08 HP), input voltage: 400 V, cutting height (max.): 200 mm, saw blade diameter: 520 mm, overall weight: 350 kg, cutting length (max.): 420 mm, mount diameter: 50 mm, saw drive: 3,000 W, No. 04511 Crosscut and mitre saw Graule ZS 200 N Used, year of construction 1999 Saw can be swiveled and tilted 3 kW three-phase brake motor 400 V Saw blade diameter 520 mm Saw blade holder 50 mm Cutting height 200 mm Saw blade tilted to 45°: Cutting height 140 mm Cutting length 420 mm Table dimensions 900 x 700 mm LW Aluminium fence back With machine stand and hand crank at the rear for tilt adjustment Hydraulic feed brake Pneumatic material clamping on both sides from above Saw blade spray device for coolant or lubricant Carbide circular saw blade for aluminium and plastics, diameter 520 mm Roller conveyor type RLK 4000 mm, with fold-away material fence and scale Roller conveyor 4000 mm long after the saw Roller conveyor width 350 mm Transport dimensions machine approx. 1650 x 1200 x 1850 mm LWH, roller conveyors approx. 4500 x 400 x 1950 mm LWH Weight approx. 350 kg To avoid possible misunderstandings, an on-site inspection is possible and recommended by appointment Sold as is Technical specifications, condition description, year of construction and scope of delivery according to manufacturer's brochure or previous owner, without guarantee Subject to prior sale For used machines, any warranty is excluded, the following applies: “sold as seen” Bcsdpfx Afoyh Nfue Ujw Terms of payment: Prices plus VAT, payment before collection or dispatch Terms of delivery: ex warehouse

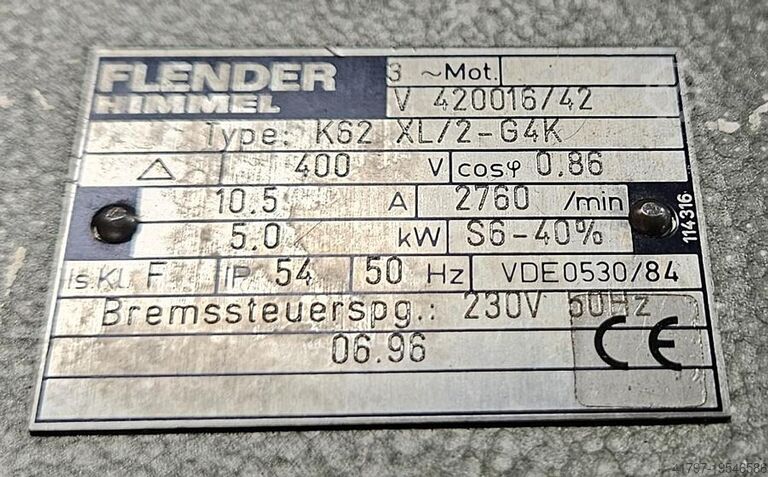

Condition: ready for operation (used), power: 5 kW (6.80 HP), Equipment: double-sided, GRAULE ZS 200 N Double Mitre Saw | 5 kW | incl. 2m roller conveyor left/right This machine impresses with high precision, robust construction, and reliable cutting results – ideal for window construction, metalworking, aluminium, and profile machining. ✅ Technical data: +Manufacturer: GRAULE +Model: ZS 200 N +Motor power: 5 kW +Double mitre saw – swivels to both sides +Precise angle adjustment with scale +Robust industrial machine frame +Suitable for aluminium, plastic, and non-ferrous metal profiles Bsdpfx Afeyizd Uj Uscw Inspection and test run possible by appointment. Price: Negotiable €6900 net Location: 39340 Haldensleben Shipping by freight forwarder possible. Keywords: Graule ZS200N, double mitre saw, aluminium circular saw, profile circular saw, metal circular saw, window manufacturing, aluminium saw, industrial circular saw.

Condition: new, Year of construction: 2024, machine/vehicle number: MR005970, Perfect cutting 200mm high! In double miter and with a fixed zero point. When the machine is mitered, the saw blade continues to enter the material at the same point. Technical specifications: - Fixed zero point: Yes - Miter angle: 45-90-25 ° - Tiltable: Yes Bjdpfxovzl Scj Af Uscw - Tilt angle: 60-90-30 ° - Maximum cutting length: 420 mm - Maximum cutting height: 200 mm - Maximum saw blade diameter: 520 mm - Weight: 310 kg - Saw blade speed: 2800 /min - Motor power: 7 hp - Serial number: 2024/95/5

Condition: excellent (used), Year of construction: 2015, functionality: fully functional, input voltage: 400 V, type of input current: three-phase, saw blade diameter: 520 mm, saw blade bore: 50 mm, total length: 1,750 mm, total width: 1,030 mm, total height: 1,800 mm, ❇️ Graule ZS 200 N – Crosscut and Mitre Saw | Excellent Condition | Fully Functional | UVV Safety-Inspected For sale on behalf of a customer: a high-quality Graule ZS 200 N crosscut and mitre saw previously used in a window manufacturing facility. The machine is in excellent, well-maintained, and fully functional condition, and was in regular use until recently. A valid UVV/safety inspection is available (see photos). Viewing and functionality testing on site are possible at any time. — ❇️ Technical Data: • Manufacturer: Graule Maschinenbau GmbH, Aalen • Model: ZS 200 N • Machine Type: Crosscut & Mitre Saw (for aluminium, wood, plastics) • Saw Blade Ø: 520 mm • Bore: 50 mm • Swivel Range: wide mitre range, finely scaled • Drive: 400 V • Application Area: Primarily for aluminium and profile processing • Design: Heavy-duty industrial version — ❇️ Features & Highlights • Very robust machine stand • Large, double-sided worktable (multiplex-coated) • Pneumatic workpiece clamps • Extraction hood / suction port • Digital measuring/length stop system (display mounted on top) • Precise swivel mechanism with angle scale • Ideal for aluminium profiles in window construction • Immediately ready for operation • Only original Graule circular saw blades permitted (per manufacturer instructions) — ❇️ Condition Bedpfx Afsx N Hxxe Uecw • Excellent, well-maintained, immediately ready for use • Fully functional • Maintained appearance • Still in operation • UVV safety-inspected — ❇️ Sale & Handling • Invoice with VAT shown can be issued • Delivery or transport available at buyer’s expense • Location: 72229 Rohrdorf, Germany • Loading possible on site with overhead crane — ❇️ Price: €7,490 (net) plus 19% VAT — ❇️ Dimensions: • Approx. D 175 cm x W 103 cm x H 180 cm — ⚠️ Additional workshop and metalworking accessories are available in my other listings. ‼️ Please also take a look at my other items – it’s worth it!

Condition: new, 400 Volt Drehstrom-Bremsmotor 5,0 kWSägeblattdurchmesser 520 mm,Sägeblattaufnahme 50 mm,Schnitthöhe 200 mmSägeblatt auf 45° geneigt: Schnitthöhe 140 mm,Schnittlänge 420 mm,mit Maschinenständer und Handkurbel hintenzur Neigungseinstellung Bsdpfx Afovxr Thj Uocw

Condition: new, saw blade diameter 520 x Ø 50 mm cutting diameter 200 mm cutting length 420 mm Cutting height at 45° 140 mm dimensions of saw-blade 520x3,6/3,0x50 mm turning speeds 2800 U/min Dust suction hood 100 mm total power requirement 3,0 kW weight of the machine ca. 310 kg. range L-W-H 1400 x 900 x 1650 mm - Crosscut and miter saws for crosscuts - Miter adjustment on both sides (60°/45°), with fixed stops - Shift cut on both sides (60°/45°), with fixed stops - Stable cast iron construction - Precise ball bearing guidance of the tool slide hardened and welded steel shafts - manual saw feed - Saw blade infinitely adjustable in height - socket for opt. suction Bedpfx Afsxaaxdj Uecw Furnishing : - 3.0 kW motor for ALU cuttings - Saw blade can be tilted via handwheel and worm gear (shift cut) - Saw blade diameter 520 mm - Saw blade mounting hole 50 mm - Saw blade speed 2,800 rpm - 400 Volt / 3 kW (S6/40%) motor with brake and automatic. Star-delta motor circuit - Machine weight approx. 250 kg Cutting data : - Cutting length at 90° = 420 mm - Cutting height at 90° = 200 mm - Cutting length at 45° = 295 mm - Cutting height at 45° = 140 mm Special accessories included: - HM saw blade 520x3.6/3.0x50 mm - Hydraulic feed brake, continuously adjustable - Pneumatic material clamping from above best. from : 2 vertical clamping cylinders adjustable with lever valve - pneumaschine saw blade spray device - Machine can be tilted from the front on both sides using a hand crank - Machine stand

Condition: new, Year of construction: 2026, crosscut and miter saw type: ZS 200 N - 5 KW motor with machine stand, but without saw blade Bedpfxoi Dfids Af Ujcw Machine via handwheel and worm gear (rear) Tiltable Saw blade diameter 520 mm, saw blade mounting hole 50 mm Saw blade speed: 2800 rpm 400 volt / 5 KW (S6/40%) motor with brake u. Automat. Star delta motor control cutting width at 90deg: 420 mm cutting width at 45deg: swivelled: 295 mm Cutting height at 90deg: 200 mm Cutting height at 45deg tilted: 140 mm Saw can be tilted on one side up to approx. 25 degrees to acute angles and tilted flat to the left up to 30 degrees Machine stitched: approx. 250 kg Location: ex stock 54634 Bitburg - immediately available -

Condition: new, Year of construction: 2026, Cut-to-length and mitre saw type: ZS 200 N - 5 KW motor with machine stand, Machine via handwheel and worm gear (rear) Tiltable Bcjdek H Ic Ujpfx Af Uew Saw blade diameter 520 mm, saw blade mounting hole 50 mm Saw blade speed: 2800 rpm 400 volt / 5 KW (S6/40%) motor with brake and automat. Star delta motor control Cutting width at 90 degrees: 420 mm Cutting width at 45 degrees: swiveled: 295 mm Cutting height at 90 degrees: 200 mm Cutting height at 45 degrees inclined: 140 mm Saw can be swiveled on one side up to approx. 25 degrees to an acute angle and tilted flat to the left up to 30 degrees Carbide circular saw blade 520x4.0/2.8 x 50 mm 60 WZ neg. for wood RLH-ST60 6.0 mtr. measuring length, mounting side: left Cross-cut fence / roller conveyor, heavy-duty design, Stop slide adjustable from the workstation via handwheel, electronic-digital dimension display, pneumatic clamping of stop slider, stop flap folds backwards, with steel rollers 60 mm diameter, roller spacing 200 mm, 400 mm roller width, with 4 support feet and connection piece: overall length: 6.7 mtr. Surcharge for digital electronic display unit type: FIAMA EP6 for 230 V mains operation, with electric on/off switch and socket. Powerful dark red LED display. Higher accuracy than the battery-powered crystal display RO-ST60 4.0 m long feed roller conveyor Mounting side: Right Heavy-duty design, steel rollers: 60 mm Diameter, roller spacing: 200 mm 400 mm roller width, 3 support feet and connection piece Location: From stock 54634 Bitburg - immediately available - Picture: similar. Machine is still in original packaging
