Twin screw extruder

Coperion - Werner & Pfleiderer ZSK 50

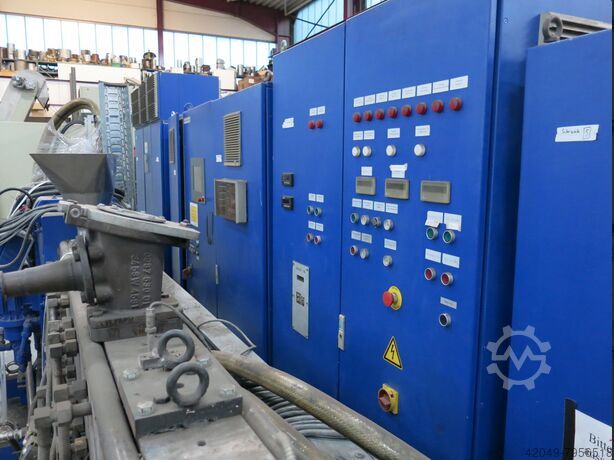

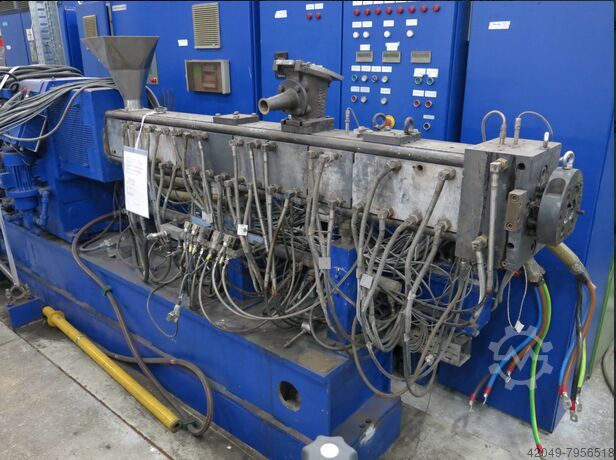

Year of construction: 1999, operating hours: 47,973 h, condition: ready for operation (used), functionality: fully functional, machine/vehicle number: 20472666, Complete compounding and granulation system based on a co-rotating twin-screw extruder, Krupp Werner & Pfleiderer ZSK 50, manufactured in 1999. The system is suitable for compounding, processing, and regranulating thermoplastic materials. Previous process: ABS recycling The system consists of: Twin-screw extruder ZSK 50 Mc 900 with a process length of 36 L/D Drive power: 181 kW Screw speed: up to 1200 rpm including water ring vacuum pump and water cooling including Autotherm temperature control unit including strand die head Multi-component dosing and material feeding system from Colortronic - Graviblend (manufactured in 1999), gravimetric, with 5 gravimetric feeders, including vacuum material conveying with Busch vacuum pump, type RC 0160, suction via suction lances Downstream: Ettlinger melt filter, type ERF 200 with 1250 cm² filter area for up to 900 kg/h Water bath, 4.0 m, including heat exchanger Granulate air blower Gbjdpfozn Um Ejx Ai Sjr Scheer strand granulator SGS 200-E5, manufactured in 2011 Classification vibration screen Cooling screw conveyor Control cabinets included. The system is currently still assembled and can be inspected under power until the end of September.

Year of construction: 1991, operating hours: 32,000 h, condition: refurbished (used), • One pair of original WEBER screws (excellent condition, including measurement report Gbodpjwaxuajfx Ai Sor • One pair of non-original screws • Gearbox inspected and partially revised by WEBER • Control upgraded to WPS control • Output on PVC around 700 kg/hour

Year of construction: 2010, operating hours: 29,000 h, condition: excellent (used), Category: Twin-screw extruder Number: DE27699 Manufacturer: Coperion - Werner & Pfleiderer Type: ZSK 50 MCC+ Year: 2010 Screw diameter: 2 x Ø 50.0 mm L/D: 48:1 Motor: 129 kW Gbjdpfexykcgex Ai Ser Details: Co-rotating, segmented screws and barrel, vacuum pump, temperature control unit, 2x side feeders, 1x side degassing The extruder is in very good condition and has only 29,000 operating hours. Options: 7-fold dosing system from Motan Colortronic, dryer (Motan LA 1200/4), IPS strand extraction, strand conveyor belt, water bath, granulator, vibrating screen. All options are available immediately at extra charge. This offer does not meet your requirements? Please visit our website Plama or send us your detailed enquiry. We offer suitable equipment for almost every budget.

Condition: used, Year of construction: 2014, functionality: fully functional, input voltage: 400 V, input frequency: 50 Hz, pressing force: 962 t, stroke length: 200 mm, table width: 1,400 mm, table length: 2,750 mm, working width: 1,400 mm, operating temperature: 135 °C, operating pressure: 290 bar, workpiece height (max.): 200 mm, workpiece weight (max.): 250 kg, cylinder diameter: 270 mm, opening width: 200 mm, plate width: 1,400 mm, pressure: 25 bar, temperature: 150 °C, We are offering this used ITALPRESSE MARK C/ 14-27.5/2 veneer press, year of manufacture 2014. Machine type: MARK/C 14-27.5/2 Serial number: 184450514 Rated voltage: 400 V Frequency: 50 Hz Year of manufacture: 2014 Single-level through-feed press system with top ram Machine is in perfect working condition Meets CE safety standards The machine can also be purchased together with other machines as part of a complete production line. Heating plate dimensions: 1400 x 2750 mm Number of heating plates: 2 units Number of levels: 1 unit Cylinder stroke: 200 mm Daylight opening: 200 mm Feed side: 1400 mm Gedpsyxp Twsfx Ai Sjbr Specific pressure at 100%: 25 Kg/cm² Total pressing force: 9620 kN Cycle time: 2-30 min Operating temperature: 135°C Max. surface operating temperature: 150°C Intended heating medium: thermal oil Number of press cylinders: 6 units Diameter of press cylinders: 270 mm Return cylinders: 4 units Operating pressure: 290 bar Closing speed: 50 mm/sec Opening speed: 50 mm/sec Operating voltage: 400 V Mould data: External mould dimensions: 1340 x 2540 mm Max. mould weight: 250 kg Mould cover dimensions: 1200 x 2400 mm Moulds are not included in this offer but can be supplied at additional cost Powered infeed roller conveyors: Dimensions: 1400 x 3500 mm Feed speed: 8-40 m/min Light barrier control Electropneumatic shaking device for the upper Mylar film Electronic flatness control Automatic switching to pressing speed Compressed air equipment in the lower press table Cylinder support plates are insulated and drilled from solid material for water cooling Feed speed with frequency control Powered outfeed roller conveyors, dimensions: 1400 x 3500 mm Electrical control cabinet / Siemens S7 PLC control panel Dismantling and collection at buyer’s own expense Pick-up location: A-8265 Kroisbach an der Feistritz If you have any questions or require further information, please send us a message or give us a call.
