BRINOX LEP 12 CIP system for precipitation PRE

Brinox LEP 12

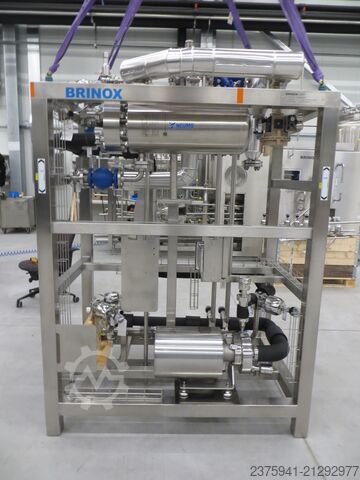

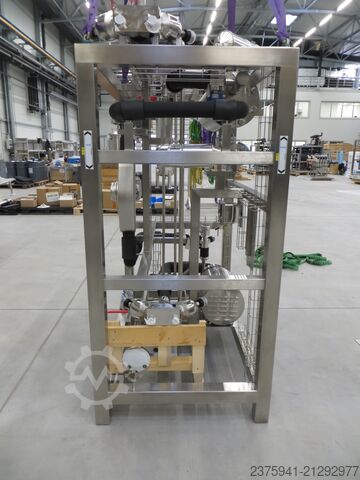

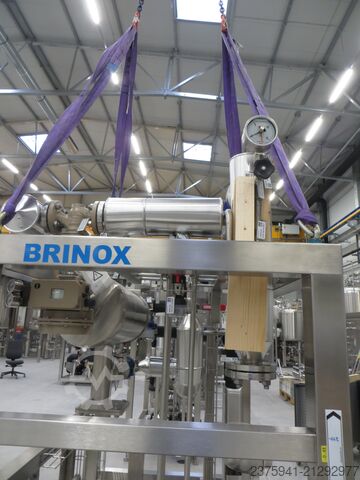

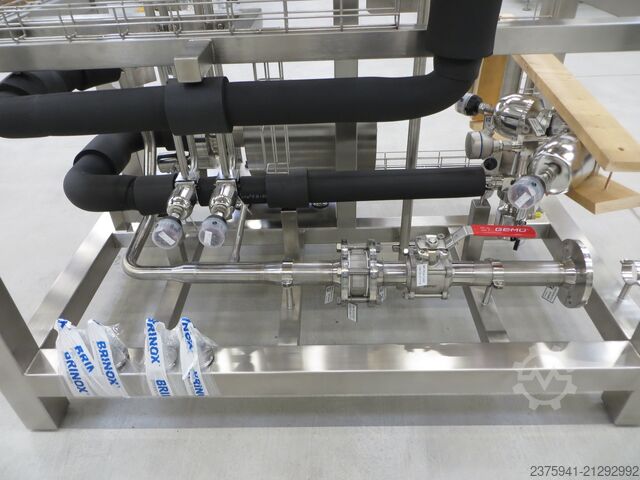

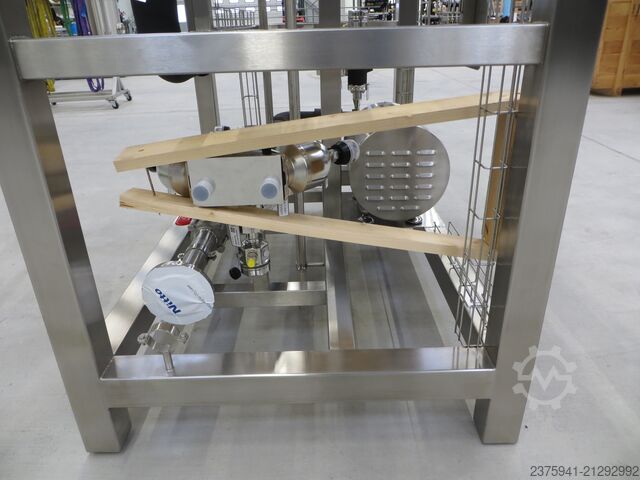

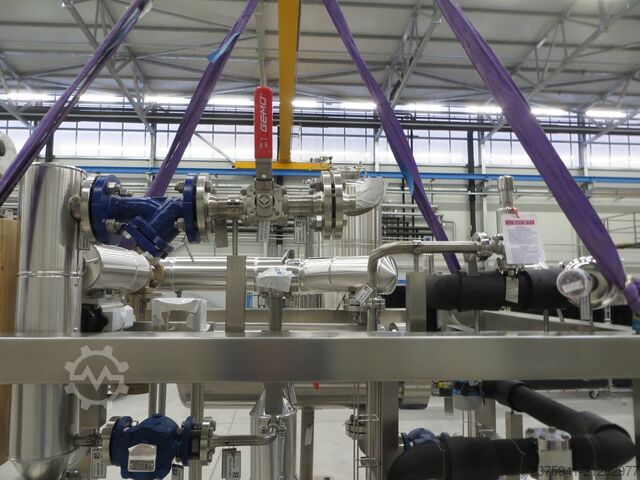

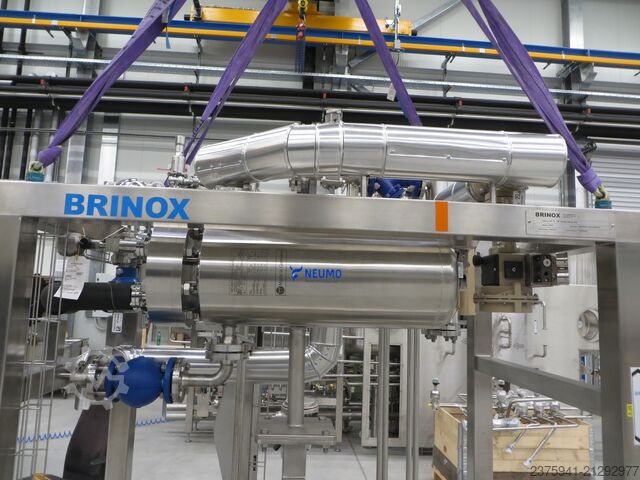

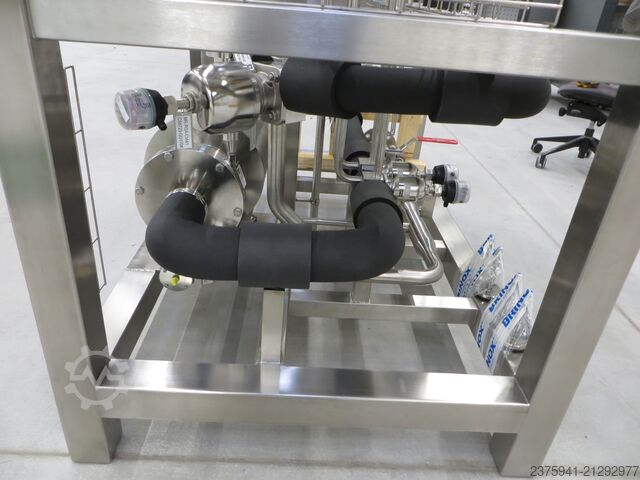

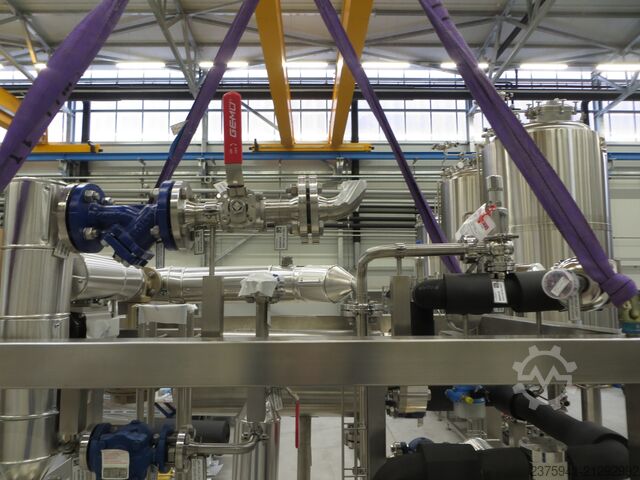

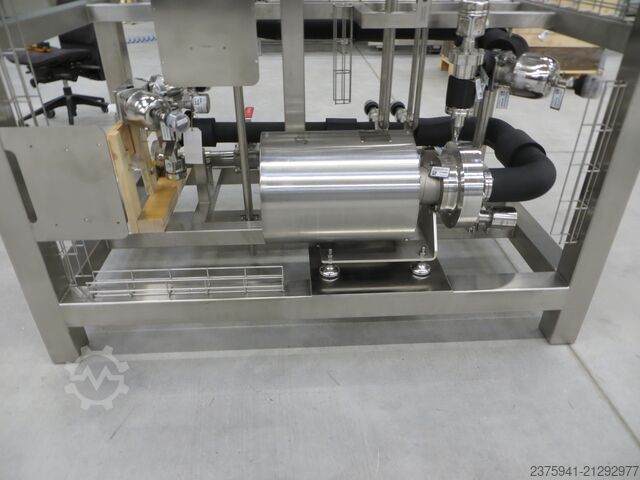

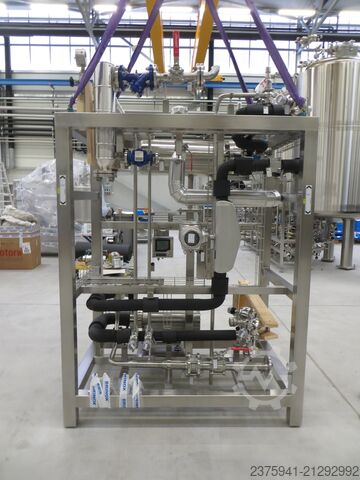

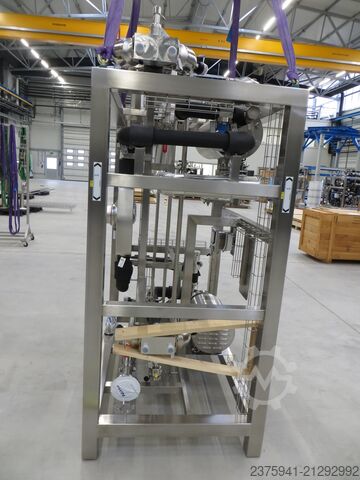

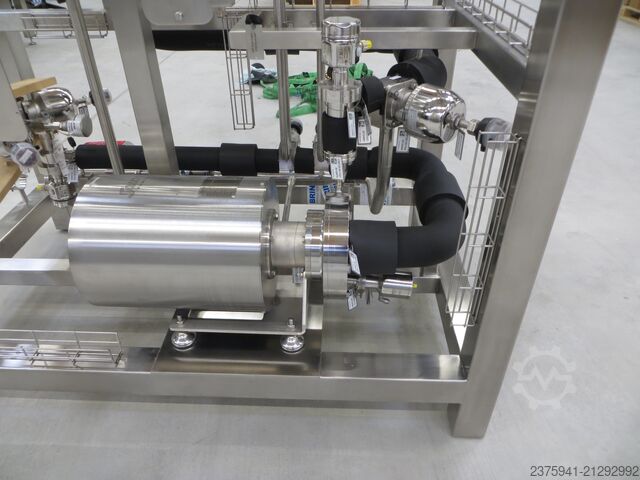

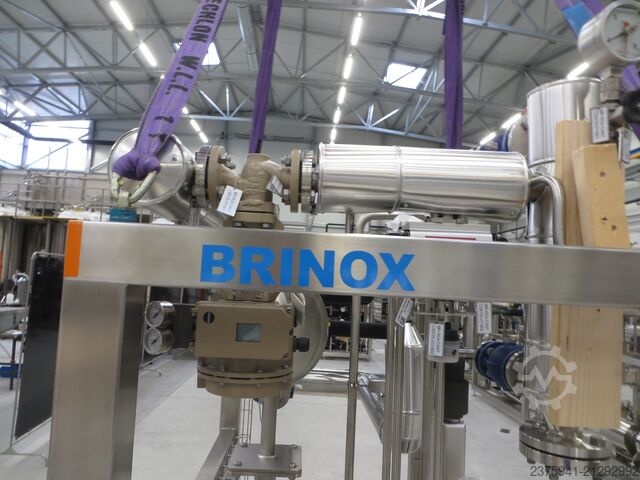

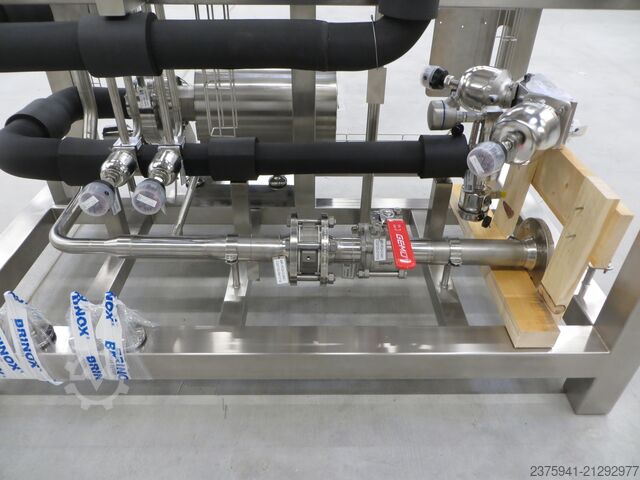

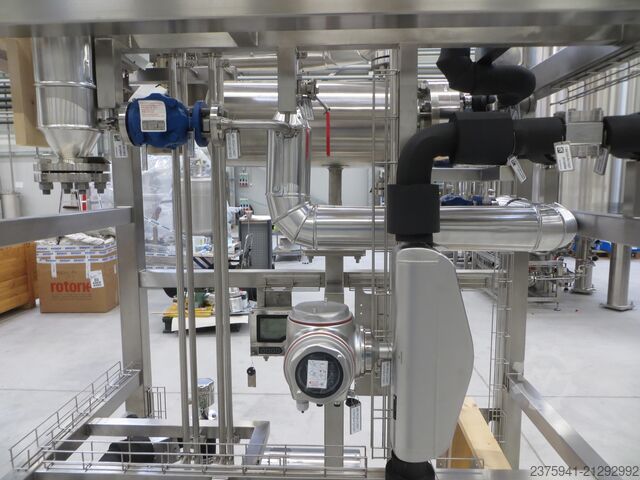

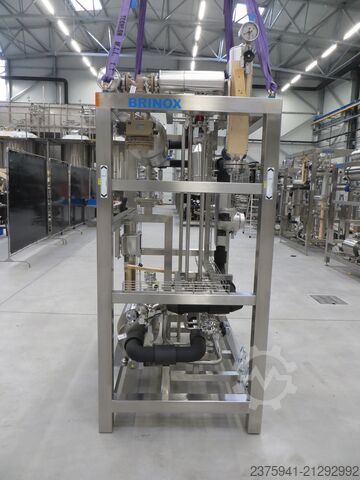

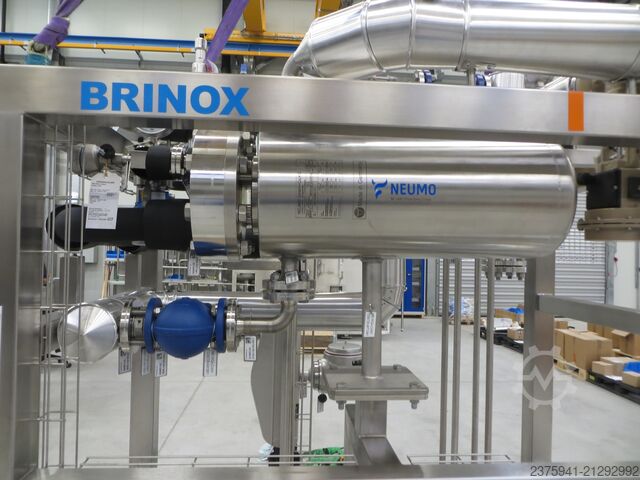

Condition: new, Year of construction: 2020, functionality: fully functional, Machine Description BRINOX LEP 12 – CIP System Precipitation PRE Manufacturer BRINOX Prozess- und Edelstahltechnik GmbH, Offenburg Year of Manufacture 2020 Serial Number 1003614 Technical Data Compact CIP skid unit with stainless steel frame construction. Product designation: LEP 12 – CIP System Precipitation PRE. Approximate dimensions: 1520 x 970 x 1994 mm. Product-contact parts material: Stainless steel 1.4435. Ksdpeyl H Taofx Ahwjdh Frame and structural components: Stainless steel 1.4301. Integrated shell and tube heat exchanger, brand NEUMO. Hygienic centrifugal pump. Fully welded piping, pharmaceutical-grade execution. Insulated process lines. Valves including GEMÜ ball valves. Various pressure gauges and integrated measuring instruments. Calibrated pressure measurement system (Fluke pressure transducer, measuring range −1 to 20 bar, resolution 0.001 bar, accuracy 0.06% FS). Media connections for: NaOH Acetic acid CIP supply CIP return Black steam Black steam condensate Neutralized wastewater Leak test performed with compressed air. Test pressure range approx. 3.19–3.24 bar. Maximum measured pressure drop < 0.015 bar during the test period. Result: passed. Application CIP cleaning system for pharmaceutical process installations, especially for precipitation tanks. Suitable for alkaline and acid cleaning as well as steam integration. Designed for hygienic applications in pharmaceutical production. Construction Welded, compact skid design with robust stainless steel frame construction. Hygienic piping with dedicated media routes. Integrated shell and tube heat exchanger for CIP media temperature control. Integrated process pump, valve technology, and measurement instrumentation on a compact frame. General tolerances per EN ISO 13920. Industrial design with lifting lugs for transport. Condition New, unused, in original packaging. The unit has only undergone FAT testing and was never in production operation. FAT / Documentation Status Complete Factory Acceptance Tests carried out. Leak tests successfully passed. Calibration certificates available. Test protocols fully documented. Complete Documentation List FAT documentation Leak test protocols Calibration certificates P&ID 3D drawings Material and welding documentation Nameplate and manufacturer documentation Special Features Pharmaceutical-grade material selection. Compact, ready-for-use skid unit. High-quality components from reputable manufacturers. Complete technical documentation available. Immediately available.

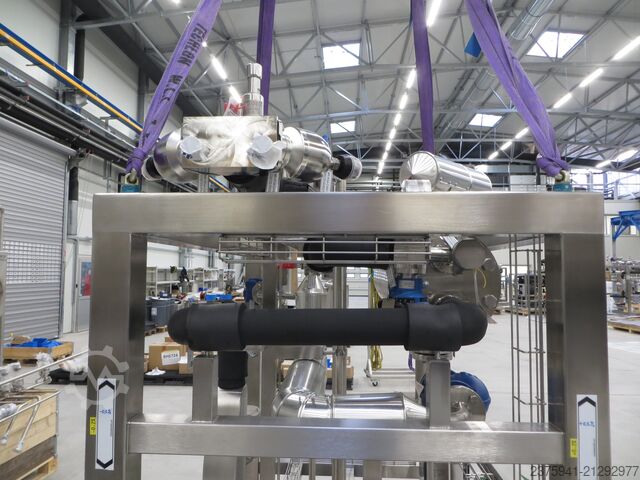

Year of construction: 2020, condition: new, functionality: fully functional, Machine designation BRINOX Process System / CIP Skid Type CS6700 (CS6723) Manufacturer BRINOX Process Systems Year of manufacture 2020 Technical data Design as a stainless steel process skid in hygienic execution. Conductivity measurement range 1–500 µS/cm, analog signal (AI), hygienic connection DN 50. Flow measurement 0–18,000 kg/h, analog signal (AI), connection DN 25, sterile flange DIN 11864-2A. Pressure measurement points −1 to 9 bar as well as −1 to 15 bar, analog signal (AI), hygienic connections DN 50 and ½", incl. DIN EN ISO 228. Temperature measurement points −50 °C to +200 °C, analog signal (AI), connection DN 32, welded according to DIN 11866/A. Limit-level sensors, digital (DI), hygienic connection DN 50. Multiple position feedbacks with IO-Link / Digital. Pneumatically actuated on/off valves (DO) in hygienic stainless steel design. Product-contacting parts made of EN 1.4435 / 1.4404 (AISI 316L). Documented surface roughness of product-contacting surfaces in the range of Ra approx. 0.3–0.4 µm. Application Hygienic CIP and process skid for pharmaceutical and biotechnological applications. Suitable for cleaning process piping and vessels under GMP conditions. Ksdpfx Asyl H Svjhwedh Construction Welded stainless steel skid with orbital welded piping. Hygienic clamp and sterile connections. Fully instrumented with flow, pressure, temperature, and conductivity measurement. Pneumatic valve technology with digital feedback. Components from reputable manufacturers such as Endress+Hauser, Gemü, Samson, SICK, etc. Clean, GMP-compliant execution. Condition New. Original packaging. Unused. Never installed or commissioned. FAT / Documentation status Fully documented Factory Acceptance Test performed. Layout drawing inspection documented. Maintenance and calibration accessibility inspection documented. Surface roughness inspection documented. Leak test documented. Sensor calibration documented. Welding documentation fully reviewed. Complete documentation list FAT plan and FAT report. P&ID diagram. Layout drawings. Material lists for metals and polymers. 3.1 Material certificates. WPQR, WPS, welder qualifications. Welding protocols and isometrics. Calibration certificates for measuring devices. Surface roughness measurement protocols. Leak test protocols. EU declarations of conformity for installed components. Operating documentation. Special features GMP-compliant, fully documented manufacturing. High-quality instrumentation. Very low, documented surface roughness. Immediately available. Ideal for pharmaceutical, biotech, or contract manufacturers with high documentation requirements.

Year of construction: 2020, condition: new, functionality: fully functional, Manufacturer BRINOX Machine designation CIP System CS6720 Model LEP12 – CIP module with insulated buffer tank, 200 L Year of manufacture 2020 Condition New, unused, originally packaged, never installed, never commissioned System type Modular CIP system (Cleaning in Place) on stainless steel frame, fully pre-assembled. Comprising insulated CIP buffer tank, centrifugal pump, heat exchanger, stainless steel piping module, valve technology, measuring and control equipment, as well as media connections. Frame dimensions Approx. 2330 x 1224 x 2127 mm Buffer tank Working volume: 200 liters Total volume: 278 liters Cylindrical design with dished ends according to DIN 28011 Operating pressure: -1 to +3 bar Test pressure: 5.4 bar Kdjdpfoyl H Htjx Ahwjh Permissible temperature: -10 °C to +150 °C Operating temperature: 0 °C to +85 °C Fluid group: 1 Insulation: Glass wool with low chloride content (
