Sliding table saw

ALTENDORF F45

Condition: used, Year of construction: 2006, Panel saw Manufacturer: Altendorf Nodpsz E Rnqofx Aphswl Type: F45 Year of manufacture: 2006 Technical data Saw blade diameter: max. 500 mm Main motor power: 5.5 kW Scoring motor: 0.75 kW Note: The technical data and descriptions are copies of the original order confirmation. The information is provided for informational purposes only and is not binding.

Condition: good (used), Swivel Spindle Milling Machine, Table Milling Machine, Bench Milling Machine -Spindle adjustment: height and angle -Swivel: -3° to 45° -Drive: 4.5/5.5 kW -Speed: 3000/4500/6000/9000/12000 rpm -Feed apparatus Holz-Her 3 rolls -Useful shaft length: 100 mm -Spindle: Ø 30 mm Nwedpfx Aeh Nvyzophol -Max. Milling cutter: Ø 220 mm -Dimensions: 1540/1100/H1520 mm -Weight: 962 kg

Condition: new, Altendorf F 45 EvoDrive – new Exhibition machine, special price - Electrically powered height and swivel adjustment 0 – 46° for the - Control panel at eye level, swiveling - Machine height 91 cm - Template holder, directly on the control panel - Extended cutting height through swivel adjustment, max. blade diameter 550 mm - Motor 5.5 kW (7.5 hp) VARIO - Preparation for a 2-axis scoring saw - Table extension 840 mm - Double roller carriage with carriage length 3200 mm - Miter stop - CNC parallel fence 1300 mm - Front support roller Nwjdpfx Apezymblehjl Duplex is not included in the price but can be purchased at a favorable price.

Condition: used, Year of construction: 1990, Sled length: 3200 mm Cutting width at the rip fence: 1000 mm Cutting width at the crosscut fence: 2800 mm Cutting depth: 145 Scoring saw: no Saw blade height adjustment: manual / hydraulic Saw blade swivel adjustment: manual / hydraulic Rip fence adjustment: manual Saw blade angle display: scale Cutting height display: - Rip fence display: scale Nwodpfx Aez Ekp Iephsl Crosscut fence display: scale Saw blade diameter: Rotational speeds: 4 Motor power: 7.5 kW Motor brake: yes Dust extraction connection: 80 mm and 120 mm Machine length: 3000 mm Machine width: 1700 mm Weight: 1000 kg

Condition: like new (used), Year of construction: 2019, Vacomat 350 XP TWIN The Vacomat 350 XP TWIN is a high-performance dust extraction unit and a true energy-saving marvel among mobile dust extractors. Two frequency-controlled motors (5.5 kW each) ensure that the suction power is adjusted accordingly, especially under highly variable operating conditions. This ensures that only the energy that is actually needed is consumed. This dust extractor handles air volumes of up to 10,000 m³/h and is ideally suited for extracting dust from large CNC machines or entire machining centers. The innovative and highly intelligent control system automates the extraction process in conjunction with the connected machines. Extraction starts automatically as soon as a connected machining center is switched on. If the power requirement is lower, only one fan is started. As soon as several extraction points are in operation, the second fan is automatically switched on. As standard, the filter sleeves are cleaned automatically during operating breaks, as soon as all connected machining centers are switched off. Nodpfx Apezp Edwshswl Our patented filter shaking system then ensures gentle cleaning via a pneumatic/mechanical process using a compressed air connection (inlet pressure 6 bar, air consumption per cleaning cycle approx. 11 l). Optionally, and particularly recommended for very high and extremely fine dust concentrations, such as gypsum dust, an efficient pressure pulse cleaning system is available. The cleaning process via the compressed air tank takes place offline, after the extraction operation (NOTE: height then +100 mm and length +350 mm). Our Vacomats are manufactured using a modular system. As standard, the dust and chip mixture is discharged into four dust-tight chip collection containers (4 x 120 l) with durable plastic liners. A negative pressure channel securely holds the foil bags in the collection container. Viewing windows make it easy to check the fill level. Low energy consumption thanks to a modern, high-efficiency motor (IE3) "Made in Germany" and a flow-optimized internal housing with low air resistance. Heat recovery through a recirculation system: The warm exhaust air is filtered and fed back into the workshop. Low noise level: A double-walled filter sleeve housing absorbs the extraction noise directly inside the Vacomat. In addition, the fan housing is soundproof. Approved for indoor installation in the wood dust area - manufactured according to the new DIN EN 16770 standard. Healthy return air: High-quality, specially developed filter materials made of antistatic polyester needle felt filter out 99.9% of dust and chip waste from the air (dust class M for St 1 dust, according to TRGS 553). Increased safety through fire and explosion protection measures according to DIN EN 16770: pressure pulse tested up to 20,000 Pa, automatically activated powder extinguishing system - no water damage! Operational reliability: A pressure gauge continuously monitors the extraction performance. Error messages are displayed by the signal light. Low follow-up costs due to high-quality components and long service life of the filter medium: For example, an extra-large settling chamber ensures an initial separation of coarse chip waste. This prevents the filter sleeves from being additionally loaded with material. Low maintenance effort thanks to the maintenance unit on the motor console and easy access to the inside of the filter. All specifications according to the manufacturer.

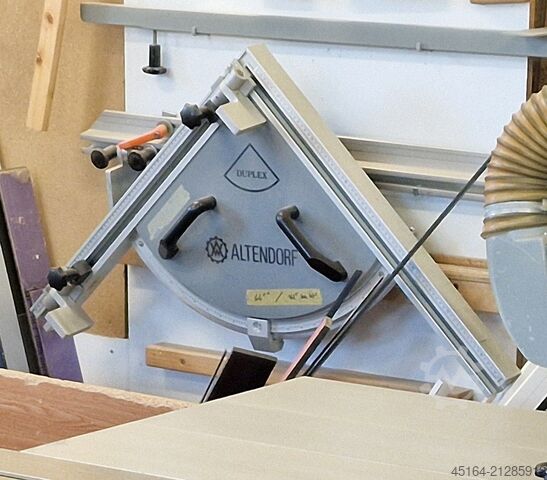

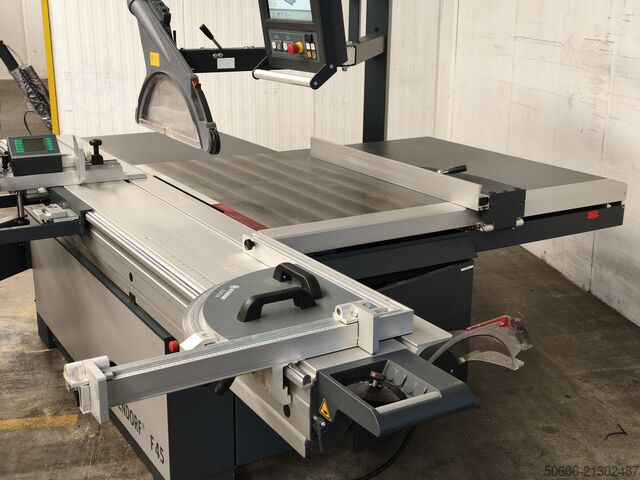

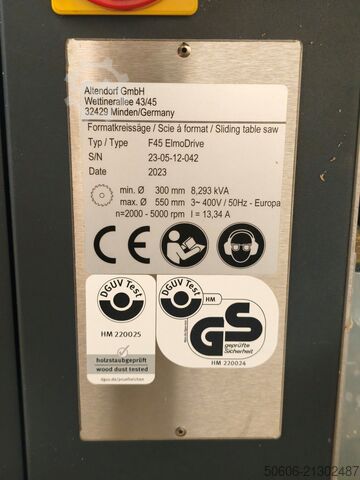

Condition: new, Year of construction: 2024, functionality: fully functional, power: 5 kW (6.80 HP), cutting height (max.): 200 mm, cutting width (max.): 1,300 mm, saw blade diameter: 550 mm, cutting length (max.): 3,200 mm, cutting width at rip fence: 1,300 mm, sliding table length: 3,200 mm, Exhibition machine F 45 Elmo Drive - Swivel + / - 45 ° - Cutting height 200 mm - Preparation for scoring unit no. M24038 - Double roller carriage with 3200 mm - Angular mitre fence 3200 mm Digit L - CNC rip fence 1300 mm - Duplex mitre fence 1350 mm manual - Template holder - On/Off switch on the double roller carriage Njdsuh R R Ejpfx Aphswl - Front support roller

Condition: new, Year of construction: 2026, power: 5.5 kW (7.48 HP), Equipment: documentation/manual, saw blade guard, scorer, For sale is a new Altendorf F45 ProDrive with extensive features. Features: +ProDrive control with a 3.5" color display +Ergonomic operation at eye level +5.5 kW main motor +Speeds: 3,000 / 4,000 / 5,000 rpm +Saw blade diameter up to 450 mm +Cutting height up to 154 mm +Double roller carriage with 3,000 mm carriage length +CNC parallel fence with 1,300 mm cutting width +2-axis scoring unit with electric height and side adjustment +Angle mitre fence DIGIT L up to 3,200 mm +DUPLEX mitre fence up to 1,350 mm (additional cost of €1200 net) +Table extension 840 mm +99 storable cutting programs +USB interface and operating hour counter +Automatic dimension correction when the saw blade is pivoted +Machine height 910 mm +400 V / 50 Hz Nedpfx Aez Ey Eljphjwl Other models or different equipment variants available upon request. Inspection possible by appointment. Invoice with VAT stated. Transport can be arranged upon request.

Condition: used, Year of construction: 2007, Panel saw Manufacturer: Altendorf Type: F45 Year of manufacture: 2007 Technical data Cutting length: 3000 mm Nodpfx Apjzuy Nxehjwl Saw blade diameter, max.: 500 mm Main saw: 5.5 kW Scoring saw: 0.75 kW Note: The technical data and descriptions are copies of the original order confirmation. The information is provided for informational purposes only and is not binding.

Condition: ready for operation (used), Year of construction: 2005, functionality: fully functional, cutting length (max.): 3,300 mm, cutting width at rip fence: 1,650 mm, Equipment: scorer, Top of the line precision tablesaw with fully digital rip fence and crosscut fence. Njdexz Dl Rjpfx Aphewl Packaged and ready for shipping!

Condition: excellent (used), Year of construction: 1990, ALTENDORF F45 tilting circular saw with scoring unit Scoring unit Double roller carriage, tilting, parallel fence Extension table, table extension, anodized aluminum, Nwjdpfxozipw Ij Aphel table widening, anodized aluminum, upper guard, narrow and wide ----- Technical data ----- Tilting range: 45°, carriage length: 3,200 mm, cutting width: 1,250 mm, max. saw blade diameter: 450 mm, motor power: 5.5 kW, 3 speeds dust extraction port diameter: 80 / 120 mm Location: in stock at 54634 Bitburg - immediately available -

Condition: excellent (used), Year of construction: 2013, functionality: fully functional, 10 cup wheels vertical edging machine + Clean 20 floculant water treatment system variable angle 0-45° glass thikness : 3 - 55 mm min. glass dimension : 100 x 100 mm max. load : 1800 kg height of work surface : 840 mm total power : 20 Kw tank capacity 340 L Nedpjymxk Hjfx Aphswl forward speed : 0,4 - 5,5 m/min. total weight : 3800 kg

Condition: excellent (used), Year of construction: 1998, Equipment: CE marking, documentation/manual, saw blade guard, scorer, Sled length: 3400 mm Cutting width at the rip fence: 1350 mm Cutting width at the crosscut fence: 3200 mm Nwedozq Srkjpfx Aphjl Cutting depth: 145 mm Scoring saw: yes With electromotive height and lateral adjustment Rapido scoring system for stepless cutting width adjustment Adjustment range 2.8 - 3.8 mm including scoring saw blade Height adjustment of saw blade: electric Swivel adjustment of saw blade: electric Adjustment of rip fence: manual Adjustment of crosscut fence: manual Display of saw blade angle: digital display Display of rip fence: scale Display of crosscut line: scale Saw blade diameter: 450 mm Speeds: 4 Motor power: 5.5 kW Palin parallel cutting device as an add-on unit with miter adjustment with display on the sliding table Dust extraction connection: 80 and 120 mm Machine length: 3400 mm Machine width: 2200 mm Weight: 1200 kg Location: in stock at 54634 Bitburg - immediately available -

Condition: reconditioned (used), Year of construction: 1986, cutting width (max.): 800 mm, cutting length (max.): 2,800 mm, cutting width at rip fence: 800 mm, main saw diameter: 450 mm, M.-No. 86-1-224, year built 1986, connected load 380V 5.5kW, trimming carriage length 2800 mm, cutting width 800 mm, hydraulic height and tilt adjustment, scoring unit, star-delta switch, parallelogram safety device with narrow and wide hood, angle stop, mitre stop, parallel fence, table extension 800 x 400 mm Nodpfewrb U Tjx Aphjwl

Condition: used, Year of construction: 1982, From business liquidation: Ulmia 1710S Year of manufacture: 1982 Mitre cuts up to 45° Maximum cutting height at 90°: 75mm – at 45°: 50mm Saw blade: 250mm Table size: 630x500mm 380 Volt Cutting width to the right of the saw blade: 650mm The machine is operational, but shows heavy signs of use! Nwedpfxjxq N T Eo Aphjl

Condition: used, Year of construction: 2004, Slider length: 3400 mm Cutting width at the rip fence: 1300 mm Cutting width at the crosscut fence: 3200 mm Cutting depth: 154 mm Scoring saw: yes Saw blade height adjustment: electric / position control Nwsdpfxezqyxxj Aphol Saw blade swivel adjustment: electric / position control Rip fence adjustment: electric / position control Crosscut fence adjustment: manual Saw blade angle display: digital display Cutting height display: digital display Rip fence display: digital display Crosscut scale display: scale Crosscut scale with miter function: yes Saw blade diameter: 450 mm Speeds: 4 Motor power: 7.5 kW Dust extraction connection: 80 and 120 mm Machine length: 3600 mm Machine width: 2000 mm Weight: 1200 kg
