Spray booth

ABC-Group

Condition: new, Year of construction: 2025, total length: 19,100 mm, total width: 6,600 mm, total height: 5,000 mm, inner dimension height: 4,000 mm, inner dimension length: 18,000 mm, inner dimension width: 6,000 mm, We offer the production of foldable, "accordion-style" spray booths in any dimensions and specifications defined by the client. Example projects can be seen in the photos. As a manufacturer, we handle the design, production, installation, and warranty service of spray booths. Kdodovphfzopfx Ad Nsg Our offer includes a wide range of spray booths – we encourage you to check out our other listings. Feel free to contact us!

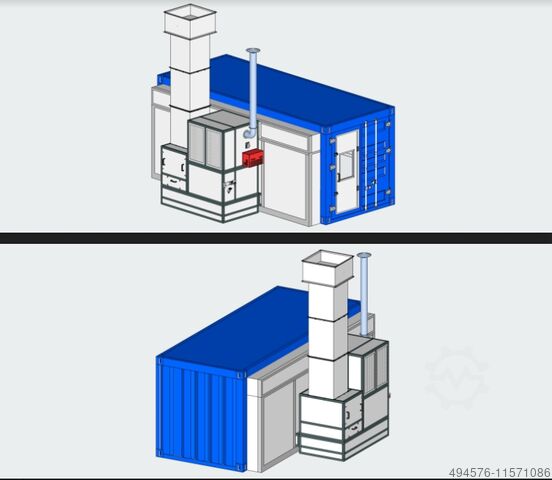

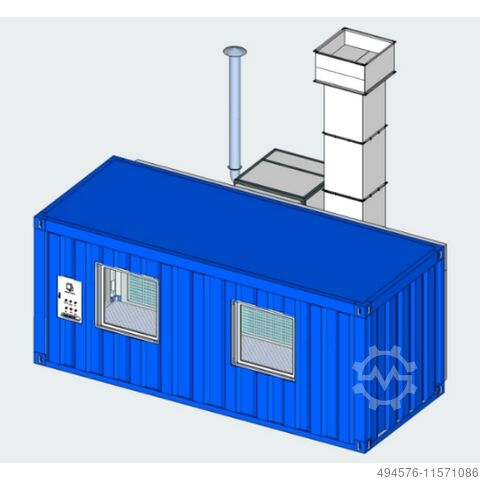

Condition: new, A two-zone container divided into a paint shop and a preparation zone -External dimensions: 6058x2438x2591 mm -Internal dimensions: 5538x2170x2485 mm - Sea container: 20DV - Door: integrated into the cabin door - Windows: with metal protective mesh - Lighting: 4 led lamps -No assembly required - ready to go - Paint booth wall - fully barred Steering - Automatic from the central block located outside; Power - 380V Supply: Eo3il2moj -Fan - 3 Kw - Flow velocity - 0.7 m/s -Air flow: 9500 m3/h -Recirculation - closed circuit Heating: -Riello 40G20 oil burner -Heating time 10 -15 min dkm3db -Max temperature 800°C Filters - preliminary, paint-stop, cardboard, carbon Security: Kjdjnbd Rrjpfx Ad Nedg -Emergency stop -Pressure lock on the door -Temperature monitoring system -Error indication Equipment: -16A socket -Air preparation team - Pneumatic retractor

Condition: new, functionality: fully functional, Year of construction: 2025, Detailed Specification: - Internal dimensions: 5500 × 1500 × 2300 mm (L × W × H) - External dimensions: 5700 × 1900 × 2700 mm (L × W × H) - Entrance doors: Double-wing, 1700 × 2300 mm (W × H) - Wall panels: Thickness 100 mm, width 950 mm, tongue-and-groove structure; steel sheet 0.5 mm with mineral wool insulation inside - Box: Panels 100 mm thick, filled with mineral wool - Heating system: RIELLO oil burner model 40G20; heating capacity 200,000 Kcal/h; heat exchanger made of 2 mm stainless steel - Maximum heating output: 200,000 Kcal/h, total 1 set - Roof: Panels 100 mm thick with mineral wool insulation inside - Control system: Heating control, time setting, fault indicator, emergency stop, hour counter, temperature limit regulator, total operating hours display - Total power: 6 kW - Overhead conveyor system: 4 tracks; maximum load 400 kg each We can manufacture ovens of any required dimensions. Kodpfxsxna U Us Ad Nodg We provide complete systems including transport traverses, spray walls, and powder coating guns — as shown in the photos.

Condition: new, Year of construction: 2025, functionality: fully functional, total height: 5,850 mm, total length: 12,125 mm, total width: 5,150 mm, overall weight: 8,000 kg, warranty duration: 12 months, inner dimension height: 5,000 mm, inner dimension length: 12,000 mm, inner dimension width: 5,000 mm, Equipment: cabin, lighting, PAINT BOOTH 12x5x5M EZ Series Model: - LED ceiling lighting - LED side lighting Ksdjxm U Exepfx Ad Nodg - RIELLO oil burner - Four fans, including: ‎ ㅤ- 2x supply fans ‎ ㅤ- 2x exhaust fans TECHNICAL PARAMETERS: - External dimensions: 12125x5150x5850 mm - Internal dimensions: 12000x5000x5000 mm - Entrance doors: 4000x4800 mm (2 units, four leaves, reinforced hinges) - An additional BOX 1650 mm x 8000 mm should be included in dimensions – can be placed on either the right or left side. - Structure: galvanized steel frame - Heat exchanger: high-grade stainless steel - Panels: filled with mineral wool insulation - Drive-on ramps – 2 units - Fully grated floor The reinforced frame construction prevents vibration and the air surge effect from the main supply duct. Double Roof Design: - Upper outer layer - Inner truss structure with V600 ceiling filter Air Circulation System: - Supply system: Jet turbine 7.5 kW – 2 units - Exhaust system: Jet turbine 7.5 kW – 2 units Air Filtration System: - Pre-filter collects particles larger than 10 μm - Ceiling filter collects particles larger than 5 μm - Floor filter: Paint Stop - Carbon filter Lighting: - Ceiling lights: 52 LED tubes (14 angled fixtures with 4 tubes each) - Side lighting: 26 LED panels integrated into the right, left, and rear walls Burner: Riello – 2 units, oil model 40 G20, approx. 200,000 Kcal/h - Heat exchanger: high-quality stainless steel - Heating time: 8–15 min (max. 80°C) Optional Features: - Roof-mounted boxes - Insulated roof - Pass-through doors - Water curtain - Color according to RAL palette - Explosion-proof (EX) version available

Condition: new, - External dimensions: 8125x4650x4600 mm - Internal dimensions: 8000x4500x3800 mm - Entrance gate: 4000x3800 mm (four wings) - Service door: 640x1800 mm - Construction: high-grade steel - Heat exchanger: high-grade steel - Panels: filled with mineral wool - Total power: 22kW - Seating: inside/outside (after prior roofing of the cabin by the customer on his own) - Floor fully grated - Air supply system: Jet turbine 5.5kW - 2 pieces - Exhaust system: Jet turbine 7.5kW - 1 piece - Ceiling lights: Coffers with LED fluorescent lamps 36pcs. - Side lights: LED panel 120x30cm - 12 pcs. Power: 48W - one piece 1000 lumens - Burner Riello RG5S 160-310 kW Kodpjnbdlbofx Ad Nodg - The cabin is available in different colors

Condition: new, - External dimensions: 7200x5200x3800 mm - Internal dimensions: 7100x5100x3100 mm - Entrance gate: 4000x3100 mm (four wings) Kdodpfxem Tv I Ao Ad Nsg - Service door: 640x1800 mm - Construction: high-grade steel - Heat exchanger: high-grade steel - Panels: filled with mineral wool - Total power: 21kW - Seating: inside/outside (after prior roofing of the cabin by the customer on his own) - Floor fully grated - Air supply system: Jet turbine 5.5kW - 2 pieces - Exhaust system: Jet turbine 7.5kW - 1 piece - Ceiling lights: Coffers with LED fluorescent lamps 32pcs. - Side lights: LED panel 120x30cm - 12 pcs. Power: 48W - one piece 1000 lumens - Burner Riello RG5S 160-310 kW - The cabin is available in different colors
