Roller table for EG800 multi-saw

Wood-Mizer

Condition: used, Year of construction: 2010, functionality: fully functional, type of input current: three-phase, cutting length (max.): 12,000 mm, cutting width (max.): 640 mm, saw drive: 15,000 W, input voltage: 400 V, wheel diameter: 600 mm, – Year of manufacture: 2010 TECHNICAL SPECIFICATIONS: – Motor: 15 kW Cutting dimensions: – max. log diameter: 95 cm – clearance between rollers: 73 cm – max. cutting width (square timber): 64 cm – max. cutting height above saw blade: 39 cm – max. cutting length: 12 m Saw head equipment: – automatic cutting thickness adjustment device – electric head height adjustment: up/down – electric forward/reverse head feed: infinitely variable feed speed – electric saw blade guide arm – hydraulic sawblade tension system with air cushion – debarking unit Sawblade: – length: 4670 mm – width: 38 mm - 50 mm – sawblade guide wheels diameter: 600 mm – belt type: Z Fsdpfxey Na Hvs Abtegg – material: cast iron The sawmill is equipped with full hydraulics: – hydraulic leveling system – side stops – material clamp – comb-type log turner – 3 loading arms Machine dimensions: – length: 1520 cm – width: 235 cm – height: 240 cm

Condition: used, Year of construction: 2005, functionality: fully functional, cutting length (max.): 6,500 mm, input voltage: 400 V, - Year of manufacture: 2005 - Electrical diagram - Electric motor: 15 kW - Log cutting length: up to 6.5 meters - Control: stationary control panel - Additional equipment: - Hydraulic loading - Hydraulic hold-down - Hydraulic log turner - Roller adjustment - Debarker (for removing bark prior to cutting) - Dual-function hold-down - Side stops - Leveling rollers Fgedpfx Aboyrdg Djteg Machine dimensions: - length: 750 cm - width: 220 cm - height: 240 cm - weight ~1700 kg

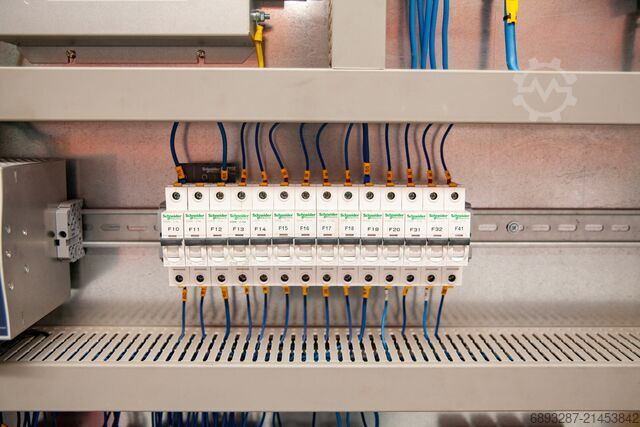

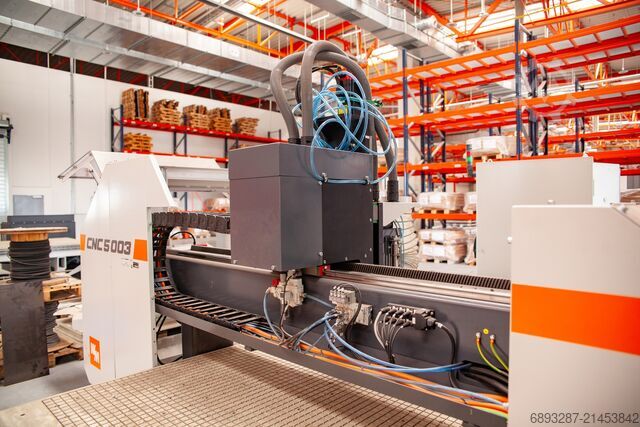

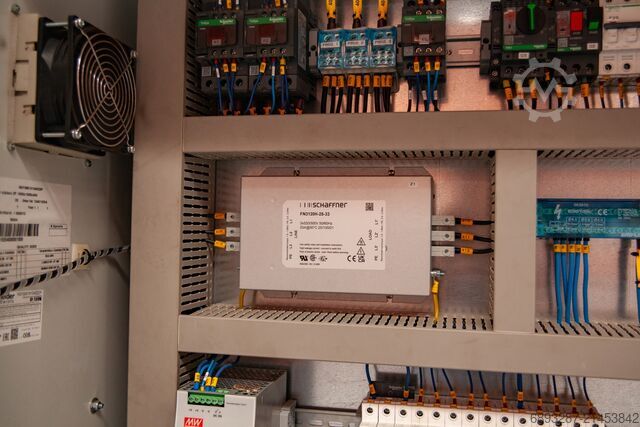

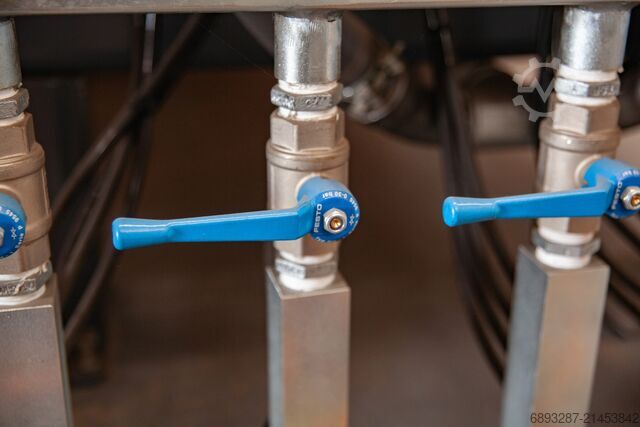

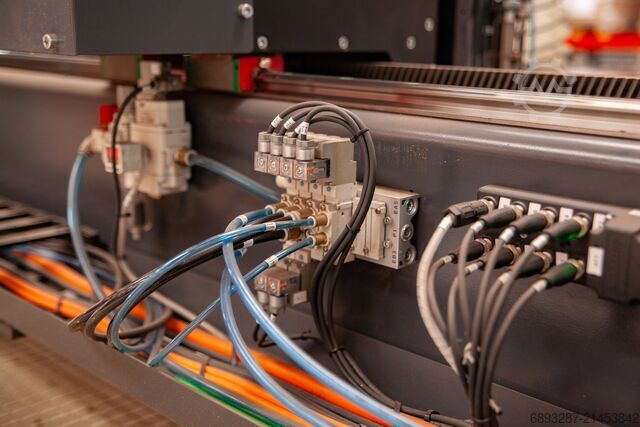

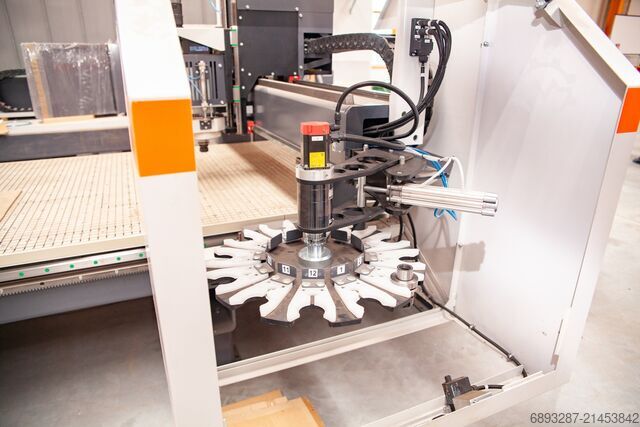

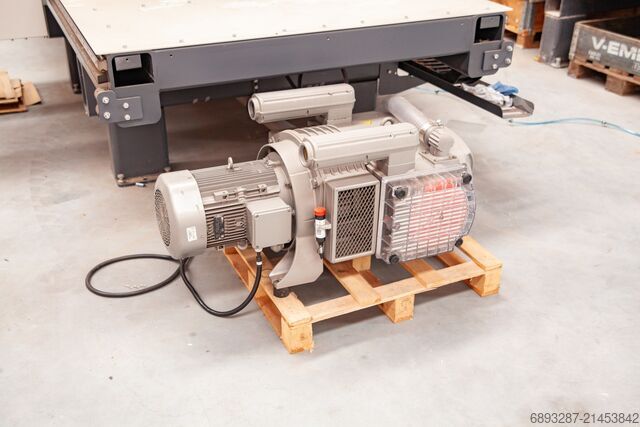

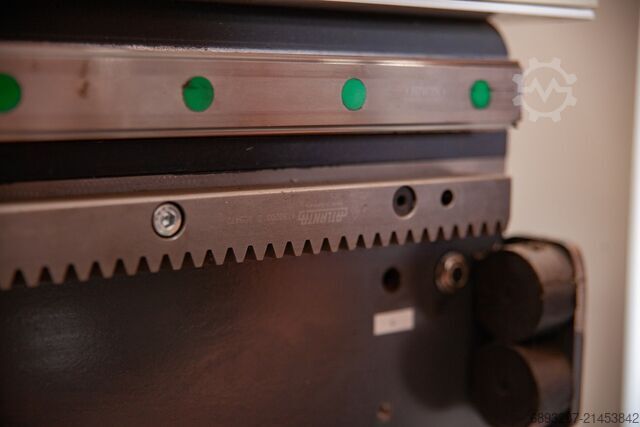

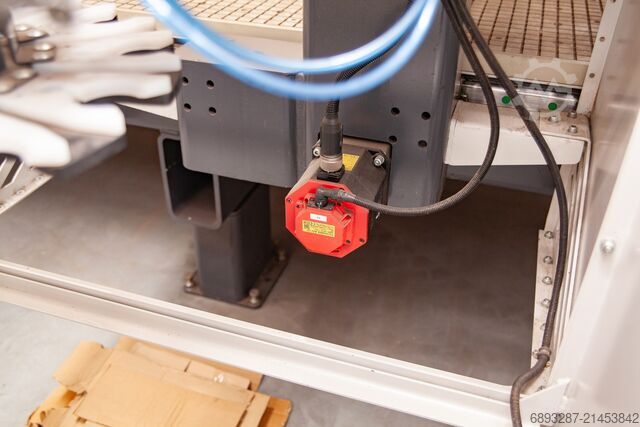

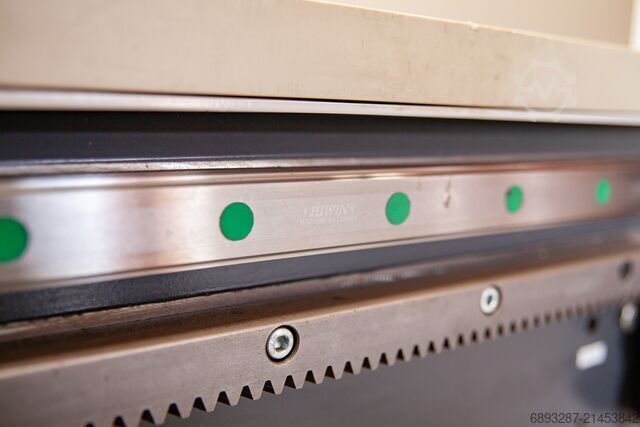

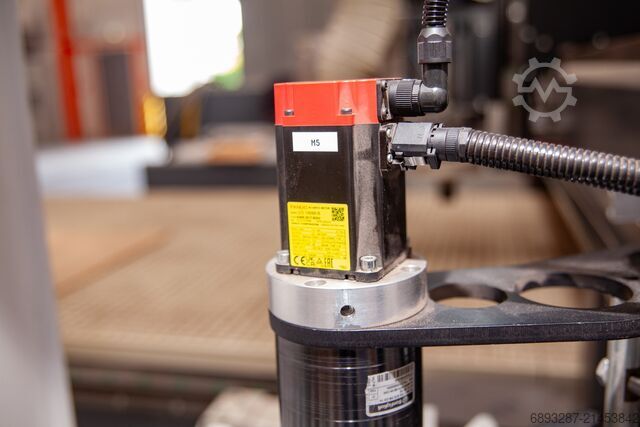

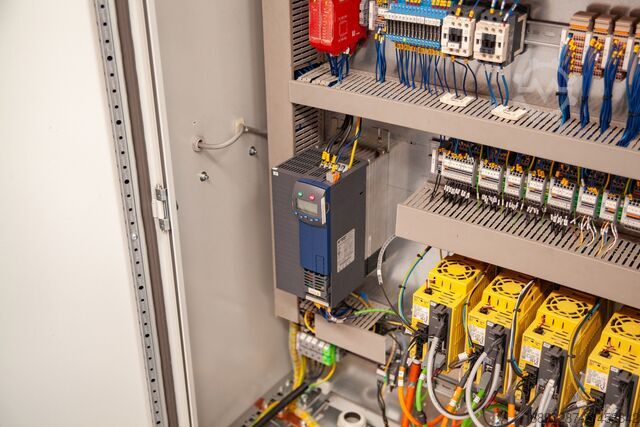

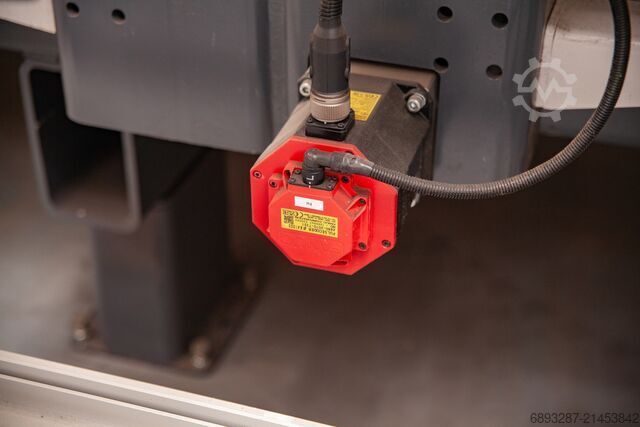

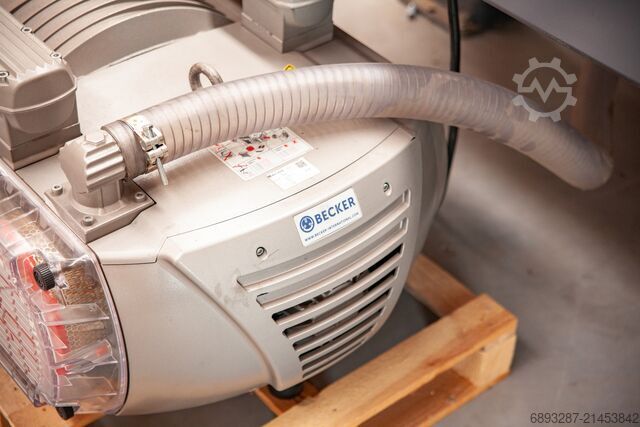

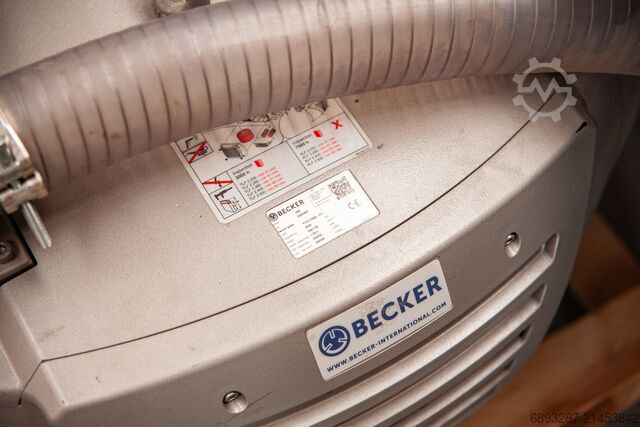

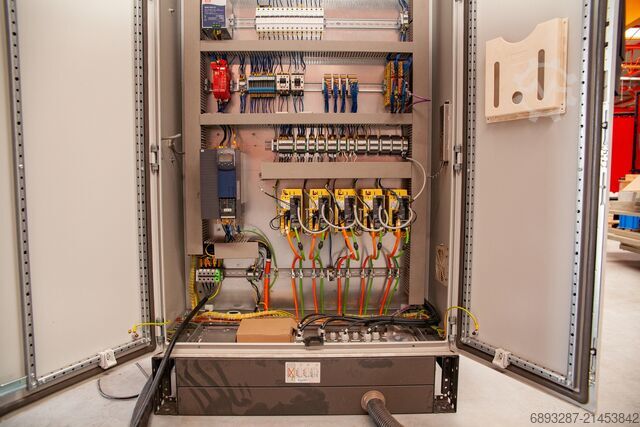

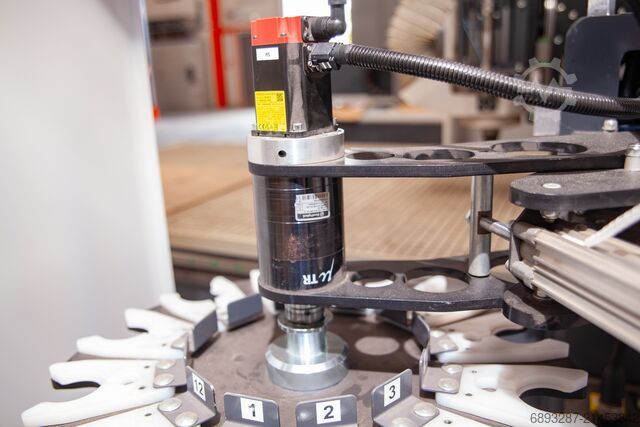

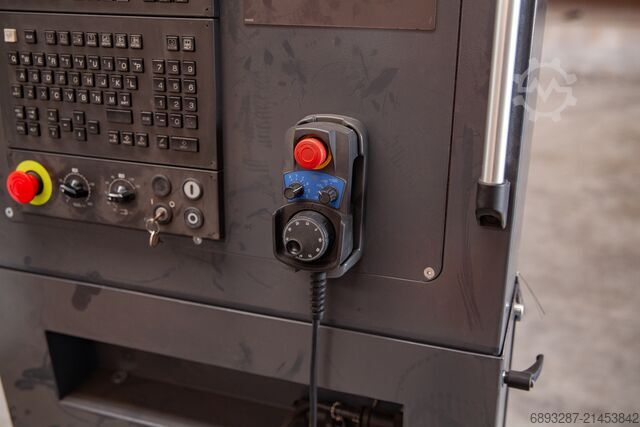

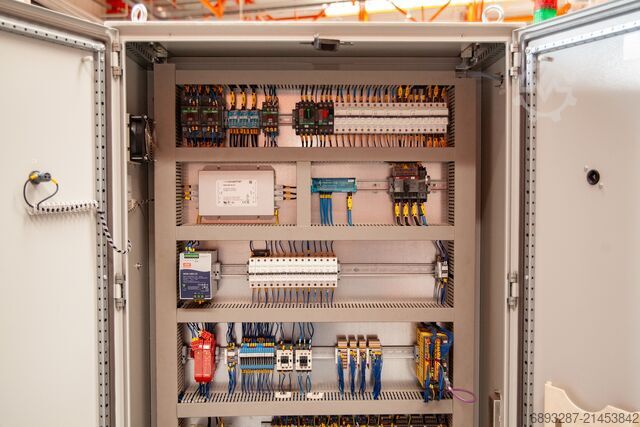

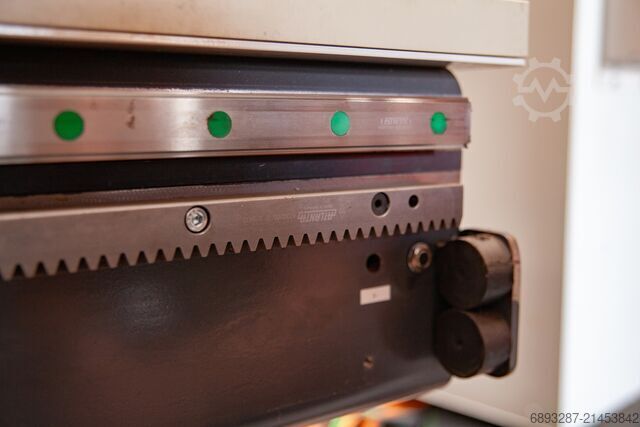

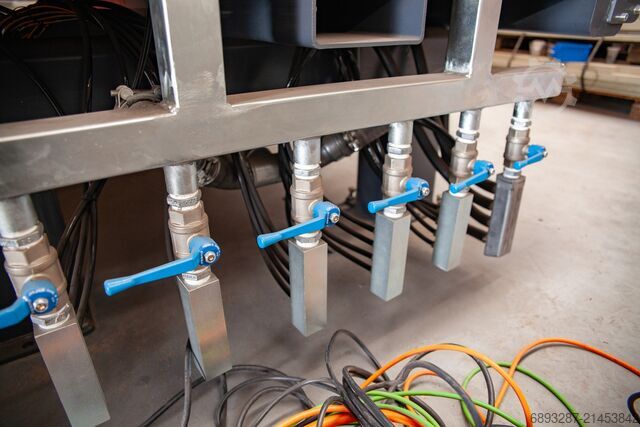

Condition: excellent (used), Year of construction: 2024, Wood-Mizer CNC5003 CNC Machining Center – practically unused Key data • Category: CNC machining centers / CNC routers for wood (nesting) • Year of manufacture: [2024] • Condition: practically unused, demo / showroom unit • Location: [KOŁO], Poland • Availability: 2 units in identical specification — discount available if both are taken • Sold directly by the manufacturer, no intermediaries Description An industrial-grade CNC machining center at a mid-range machine price. Why this machine is worth considering • Only premium, branded components — no generic parts: FANUC, HSD, HIWIN, ATLANTA, FESTO, BECKER. Each of these components is serviceable and supported worldwide, independently of us as the machine builder. • FANUC control — the world's most widely used CNC platform, standard ISO G/M code, ready to interface with any CAM system. Support, training, and service are available from any authorized FANUC partner or CNC integrator. • Gantry design with dual drive — high stability and accuracy, high-resolution digital servos, low vibration. • 3095 × 1535 mm working area accommodates a full 3050 × 1530 mm panel — an entire sheet is machined in one setup, with no pre-cutting and no repositioning. • 6-zone vacuum nesting table with 216 vacuum points — exceptional flexibility in work-holding: panels, irregular parts, and porous materials. • The machine is on-site and available for inspection and a test cut before purchase, along with the available technical documentation. Technical data Specification Value Actual working area X / Y 3095 × 1535 mm (max. raster table area) Z-axis travel 200 mm Rapid traverse X / Y / Z 60 / 30 / 15 m/min Spindle HSD 11 kW, HSK63F, 24,000 rpm, inverter-driven, ceramic bearings Fgodpeyr Dawjfx Abtjg Tool changer ATC — 12-position carousel on the gantry, service access hatch Drives and guideways ball screw, linear guides, and carriages by HIWIN; rack and pinion by ATLANTA Control FANUC, ISO G/M code, PC and CAM interface, built-in server Table grey extruded polypropylene raster table; 6 zones × 36 points = 216 individual vacuum points, each zone with its own valve Vacuum pump BECKER, 126 m³/h, 4 / 5.5 kW, max. vacuum 0.9 bar Pneumatics FESTO Chip extraction articulated extraction hood Control panel movable, on wheels — access from 3 sides of the table; local operation or via network Frame size (footprint) 1570 × 4150 mm Total length / width / height 4460 / 3000 / 2400 mm Materials: wood, sheet materials, plastics, foam, composites, light alloys (aluminum). Terms of sale — stated openly • Sold as-is, without a manufacturer's warranty and without service support from our side — our CNC project has been discontinued. This is the only reason for this price. • Service and wear parts are available directly from the component manufacturers (FANUC, HSD, HIWIN, BECKER, FESTO) and from independent CNC integrators. • Inspection and a test run on-site are welcome — bring your own material and file. • Net price, EXW [KOŁO]. Loading is our responsibility; transport and unloading are the buyer's responsibility. Intra-community supply (0% VAT) for EU buyers with a valid VAT ID. • We can connect you with companies offering commissioning and operator training (third-party service, priced separately).

Condition: as good as new (ex-display), Year of construction: 2024, warranty duration: 12 months,  Control panel  5 cutting heads  The angle of the 5th head can be adjusted within a range of 270 degrees  5 feed and pressure rollers  Adjustable feed speed: 3 – 15 m/min  4 dust extraction points  Height indicator allowing for precise adjustment of the table and machine height  Width indicator allowing for precise adjustment of the timber dimensions  Infeed table with a length of 1.9 m and outfeed table with a length of 1 m Technical data CAPACITY  Four-sided planing • Maximum width 350 mm • Height range 10 - 160 mm  Two-sided planing • Planing width 410 mm • Height range 10 - 230 mm  Single-sided planing • Maximum width 510 mm • Height 230 mm TOP HEAD • Diameter 88 mm • Width 510 mm • Motor power 5.5 kW (7.5 HP) • Rotational speed 6000 rpm • Max. planing depth 8 mm • Max. profiling depth 20 mm BOTTOM HEAD • Diameter 72 mm • Width 410 mm • Motor power 4 kW (5.5 HP) • Rotational speed 6000 rpm • Max. planing depth 8 mm • Max. profiling depth 10 mm (15 mm drill) SIDE HEADS • Spindle diameter 30 mm • Max. Knife height 160 mm • Max. Diameter 160 mm • Motor power 3 kW (4 HP) • Rotational speed 6000 rpm • Max. planing depth 30 mm Fgsdpfxjzqzy Rs Abtog ADDITIONAL HEAD • Spindle diameter 30 mm • Max. Knife height 130 mm • Max. Diameter 200 mm • Motor power 3 kW (4 HP) • Rotational speed 3000, 6000, 9000 rpm • Tilt angle 270 degrees

Condition: new, Year of construction: 2025, • 3kW electric motor • infeed and outfeed table • milling head with adjustable tilt angle up to 270° and vertical travel of 500mm and horizontal travel of 350mm • safety clamp for the sliding table • spindle diameter, standard: 30mm • max. tool diameter: 200mm • max. tool height: 130mm Fgjdpfx Abszqzuhjteg • guide length: 152mm • sliding table length: 1100mm • sliding table width: 350mm • overall table width: 750mm

Condition: as good as new (ex-display), Year of construction: 2022, Wood-Mizer MS300 High-precision table saw Machine used for training and demonstrations, checked and factory-adjusted. Processing parameters: Max. thickness at perpendicular cut: 100 mm Max. thickness at 45° cut: 65 mm Technical specifications: Circular saw Arbor diameter: 30 mm Saw blade diameter: 315 mm Max. blade width: 4 mm Blade tilt adjustment range: 0–45° Distance between blade and parallel fence: 800 mm Saw blade speed: 4,500 rpm Sliding table (aluminum): Table length: 1,400 mm Table width: 350 mm Sliding stroke: 1,235 mm Sliding table extension: 500 x 360 mm Working table (cast iron): Table length: 900 mm Table width: 750 mm Table height: 850 mm Table extension: 520 x 150 mm Fodpsyr Dfaefx Abtogg Motor: 3 kW Extraction ports: 1x100 mm, 1x60 mm Weight: 260 kg

Condition: new, Year of construction: 2026, Engine Electric 30 kW Electric 37 kW Electric 45 kW Cutting dimensions Max. log diameter 105 cm Max. log length 4.5 m (Bed S) 8.4 m (Bed L) Up to 12 m (non-standard) Clearance between rollers 90 cm Max. cutting width (cant) 85 cm Headstock equipment Automatic cutting thickness adjustment device (Setworks) Industrial PLC controller with automatic mode Headstock up/down feed Electric (Servo) Headstock forward/backward feed Electric Saw blade guide arm Electric (joystick controlled) Saw blade cleaning system Automatic oil mist lubrication with pneumatic assistance Saw blade tensioning system Electric hydraulic with pressure accumulator Debarker Optional Chip outlet diameter 150 mm (6") Headstock features Four cameras Board discharge system Additional options Laser Saw blade Length 6270 mm Width 50 mm 75 mm (Standard) 100 mm 120 mm Saw blade guide wheels Diameter 800 mm Type Beltless Material Convex cast iron Bed equipment Bed structure Dual-sided headstock guide system Bed features Board conveyor belt Fodpfxezqz T Rs Abtegg Shock-absorbing roller Additional options Saw-following conveyor Log maneuvering kit Industrial hydraulics 1 or more log clamps on two rods 1 or more bidirectional chain turners 2 or more driven leveling rollers 2 or more stops 7.5 kW or 11 kW hydraulic unit

Condition: new, Year of construction: 2026, Electric Motor 22 kW Cutting Dimensions Max. log diameter 105 cm Max. log length 6.1 m 7.9 m (with BX6 bed extension) 9.7 m (with BX12 bed extension) Min. log length 1.8 m Clearance between rollers 84 cm Max. cutting width (cant) 78 cm Max. cutting height above the blade 34 cm Max. width of clamped material 66 cm Min. width of clamped material 5 cm Max. log weight 2.5 t Head Equipment Automatic thickness setting device (Setworks) Industrial PLC controller Head feed up/down Electric (Servo) Head feed forward/backward Electric Blade guide arm Electric (joystick controlled) Blade cleaning system LubeMizer Blade tensioning system Hydraulic with air cushion Debarker Optional Chip outlet diameter 150 mm (6") Head Features Board discharge system Laser Blade Length 5000 mm Width 38 mm 50 mm (Optional) Blade guide wheels Diameter 600 mm Type With flange-pressed and brush belt Material Cast iron Bed Equipment Bed construction Single-sided head guide system Cribbing beds Standard Bed extension BX6 bed extension: 1.8 m BX12 bed extension: 3.6 m Bed Features Board conveyor belt Shock-absorbing roller Log maneuvering kit Fgsdpfx Aezqz Sgebtog Industrial hydraulics Center clamp with two bars 2 double-sided clamping devices (optional) 2 two-way chain log turners 2 driven leveling rollers 3 stoppers on two bars 7.5 kW hydraulic unit

Condition: new, Year of construction: 2026, functionality: fully functional, • 22 kW electric main motor • Maximum material width: 550 mm • Maximum cutting width: 410 mm • Minimum material thickness: 18 mm • Maximum material thickness: 100 mm • Minimum board length: 800 mm • Minimum cutting width: 6 cm (trimmer), 2 cm (multi-blade saw) • 5 circular saws – 4 fixed and 1 movable Fgodpfxjzqyq Us Abtsg • Adjustable feed speed: 0-20 m/min • Complete set of two lasers • Infeed and outfeed table • Setworks device for automatic adjustment of cutting parameters

Condition: new, Year of construction: 2026, • Two main electric motors, each with a power of 11 kW • Maximum material thickness: 250 mm • Maximum material width: 300 mm • Minimum cutting height: 10 mm • Adjustable feed rate: 5-25 m/min • Lower saw blade stroke: 10-150 • Upper saw blade stroke: 20-190 • Minimum distance between the saw blades: 15 mm • Saw blade lubrication: pneumatic sprayers • Hydraulic saw blade tensioning • Manual setting marker • Wheel diameter: 710 mm • Outfeed table length: 2.5 m Fsdpfozqzgwsx Abtjgg • Double pressure rollers
