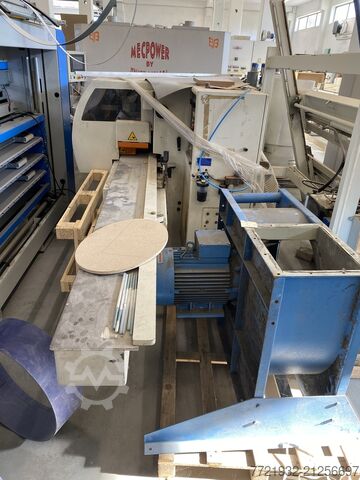

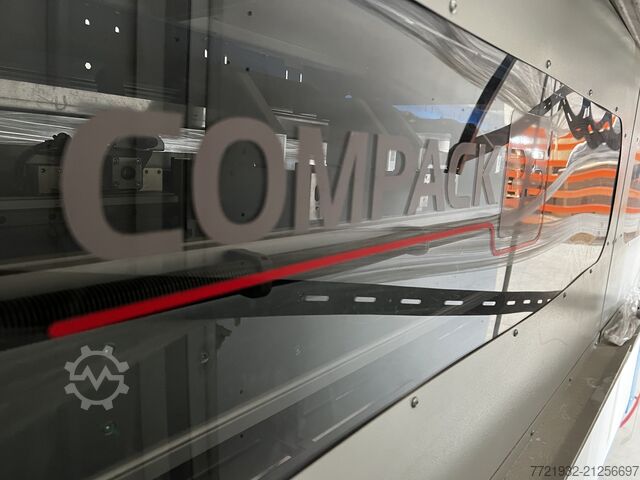

Four-sided planer

SCM Compact 23ks

Condition: excellent (used), Year of construction: 2014, TECHNICAL DATA: Hnsdpoyk At Hofx Afaeh Working width: 230 mm Working height: 120 mm Five heads Spirally arranged insert cutter heads Head arrangement: bottom/right/left/top/bottom Infeed table length: 2500 mm Electric height adjustment Variable feed speed Pneumatic material pressure Motor with integrated brake Head speed: 6000 rpm Total weight: 2000 kg Motor power: 5.5 kW/7.5 kW/7.5 kW/4 kW Year of manufacture: unknown

Condition: good (used), suction capacity: 3,300 m³/h, negative pressure: 2,000 Pa, Dust extraction, welding fume extractor, self-cleaning filter, cartridge filter for plasma, laser, sandblasting, shotblasting The filter is cleaned pneumatically by impulses of compressed air during operation, thus high efficiency of the device. Fan on the clean side, which reduces the risk of explosion to a minimum. Brand: DUST HOG / UAS Model: SBS-4-2 SD Hnjdpfx Aounh Uvefaoh Engine power 4 Kw Fan in sound-absorbing housing Capacity 3300 m3/h Vacuum - 2000 Pa Filtration area - 112m2 Inlet diameter - 300 mm Cartridge filter cartridges - 4 pieces. Height - 3.90 m depth - 1.70m width - 1.25m

Condition: used, Year of construction: 2002, Empty weight: 1.800 kg Dimensions (LxBxH): 325 x 155 x 150 cm Four-sided moulder SCM Compact 23K Built in 2002 Min/max working height 120mm Hodpfxjwnhk Ts Afaonh Min/max working width 230mm Working speed 6/12 m/min Spindle speed 6000 Rpm Spindle diameter 40mm Min/max tool diameter vertical spindle 100/180mm Input table length 2500mm CNC Program Engines 1st Spindle - Under 5.5kW 2nd/3rd Spindle - Left/Right 11kW 4th Spindle - Up 7,5kW Dimensions 3250x1550x1500mm (LxWxH), Weight 1800kg - Year: 2002 - Documentation available: Yes - CE certificate present: No - Transport dimensions: 3250mm x 1550mm x 1500mm (l x w x h) - Transport weight [kg]: 1800kg Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Condition: new, Year of construction: 2025, IF-100 moulder infeed (100 m/min). Max length 6m. The flat chain feeder transports parts across to the fence. The part next to the fence is detected by a light beam and the the first roller is raised to allow entry and then pushes the workpiece under the feed rollers of the planer. The first feed roller of the planer needs to be freewheeling roller to allow correct operation of the infeed. OF-100 moulder outfeed. Hedpfx Ajxhfycofaenh Automatic deposit on a belt conveyor and cross infeed. Manual destacking Approx. floor space requirement: length 8m, width 2,5m . Suitable for max 100m/min feed speed.
