Used Correa A-16 for sale (50)

Condition: used, Year of construction: 1988, Bed milling machine Manufacturer: Correa Type: A16 Year of manufacture: 1988 Control system: HEIDENHAIN TNC415 Travel distances X/Y/Z: 1,800 x 800 x 800 mm Clamping surface: 2,000 x 630 mm Hsdpfjzt U T Asx Alnot Workpiece weight: 3,000 kg Operating hours: 12,103 Power: 19 kW Spindle type: ISO 50 Dimensions L/W/H: 4,886 x 2,720 x 2,500 mm Machine weight: 7,500 kg 13826

Condition: ready for operation (used), Year of construction: 1992, functionality: fully functional, travel distance X-axis: 2,000 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 800 mm, power: 19 kW (25.83 HP), We offer this ready-to-use Correa A-16 bed milling machine, year of manufacture 1992. Manufacturer: Correa Model: A-16 Hsdpfxey Ar Avj Alnot Year of manufacture: 1992 Condition: ready for use Category ID: 1170 Type ID: 2584 Type: bed milling machine If you have any questions or require more information, please feel free to send us a message or call us.

Condition: excellent (used), Year of construction: 2013, functionality: fully functional, travel distance X-axis: 1,300 mm, travel distance Y-axis: 630 mm, travel distance Z-axis: 630 mm, feed rate X-axis: 8,000 m/min, feed rate Y-axis: 8,000 m/min, feed rate Z-axis: 8,000 m/min, spindle speed (max.): 3,150 rpm, table width: 630 mm, table load: 3,000 kg, table length: 1,700 mm, mount diameter: 50 mm, total height: 2,300 mm, total width: 2,300 mm, total length: 4,700 mm, rotational speed (max.): 3,150 rpm, overall weight: 6,000 kg, 2013 Overhauled by REIDEN SWISS New regrinded New iTNC530 New Hr410 Handwheel New CE-Safety  New Milling head gears and bearing Hodpfxozvfiae Alnjt New LS186C Glas scales New Blum TC60 3D taster Geomtrical DIN 8615 ! Overhauling cost CHF 250k X-Axis: 1300mm Y-Axis: 630mm Z-Axis: 630mm Table Length: 1700mm Table Width: 630mm Table load: 3000 Power on spindle:16kW Spindle speeds: 3150Rpm Spindle Taper: 50ISO/Bt/Mk Feed rate X-Axis:8000mm/min. Feed rate Y-Axis:8000mm/min. Feed rate Z-Axis:8000mm/min. Length: 4700mm Width: 2300mm Height: 2300mm Weight: 6000kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: used, Year of construction: 1990, Fixed Bed Milling Machine CORREA A25/25 Travel X: 2500 mm Travel Y: 1200 mm Travel Z: 1000 mm CNC HEIDENHAIN TNC 355 Spindle: SA 50 Spindle motor: 30 CV Spindle speed: from 2 to 3000 RPM Table size: 3000 x 1000 mm Year of construction: 1990 Maxi eligible load on table: 7 T Manual Swivel Head Hedpfx Alszw A Ensnjt Voltage: 380 V Dimensions (L x W x H): 5000 x 3000 x 3000 mm Weight: 16,5 T

Condition: used, Year of construction: 2002, functionality: fully functional, travel distance X-axis: 4,000 mm, travel distance Y-axis: 1,250 mm, travel distance Z-axis: 1,500 mm, feed rate X-axis: 15 m/min, feed rate Y-axis: 10 m/min, feed rate Z-axis: 10 m/min, spindle speed (max.): 3,000 rpm, spindle speed (min.): 20 rpm, table length: 4,500 mm, total height: 3,400 mm, total width: 5,390 mm, total length: 11,100 mm, workpiece weight (max.): 9,000 kg, overall weight: 22,500 kg, spindle motor power: 22,000 W, spindle nose: ISO 50, Fixed-bed milling machine built by Nicolás Correa in 2002, fitted with a Heidenhain TNC 426 CNC control and electronic handwheel. Working table measuring 4,500 × 1,100 mm with eight T-slots, 22 mm wide and spaced approximately 125 mm apart. Maximum permissible table load of 9,000 kg. Axis travels of 4,000 mm in X, 1,250 mm in Y and 1,500 mm in Z. Hsdpfezw Hgvex Alnst Universal milling head with manual positioning, hydraulic tool clamping and ISO 50 spindle taper. Main spindle rated at 22 kW with infinitely variable speed control across a range of 20 to 3,000 rpm. Cutting feed from 2 to 5,000 mm/min; rapid traverse of 15,000 mm/min on the X axis and 10,000 mm/min on the Y and Z axes. Compensation on the Y and Z axes, through-spindle coolant supply and provision for a fourth axis. The machine is supplied with a shared fourth axis, 400 mm in diameter. CE marked. Condition: axis movement is correct, with no unusual noise or vibration. Measured deviation of approximately 0.15 mm. The milling head is functional and shows slight play. The machine has been kept under basic maintenance and is in working industrial condition. Approximate weight between 22,500 and 24,000 kg. Approximate overall dimensions of 11,100 × 5,390 × 3,400 mm.

Condition: like new (used), Year of construction: 2014, Retrofitted: 2026 Numerical control: HEIDENHAIN TNC-530 Hodpfx Aezqhg Relnot Technical features Dimensions Table dimensions: 3800 x 1000 mmNumber of T slots: 7T slots dimensions: 22 mm Traverses of axis X axis traverse: 3500 mmY axis traverse: 1250 mmZ axis traverse: 1500 mmVertical capacity (VC): 80 / 1580 mm Milling head Head type: Auto-indexing Universal UDG (2.5º)Tool clamping system: HydraulicTaper nose: ISO-50 (DIN 69871)   /   Pull stud: DIN 69872Speed range: 3000 rpmSpindle power: 24 kW Feedrates Rapid feedrate (X,Y,Z): 20000 mm/min Weight and dimensions Maximum weight on table: 9000 kgMachine weight approximate: 26500 kgMachine dimensions approximate: 11100 x 5900 x 3700 mm Accessories Guarding: PerimetralAutomatic tool changer: ATC-40Chip conveyor: 1 front longitudinal and 1 rear longitudinalElectronic handwheel: HR-410Coolant: External internal high-pressure through spindle Sale conditions Warranty: 6 months mechanical partsPrice and sale conditions: On request View all technical features

Condition: like new (used), Year of construction: 2011, Retrofitted: 2026 Hsdpszcz Srofx Alnet Numerical control: HEIDENHAIN TNC-i530 Technical features Dimensions Table dimensions: 10000 x 2250 mmNumber of T slots: 9T slots dimensions: 22 mm Traverses of axis X axis traverse: 10000 mmY axis traverse: 1500 mmZ axis traverse: 2500 mmVertical capacity (VC): 150 - 2650 mm  (adjustable) Milling head Head type: Universal Auto-indexing UDG (2.5º)Tool clamping system: HydraulicTaper nose: ISO 50 (DIN 69871) / Pull stud: DIN 69872Speed range: 3000 rpmSpindle power: 30 kW Feedrates Rapid feedrate (X / Y,Z): 30000 mm/min Weight and dimensions Maximum weight on table: 15 Tn/m2Machine weight approximate: 56000 kgMachine dimensions approximate: 16520 x 8575 x 5290 mm Accessories Guarding: front sliding doors and new perimetral wire-mesh fenceAutomatic tool changer: ATC40Chip conveyor: 1 longitudinal rear hinge typeElectronic handwheel: HR-410Coolant: external internal high-pressure coolant through spindle Sale conditions Warranty: 6 months mechanical partsPrice and sale conditions: On request View all technical features

Condition: like new (used), Year of construction: 2013, Retrofitted: 2026 Numerical control: HEIDENHAIN TNC-i530 Technical features Dimensions Table dimensions: 12500 x 2250 mmNumber of T slots: 9T slots dimensions: 22 mm Traverses of axis X axis traverse: 11500 mmY axis traverse: 1500 mmZ axis traverse: 2000 mmVertical capacity (VC): 150 / 2150 mm (adjustable) Milling head Head type: Universal Auto-indexing UDG (2.5º)Tool clamping system: HydraulicTaper nose: ISO 50 (DIN 69871) / Pull stud: DIN 69872Speed range: 3000 rpmSpindle power: 30 kW Feedrates Rapid feedrate (X / Y,Z): 30000 mm/min Weight and dimensions Maximum weight on table: 15 Tn/m2Machine weight approximate: 62000 kgMachine dimensions approximate: 18494 x 8412 x 5290 mm Accessories Guarding: front doors and new perimetral wire-mesh fenceAutomatic tool changer: ATC40Chip conveyor: 1 longitudinal rear hinge typeElectronic handwheel: HR-410Coolant: external internal high-pressure through spindle Sale conditions Warranty: 6 months mechanical partsPrice and sale conditions: On request View all technical features Hjdpfx Aeyf Rraslnjt

Condition: like new (used), Year of construction: 1997, Retrofitted: 2025 Hodpjyw Uqxofx Alnjt Numerical control: HEIDENHAIN TNC-320 Technical features Dimensions Table dimensions: 4500 x 1100 mmNumber of T slots: 8T slots dimensions: 22 mm   Traverses of axis Longitudinal traverse X: 4000 mmCross traverse Y: 1200Vertical traverse Z: 1000 Milling head Head type: New Universal Auto-indexing (UDG / every 2.5º)Tool clamping system: HydraulicTaper nose: ISO 50 (DIN 69871)  /  Pull stud: DIN 69872Speed range: 20 - 3000 rpmSpindle power: 29,8 kW Feedrates Feedrate: 5000 mm/minRapid feedrate (X / Y,Z): 15000 /  10000 mm/min Weight and dimensions Maximum weight on table: 8000 kgMachine weight approximate: 23500 kgMachine dimensions approximate: 11100 x 5392 x 3400 mm Accessories Guarding: 2 front doors and a new perimetral wire-mesh fence.Electronic handwheel: New HR-510Coolant: External Sale conditions Warranty: 6 months mechanical partsPrice and sale conditions: On request View all technical features

Condition: used, Year of construction: 1988, Bed milling machine Manufacturer: Correa Type: A10 Year of construction: 1988 Control system: HEIDENHAIN TNC 355 Travel distances X/Y/Z: 1,300 x 630 x 630 mm Clamping surface: 1,700 x 630 mm Workpiece weight: 3,000 kg Hedpfx Aszt U R Ielnjt Operating hours: 25,845 Power: 19 kW Spindle type: ISO 40 Dimensions L/W/H: 3,870 × 2,630 × 2,200 mm Machine weight: 6,800 kg

Condition: used, Year of construction: 1992, total height: 2,700 mm, total width: 3,000 mm, total length: 5,300 mm, Colour: White Empty weight: 11.000 kg Price: On request - Year: 1992 - Documentation available: No - CE certificate present: No - Serial number: 9220212 - Drive system: Conventional - Bed milling machine model: Movable table - Number of axes [pcs]: 3 - X-axis travel [mm]: 3200 - Y-axis travel [mm]: 1000 - Z-axis travel [mm]: 1000 - B-axis rotation [°]: 360 - C-axis rotation [°]: 360 - Table length [mm]: 3500 - Table width [mm]: 800 - Tool holder: ISO50 - Main spindle power [kW]: 15 - Min. spindle speed [rpm]: 40 Hodpfx Alszwn Egonst - Max. spindle speed [rpm]: 2000 - Max. workpiece weight [kg]: 4000 - Options: Digital readout - └ Type of digital readout: Sony 3-A - Transport dimensions: 5300mm x 3000mm x 2700mm (l x w x h) - Transport weight [kg]: 11000kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: like new (used), Year of construction: 2008, Retrofitted: 2026 Hsdeyvwchspfx Alnot Numerical control: SIEMENS 840D Technical features Dimensions Table dimensions: OptionalNumber of T slots: UndefinedT slots dimensions: Undefined Traverses of axis X axis traverse: 10000 mmY axis traverse: 1500 mmZ axis traverse: 2500 mmVertical capacity (VC): 0 / 2500 mm (adjustable) Milling head Head type: Universal Auto-indexing UAD (0,1º)Tool clamping system: HydraulicTaper nose: ISO 50 (DIN 69871) / Pull stud: DIN 69872Speed range: 20 - 6000 rpmSpindle power: 30 kW Feedrates Rapid feedrate (X / Y,Z): 30000 mm/min Weight and dimensions Maximum weight on table (kg/m2): OptionalMachine weight approximate: 70000 kgMachine dimensions approximate: 17560 x 12800 x 4270 mm Accessories Guarding: pendular with automatic front door and perimetral wire-mesh fenceAutomatic tool changer: ATC80 with electrical motorsChip conveyor: 1 front longitudinal and 1 transversalElectronic handwheel: 6FX2007-1AE14 SiemensCoolant: external internal high-pressure through spindleOperator’s cabinet: adjustable in vertical traverse Other technical features 2 ROTARY TABLES:Model:   DEMMELER DRLTS1800Table surface: 2400 x 1800 mmMaximum load on table: 40 TT slots number: 9T slots dimensions: 22 mmRotary axis: HydrostaticMaximun speed (S1/S6): 3.4 / 5.4 rpmClamped tangencial torque: 175000 NmW axis: 1500 mm.Maximum feedrate: 20000 mm/min.Quantity of guideway (W axis): 4 Sale conditions Warranty: 6 months mechanical partsPrice and sale conditions: On request View all technical features

Condition: like new (used), Year of construction: 1992, Retrofitted: 2023 Numerical control: HEIDENHAIN TNC-320 Technical features Dimensions Table dimensions: 4500 x 1100 mmNumber of T slots: 8T slots dimensions: 22 mm Traverses of axis  X axis traverse: 4000 mmY axis traverse: 1200 mmZ axis traverse: 1250 mmVertical capacity (VC): 57 – 1307 mm Milling head Head type: Universal manual U22Tool clamping system: HydraulicTaper nose: ISO 50 (DIN 2080)  /  Pull stud: DIN 69872Speed range: 20 - 2000 rpmSpindle power: 22 kW Feedrates Feedrate: 5 - 5000 mm/minRapid feedrate (X / Y,Z): 15000   /   10000 mm/min Weight and dimensions Maximum weight on table: 8000 kgMachine weight approx.: 23500 kgMachine dimensions approx.: 11100 x 5392 x 3400 mm Accessories Guarding: 2 sliding doors and new perimetral wire-mesh fence.Electronic handwheel: New HR-510Coolant: External Sale conditions Warranty: 6 months mechanical partsPrice and sale conditions: On request View all technical features Hodpfx Aoyf Rtkelnet

Condition: ready for operation (used), Year of construction: 2005, functionality: fully functional, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,250 mm, travel distance Z-axis: 1,500 mm, feed rate X-axis: 30 m/min, feed rate Y-axis: 30 m/min, feed rate Z-axis: 30 m/min, spindle speed (max.): 6,000 rpm, table width: 1,100 mm, table length: 3,500 mm, total height: 4,164 mm, total width: 5,875 mm, total length: 9,120 mm, rotational speed (max.): 6,000 rpm, workpiece weight (max.): 8,000 kg, overall weight: 29,000 kg, torque: 760 Nm, Fixed-bed milling machine, Nicolás Correa BRAVA-30, built in 2005. Working table measuring 3,500 × 1,100 mm with six 22 mm T-slots and a maximum permissible load of 8,000 kg. Axis travels of 3,000 mm in X, 1,250 mm in Y and 1,500 mm in Z. Automatic UAD milling head with 0.1° indexing on both swivel axes and hydraulic tool clamping, ISO 50 spindle taper to DIN 69871. Front bearing diameter of 85 mm. Constant torque of 760 Nm between 20 and 375 rpm. Main spindle rated at 30 kW with constant power from 375 to 6,000 rpm and a speed range of 20 to 6,000 rpm. Hsdoulwy Ajpfx Alnst Cutting feed of 30 m/min and maximum acceleration of 12 m/s². Ball screws measuring 80×30 mm on the X axis, 50×20 mm on the Y axis and 63×25 mm on the Z axis. Heidenhain workpiece touch probe fitted, plus provision for a Renishaw measuring probe. Portable handwheel. External coolant system together with internal coolant supply through the spindle. Chip removal by two screw-type augers and one lateral hinged-belt conveyor. Fully enclosed guarding. Approximate overall dimensions of 9,120 × 5,875 × 4,164 mm.

Condition: like new (used), Year of construction: 2004, Retrofitted: 2026 Numerical control: HEIDENHAIN TNC-i530 Hjdpfxjyf Rryj Alnet Technical features Dimensions Table dimensions: 2000 x 900 mmNumber of T slots: 5T slots dimensions: 22 mm Traverses of axis X axis traverse: 2000 mmY axis traverse: 1000 mmZ axis traverse: 1000 mm Milling head Head type: Manual milling head (U22)Tool clamping system: HydraulicTaper nose: ISO 50 (DIN 69871) / Pull stud: DIN 69872Speed range: 3000 rpmSpindle power: 22 kW Feedrates Rapid feedrate (X / Y,Z): 20000 / 12000 mm/min Weight and dimensions Maximum weight on table: 3500 kgMachine weight approximate: 14000 kgMachine dimensions approximate: 6367 x 5070 x 2803 mm Accessories Guarding: 2 sliding doors and new perimetral wire-mesh fenceTool pedal: new foot clamping tool pedalElectronic handwheel: New HR-510Coolant: external Sale conditions Warranty: 6 months mechanical partsPrice and sale conditions: On request View all technical features

Condition: ready for operation (used), Year of construction: 2008, spindle speed (max.): 2,500 rpm, total height: 8,500 mm, total width: 10,650 mm, overall weight: 77,000 kg, travel distance X-axis: 13,500 mm, travel distance Y-axis: 1,500 mm, travel distance Z-axis: 5,000 mm, controller manufacturer: HEIDENHAIN, controller model: iTNC 530, spindle motor power: 37,000 W, product length (max.): 1,500 mm, table load: 10,000 kg, tool weight: 20,000 g, number of slots in tool magazine: 60, number of axes: 3, Universal machining centre manufactured in 2008. This Correa SUPRA 135 features an impressive X-axis travel of 13,500 mm, Y-axis travel of 1,500 mm, and Z-axis travel of 5,000 mm. It includes a robust fixed table with dimensions of 3,500 x 2,500 mm and a maximum load capacity of 10,000 kg. If you are looking to get high-quality machining capabilities, consider the Correa SUPRA 135 machine we have for sale. Contact us for further details. Hsdpfxoznagwe Alnot Technical Specification Taper Size ISO 50

Condition: excellent (used), Year of construction: 2001, overall weight: 10,000 kg, total length: 5,000 mm, total width: 900 mm, total height: 900 mm, Box table Correa Anayak MACH-ID 9393 Make: Correa Anayak Year: 2001 Cast iron contsruction 2 matching units availebel clean surface Hedpfxszcn E Ss Alnet Number of T slots: 7 Jump from T to T: 130mm T size: 22mm Number of T-slotted sides:1 Length: 5000mm Width: 900mm Height: 900mm Weight: 10000kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Year of construction: 2018, condition: excellent (used), Spindle ISO 50 (DIN-69871-B) Pull studs DIN-69872-B Hodpfxjyf Dp Ee Alnet Clamping force 1900 daN Automatic B Axis 1.0 Degrees Automatic C Axis 2.5 Degrees Power 60/100 % 22/30 kW Speeds 60 - 3000 2 Speed Range Automatic lubrication (Air-Oil) Gear; ZykloPalloid, Klingelnberg-System, HPG-5 Qulaity-6 with DIN3965 Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: good (used), Year of construction: 1989, Universal head (U-25) Coolant system Hodpfx Aewq Rkuslnst Hydraulic tool clamping X-Axis: 5000mm Y-Axis: 1200mm Z-Axis: 1500mm Table Length: 5000mm Table Width: 1000mm Table load: 7000 Power on spindle:19kW Spindle speeds: 14 - 2500Rpm Spindle Taper: 50ISO/Bt/Mk Feed rate X-Axis:5000mm/min. Feed rate Y-Axis:7000mm/min. Length: 11225mm Width: 4100mm Height: 3200mm Weight: 19000kg

Condition: excellent (used), Year of construction: 2018, overall weight: 320 kg, total length: 1,200 mm, total width: 800 mm, total height: 700 mm, CNC Bed-Type Milling Machine Correa Anayak - HVM BIRA Spindle ISO 50 (DIN-69871-B) Pull studs DIN-69872-B Clamping force 1900 daN Automatic B Axis 1.0 Degrees Automatic C Axis 2.5 Degrees Power 60/100 % 22/30 kW Speeds 60 - 3000 2 Speed Range Automatic lubrication (Air-Oil) Gear; ZykloPalloid, Klingelnberg-System, HPG-5 Qulaity-6 with DIN3965 Length:1200mm Width:800mm Hjdszcpg Depfx Alnot Height:700mm Weight:320kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

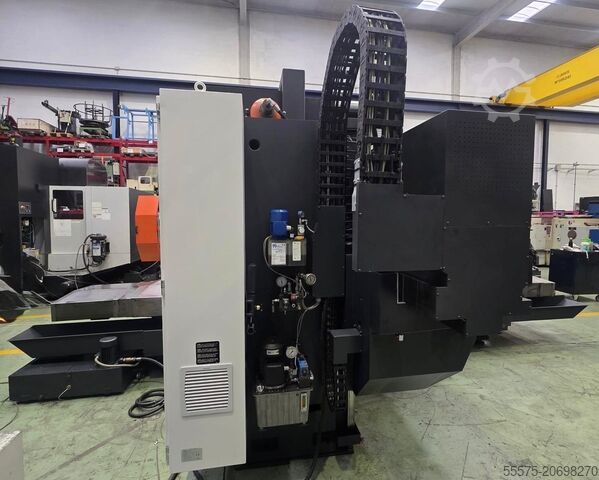

Condition: excellent (used), Brand : CORREA Model : PRISMA-20 Type : CNC Cnc : HEINDENHAIN 530 Table dimensions : 2.000 x 900 mm Number of slot: 5 x 22 mm Hodpjx Dzf Tefx Alnot Distance between T slots: 200 mm Axis travels (X,Y,Z) : 2.000 x 1000 x 1000 mm Head type : Universal manual Taper : ISO 50 Speed range : 550 - 3.000 Spinale power : 22 kw Rapid traverse (X) : 12.000 mm/min Rapid traverse ( X) : 20.000 mm/min Maximum weight on table : 3.500 kg Machine weight : 14 tn Machine equipped with: Fairing Electronica hadwheel

Condition: excellent (used), Year of construction: 2001, overall weight: 10,000 kg, total length: 5,000 mm, total width: 900 mm, total height: 900 mm, Cast iron box table Weight 10 Ton 2 matching pieces availebel Hsdpsyg Hpwsfx Alnst Nice surface Number of T slots: 7 Jump from T to T: 130mm T size: 22mm Number of T-slotted sides:1 Length: 5000mm Width: 900mm Height: 900mm Weight: 10000kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: ready for operation (used), Year of construction: 1996, travel distance X-axis: 2,000 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 800 mm, spindle speed (max.): 2,500 rpm, Heidenhain TNC 407 control unit Table: 2000 x 700 mm Travel: 2000 x 800 x 800 mm Spindle: SA 50 Maximum spindle speed: 2500 rpm Weight: 10000 kg Hjdpezbrkpefx Alnjt

Condition: reconditioned (used), Year of construction: 2000, functionality: fully functional, travel distance X-axis: 4,000 mm, travel distance Y-axis: 2,500 mm, travel distance Z-axis: 1,000 mm, feed rate Z-axis: 7 m/min, total length: 11,000 mm, table length: 4,500 mm, table width: 1,250 mm, total width: 4,170 mm, spindle speed (max.): 3,000 rpm, total height: 4,645 mm, rapid traverse X-axis: 15 m/min, rapid traverse Y-axis: 15 m/min, rapid traverse Z-axis: 12 m/min, distance between stands: 2,040 mm, type of input current: three-phase, table load: 1,000 kg, position of the milling head: Universal automático, indexable cada 2,5°, workpiece weight (max.): 10,000 kg, rotational speed (max.): 5,000 rpm, overall weight: 30,500 kg, spindle motor power: 3,000 W, Equipment: rotational speed infinitely variable, Gantry milling machine, Nicolás Correa FP-40/40S, built in 2000 and retrofitted in 2016. Fitted with a Heidenhain TNC-426 CNC control and a Heidenhain HR-410 portable handwheel. Working table measuring 4,500 × 1,250 mm with eight 22 mm T-slots. Maximum permissible table load of 10,000 kg. Axis travels of 4,000 mm in X, 2,500 mm in Y and 1,000 mm in Z. Distance between columns of 2,040 mm. Automatic UAG universal milling head with 2.5° indexing steps and hydraulic tool clamping, ISO 50 spindle taper to DIN 69871. Spindle rated at 30 kW, reaching 5,000 rpm. Cutting feed from 2 to 7,500 mm/min; rapid traverse of 15,000 mm/min on the X and Y axes and 12,000 mm/min on the Z axis. Automatic tool changer with 30 stations. Renishaw tool measuring probe installed, plus provision for a Renishaw workpiece touch probe. Two chip conveyors. External coolant system together with internal coolant supply through the milling head. Enclosed splash guarding, CE marked. Hodpfx Alsul S Syjnot Machine weight 30,500 kg. Overall dimensions 10,975 × 4,170 × 4,645 mm.

Condition: used, Year of construction: 2002, functionality: fully functional, travel distance X-axis: 2,000 mm, travel distance Y-axis: 1,250 mm, travel distance Z-axis: 650 mm, total length: 6,500 mm, table length: 2,000 mm, table width: 1,000 mm, total width: 3,600 mm, spindle speed (max.): 12,000 rpm, total height: 4,000 mm, distance between stands: 1,250 mm, type of input current: three-phase, position of the milling head: Vertical, overall weight: 14,000 kg, spindle motor power: 25,000 W, Equipment: rotational speed infinitely variable, Gantry milling machine, Nicolás Correa EURO 2000, built in 2002 and retrofitted in 2024. Fitted with a Heidenhain TNC-530 CNC control and a Heidenhain HR-410 portable handwheel. Working table measuring 2,000 × 1,000 mm. Axis travels of 2,000 mm in X, 1,250 mm in Y and 650 mm in Z. Distance between columns of 1,250 mm. Hodpfx Aeul Txzolnet Direct-drive electrospindle head rated at 25 kW, reaching 12,000 rpm, with HSK 63 tool clamping. Automatic tool changer with 24 stations. External coolant system plus internal coolant supply through the spindle head. Chip conveyor included. Continuous fourth- and fifth-axis rotary indexing, allowing multi-axis machining of complex workpieces without manual repositioning. Fully enclosed splash guarding, CE marked. Machine weight 14,000 kg. Overall dimensions 6,500 × 3,600 × 4,000 mm.
