Veneer stitcher/splicer

KUPER

Condition: ready for operation (used), Year of construction: 2011, Number of spindles 6 St. Working width 230 mm Working height 150 mm Isdpfx Adsyyqnlersau Length of the planing table 2000 mm Feed motor 5,5 kW Feed speed 7-36 m/min. uper SWT 23 XL-6 Four-Sided Planer ----- Machine fully functional tested! ... Working width min/max: 18 - 230 mm Working height min/max: 8 - 150 mm Spindle configuration: 1st Spindle - bottom ----- Power: 5.5 kW Speed: 6,200 rpm, incl. brake Spindle diameter: 40 mm Spindle length: 240 mm Pulley diameter: 160 mm Adjustment: axial and radial, manual 2nd Spindle - right ----- Power: 5.5 kW Speed: 6,200 rpm, incl. brake Spindle diameter: 40 mm Spindle length: 160 mm Pulley diameter: min. 110 mm - max. 200 mm Adjustment: axial and radial, manual, via mechanical digital display Adjustment: vertical 35 mm below Table 3rd Spindle - Left ----- Power: 7.5 kW Speed: 6,200 rpm, including brake Spindle diameter: 40 mm Spindle length: 160 mm Cutting circle diameter (125 mm): min. 110 mm - max. 200 mm Adjustment: axial and radial manual via mechanical digital display Adjustment: horizontal 18 mm to 230 mm at 125 mm diameter, vertical 35 mm below table 4th Spindle - Top ----- Power: 7.5 kW Speed: 6,200 rpm, including brake Spindle diameter: 40 mm Spindle length: 240 mm Cutting circle diameter (125 mm): min. 120 mm - max. 200 mm Adjustment: axial manual and radial electric via mechanical digital display Adjustment: vertical 8 mm to 150 mm at 125 mm diameter, axial 26 mm 5. Spindle - top ----- Power: 7.5 kW Speed: 7,200 rpm, incl. brake Spindle diameter: 40 mm Spindle length: 240 mm Cutting circle diameter 125 mm: min. 120 mm - max. 200 mm Adjustment: axial manual and radial electric according to mechanical digital display Adjustment: vertical 8 mm to 150 mm at 125 mm diameter, axial 26 mm 6. Spindle - bottom ----- Power: 7.5 kW Speed: 7,200 rpm, incl. brake Spindle diameter: 40 mm Spindle length: 240 mm Cutting circle diameter 125 mm: min. 110 mm - max. 250 mm Adjustment: vertical manual according to mechanical digital display, axial manual Adjustment: Radial 8 to 150 mm with a 125 mm diameter Axially 35 mm Further features: ----- -Infinitely variable feed speed, 7-36 m/min, 5.5 kW motor -Electric height adjustment, 0.75 kW -Siemens touchscreen - Includes existing planer heads (Technical specifications provided by the manufacturer - no guarantee!)

Condition: as good as new (ex-display), Year of construction: 2021, Number of spindles 5 St. Working width 250 mm Working height 160 mm Length of the planing table 2500 mm Feed motor 4 kW Feed speed 6-24 m/min. control K2 Basic 7"-Touch KUPER SWT XL-5 AUTOMATIC PLANER AND MOULDER ----- LIKE NEW, showroom machine ! - 5 spindles: bottom, right, left, top, bottom - Speed: frequency-controlled 4,000 - 6,000 rpm, spindle 4.5 to 8,000 rpm - Width and height motor-controlled: left spindle radial upper spindle axial - Feed carrier motor-controlled - Additional motor-controlled positioning: right spindle radial and axial left spindle axial - working width 250 mm TECHNICAL DATA ----- Working width (perimeter of tools 163 mm) 15 - 230 mm Working height(perimeter of tools 163 mm) 10 - 150 mm (perimeter of tools 123 mm) 10 - 160 mm Min. workpiece length: single piece: min. 800 mm piece by piece: min. 300 mm The processing of the work pieces is depending on the following operating parameters: material, wood moisture, tools, diameter of the chip removal and feed speed. If necessary adjustments to the operating parameter have to be done. SPINDLE CONFIGURATION ----- bottom, right, left, top, bottom 1st spindle: HORIZONTAL, BOTTOM ----- Siemens IE3 motor with inverter brake 5,5 kW (7,5 HP) Diameter 40 mm Spindle length 250 mm Usabale length for tools Spindle length minus approx. 6 mm Drive, frequency-controlled 4000 - 6000 rpm Perimeter of tools 125 - 160 mm Reference cutter Diameter difference 20 - 25mm to the cutterhead Connecting piece D = 125 mm Quick action lock nut Pro-Lock 2nd spindle: VERTICAL, RIGHT ----- Siemens IE3 motor with inverter brake 5,5 kW (7,5 HP) Diameter 40 mm Spindle length 165 mm Usable length for tools spindle length minus approx. 6 mm Drive, frequency-controlled 4000 - 6000 rpm Perimeter of tools 112 - 200 mm Adjustment path axial 60 mm Adjustable table plate to tool radius Standard profile depth 20 mm Connecting piece D = 125 mm Aspiration individual adjustable shavings guiding plate Quick action lock nut Pro-Lock 3rd spindle: VERTICAL, LEFT ----- Siemens IE3 motor with inverter brake 7,5 kW (10 HP) Diameter 40 mm Spindle length 165 mm Usable length for tools spindle length minus approx. 6 mm Drive, frequency-controlled 4000 - 6000 rpm Perimeter of tools 112 - 200 mm Adjustment path axial 60 mm Standard profile depth 20 mm Adjustable table plate to tool radius Connecting piece D = 125 mm Aspiration individual adjustable shavings guiding plate Quick action lock nut Pro-Lock 4th spindle: HORIZONTAL, TOP ----- Siemens IE3 motor with inverter brake 7,5 kW (10 HP) Diameter 40 mm Spindle length 235 mm Usable length for tools spindle length minus Iedpfx Aswgwmnsdroau approx. 6 mm Drive, frequency-controlled 4000 - 6000 rpm Perimeter of tools 112 - 200 mm Pressure shoe pneumatically, via linear guides dynamically adjustable Standard profile depth 20 mm Connecting piece D = 125 mm Aspiration individual adjustable shavings guiding plate Quick action lock nut Pro-Lock 5th spindle: HORIZONTAL, BOTTOM ----- Siemens IE3 motor with inverter brake 5,5 kW (7,5 HP) Diameter 40 mm Spindle length 235 mm Usable length for tools spindle lenght minus approx. 6 mm Drive, frequency-controlled...

Condition: as good as new (ex-display), Year of construction: 2021, Number of spindles 5 St. Working width 230 mm Working height 160 mm Length of the planing table 2500 mm Feed motor 4 kW Feed speed 6-24 m/min. Control K2 Basic 7"-Touch KUPER SWT XL-5 AUTOMATIC PLANER AND MOULDER ----- LIKE NEW, showroom machine ! - 5 spindles: bottom, right, left, top, bottom - Speed: frequency-controlled 4,000 - 6,000 rpm - Width and height motor-controlled: left spindle radial upper spindle axial - Feed carriage motorized adjustment TECHNICAL DATA in Detail ----- Working width (for tool diameter 125-163 mm): 15-230 mm Working height (for tool diameter 125 mm): 10-160 mm (Tool diameter up to 163 mm): 10-160 mm Iaodpfowgwmhox Adrju Min. workpiece length: single piece: min. 800 mm piece by piece: min. 300 mm The processing of the work pieces is depending on the following operating parameters: material, wood moisture, tools, diameter of the chip removal and feed speed. If necessary adjustments to the operating parameter have to be done. SPINDLE CONFIGURATION ----- bottom, right, left, top, bottom 1st spindle: HORIZONTAL, BOTTOM ----- Siemens IE3 motor with inverter brake 5,5 kW (7,5 HP) Diameter 40 mm Spindle length 250 mm Usabale length for tools Spindle length minus approx. 6 mm Drive, frequency-controlled 4000 - 6000 rpm Perimeter of tools 125 - 160 mm Reference cutter Diameter difference 20 - 25mm to the cutterhead Connecting piece D = 125 mm Quick action lock nut Pro-Lock 2nd spindle: VERTICAL, RIGHT ----- Siemens IE3 motor with inverter brake 5,5 kW (7,5 HP) Diameter 40 mm Spindle length 165 mm Usable length for tools spindle length minus approx. 6 mm Drive, frequency-controlled 4000 - 6000 rpm Perimeter of tools 112 - 200 mm Adjustment path axial 60 mm Adjustable table plate to tool radius Standard profile depth 20 mm Connecting piece D = 125 mm Aspiration individual adjustable shavings guiding plate Quick action lock nut Pro-Lock 3rd spindle: VERTICAL, LEFT ----- Siemens IE3 motor with inverter brake 7,5 kW (10 HP) Diameter 40 mm Spindle length 165 mm Usable length for tools spindle length minus approx. 6 mm Drive, frequency-controlled 4000 - 6000 rpm Perimeter of tools 112 - 200 mm Adjustment path axial 60 mm Standard profile depth 20 mm Adjustable table plate to tool radius Connecting piece D = 125 mm Aspiration individual adjustable shavings guiding plate Quick action lock nut Pro-Lock 4th spindle: HORIZONTAL, TOP ----- Siemens IE3 motor with inverter brake 7,5 kW (10 HP) Diameter 40 mm Spindle length 235 mm Usable length for tools spindle length minus approx. 6 mm Drive, frequency-controlled 4000 - 6000 rpm Perimeter of tools 112 - 200 mm Pressure shoe pneumatically, via linear guides dynamically adjustable Standard profile depth 20 mm Connecting piece D = 125 mm Aspiration individual adjustable shavings guiding plate Quick action lock nut Pro-Lock 5th spindle: HORIZONTAL, BOTTOM ----- Siemens IE3 motor with inverter brake 5,5 kW (7,5 HP) Diameter 40 mm Spindle length 235 mm Usable length for tools spindle lenght minus approx. 6 mm Drive, frequency-controlled 4000 - 6000 rpm Perimeter of tools 112 - 200 mm Adjustment range axial 20 mm Connecting piece D = 125 mm Aspiration individ...

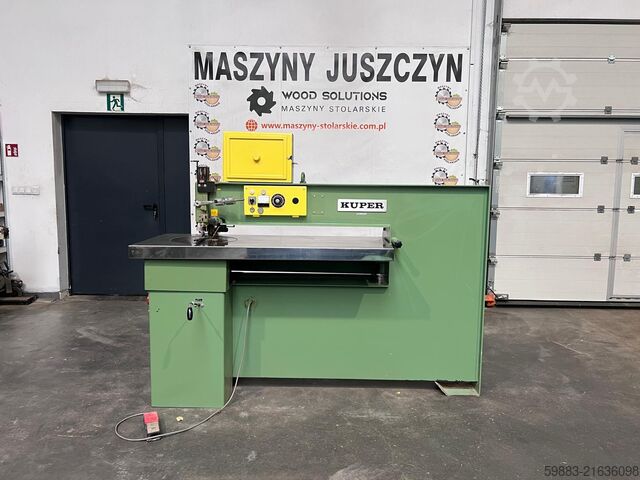

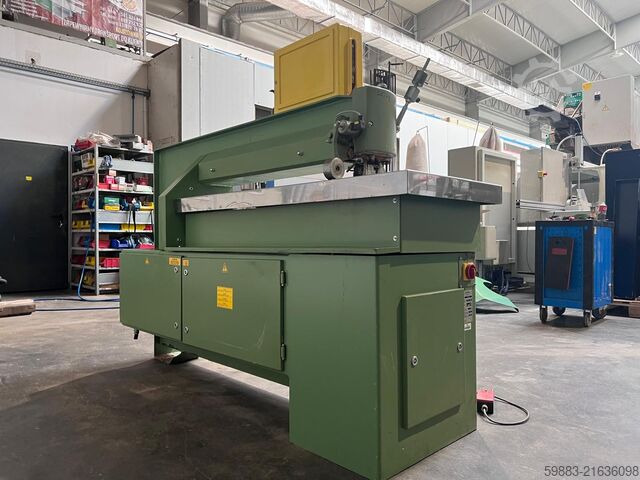

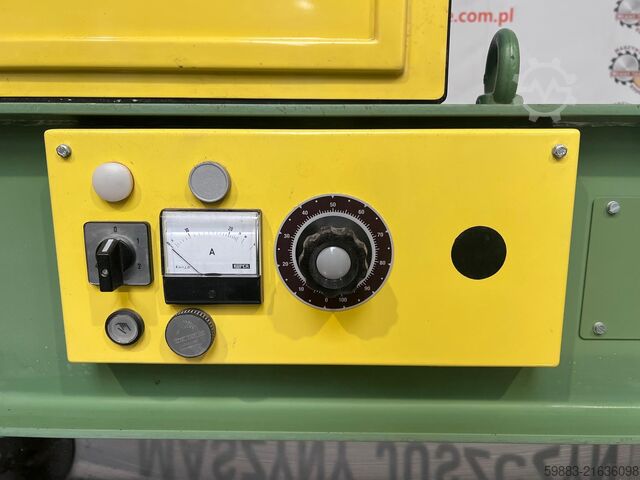

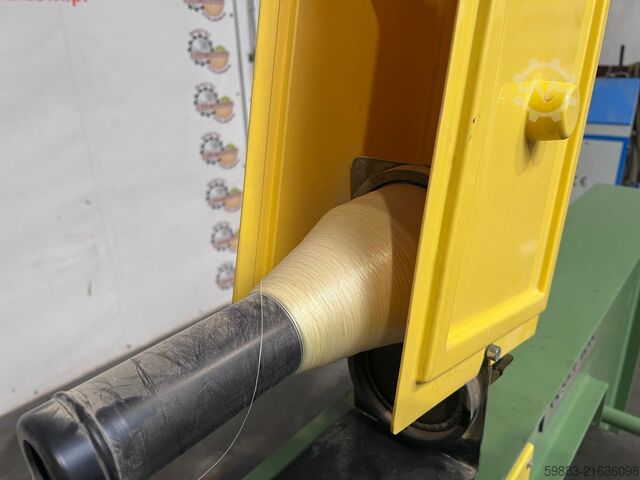

Condition: used, Used machine Iedpfx Ajwka Rkodrsau Used veneer splicing machine of the company Kuper type FW 1150 passage width: 1150 mm feed speed: approx. 10 - 30 m/min Veneer thicknesses: 0.3 - 3 mm without tables in front and behind Availability: short term Location: Röllbach

Condition: used, max. veneer thickness: 2.0 mm min. veneer thickness: 0.4 mm Joining material: glue thread with hot air heating Compressed air required: yes Disc: Yes, for transporting the veneer over the veneer table Control via foot pedal Iaedpexgqmxefx Adrsu Machine type: floor model Feed speed: 7 m/min Stand extension: 900 mm Weight approx.: 185 kg Dimensions: 1400 x 500 x 1680 mm Storage location: Nattheim

Condition: excellent (used), Year of construction: 1985, Feed rate 6 m/min. Dimensions (Length/Width/Height) 700 x 350 x 450 mm Total power requirement 0.2 kW Machine weight approx. 25 kg Year of manufacture 1985 Throat depth 420 mm - Foot pedal - Veneer thickness 0.4 - 2 mm - includes several Kuper spools Location: ex stock 54634 Bitburg - immediately available - Iaedoy E T Tnspfx Adreu

Condition: used, Year of construction: 2008, Price: On request Four-axis planer Kuper SWT 23 XL-5R Year of construction 2008 min/max Working height 8/150 mm min/max Working width18/230 mm Spindle speed 6000 rpm Spindle diameter 40 mm Motors Spindle - horizontal down 7.5kW  Spindle - vertical right 7.5kW Spindle - vertical left 11kW Spindle - horizontal top 11 kW Dimensions 3100 x1850 x 1750 mm (L x W x H), weight 4000 kg Iedpfswnit Aex Adroau Outfeed table  Weidner buffer table Type DBT 4500B Dimensions 4500 x1750 x 97 mm (L x W x H) Available from November 2024 - Year: 2008 - Documentation available: No - CE certificate present: No Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Condition: good (used), Year of construction: 1990, type of input current: three-phase, Film wrapping machine + shrink tunnel KUPER DUPLEX 2100/650 + KUPER ST/I-1400 Film wrapping machine Manufacturer: Kuper Type: DUPLEX 2100/650 Year of manufacture: 1995 Film roll width at the top: 2000 mm Film roll width at the bottom: 2000 mm Packaged goods height (passage height): 650 mm Film roll diameter: 400 mm Compressed air: min 5 bar Compressed air consumption (per cycle): approx. 16 L swing arm with chain lift seal bar length 2100 mm "Siemens" control panel overall dimensions: 3000x2000x2300 mm Shrink tunnel: Manufacturer: Kuper ST/I-1400 year of manufacture: ca 1988 max capacity: width: 1350mm height: 650mm work length: 3000mm 2 pcs centrifugal fan blow-off units heating power: 59 kW temperature range 230 °C endless conveyor belt throughput speed 5 m/min Length: 3500 mm Width: 2350 mm Ijdokn Rz Hjpfx Adrjau Height: 1850 mm

Condition: excellent (used), Year of construction: 1988, functionality: fully functional, type of input current: three-phase, product height (max.): 650 mm, product length (max.): 3,000 mm, product width (max.): 1,350 mm, overall weight: 2,300 kg, input frequency: 50 Hz, nominal power: 59 kW (80.22 HP), temperature: 220 °C, pass-through width: 1,400 mm, Shrink tunnel: Manufacturer: Kuper ST/I-1400 year of manufacture: ca 1988 max capacity: width: 1350mm height: 650mm work length: 3000mm 2 pcs centrifugal fan blow-off units heating power: 59 kW temperature range 230 °C endless conveyor belt throughput speed 5 m/min Length: 3500 mm Width: 2350 mm Ijdpfext Idbjx Adrjau Height: 1850 mm

Condition: used, Year of construction: 1997, Arm reach: 920 mm Feed rate: approx. 15 m/min. Veneer thickness: approx. 0.4 - 2 mm Compressed air connection required Storage location: Nattheim Iasdpey H Hgksfx Adrou
