Ear-gathering group

HOMAG

Year of construction: 2005, condition: ready for operation (used), functionality: fully functional, working width: 2,400 mm, working height: 32 mm, working length: 800 mm, TECHNICAL DETAILS Working width X-axis: 267 - 2,400 mm Working length Y-axis: 120 - 800 mm Working height Z-axis: 16 - 32 mm Rjdpfxsydn A Tj Afzjn 2 upper drilling heads + independent Y-axis grooving consisting of: Left head with 15 vertical spindles in X and Y-axis + one blade for grooving Right head with 15 vertical spindles in X and Y-axis + one automatic hinge installation unit 2 independent lower vertical drilling heads in Y-axis each with 5 + 5 independent spindles MACHINE DETAILS Control: Numerical control with WoodWop software EQUIPMENT Automatic loading system with motorized roller conveyor Tank with vibrator for hinge storage and automatic feeding Unloading system with automatic roller conveyor

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, machine/vehicle number: 0-201-09-5124, travel distance X-axis: 6,000 mm, travel distance Y-axis: 1,650 mm, controller model: Homatic PC 85 Power Control, TECHNICAL DETAILS X-axis working range: 6,000 mm Y-axis working range: 1,650 mm – up to 1,750 mm for milling Max. travel height during edge banding: 60 mm Max. applicable edge height: 65 mm Minimum internal radius: 30 mm Automatic tool changer: 18 positions Drilling head: 27 spindles (4 kW) Max. unit saw blade diameter: 200 mm Rsdjydl Nwspfx Afzjn MACHINE DETAILS Control system: Homatic PC 85 Power Control Software: WoodWop Electrospindle C Vector: 11 kW, HSK F63 Edge specification: Rolls, PVC / ABS 0.4 - 3 mm EQUIPMENT 10 adjustable support rails for vacuum cups Loading and unloading aid with 8 pneumatic rods Vacuum cup positioning with laser system Edge banding unit with 360° rotation, glue pot, and preheater for granular EVA glue Rubber-coated pressure roller + Rubber-coated pressure roller Preheating lamp Edge trimmer and edge scraper Edge holder magazine Front and side safety system with carpets Protective cage around access area Chip extraction with motorized conveyor belt Air conditioning for machine control cabinet Automatic lubrication system Vacuum pump

Condition: ready for operation (used), functionality: fully functional, machine/vehicle number: 0-200-03-8334, feed rate X-axis: 24 m/min, workpiece height (max.): 60 mm, controller model: Power Control Pc 22, TECHNICAL DETAILS Panel height: 60 mm Solid wood: 20 mm PVC / ABS: 3 mm Feed speed: 24 m/min MACHINE DETAILS Control system: Power Control PC 22 Supply voltage: 480 V Frequency: 60 Hz Phases: 3~ + N Operating current: 51 A Fusing: 63 A Phase circuit: 3~ Control voltage: 24 V EQUIPMENT Rodpfxsydiyms Afzjn Electronically adjustable working height via CNC Powered, rubberized conveyor belt with increased pressure Panel support guide Lateral roller conveyor with idler rollers for panel support Sanding unit Infrared lamps for panel edge preheating Six-position coil holder magazine with automatic edge change via CNC EVA hot-melt gluing unit with premelter and glue pot Edge pressing unit for straight profiles with electronically adjustable pressure rollers via CNC End trimming unit with two motors and automatic tilt adjustment Overlapping cut-off / milling unit with two motors Glue / milling unit with two tiltable motors, electronically adjustable via CNC Multifunctional 4-motor corner rounding unit (smoothing + rounding) with CNC control, automatic adaptation Provision for integrating an additional working station Edge scraping unit Oscillating brush unit

Condition: not inspected (used), Year of construction: 2009, operating hours: 29,000 h, functionality: unexamined, feed rate X-axis: 25 m/min, total length: 7,755 mm, workpiece height (max.): 40 mm, working height: 950 mm, controller model: PowerControl PC22, TECHNICAL DETAILS Feed rate: 18 - 25 m/min Maximum feed rate with FK11: 20 m/min Working height: 950 mm Minimum workpiece width (for workpiece thickness 12-22 mm): 60 mm (depending on workpiece length) Minimum workpiece width (for workpiece thickness 23-40 mm): 105 mm (depending on workpiece length) Workpiece protrusion: 30 mm Workpiece thickness: 12 - 40 mm Edging material (coil): 0.3 - 3 mm Maximum edge cross-section (PVC): 135 mm² Maximum edge cross-section (veneer): 100 mm² Maximum coil diameter: 830 mm Edging material (strips): 0.4 - 20 mm Maximum edge cross-section (strips): 900 mm² MACHINE DETAILS Rodpfx Afsyc S Haszsn Control system: PowerControl PC22 Pneumatic connection: 7 - 8 bar Total length: 7,755 mm Operating hours: approx. 29,000 h EQUIPMENT Workpiece support with scissor-design and roller support, extendable to 1000 mm Automatic infeed guide adjustment Fixed stops on left side Pneumatically controlled infeed lock Top pressure via driven composite V-belt Electrical height adjustment Workpiece transport unit via transport chain with rubber coating Separating agent spray unit, top/bottom Joint trimming unit 2 x 3 kW Gluing unit A20 with 2 rollers, comprising workpiece preheating, Quickmelt application unit with quick-clamping system, 2-roller magazine, pressure zone C (automatically adjustable with 1 pre-press roller and 6 post-press rollers) Trimming unit HL84 0.8 kW, with automatic chamfer/straight adjustment and pneumatic flush/excess trimming adjustment Pre-milling unit 1.5 kW, pneumatic adjustment between flush and excess milling Contour milling unit FK11 with automatic adjustment from chamfer to radius milling Profile scraper PN10 (with pneumatic side retraction) Finishing unit (with pneumatic side retraction), consisting of glue joint scraper and buffing unit Remote control Workpiece guide for FK device Note: Container loading and seaworthy packaging by the seller is not possible.

Condition: not inspected (used), Year of construction: 2008, operating hours: 33,000 h, functionality: unexamined, feed rate X-axis: 25 m/min, workpiece height (max.): 60 mm, working height: 950 mm, controller model: Power Control PC22, TECHNICAL DETAILS Feed rate: 18 - 25 m/min Working height: 950 mm Minimum working width at workpiece thickness of 22 mm: 55 mm Minimum working width at workpiece thickness of 60 mm: 100 mm Workpiece overhang: 30 mm Workpiece thickness: 8 (12) - 60 mm Edging material, strip max.: 0.4 - 20 mm Edge cross-section, strip max.: 900 mm² Edging material, coil: 0.3 - 3 mm Max. edge cross-section for PVC: 135 mm² Max. edge cross-section for veneer: 100 mm² Max. roll diameter: 830 mm MACHINE DETAILS Control system: Power Control PC22 Pneumatic connection: 7 - 8 bar Operating hours: approx. 33,000 h EQUIPMENT Continuous machine frame for mounting processing units Workpiece support with roller rail, extendable approx. 800 mm Glue roller drive on feed stop Glue pot lift-off at feed stop Glue pot clamping, workpiece actuated Infeed fence automatically adjustable Infeed lock pneumatically controlled Infeed device with 2 rollers Infeed extension 500 mm Automatic pressure zone adjustment Sliding carriage Pre-installed for Boomerang ZHR05 return system Workpiece support in extended scissor design Operating data collection Electric height adjustment Fixed stop on left side Workpiece transport system Rjdpfx Afjyc Sr Ajzjn Top pressure Separating agent spray unit Jointing cutter unit, 2 x 3 kW Gluing station A20 Basic for coil material up to 3 mm and strip material up to 20 mm, with melting unit with granulate tank and quick-change system Cross-cutting unit, 2 x 0.8 kW, with pneumatic adjustment Slip agent spray unit Pre-milling unit 1.5 kW, pneumatically adjustable Profile trimming unit FK13, 2 x 0.4 kW Universal milling unit 4 kW, controlled, with stepless axis Multi-finishing unit MN21 automatic Finishing unit FA11, with finishing station, cleaning agent application, and buffing unit, pneumatically adjustable Noise protection Spare position for additional processing units Note: The machine is sold without consumable tools. Container loading and seaworthy packaging by the seller is not possible.

Condition: ready for operation (used), Year of construction: 2006, This HOMAG Brandt Profiline KDF - 780 was manufactured in 2006. It features a swiveling control panel, durable keypad, and a color graphic flat screen. The edgebander handles edge thickness from to mm and workpiece thickness up to 60 mm. Variable feed rate is 20 m/min. Overall length is 7360 mm. Contact us for more information about this machine. • Edge thickness: mm • Roller diameter max.: 3 x 45 mm or 0.8 x 65 mm • Workpiece thickness: 8 - 60 mm Rjdpfx Asx Enkbefzen • Variable feed rate: 20 m/min • Electrical connection: 400 V - 3 Ph. - 50 Hz • Pneumatic connection: 6 bar • Swiveling control panel at the machine inlet • Durable short-stroke membrane keypad • Color graphic flat screen • Industrial PC with CompactFlash disk for mass storage • Aggregate function keys with LED status indicator • Operator guidance via color pictograms • Online language switching between various foreign languages • Overall length: 7360 mm

Condition: used, Year of construction: 2005, Single-sided edge bander designed for precise and stable edging of solid wood and panel components (chipboard, MDF, laminate). The machine is conceived as a compact yet fully equipped solution for small- and medium-batch production, with an emphasis on edge processing quality. A robust cast iron frame ensures high rigidity and long-term geometric stability of the machine. It features a classic continuous conveyor with a pressure belt and a complete set of machining units for finishing the edge in a single pass. Technical configuration of the machine: - Pre-milling unit - Material pre-heating - Automatic EVA glue application - EVA glue roller - Front and rear end trimming saws - Rough trimming unit - Corner rounding unit - Radius scraper - Glue scraper Rodpfxjyfw Syj Afzen - Grooving unit - Brushing unit - Return conveyor

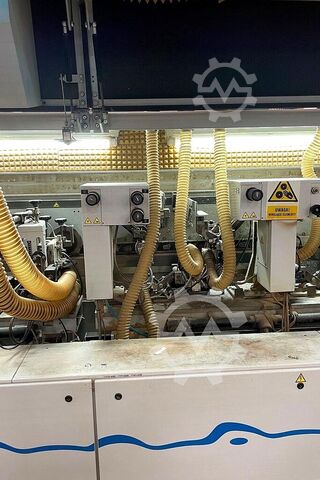

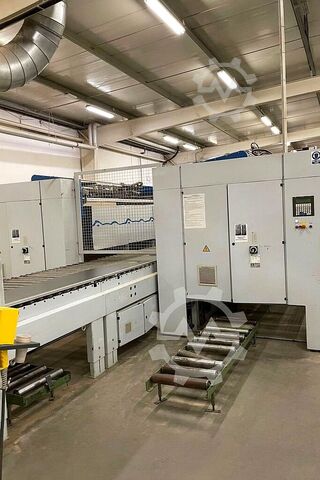

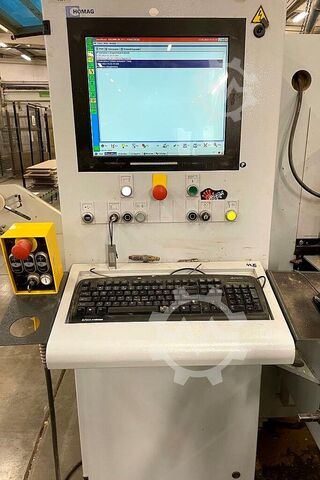

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, feed rate X-axis: 35 m/min, workpiece weight (max.): 50 kg, working height: 950 mm, controller model: Power Control Steuerung PC22 mit SPS Steuerung, Auction of an edge banding line! The line consists of the following machines: - BARGSTEDT O TSH200/D/30/12 - HOMAG OPTIMAT KFL 525/M1/C - HOMAG OPTIMAT TDL 510/C turntable - HOMAG OPTIMAT KFL 526/M2/C - HOMAG OPTIMAT TDL 510/C turntable - Wandres cleaning brush - BARGSTEDT O TSH200/D/30/12 HOMAG OPTIMAT KFL 525/M1/C TECHNICAL DETAILS Feed speed: 15–35 m/min Edgebanding capacity: Min. thickness: 0.6 mm Max. thickness: 3 mm Max. width: 30 mm Workpiece dimensions: Thickness: 12–40 mm Min. size: 250 × 240 mm Max. size: 2,500 × 1,200 mm Weight: 50 kg Panel overhang: 30 mm Working height: 950 mm MACHINE DETAILS Control: Power Control PC22 with PLC control HOMAG OPTIMAT KFL 526/M2/C Max. feed rate for panel processing: 30 m/min Max. feed rate for edge processing: 25 m/min Workpiece dimensions: Thickness: 12–40 mm (L/W) min.: 250 × 240 mm (L/W) max.: 2,500 × 1,200 mm Weight: 50 kg Panel overhang: 30 mm Working height: 950 mm MACHINE DETAILS Control: Power Control PC22 with PLC control HOMAG OPTIMAT TDL 310/C TECHNICAL DETAILS Feed: Steplessly adjustable Working height: 950 mm +/- 50 mm HOMAG OPTIMAT TDL 510/C TECHNICAL DETAILS Rjdpfx Afjyghwcjzsn Feed: Steplessly adjustable Working height: 950 mm +/- 50 mm HOMAG OPTIMAT TBH 200/D/30/12 TECHNICAL DETAILS Workpiece dimensions: Min. workpiece size: 240 × 240 × 12 mm Max. size, single track: 3,000 × 1,200 × 60 mm Max. size, double track: 3,000 × 550 × 60 mm Max. workpiece weight: 50 kg Max. stack weight: 3,500 kg Overlay overhang: 0 mm on all sides Protective boards: Min. protective board size: 800 × 240 × 19 mm Max. protective board size: 3,000 × 1,200 × 60 mm HOMAG OPTIMAT TSH 200/D/30/12 TECHNICAL DETAILS Workpiece dimensions: Min. workpiece size: 240 × 240 × 12 mm Max. size, single track: 3,000 × 1,200 × 60 mm Max. size, double track: 3,000 × 550 × 60 mm Max. workpiece weight: 50 kg Max. stack weight: 3,500 kg Overlay overhang: 0 mm on all sides Protective boards: Min. protective board size: 800 × 240 × 19 mm Max. protective board size: 3,000 × 1,200 × 60 mm Note: More detailed information regarding the configuration of individual components can be found in the attached order confirmations.

Condition: used, machine/vehicle number: 008256, Max width workable: 800 mm Max length workable: 2500 mm Max height workable: 1340 mm Redpfsx A Hfvjx Afzjn Max feed speed: 40 m/min

Condition: excellent (used), Year of construction: 2023, functionality: fully functional, CNC machining center Homag Drillteq V-200 Working area X: 3,050 mm Working area Y: 850 mm Working area Z: 60 mm 1 milling spindle Tool changer with 4 positions, HSK-F63 interface Vertical drilling heads: 13 Rjdpfx Ajyf Hamsfzjn Horizontal drilling heads X: 4 Horizontal drilling heads Y: 2 Grooving saw in X direction Morse clamp gripper HOMAG ecoPlus HOMAG POWER CONTROL control system Electrical cabinet cooling Machine in excellent condition
