I/O board

HOMAG

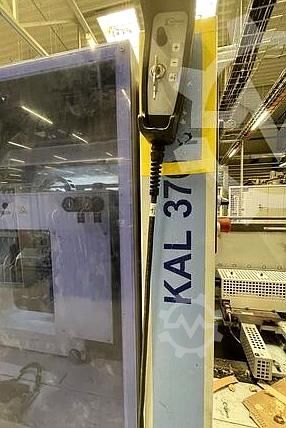

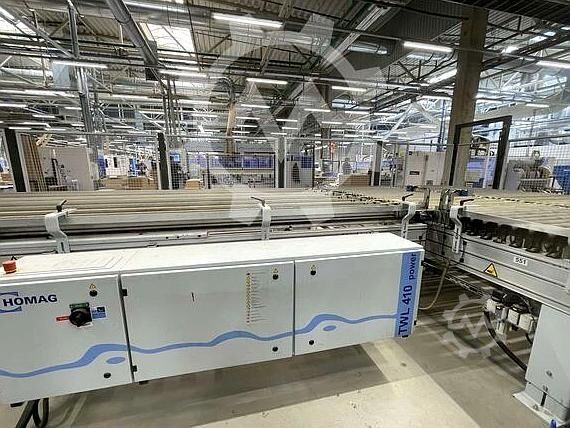

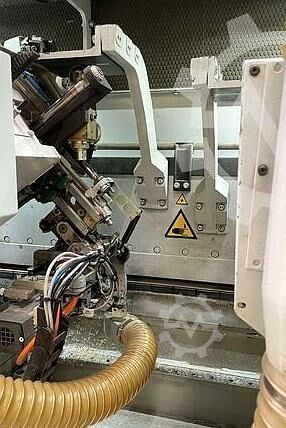

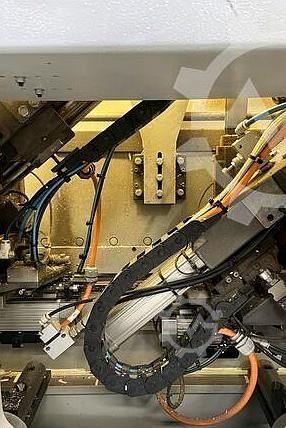

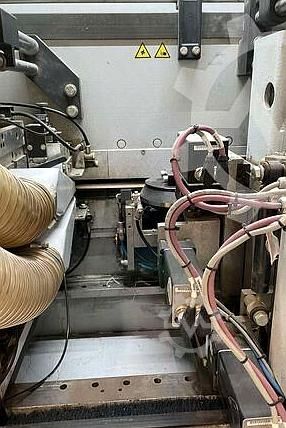

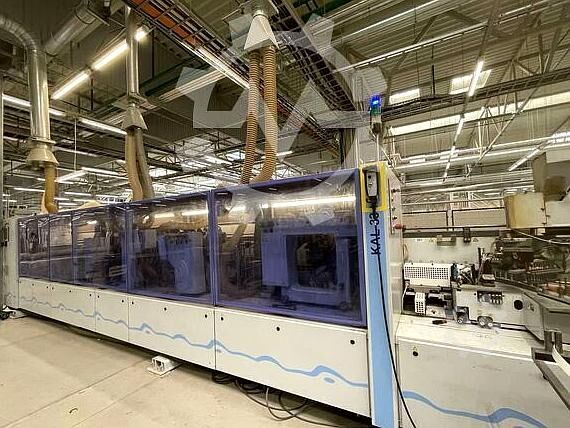

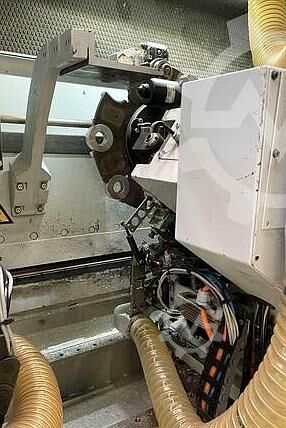

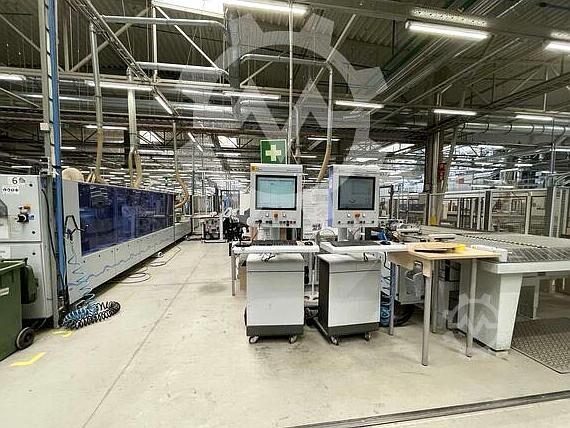

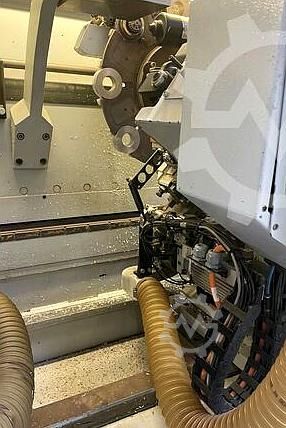

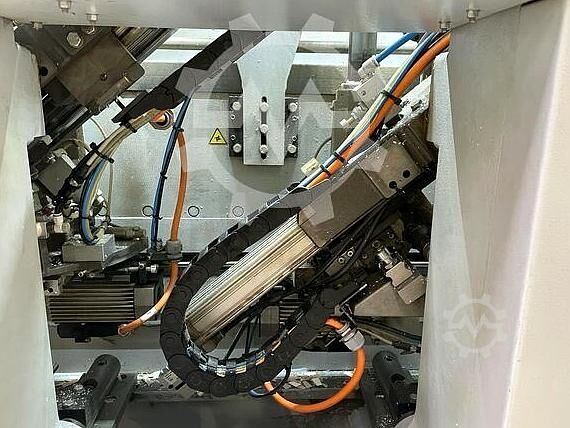

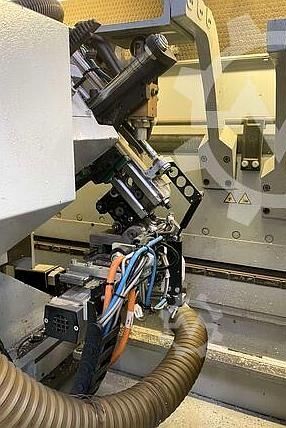

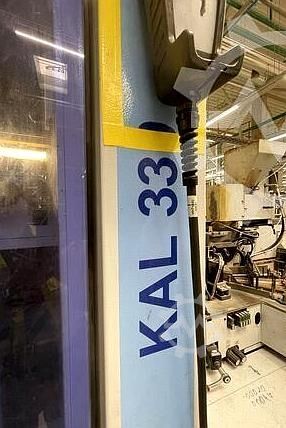

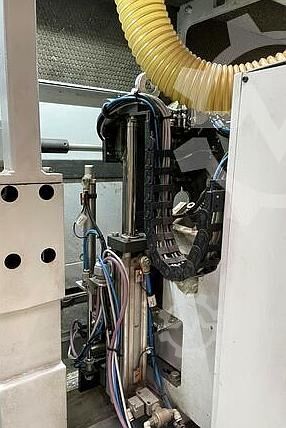

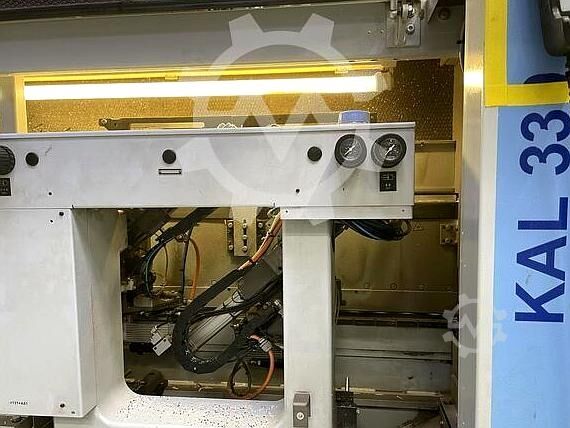

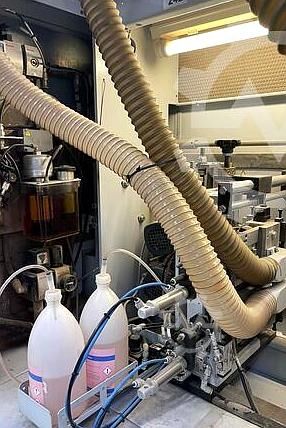

Condition: ready for operation (used), Year of construction: 2016, functionality: fully functional, workpiece height (max.): 60 mm, roll diameter: 830 mm, On-site inspections while the machines are running are possible in Lithuania! Fully automatic edge banding line with the following machines: HOMAG PROFI KAL330/9/A3/WZ (year of manufacture 2013) HOMAG PROFI KAL370/8/A3/WZ (year of manufacture 2016) HOMAG PROFI TBL100/20/30/F infeed table (year of manufacture 2013) HOMAG POWER TWL410/25/LQ transfer system cross conveyor (year of manufacture 2016) TECHNICAL DETAILS HOMAG PROFI KAL330/9/A3/WZ & PROFI KAL370/8/A3/WZ edge banding machines Workpiece width without edge at a workpiece thickness of 12–22 mm: min. 60 mm (depending on the workpiece length) Workpiece width without edge at a workpiece thickness of 23–60 mm: min. 100 mm (depending on the workpiece length) Workpiece overhang: 30 mm Workpiece thickness: 12–60 mm Edge height: max. workpiece thickness + 4 mm Edge material on a roll: 0.3–3 mm Edge material height PVC: max. 135 mm Edge material height veneer: max. 100 mm Roll diameter: max. 830 mm HOMAG PROFI TBL100/20/30/F infeed table Roller diameter: 54 mm Roller spacing: approx. 60 mm Panel length: 240–2,500 mm Panel width: 120–3,000 mm HOMAG POWER TWL410/25/LQ transfer system cross conveyor Roller diameter: 64 mm Roller spacing: 110 mm Panel length: 240–2,500 mm Panel width: min. 240 mm Panel thickness: 8–60 mm Panel weight: max. 80 kg Njdez A Tx Tjpfx Aphedb EQUIPMENT Clearance-type joining-cutting unit on both edge banding machines A3 basic gluing unit on both edge banding machines Clearance-type processing units on both edge banding machines FA11 finishing unit on the HOMAG PROFI KAL330 FA21 finishing unit on the HOMAG PROFI KAL370 Fixed stop on the left side of the infeed table Transport rollers on the infeed table Side conveyor belt on the infeed table Electropneumatically controlled cross guard on the infeed table Manually adjustable infeed guard Set of small parts Integrated air cushion table Fixed stop on the left side in the infeed and outfeed of the transfer system cross conveyor Infeed roller track with conveyor belt and cross transport Controlled cross conveyor in the infeed Outfeed roller track Controlled cross conveyor in the outfeed Electropneumatically controlled stop guard Side transport belt Manually adjustable panel overhang

Condition: excellent (used), Year of construction: 2016, operating hours: 1,198 h, Brandt Ambition 1120 c edge banding machine with 2 glue tanks, joining, corner copying, and two trimming knives. A good entry-level machine with extensive equipment. A video of the machine in operation can be sent upon request. Edge thickness: approx. 0.4 - 3 mm Workpiece height: approx. 10 - 40 mm Feed rate: approx. 8 m/min Noise protection hood Extendable workpiece support Dust extraction connection 1x100 mm, 4x80 mm, including the shown ducting to 200 mm Easy-Touch control with color screen for easy operation of the machine 10 programs can be saved Units: Top pressure, manual adjustment with crank and SIKO counter Infeed guide, manual adjustment with SIKO counter Joining cutter with diamond cutters, sharpened A total of 2 interchangeable glue tanks for quick color change from white to transparent Gluing section with automatic edge feeding for roll material up to 3 mm Pressure zone with 3 rollers Miter saw with 2 motors Combination milling unit, easily adjustable by hand for flush trimming, chamfering, and rounding Corner rounding cutter R2 with diamond cutter, 1 motor-driven Radius trimming knife R2, manually adjustable Glue joint trimming knife with large roller, pneumatically controlled Hood locking CE mark Operating manual as a folder All indexable inserts of the milling units and the trimming knives have been renewed or re-sharpened, saws sharpened, and diamond joining cutters sharpened. The machine is therefore ready for immediate use. Only the diamond cutter of the shaping milling unit has not been renewed, but is still sharp. Original paint, only a few spots retouched. Dust extraction hoses renewed. Approx. 1200 operating hours, i.e. only 1/2 hour per day. Ndodpezn Afpefx Aphsb Machine dimensions: approx. 4300 (with table) x 1250 x 1600 mm (L x W x H) Weight: approx. 950 kg. The machine can be demonstrated on site by appointment. We only offer machines that are ready for demonstration and are in our warehouse, see "other offers from this provider".

Condition: used, machine/vehicle number: 008556, X axis working area: 3300 mm Y axis working area: 1550 mm Working Table: Flat table Main Electrospindle power: 15 KW Ndsdpfx Aez Eyx Eophob Number of controlled axes: 5 axes Total number of drilling spindles: 21 Total number of tool changer positions: 14

Condition: used, Year of construction: 2015, axis stroke (X,Y,Z) 6175x1550x300 mm Number of spindle head vertical 20 St. Number of spindles head horizontal 10 St. Number of milling agregates 1 St. Speed 24.000 U/min. Capacity 300 kg/h Sawing unit ja_yes 0 Control Homag PC85 CNC powerTouch HOMAG BMG 511 /60/12/F/K Profi ----- Machine already professionally dismantled and stored at our warehouse in Oberkochen: - 5-axis CNC processing center - Moving gantry machine (dual-drive gantry system) - 1 HOMAG DRIVE 5 C+ routing spindle, 5-axis, HSK-F63, 15 kW, max. 24,000 rpm - 1 HOMAG Multi Processing Unit Drilling head with 30 spindles: V20 / H10 / S360° "MPU" MultiProcessingUnit with C-axis +/- 185° - 1 Chain tool changer, 30-position - Includes SL laser projector - Includes vacuum suction cups (as available) - Spare parts and accessories as shown in photos - Last HOMAG 5-axis service: 2024 - Last HOMAG service: 2025 - Price includes professional dismantling and loading onto customer's truck - Costs for loading frames/transport securing devices NOT included; see note at the end of the description Technical Data ----- Max. workpiece lengths: All aggregates: Single 6,000 mm; Pendulum min. 1,550 mm, max. 3,200 mm Tool dia. 25 mm: Single 6,175 mm; Pendulum min. 1,550 mm, max. 3,200 mm Max. workpiece width: All aggregates, front stop 1,100 mm Milling operation tool dia. 25 mm: Front stop 1,325 mm, rear stop 1,550 mm Workpiece thickness: Max. 300 mm including clamping devices Routing spindle and drilling head ----- 2 independent Z-axes 1 HOMAG DRIVE 5 C+ routing spindle, 5-axis, HSK-F63, 15 kW, max. 24,000 rpm Liquid-cooled routing spindle, DRIVE5C+ aggregate interface with 3-point torque support 1 HOMAG Multi Processing Unit Drilling head with 30 spindles: V20 / H10 / S360° "MPU" MultiProcessingUnit with C-axis +/- 185° for drilling and sawing operations at any angle 1 motor 2.3 kW, frequency-controlled, max. speed 7,500 rpm selectable via program for rapid processing even with small diameters 20 vertical HIGH-SPEED spindles 10 horizontal spindles 1 grooving and parting saw Includes Z-axis module Includes extraction hood Tool changer: ----- 1 Pick-up station for 350 mm saw blade for DRIVE5(C)+ Ndsdozqggvepfx Aphob 1 Chain tool changer, 30-position, D=80 For tools and aggregates with HSK-F63 Chain changer with 30 tool/aggregate positions for use with machines featuring 1 main spindle 1 upstream double gripper for rapid tool changing Console table with ----- 12 consoles, Y=1,500 mm for K-table 6 lifting rails (HPL), lift 100 mm Additional accessories: ----- SPEED PACK: Increase in... Max. traverse speed of X-axis: 80 m/min; vector speed = 110 m/min Contour laser positioning aid 1 vacuum pump (300 m³/h) Chip conveyor belt with extension Vacuum clamping system SL-Laser Energy-efficient 5-axis extraction hood Safety equipment: ----- Laser, bumper SAFESCAN for Speed ??Pack CE mark HOMAG Speed ??Pack HOMAG Quality Package Enclosed energy chain Control system ----- PowerControl PC85 HOMAG powerTouch Handheld terminal HOMAG IPC Powerpack Software ----- HOMAG woodWOP 7.1 WoodScout diagnostic system MMR B...

Condition: excellent (used), Panel Beam Saw - With rear lifting table Nodpfxsz Erw Hs Aphsdb Numerical Control POWER CONTROL V2.1 (Power TOUCH) Software CADmatic 5 (TAPIO READY) Lifting scissor table (mm) 3800 x 2200 Rear pushers (N.) 1 with clamps / grippers (7 + 2) Max. cutting width (mm) 3800 - Useful stroke of the pushing system (mm) 3800 Max blade projection (mm) 125 Scoring Unit (max saw diameter / power) mm 180 / Kw 2,2 (ca.) Main Sawing Unit (max saw diameter / power) mm 450 / Kw 28 Adjustable speed of the saw carriage (m/min) 1 - 150 Front supporting tables with Air blowing system (N.) 3 (2 x 2160mm x 800mm + 1 x 2810mm x 800mm) Total power (Kw) 34

Condition: excellent (used), C.N.C. WORKING CENTER with 4 axes for routering, boring, cutting and EDGE BANDING Gantry-drive (axe X) machine Numerical Control PowerControl PC86 PowerTouch - Software WoodWOP - TAPIO READY Working table with pods and rails - Support rails (No.) 10 - SPEED PACK Automatic deplacement by CNC (X axis) of the Supports rails Automatic deplacement by CNC (Y axis) of the vacuum pods/cups LED system (on the rails) for the vacuum pods positioning Automatic Tools Changing System - Tools storage plate (No. of folds-positions) 18 Max. useful working area (X - Y - Z) mm 6175 x 1550 x 300 Max. useful working area (X - Y - Z) in edge banding (mm) 6000 x 1550 x 60 Vacuum pump (capacity m3/h) 290 Motorized carpet to evacuate chips and wastes WORKING GROUPS (TOP): N° 21 Independent vertical boring spindles (High-Speed) N° 4 Independent horizontal boring spindles (Crosshead) N° 1 Circular Saw (tiltable 0°- 90°) diam. (mm) 200 N° 1 Vertical electro-spindle (KW 15) Edge Banding unit (always ready on board) POWER EDGE. Glue Unit (Hot Melt + Quick Melt Unit) Edges (tape) thickness in rolls (min/max) mm 0,4 / 3 Edge coils supporting unit (No. of reels) 2 Nsdpfxjz Eqbws Aphsdb Pre-End cutting (pre-snipping) Unit Aggregate Circular saw / Aggregate Top & Bottom Flush-Trimming/Scraping Unit

Condition: used, Year of construction: 2012, No. 3274 CNC machining center HOMAG PROFI BAZ 222/40/F/K Used, year of construction 2012 Working range X max. 4000 mm Working range Y max. 1550 mm Workpiece thickness max. 300 mm (incl. clamping devices) Ndsdpfx Aey S Edxophjb 5-axis main spindle HOMAG DRIVE5+ Spindle power 15 kW (S6) / 12 kW (S1) Spindle speed 1000 - 24000 rpm Tool clamping system HSK-F63 18-position rotary tool changer Pickup station for saw blade Ø 350 mm Drilling head with 21 spindles 17 vertical drilling spindles 2 horizontal drilling spindles in X-direction 2 horizontal drilling spindles in Y-direction Grooving saw swivelling 0° / 90° Edge banding unit HOMAG POWER EDGE 360° edge banding Pre-cutting station 2-position edge roll magazine 2 independent Y-axes for main spindle and edge banding unit Console table with 8 consoles Vacuum clamping devices 2 vacuum pumps, total capacity 2x 100/140 m3/h Control HOMAG powerControl PC85 Programming system woodWOP 6.0 (according to original order configuration) woodWOP Premium package incl. 4 single-user licenses / woodWOP Wizard / woodWOP technology database / woodWOP CAD/CAM Standard interface / DXF interface / woodMotion machining simulation / woodScout diagnostic system / collisionControl collision monitoring / Schuler MDE Basic machine data acquisition Sale on behalf of customer, ex location near 71063 Sindelfingen, without dismantling, without transport and assembly Dismantling, loading, and transport by us optionally available Subject to errors in the description and price To avoid any misunderstandings, an on-site inspection is possible and recommended by appointment Sold as is Technical specifications, condition description, year of construction and scope of delivery according to the manufacturer’s brochure or previous owner, without guarantee Subject to prior sale For used machines, any warranty is excluded, the following applies: “sold as seen” Photos and videos serve as examples and do not represent the actual scope of delivery Terms of payment: Prices plus VAT, payment before collection or shipping Terms of delivery: Ex location

Condition: used, Year of construction: 2008, workpiece height (max.): 40 mm, controller model: PowerControl P85, working width: 1,550 mm, working length: 4,175 mm, TECHNICAL DETAILS Working area, X-axis: 4,175 mm Working area, Y-axis: 1,550 mm Maximum workpiece thickness: 40 mm Number of working areas: 2 Traverse speed, X-axis: 80 m/min Traverse speed, Y-axis: 80 m/min Traverse speed, Z-axis: 30 m/min Table system: Beam table with vacuum cups Number of vacuum cup beams: 8 Positioning: CNC-controlled Drilling unit Position: Top Vertical drilling spindles: 20 Horizontal drilling spindles in X-direction: 10 Milling unit Position: Top Controlled axes: 4 + Flex5 Ndedpfxjz Ekfvj Aphjb Motor power: 15 kW Cooling: Liquid cooling Tool changer: Automatic Sawing unit Position: Top Tool magazine: 2 slots Tool magazine 1: 18 slots Position of tool magazine 1: Rear of the machine Tool magazine 2: 10 slots Position of tool magazine 2: On the machining head MACHINE DETAILS Control system: PowerControl P85 Machine programming software: WoodWOP 5.0 EQUIPMENT Beam table with vacuum cups 8 vacuum cup beams Vacuum pump Automatic tool changer Liquid cooling PowerControl P85 control system WoodWOP 5.0 machine programming software Note: Tools not included The machine will be sold and delivered in its actual and legal condition ("as is, where is") based on photographic documentation and technical/commercial documents of a descriptive nature. The buyer has the right to inspect the goods before collection and assumes responsibility for the installation, securing, and use of the machine at the destination. External reference: 7350

Condition: used, Year of construction: 2005, feed rate X-axis: 60 m/min, plate length: 2,500 mm, plate width: 1,200 mm, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Maximum plate width: 1,200 mm Maximum plate length: 2,500 mm Minimum plate width: 220 mm Minimum plate length: 250 mm Nedpfxoz Ekfce Aphjdb Maximum feed rate: 60 m/min EQUIPMENT 90° transfer conveyor CE safety compliance The machine is sold and delivered in its actual and legal condition (“as is, where is”) based on photographic documentation and technical/commercial documents, which are for descriptive purposes only. The buyer has the right to inspect the goods before collection and is responsible for the installation, securing, and use of the machine at the destination. External reference: 5981

Condition: used, Year of construction: 2010, controller model: PC85, working width: 1,750 mm, milling spindle speed (max.): 24,000 rpm, working length: 6,000 mm, TECHNICAL DETAILS Machining method: Drilling and milling Number of work areas: 2 Work area X-axis: 6,000 mm Work area Y-axis: 1,750 mm Number of controlled axes: 5 Travel speed X-axis: 80 m/min Travel speed Y-axis: 80 m/min Travel speed Z-axis: 30 m/min Table system: Console work table with vacuum cups Number of vacuum consoles: 10 CNC positioning: Yes Vacuum cups for workpiece clamping: Yes Number of vacuum cups: 40 Drilling unit Number of drilling units: 1 Position of drilling unit: Top Vertical drilling spindles: 20 Horizontal drilling spindles, X-direction: 5 Horizontal drilling spindles, Y-direction: 5 Total drilling spindles: 30 Milling unit Number of milling units: 1 Position of milling unit: Top Controlled axes: 5 Motor power: 12 kW Speed: 24,000 rpm Liquid cooling: Yes Automatic tool changer: Yes Number of tool magazines: 1 Tool positions: 72 MACHINE DETAILS Control: PC85 Programming software: WoodWOP 5.0 Vacuum pumps: 2 Individual output per vacuum pump: 250 m³/h Total connected power: 49 kW EQUIPMENT Console work table with vacuum cups 10 vacuum consoles with CNC positioning Nedpez Ekb Defx Aphsdb 40 vacuum cups for workpiece clamping 2 vacuum pumps Top drilling unit with 30 drilling spindles Top 5-axis milling unit with 12 kW electric motor spindle Liquid cooling Automatic tool changer Tool magazine with 72 tool positions PC85 control WoodWOP 5.0 programming software Automatic chip extraction Safety mats on the front of the machine Safety sensors Fixed safety guards CE conformity The machine is sold and delivered in its actual and legal condition ("as is, where is") based on photo documentation and technical/commercial documents of a descriptive nature. The buyer has the right to inspect the goods before collection and assumes responsibility for the installation, securing, and use of the machine at the destination. External reference: 8167
