Fine grinder / Fine mills / Cutting mill

Herbold PU 500

Condition: used, The Herbold PU 500 pulverizer is suitable for fine grinding of plastics and soft to medium-hard materials. Drive power 55 kw Grinding disk diameter 500 mm Throughput capacity approx. 200-800 kg/h depending on material and fineness Ljdjxgrqfopfx Ahwjhc

Condition: refurbished (used), Year of construction: 2004, functionality: fully functional, overall weight: 30,000 kg, rotor diameter: 800 mm, rotor length: 1,200 mm, power: 250 kW (339.91 HP), Universal granulator, impact granulator. Drive power: 250 kW, control cabinet with frequency converter (year of manufacture 2019). In 05/2023, the rotor shaft was replaced with an exchange shaft, including new bearings and seals. Rotor length: 1200 mm Lodpfxjw Am Nqe Ahwohc Rotor diameter: 800 mm Number of knives/rotor: 36 pcs Number of knives/stator: 4 x 6 pcs 2 hydraulically swiveling stators, each with 2 rows of counter knives. Fine adjustment of the knives is performed hydraulically while the machine is running. Function 2: Coarse adjustment of the stators by 180° Hydraulic pusher Bearing temperature monitoring Central lubrication system for rotor bearings Net weight: 29,800 kg Year of manufacture: 2004, overhauled in 2025, all wear parts were renewed. The granulator has been overhauled and workshop tested, and is delivered ready for connection. Testing/demonstration available by appointment upon request.

Year of construction: 2025, condition: new, Complete plastics recycling line for films and fibre materials from Taiwan leading Plastics Recycling Machinery manufacturer. GENIUS Machinery Co who have more than 30 years of recycling extruder production and experience. Extruder can be fed without size reduction or shredding.. Materials in baled, loose or reel form can be fed. Line can be supplied complete with Belt conveyor, Cutter compactor, Main extruder, Filtration system, (variety of types to suit requirements), Hot pellet die-face cutting device, Centrifugal pellet dryer, Vibrating screener, Storage silo for pellets. Additional ancillary equipment can be supplied . A two stage " Cascade" version is also available for heavily printed films, or very dirty films requiring double filtration. Alternative sizes from 100 kgs per hr up to 1200 kgs per hr can be offered. Full sales and support and training is available in UK and Europe for these extremely modern and economic machines. Ledpfowg R Rtex Ahwjhc

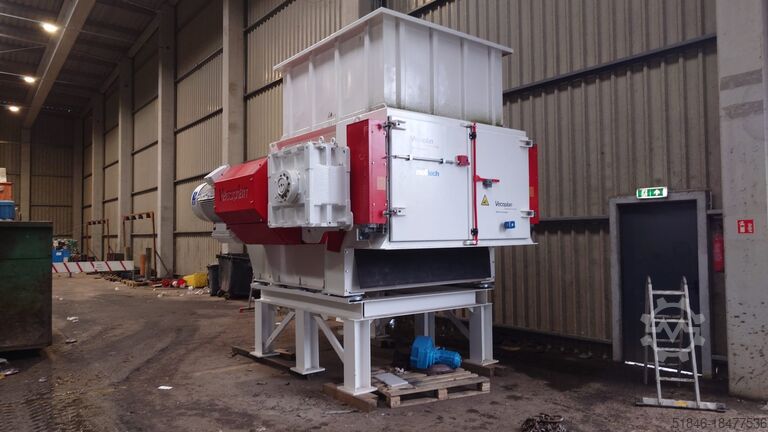

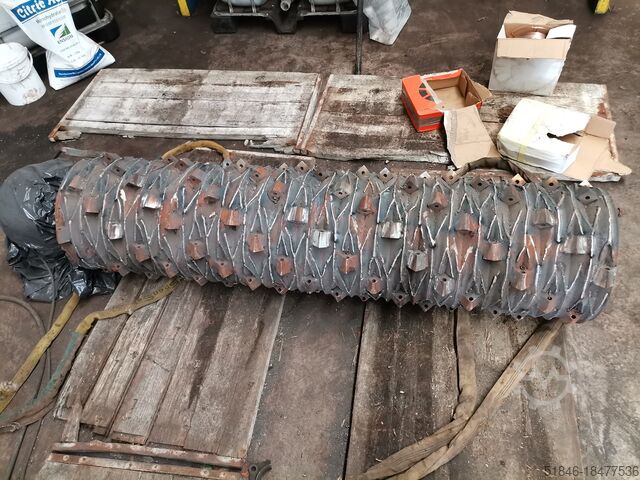

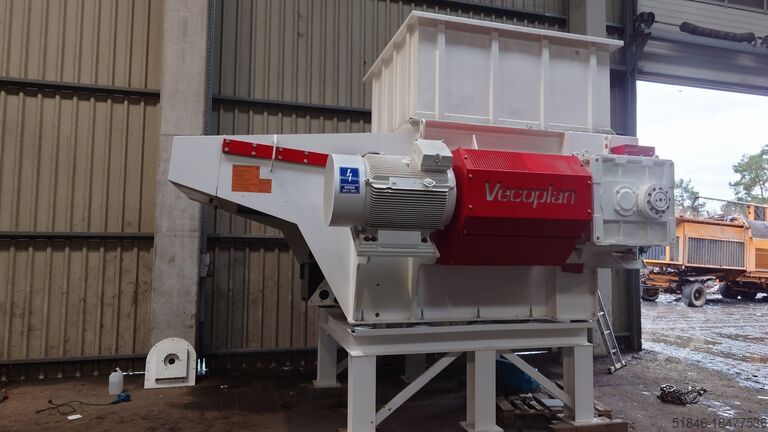

Condition: refurbished (used), Year of construction: 2010, operating hours: 34,616 h, functionality: fully functional, machine/vehicle number: 1244801, overall weight: 13,500 kg, rotor diameter: 500 mm, number of blades: 125, rotor length: 1,800 mm, type of input current: AC, sieve perforation: 30 mm, VECOPLAN Type VAZ 1800F shredder, after complete renovation, ready to work. The machine is fully functional, the following parts have been replaced: cutting system (knife bases, knives, counter knives, rotor surfacing), vibration isolators, sliding strips, sieve, oils in gears, electrical, hydraulic and pneumatic installations. Ljdevx Rtaepfx Ahwehc

Condition: excellent (used), Year of construction: 2014, HAITIAN MARS MA9000II (2014) Lhedpfx Aew N Rdwshwoc Clamping force: 900 t Screw diameter: 100 mm Shot volume: 3691 cm3 Shot weight: 3359 g Mold oppening stroke: 1120 mm Mold height min. / max. : 450 x 1080 mm Mold platen dimensions: 1580 x 1600 mm Distance between tie bars HxV (mm): 1080 x 1080 mm Injection stroke: 470 mm Type: Horizontal Drive: Hydraulic

Condition: refurbished (used), Year of construction: 2005, functionality: fully functional, overall weight: 30,000 kg, rotor diameter: 800 mm, rotor length: 1,200 mm, power: 250 kW (339.91 HP), Universal granulator, impact granulator, drive power: 250 kW, control cabinet with star-delta starter. Rotor length: 1200 mm, rotor diameter: 800 mm, number of knives/rotor: 36 pcs, number of knives/stator: 4 x 6 pcs. 2 hydraulically swiveling stators with 2 rows of counter-knives each. Hydraulic pusher, bearing temperature monitoring, central lubrication for rotor bearings. Net weight: 29,800 kg. Year of manufacture: 2005, overhauled in 2025, all wear parts have been replaced. Ledpfoxiw Hwsx Ahwjhc

Year of construction: 2013, condition: ready for operation (used), A complete Artec recycling and extrusion line is available. Material: PE/PP/PS/ABS/LDPE/HDPE/MDPE, screw diameter: 145mm, L/D ratio: 42, extrusion capacity: 700kg/h, degassing: 2-fold, shredder/extruder/screen changer output: 55kW/609kW/55kW. Total plant dimensions X/Y/Z: approx. 20700mm/3000mm/3400mm, control system: Siemens. Including shredder, conveying units, storage and mixing silo, feed belt, extruder, vacuum pump, melt filter, hot granulating cut-off, bag filling and weighing station and bagging station. Documentation available. On-site inspection is possible. Ledpfx Aov Ip S Hjhwjhc

Condition: excellent (used), Year of construction: 1991, functionality: fully functional, overall weight: 3,200 kg, rotor diameter: 5,000 mm, rotational speed (max.): 18 rpm, power: 22 kW (29.91 HP), rotor width: 8,000 mm, Shredding chamber 750 x 700 mm Number of cutting discs: 16 pcs Number of scrapers: 2 pcs Power: 22 kW Technical condition: very good Lsdpfx Ahex U U Ulewshc

Condition: new, Year of construction: 2025, COMPLETE SHREDDING LINE!!! we have this line in stock, ready for sale!! Ledpfjv I T Ekjx Ahwjhc -loading conveyor to shredder WT -single shaft shredder with hydraulic pusher WT3080 30kW, rotor length 800mm -unloading conveyor from WT and loading to knives mill PC -knives mill PC42100R 45kW, rotor length 1000mm -blower with 5.5kW motor -big-bag station for two bags
