Measuring equipment DMG MORI Microset UNO 20 / 40 2016

DMG MORI

Condition: used, Year of construction: 2019, Control: MITSUBISHI M730UM with CELOS Main spindle with integrated motor spindle ISM 80: 15/18.5 kW Speed range: 10–4000 rpm Iedpoylxkqefx Ahwetc 10" hollow chuck 254mm KITAGAWA BB210A821 Counter spindle with integrated motor spindle ISM 65 Speed range: 10–5000 rpm 10" hollow chuck 254mm KITAGAWA BB208A621 20-position BMT star turret KNOLL high-pressure coolant system 70 bar Y-axis with 100mm travel Gantry loading system LG-10AI

Condition: excellent (used), Year of construction: 2015, functionality: fully functional, travel distance X-axis: 600 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 500 mm, rapid traverse X-axis: 80 m/min, rapid traverse Y-axis: 80 m/min, rapid traverse Z-axis: 50 m/min, controller manufacturer: Heidenhain, controller model: iTNC530, table load: 400 kg, spindle speed (max.): 24,000 rpm, operating hours of spindle: 15,410 h, number of slots in tool magazine: 60, Equipment: rotational speed infinitely variable, Machine Description: - Universal 5-axis milling machine with linear drives in the X and Y axes, rapid traverse speed of 80 m/min - Spindle and geometry in excellent condition - Regularly serviced - Last spindle replacement: 09-2023 / New viewing window and Visiport installed in 2025 - Current running hours: Machine ON: 45,675 h / Spindle ON: 15,410 h - Machine location: Lower Austria (near Vienna) Travel distances: X-axis (longitudinal): 600 mm Y-axis (cross): 500 mm Z-axis (vertical): 500 mm Clamping table / Work area: Integrated NC rotary table: 600 x 500 mm Table load capacity: 400 kg Control system: Heidenhain iTNC530 Spindle: Speed range: 24,000 rpm Tool holder: HSK63 Coolant system and chip disposal: External coolant with 3 nozzles: 4 bar Internal coolant: 40 bar Paper band filter Chip conveyor, scraper belt version Automatic tool changer: Tool holder: HSK63 Number of pockets: 60 Dimensions and weight: Machine: Length 2,900 x Width 2,611 x Height 2,865 mm Weight: approx. 9,800 kg Additional equipment and accessories: - Heidenhain TS 649 probe - Heidenhain handwheel - Blum laser for tool measurement on the table - Chip wash-down gun - 3D Quick Set - ATC cycle package - Operating mode 4 - Integrated oil mist extraction Itedeylunxjpfx Ahwoc - Operating manual / documentation - Dynamics package linear drive 80 m/min incl. active cooler

Condition: reconditioned (used), Year of construction: 2016, functionality: fully functional, CNC Lathe DMG MORI NLX 2000 SY/500 Equipped with DMG MORI M730 UM MAPPS CELOS control system Year of manufacture: 2016 Max. workpiece diameter: 366 mm Max. workpiece length: 510 mm X-axis travel: 260 mm Iedpfx Aheylnq Hswotc Z-axis travel: 590 mm Y-axis travel: ± 50 mm Spindle bore: 65 mm Main spindle speed range: 4,000 rpm Counter spindle speed range: 6,000 rpm Driven tool speed range: 10,000 rpm Including the following accessories: Working area door with interior lighting 20-position turret with 20 driven stations C axis, Y axis Touch probe (Marposs) Counter spindle, parts catcher Manual tool presetter (HS) Hydraulic collet chuck with foot pedal (HS) Hydraulic collet chuck with foot pedal (GS) Bar feeder LNS Move S2 30 tool holders Various driven tools Direct linear measuring system on X, Y, Z axes 4-color signal lamp Chip conveyor Coolant system Operating manuals

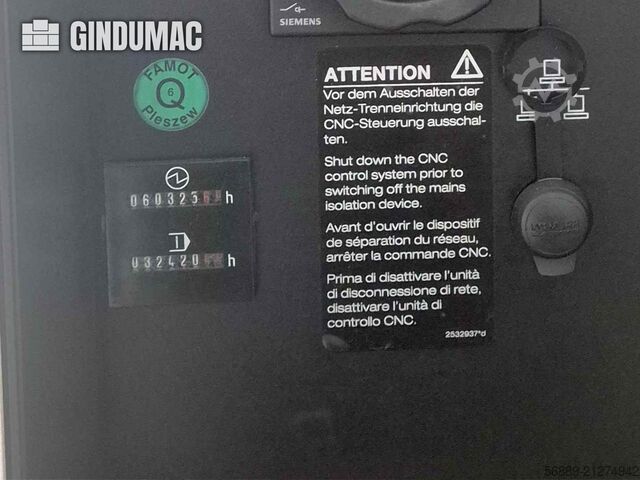

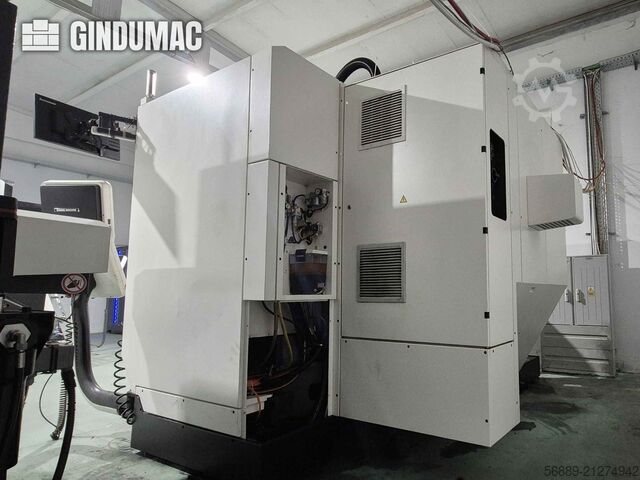

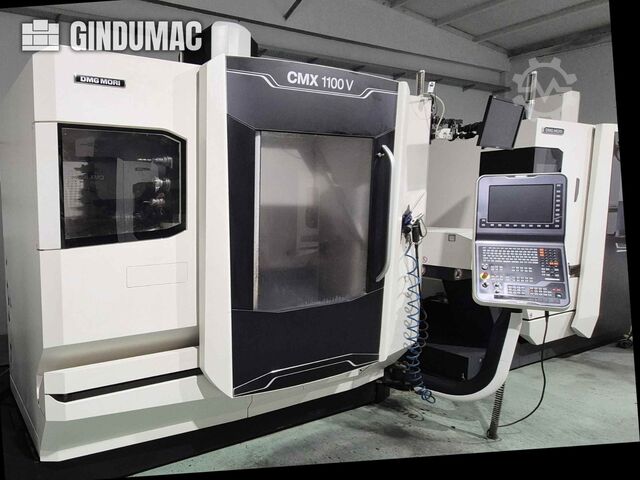

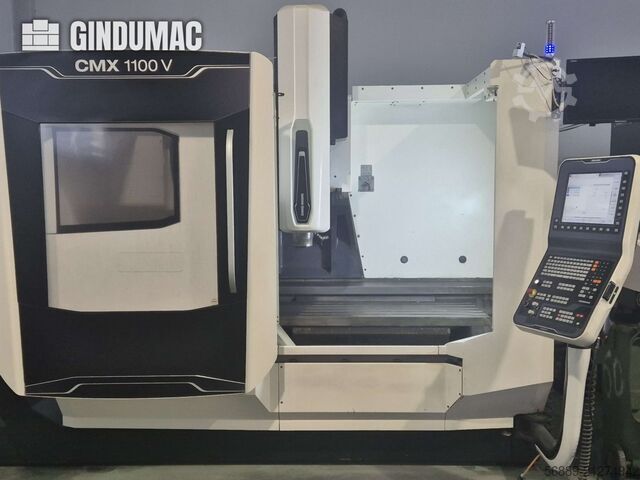

Condition: ready for operation (used), Year of construction: 2017, travel distance X-axis: 1,100 mm, travel distance Y-axis: 560 mm, travel distance Z-axis: 510 mm, controller manufacturer: HEIDENHAIN, controller model: TNC 620 (3D), spindle speed (max.): 12,000 rpm, spindle motor power: 13,000 W, number of axes: 3, This 3-axis DMG MORI CMX 1100 V was manufactured in 2017. It features impressive axis travels of 1100 mm in X, 560 mm in Y, and 510 mm in Z. The machine is equipped with a 30-position tool magazine and a HEIDENHAIN TNC 620 control system. If you are looking to get high-quality machining capabilities, consider the DMG MORI CMX 1100 V vertical machining centre we have for sale. Contact us for further details. • Operating hours: • Spindle hours after replacement: 2,900 h • Spindle hours (machine counter): 32,420 h • Power-on hours (counter): 60,300 h • Condition: Powered on and running in production; inspection possible (operation, geometry, overall condition) • Worktable size: 1400 × 560 mm • Axis dynamics: Rapid traverse 30 m/min (linear axes) • Spindle: • Tool clamping: DIN 69872 • Tool magazine: 30-position chain-type magazine with double gripper • Cooling/media: Coolant–air switching via M-function (external), chip tray • CNC control: HEIDENHAIN TNC 620 (3D) with ASCII keyboard and 15" monitor • Measuring systems: Direct measuring systems (linear scales) on X/Y/Z; air purge for measuring system • Additional machine options: • Safe voltage package: X and Y axis motors with brake, overvoltage limiter, undervoltage monitoring with emergency stop trigger • Software options – HEIDENHAIN: • Option 3 (#21): M120 tool radius compensation for contouring, LOOK AHEAD up to 99 blocks, 3D machining, M118 handwheel positioning during program execution Additional equipment • Scraper-type chip conveyor (left side) • Coolant tank, 250 l • Manual wash gun for machining area • 4-color signal tower • HEIDENHAIN probing package: Wireless workpiece measuring probe and probe calibration ring Itodoylkl Topfx Ahwjc • Manual handwheel (portable control panel) Technical Specification Taper Size SK 40

Condition: excellent (used), Year of construction: 2017, functionality: fully functional, Control: Siemens SL Tool stations: 240 Tool holder: SK 50 Number of pallets: 2 High-pressure internal coolant (IKZ) Iodpfxeylikzo Ahwetc Chip conveyor Measuring probe X-axis: 1600 mm Y-axis: 1100 mm Z-axis: 1400 mm Table length: 1250 mm Table width: 1000 mm

Condition: excellent (used), Year of construction: 2018, 5-Axis Universal Machining Centre DMG Mori CMX 70 U Itedpfxjyk T S Ho Ahwec Control: DMG Mori SLIMline Multi-Touch Control (Operate on Siemens) Year of manufacture: 2018 Travel: X-axis 750 mm Y-axis 600 mm Z-axis 520 mm B-axis °-10/+95 C-axis °360 Clamping area rotary axis Ø 800 x 620 mm Spindle taper: SK 40 Tool magazine: 30 stations Spindle speed: 20 – 12,000 rpm Accessories - Chip conveyor - Renishaw measuring probe kit - 3D measuring probe, infrared - Robot interface - Belt filter system 600 L - Extraction - Internal coolant – 20 bar high-pressure pump

Condition: excellent (used), Year of construction: 2016, 5-Axis Universal Machining Center DMG Mori ecoMill 50 Control: Heidenhain TNC 620 Year of manufacture: 2016 Travels: Isdpfx Aoyk T Inohwetc X-axis: 500 mm Y-axis: 450 mm Z-axis: 400 mm B-axis: °-5/+110 C-axis: °360 Clamping surface rotary axis: Ø 630 x 500 mm Spindle interface: SK 40 Tool magazine: 32 slots Speed: 12,000 rpm Internal coolant – 12 bar high-pressure pump Accessories: Chip conveyor 3D infrared measuring probe Table probe

Condition: excellent (used), Year of construction: 2018, swing over cross-slide 808mm, Maximum cutting diameter 430mm, Maximum cutting length 1260mm, Iedpfxsyk Slrj Ahwstc Bar capacity 102mm, Spindle speed 3,000rpm, milling speed 10,000rpm, Main spindle power 25Kw, C axis 0.001 degrees, Y axis -/+ 60mm, 12 station turret. Celos-Fanuc control, equipped with Toolsetter, swarf conveyor, 3 jaw chuck, Parts catcher

Condition: used, CNC Lathe DMG MORI SEIKI - GILDEMEISTER Type CTX 310 ecoline Machine No. 8044001846E Year of manufacture: 2013 CNC control: SIEMENS Sinumerik 840D sl Swing diameter over bedway cover: 330 mm Swing diameter over cross-slide cover: 260 mm Center height: max. 190 mm Center distance: max. 580 mm Turning diameter: max. 200 mm Longitudinal slide travel (Z-axis): max. 450 mm Cross slide travel (X-axis): max. 160 mm Spindle bore through draw tube: 51 mm Spindle bore at front bearing: 100 mm Spindle speed: max. 5000 rpm Feed rate for X and Z axes: mm/min Rapid traverse rate X-axis: 30 m/min Rapid traverse rate Z-axis: 30 m/min Feed force X and Z: 4500 Nm Turret: 12 stations Driven tool stations: 6 stations Tool holder: cylindrical, VDI 30 mm Spindle drive motor power at 100% duty cycle: max. 11 kW Spindle drive motor power at 40% duty cycle: max. 16.5 kW Electrical connection: 400 Volt, 50 Hz, 21 kVA - CNC control SIEMENS Sinumerik 840D sl, system software NCU V04.04+SP02+HF02 - Controlled C4-axis (chuck position) and C1-axis for tool turret - 3-jaw power chuck AUTOGRIP Ø 210 mm with 1 set of hard jaws and 15 sets of soft jaws Itodpfxjyk Hrgo Ahwec - Hydraulic hollow chucking device AUTOGRIP - Tool turret SAUTER, type 0.5.901.020 with 12 stations (6 of which are driven) - 20 tool holders VDI 30 - Tailstock MK 4 - Indirect measuring system via rotary encoder - Chip conveyor with integrated coolant system - Workpiece remaining run-time display and part counter as large display on machine enclosure - Electrical cabinet cooling unit - 9716 total operating hours (main switch on), of which 3322 spindle hours, as read from the meter - Operating instructions and manuals Machine footprint with chip conveyor (L x W x H): 4500 x 2600 x 2050 mm Basic machine footprint (L x W x H): 2900 x 2150 x 2050 mm (3200 kg) Chip conveyor footprint (L x W x H): 3350 x 850 x 1650 mm (500 kg) Weight: approx. 4 tons Very good condition

Condition: ready for operation (used), Year of construction: 2016, operating hours: 18,071 h, overall weight: 6,000 kg, number of axes: 3, This 3-axis DMG MORI Gildemeister CTV 250 2nd was manufactured in 2016. Ideal for precision vertical turning, this machine maintains robust construction and reliability. If you are looking to get high-quality turning capabilities, consider the DMG MORI Gildemeister CTV 250 2nd machine we have for sale. Contact us for more information. Ijdpfxex D Nl Is Ahwjtc Additional equipment • shopturn option Machine Benefits Technical Machine Benefits • Current: 58 a in max, 63 a • Voltage: 400 v • Frequency: 50 hz • Spindle hours 19113h Extra Information Machine still under power
