Clean air extraction system

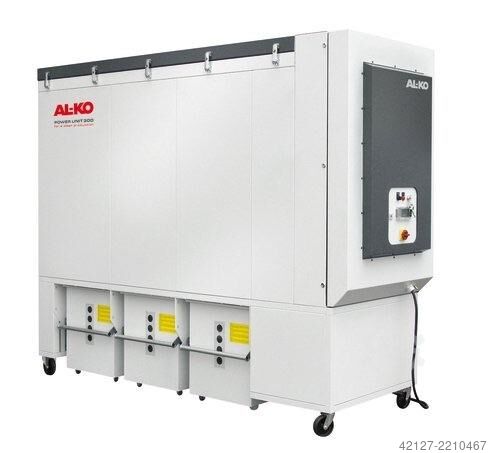

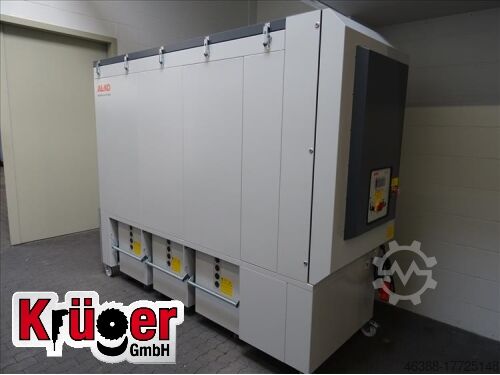

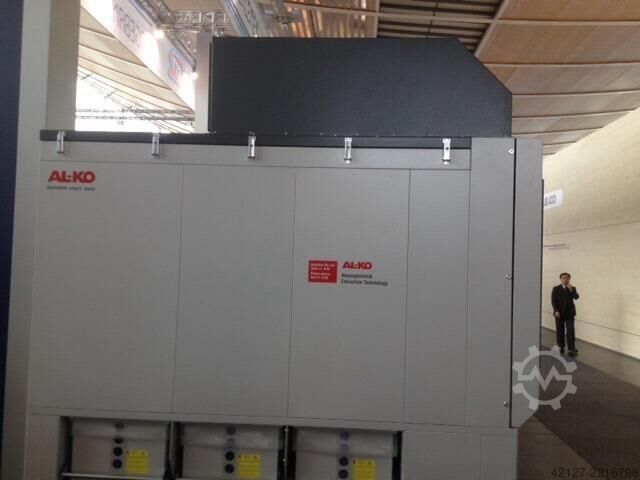

AL-KO Power Unit 300 P

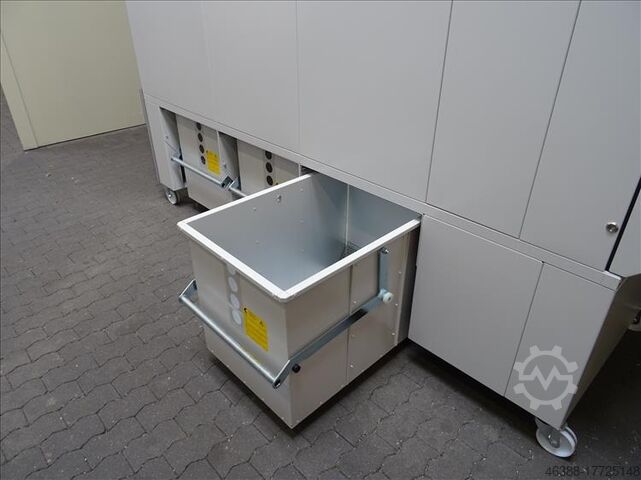

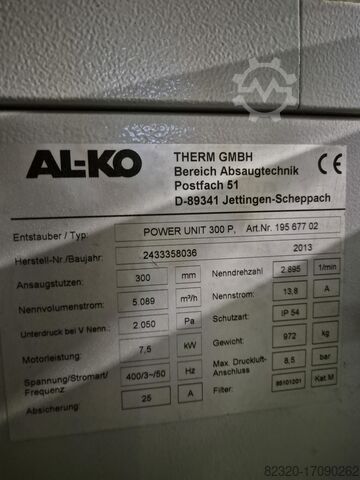

Condition: as good as new (ex-display), Year of construction: 2025, Exhibition model – new Sold at a special price Technical data 300-P Intake nozzle: 300 mm Motor rated power: 7.5 kW / 3-phase Voltage: 400 V / 50 Hz Maximum volume flow: 6,000 m³/h Rated volume flow: 5,089 m³/h Vacuum: 2280 Pa Filter area: 30 m² Chip collection volume: 3 x 250 L Dimensions (L / W / H) in mm: 2963 x 994 x 2346 Weight: 880 kg Location: Available from Bitburg warehouse Ijdpfxocdrzdj Acheaw Subject to prior sale.

Condition: used, Year of construction: 2008, without briquetting press Filter area 32 m² with funnel transition to container or connection to rotary valve used, top condition, little used Brand Schuko Type Vacomat 300 Year of manufacture 2008 Clean air device / negative pressure GS dust-tested BIA-tested CE type-tested Motor 7.5 kW Connection diameter 300 mm Pressure pa. 3090 Air output 5800 m³/h Control Filter pressure monitor Extinguishing device powder extinguisher New price approx. 17,000.00 EUR Space requirement approx. 3600 x 1590 x 2550 mm / 4400 without funnel Storage location 97447 Gerolzhofen, free loading, unpacked Handed over in the current condition as viewed, without guarantee and warranty Iodpjvxlqmsfx Achjaw

Condition: as good as new (ex-display), Year of construction: 2025, Basically a new machine, it was demonstrated at our in-house trade fair (3 days). 5 operating hours. Technical data 300-P Intake nozzle: 300 mm Motor rated power: 7.5 kW / 3-phase Isdpjbqachjfx Acheaw Voltage: 400 V / 50 Hz Max. volume flow: 6,000 m³/h Rated volume flow: 5,089 m³/h Negative pressure: 2,280 Pa Filter area: 30 m² Chip collection volume: 3 x 165 L Dimensions (L/W/H) in mm: 2963 x 994 x 2346 Weight: 880 kg Location: Available from warehouse 54634 Bitburg Immediately available Subject to prior sale.

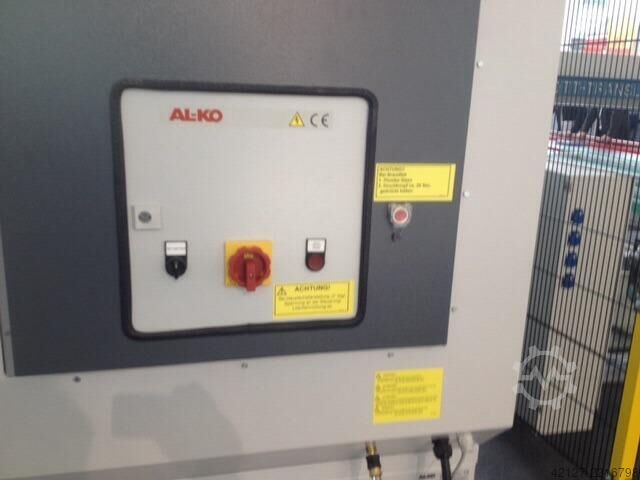

Condition: new, Integrated pre-separator Integrated automatic extinguishing system Efficient and economical: large-volume compressed air tank with with fast-switching diaphragm valves for effective OPTI JET filter cleaning and minimum compressed air consumption. So simple and so effective: OPTI JET cleaning and bag filter with bag filter with snap ring lock. Extremely economical: Energy-efficient drives in accordance with IE3 Safe in the event of an emergency: Maintenance-friendly automatic extinguishing system. Peace and quiet: the soundproofed air recirculation system from AL-KO. All options are open: PLC control for manual and automatic automatic operation. Countless options from machine detection to slide control to frequency-controlled operation operation, to name just three examples. Nothing goes wrong: Collecting container with inspection window. Practical down to the last detail: container lock with ergonomically ergonomically shaped clamping lever. Can be retrofitted: conversion to discharge via briquetting press briquetting press or rotary feeder possible. - High suction capacity - little space requirement - 100 % air recirculation without temperature loss - (residual dust < 0.1 mg/m³) - Integrated pre-separator and expandable control unit - Optimum filter cleaning - Minimal noise level - Optional: patented fill level monitoring - Maintenance-friendly, certified automatic fire extinguishing system - Dust bulkhead for dust-free container change - (optional: safety interlocking of the containers) - Freely configurable module replacement and expansion options ----- Technical data ----- Extraction nozzle Ø: 300 mm, Nominal volume flow: 5,089 m³/h, max. volume flow: 6,000 m³/h, max. negative pressure: 2,587 Pa, Filter area: 30 m², Chip collection volume: 3 x 250 liters, Number of bags: 3 pieces, Motor 400 V: 7.5 kW, Dimensions (LxWxH): 3,000 x 1,058 x 2,361 mm, Sound pressure level: 71 dB(A), Iaedpfou R S A Rex Achsw Weight: 838 kg, according to: GS - HO - 07 - new exhibition machine -

Condition: new, Year of construction: 2024, functionality: fully functional, power: 5 kW (6.80 HP), cutting height (max.): 200 mm, cutting width (max.): 1,300 mm, saw blade diameter: 550 mm, cutting length (max.): 3,200 mm, cutting width at rip fence: 1,300 mm, sliding table length: 3,200 mm, Exhibition machine F 45 Elmo Drive - Swivel + / - 45 ° - Cutting height 200 mm - Preparation for scoring unit no. M24038 - Double roller carriage with 3200 mm - Angular mitre fence 3200 mm Digit L - CNC rip fence 1300 mm - Duplex mitre fence 1350 mm manual - Template holder - On/Off switch on the double roller carriage Iaodpfx Asuh R R Ejchew - Front support roller

Condition: reconditioned (used), functionality: fully functional, empty load weight: 2,400 kg, Compact sawing machine with mechanical centering infeed, el.motors 2x75 kW and 2x90 kW, machine can be equipped with edging block and electric-operating cabinet with frequency converters Ijdpfx Acsxfrmwjhsaw TECHNICAL DETAILS Top diameter: 80-230 mm Maximum log diameter: 350 mm Minimum log length: 2.4 m Cant height in Chipper Canter: 60-232 mm Cant width in Chipper Canter: 70-210 mm Line speed: 70-150 m/min Chip length: 20-30 mm

Condition: used, Year of construction: 1977, Wurster and Dietz GDZ 600 GES Year of construction 1977 Passage: 71 cm stroke: 600 mm with swing frame with water-cooled guides with hydraulic saw clamp Jansen with riving knife Iajdpsqpdi Uefx Achow with saw blades with templates with fence immediately available Location: Austria, near Klagenfurt

Year of construction: 2022, condition: as good as new (ex-display), AL-KO Grinding Table AST 1.5 BASIC The AL-KO Grinding Table AST 1.5 BASIC is the entry-level model in the AL-KO grinding table range. It is certified according to GS-HO-11 and bears the seal "Tested for wood dust according to BGI 739-1". YOUR ADVANTAGES Accessible from 4 sides Iajdpfx Aedqzhbjchew Can be loaded with up to 150 kg Manual, tool-free height adjustment with scale Recessed longitudinal sides for edge grinding Workpiece-friendly beech wood grating (removable) Funnel-shaped air duct to the extraction nozzle TECHNICAL DATA AST 1.5 BASIC Extraction nozzle 140 / 160 mm Required extraction capacity 1,500 m³/h Negative pressure at the nozzle at 22 m/s 1,000 Pa at DN140 mm 700 Pa at DN160 mm Adjustable working height from 735-1,015 mm Working area (W x L) 946 x 1,500 mm Dimensions (W x L) 1,000 x 1,600 mm Weight approx. 73 kg

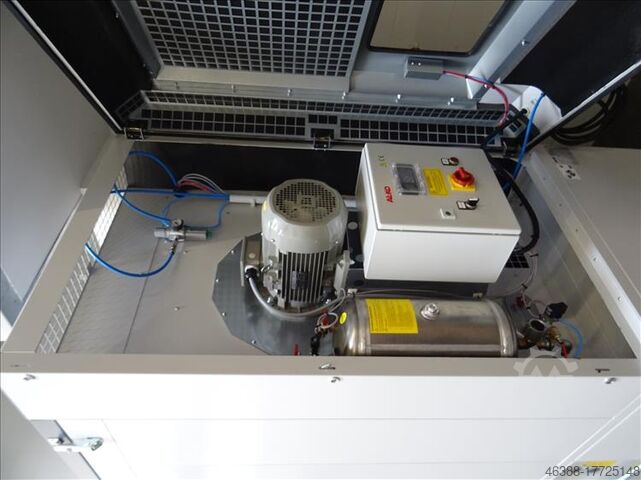

Condition: reconditioned (used), Year of construction: 2022, functionality: fully functional, input voltage: 400 V, input current: 16 A, type of input current: three-phase, volume flow: 6,000 m³/h, intake manifold diameter: 300 mm, total height: 2,000 mm, total length: 3,100 mm, total width: 900 mm, overall weight: 850 kg, compressed air connection: 6 bar, nominal flow rate: 5,060 m³/h, negative pressure: 2,700 Pa, nominal power: 7.5 kW (10.20 HP), Bin volume 3x165 l, jet-pulse cleaning. Housing is vacuum-tight and pressure surge resistant above 200 mbar, equipped with suction connection and non-return valve, antistatic and water- and oil-repellent filter elements with jet-pulse cleaning system. High-performance radial fan with three-phase motor of energy efficiency class IE3 is installed on the clean air side, featuring integrated exhaust silencing and air outlet grille. Unit is mounted on 2 swivel and 2 fixed castors. Includes 3 chip containers with discharge bags, a control system with CEE industrial connector, and integrated fire extinguishing system preconfigured for connection to local water supply (water connection 1/2", min. 0.5 bar). The control is designed for automatic operation. Automatic start control for up to 6 machines and automatic filter cleaning with runtime addition are included. For automatic start-up, either current transformer coils or volt-free contacts from the machine can be used. Iaedpfxjyi Efcj Achew

Condition: new, ALTENDORF F 25 sliding table saw, type 1 -Exhibition machine- Double roller carriage swiveling man. Height and swivel adjustment Rip fence with man. fine adjustment Angular mitre fence Large extraction hood Basic scoring unit with LED lighting ----- Technical data ----- Swivel range: 0 - 46 ° Carriage length: 3,200 mm Rip fence: 1,000 mm Cutting height: 100 mm Max. saw blade Ø: 315 mm Isdpju R S Dbofx Achoaw Crosscut fence extendable up to: 3,450 mm Speeds: 3,600 / 4,200 rpm Motor power: 5.5 kW (7.5 hp) Work table height: 880 mm Suction nozzle Ø: 120 + 80 mm - new exhibition machine -
