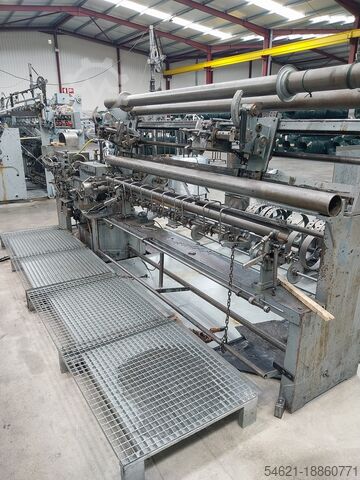

Wafios model VDF80 – 3 meters max width
Maximum working width – 3 meters
Min / Max wire diameter range – 1,80 – 3,20
Tooling – 30x30 ; 50x50 and 60x60 mm
Capacity – 150 m2
Machine weight – approx. 4 tons
Tech. Details :
- Power - 4 x 550 w
- Managament - PLC SIEMENS S7
- Two Appointments Units
- Diameter of block - 300mm
- Wire diameter range - 1.8 - 3.2 mm - 1250 N/mm2
- Ring diameter - 300 - 420 mm
- Capacity - 52,5 m2/8h for mesh with next characteristics :
Ring diameter 350 mm - 9 coils
Wire diameter - 3 mm
Mesh dimensions - 10 x 5 m
- Mesh width - 15 m ( possibly longer )
- Length of mesh - 50 m ( possibly longer ) depends on the weight of the final mesh
a) single lane: max. 2100 mm
b) double lane: 2 x 902 mm
number of length wire: max. 12
distance of cross wire: 6", 12", 18", 24", 30", 36"
distance of length wire: 1/2" to 1/2"
wire diam. length wire: max. 2,5 mm
wire diam. edge wire: max. 3,0 mm
wire diam. cross wire: max. 2,5 mm
wire diam. knot wire: max. 2,75 mm
working width: 2.000 mm
number of line wires: max. 16
distance of cross wires: 6", 12", 18", 24" od. 36"
distance of length wires: 1/2" to 1/2"
wire diam. length wire: 2,5 - 3,25 mm
wire diam. edge wire: max. 4,0 mm
wire diam. cross wire: max. 3,25 mm
wire diam. knot wire: max. 3,25 mm
