Used Kasto Kastoflex F for sale (129)

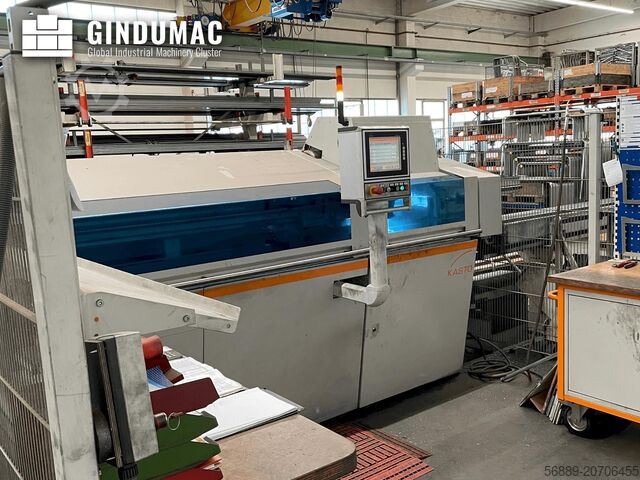

Year of construction: 2009, operating hours: 36,000 h, condition: ready for operation (used), General Data Measurements width 1500 mm Measurements depth 4800 mm Measurements height 1900 mm Machine weight 2700 kg Additional Equipment Voltage: 400 V With automatic feed Residue bunker Coolant device Mitre cut Loading station, chain magazine with 20 compartments on the infeed side Discharge sorting station, discharge side with 5 m long apron conveyor and programmable discharge stations on both sides Minimum quantity lubrication including 2x shelfs from Kasto Djdjx D Sf Dspfx Aduela This KASTO KASTOflex F Circular Metal Saw was manufactured in 2009. It features a weight of 2700 kg, operates on 400 V, and includes an automatic feed, residue bunker, and coolant device. It supports mitre cuts and has a loading station with a 20-compartment chain magazine. The discharge side boasts a 5 m long apron conveyor with programmable discharge stations. Consider the opportunity to buy this KASTO KASTOflex F Circular Metal Saw. Contact us for more information. Application Types Sawing

Condition: good (used), Year of construction: 2007, functionality: fully functional, Technical details cutting diameter 730 mm saw band length 9195 x 67 x 1,6 mm cutting width 830 mm Control Kasto EasyControl saw band speed 12 - 120 m/min total power requirement 30 kW weight of the machine ca. 11,6 t dimensions of the machine ca. 4800 x 2600 x 2870 mm Additional information Machine is in good condition. On 7th. October 2025 the bearings of the roller wheel (belt tensioning side) have been replaced by KASTO and the switch for the belt tension was replaced. The machine can be demonstrated under power in our warehouse. Dlsdpox D Td Iofx Aduea Heavy-duty, high-performance band saws with a horizontally and parallel-traversing saw blade for cutting solid material, profiles, and pipes of all qualities, including difficult-to-cut materials such as titanium, Hastelloy, Inconel, etc. The optimal use of carbide or bi-metal saw blades was consistently considered during the development of these machines. Cutting range Cutting diameter: 730 mm Cutting width: 830 mm Saw blade size: 9195 x 67 x 1.6 mm Total power requirement: 30 kW Machine weight: 11600 kg Machine dimensions (L x W x H): 4800 x 2600 x 2870 mm Equipment: Carbide package With driven heavy-duty roller conveyors for the infeed and outfeed sides. Roller conveyor on the inlet side, dimensions (LxWxH) 4000x1000x500 mm Roller conveyor on the outlet side, dimensions (LxWxH) 3000x1000x500 mm Weight 2000 kg Chip conveyor

Condition: good (used), Year of construction: 2005, Round cutting area: 260 mm Square cutting area: 260 x 260 mm Smallest diameter to be sawn: Ø 10 mm Smallest cutting length: 5 mm Minimum remaining piece length, single cut: 10 mm Minimum remaining piece length, automatic operation: 110 mm Single automatic material feed max.: 680 mm Multiple material feed: 9,999.9 mm Belt speed: continuously adjustable 15 -125 m/min Cutting feed: continuously adjustable Material feed: ball screw Automatic feed: with feed vice (Sp II) Material clamping: hydraulic, continuously adjustable. Clamping force: Machine vice (Sp 1) approx. 150 - 800 daN Feed vice (Sp II) approx. 150 - 800 daN Saw blade dimensions Standard: 4115x41x1.3mm Saw blade guide: hard metal, replaceable Saw blade tension: hydraulic Dsdpfxou R I A Hs Aduola Saw blade cleaning: using easily replaceable wire brush. Driven by flex shaft in proportion to the main drive. Coolant: supply via coolant nozzle Volume of coolant tank approx. 110 l Pump output approx. 50 l/min including roller conveyor

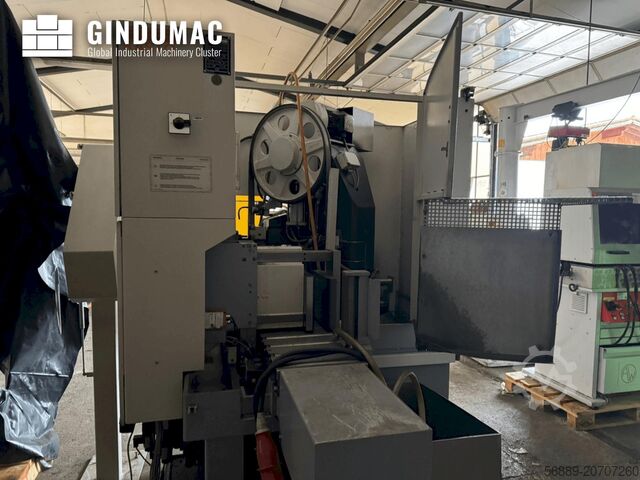

Year of construction: 1998, condition: ready for operation (used), General Data Machine weight 2200 kg Media Dledpfx Adjx D S S Rjuea Chip conveyor Yes Additional Equipment Accessories: 18 saw bands (see photos) This KASTO SSB 260 VA-CC-CNC Metal Band Saw was manufactured in 1998. A reliable choice for your cutting needs, it offers precision and durability. Consider the opportunity to buy this KASTO SSB 260 VA-CC-CNC Metal Band Saw. Contact us for more information. Application Types Sawing

Condition: good (used), Year of construction: 1998, Semi-automatic circular sawing machine Make KASTO Type:V350 U Year 1998 with mitre cut, roller conveyor and stop Saw blade dm.350mm Pneumatic vice and saw feed Dedpsfym Ewofx Adujla Stepless. Machine little used in good condition.

Condition: ready for operation (used), total height: 3,020 mm, total length: 3,300 mm, total width: 5,100 mm, throat depth: 1,060 mm, zware dubbelkoloms lintzaag voor het zagen van hooggelegeerde staalsoorten automatische invoer van het werkstuk met automatische herpositionering CNC-gestuurde variabele snelheid voor invoer en zagen spaantransportband uitgerust met volledig gemotoriseerde Weisshaupt-rollenbanen: - 10,3 meter invoerrollenbaan (buiten) met 2 hydraulische klemmen voor de contouren van het werkstuk - 9 meter invoerrollenbaan (binnen) met 2 hydraulische klemmen voor de uitlijnen van het werkstuk - Maximale werkstukbreedte: 900 mm - elke rol is gemotoriseerd - de capaciteit van één rollenbaan is 4 ton - 4 meter uitvoerrollenbaan: Dljdpfx Aev Sfp Aeduea één rollenbaan is uitgerust met een weegschaal om het werkstuk na het snijden te wegen (Sartorius-systeem) Max height of workpiece: 860 mm Sawspeed: 16 > 80 m/min Length of band saw: 10260 x 80 x 1,60 mm Power needed: 32 kW (100 amp) Weight: 9 ton (only machine)

Condition: used, Year of construction: 1991, saw blade diameter 425 mm cutting diameter 130 / 140 mm capacity 90 degrees: square 120 x 120 mm capacity 90 degrees: flat 260 x 80 mm cutting speed 11 / 22 m/min capacity 45 degrees: flat 180 x 80 mm capacity 45 degrees: round 130 mm capacity 45 degrees: square 110 x 110 mm work height max. 1050 mm Drive 1,6 / 2,5 kW weight of the machine ca. 1160 kg dimensions of the machine ca. 1,25 x 1,2 x 1,9 m Semi-automatic hydr. Miter circular saw machine with miter adjustment via turntable, saw blade comes from below, hydr. Material clamping, stepless feed speed, 1 horizontal vice. Semi-automatic operation means: 1. Clamp the material, 2. Saw, 3. Saw blade return, 4. Relax the material. Infeed roller conveyor 2000 mm and discharge roller conveyor with stop 1500 mm, roller width 400 mm from a similar machine would be available for an additional charge of €300. But they should be adjusted by the buyer. (see last picture). Dljdpfovmtdkex Adusa The price is an already reduced special price. For an additional charge at cost: 2000 mm infeed roller conveyor and 1500 mm outfeed roller conveyor with stop. 400 mm roller width from a similar machine would be available for €300. However, these must be customized by the buyer (see last image). Machine dealer with own stock of 1600 m².

Condition: good (used), Year of construction: 2001, functionality: fully functional, Technical details cutting diameter 280 mm saw band length 4930 mm cutting width 280 mm capacity 90 degrees: square 280 x 280 mm saw diameter min. 10 mm Dlsdpfxjxy I Ere Aduja cutting length min. 6 mm Weight of Material maxium 400 kg/m cutting speed 20 - 110 m/min sawing motor 2,2 kW dimensions of saw-band 4930 x 34 x 1,1 mm total power requirement 7 kW weight of the machine ca. 1,8 t dimensions of the machine ca. 2280 x 2680 x 2050 mm Additional information Shortest Remaining Piece Length in Single Cut 15 mm Shortest Remaining Piece Length in Automatic Operation 80 mm Feed Length 700 mm Multiple Feed Length 9999 mm Cutting Speed Infinitely Variable 20-110 m/min Cutting feed: Infinitely variable Material clamping: Hydraulically infinitely variable, clamping pressure: 20-60 bar Equipment: CNC control Machine roller conveyor, dimensions: 2000 x 550 x 700 mm, weight: approx. 150 kg Machine documentation

Condition: good (used), Year of construction: 2004, functionality: fully functional, saw band length: 5,700 mm, cutting height (max.): 400 mm, stepless cutting speed hydraulic material clamping infeed automat chip conveyor coolant device roll conveyor Dljdpfxetzkdgj Aduja Technische Daten: Schnittbereich rund / cutting range round 400 mm Schnittbereich vierkant /cutting range square 400x400 mm Mehrfachvorschub / multiple infeed 20000 mm Schnittgeschwindigkeit / cutting speed 20-110 m/min. Sägebandlänge / dimensions of the saw band 5700x41x1,3 mm Antriebsleistung / drive capacity 8 kW Gewicht der Maschine ca. / weight 2700 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding.

Condition: used, Technical details: Dledpfsu Niixex Aduoa cutting diameter: 460 mm saw band length: 4670 mm saw band width: 45 mm cutting range 90 degrees: round: 460 mm cutting range 90 degrees: square: 320 x 500 mm band speed: 16...160 m/min feed stepless: ja / jes / Sí mm/min electrical connection: 380 V / Hz. total power requirement: ca. 7,5 kW machine weight approx.: 2900 kg dimension machine xH: 2,8 x 2,45 x 1,7 m dimensions L x W x H: Rollenbahn: 1,1 x 0,6 x 0,3 m FULLY AUTOMATIC BANDSAW Manual and automatic operation Multiple stroke = single up to 580mm and multiple up to 5220mm Tension via clamping jaws WxH: 100 x 250mm motorized band tensioning Saw blade cooling piece counter Lubrication of the saw blade guide Accessories: Infeed track, motor-driven, LxW: 1300mm x 530mm Outfeed track LxW: approx. 1000mm x 750mm *

Condition: good (used), Year of construction: 2000, Hacksaw, KASTO, Type: PSB 280U, Year 2000 Cutting range: Round max.: 280 mm Flat max.: 280 mm x 160 mm Square max.: 240 mm x 240 mm 2 motor speeds Transport weight approx. 500 kg. With miter cut, length stop, coolant system, machine documentation available. Dljdpfxswgnk Rj Aduja Machine in good technical and visual condition.

Condition: ready for operation (used), total height: 1,915 mm, total length: 2,500 mm, total width: 1,290 mm, throat depth: 400 mm, empty load weight: 950 kg, nominal power: 6 kW (8.16 HP), Rond materiaal: Ø 400 mm Rechthoekig: 400 x 400 mm Maximaal materiaalgewicht: 1000 kg/m Snijsnelheid: 20 tot 110 m/min Afmetingen zaagblad: 5090 x 41 x 1,3 mm Hydraulische klemming spaantransportband Max height of workpiece: 400 mm Sawspeed: 20-110 m/min Dledpfx Aexpymaedusa Length of band saw: 5700 x 41 x 1.3 mm

Condition: good (used), KASTO hacksaw with automatic feed Dledjx Ecthepfx Aduja

Condition: used, Year of construction: 2005, Cutting area round : 430 mm Cutting area square: 430 x 430 mm flat cutting area: 430 x 430 mm Dledpfexyq Dkjx Aduja smallest dimension to be cut: 10 x 10 mm minimum length to be cut: 6 mm minimum remaining piece length, single cut: 10 mm minimum remaining piece length automatic operation: 35 mm automatic material feed: . roller conveyor: DoAll 2013-V2 max. unit weight: 2.275 kg tape speed: infinitely adjustable Cutting feed: infinitely adjustable Material feed: with ball screw Automatic feed: with horizontal clamping vise Material stress: hydraulically adjustable Tension: Machine chuck: 200 - 800 daN, chuck feed: 200 - 1500 daN Saw band tension: hydraulic Saw blade cleaning: Easily replaceable double brush, hydromotor driven Coolant system: five nozzles, tank approx. 150 l, pump output approx. 25 l/min Machine dimensions: Length: 2140 mm, width: 4245 mm with chip conveyor, height: 2400 mm mass: approx. 4300 kg vinho: 430 x 430 mm

Condition: good (used), Year of construction: 2012, functionality: fully functional, Kasto Functional U Metal Band Saw Manufacturer: Kasto Model: Functional U Year of Manufacture: 2012 Condition: Used, workshop-inspected Standard equipment: - Cutting speed: 20 – 110 m/min - Continuously adjustable mitre device (-45° to +60°) Dljdpfsxxl Hkjx Adusa - Cutting capacities: - 90° round: 260 mm - 90° flat (W x H): 300 x 260 mm - 90° square: 260 x 260 mm - +45° round: 200 mm - +45° flat (W x H): 200 x 240 mm - +45° square: 200 x 200 mm - +60° round: 165 mm - +60° flat (W x H): 160 x 120 mm - +60° square: 150 x 150 mm - -45° round: 200 mm - -45° flat (W x H): 200 x 240 mm - -45° square: 200 x 200 mm - Weight: 510 kg - Saw blade dimensions: 2910 x 27 x 0.9 mm - Saw blade guides: Carbide, replaceable - Material clamping: Mechanical - Cutting feed: Hydraulic - Saw blade tension: Mechanical - Saw blade cleaning: By means of a driven, easily replaceable wire brush Scope of delivery: - Operating manual - Roller conveyor, 2 x 1 m - Coolant system - Chip brush Machine is powered on. Video available.

Condition: used, Year of construction: 1994, cutting diameter 260 mm saw band length 4310 x 27 x 0,9 mm table height 810 mm cutting speed 17 m/min total power requirement 3,2 kW Dlodpfxorl U Nms Aduja weight of the machine ca. 920 kg dimensions of the machine ca. 2,5 x 1,7 x 1,5 mm

Condition: excellent (used), Year of construction: 2012, KASTO circular saw, type: radial M6, year of manufacture 2012 In very good condition, like new. Barely used. Cutting range: Circular max: 90 mm Cutting speed: 26/53 m/min Dedswah E Ujpfx Aduola Saw blade: 315 x 2.5 x 32 mm Coolant system. Weight approx. 210 kg. Machine documentation available. For further information, see data sheets.

Condition: good (used), functionality: fully functional, Saw blade 650 x 55 x 2.5 (4 teeth/inch) Cutting range at 90°: round – 400 mm, square – 400 x 400 mm Cutting range at 45°: round – 220 mm, square – 220 x 220 mm Machine mounted on rotary table – shifting and clamping at the mitre angle is very good. Cutting range: 400 mm. Djdpfx Adox A T Dxousla

Condition: excellent (used), functionality: fully functional, Thank you for your inquiry regarding a KASTO bandsaw Type: SSB 260 VA Heavy-duty, fully hydraulic high-performance bandsaw, solidly constructed, with a horizontally and parallel traveling saw band, designed for cutting profiles, tubes, and solid materials of all grades, including extremely difficult-to-machine materials (e.g., titanium, Inconel, Hastelloy). Suitable for use with bi-metal and carbide-tipped saw bands. The saw unit is manufactured as a solid construction from polymer concrete, ensuring maximum smooth operation and extended blade life. Guidance of the saw unit is via a vertical and a round column guide (double column guide) with hardened and ground guide rails. Hydraulic blade tensioning and hydraulically preloaded carbide blade guides. Material clamping is achieved via two hydraulic vises. Machine operation is straightforward and user-friendly. The cutting length can be set via a handwheel with 0.1 mm resolution. The quantity setting is handled via a piece counter; when the set quantity is reached, the machine switches off automatically. Material feed is provided by a feed cylinder, ensuring top cutting accuracy. The machines are easy to operate and work fully automatically. SSB 260 VA Cutting capacity: 260 mm x 260 mm (Ø 260 mm) Technical Data – Bandsaws KASTO Bandsaw Automat Machine type SSB 260 VA Technical specifications 2-column guided Year of construction 2000 Cutting range 260 x 260 mm Drive motor (saw gearbox) 4 kW Drive motor (auxiliary) 6.5 kW Cutting speed 15–125 m/min Hydraulic feed rate Infinitely adjustable Saw band dimensions 4115 x 41 x 1.1 mm Feed length 600 mm Max. with multi-feed 5400 mm Material support height 850 mm Machine dimensions: Length/Width: 1690 x 1900 mm Height: 2030 mm Machine weight 2100 kg Equipment / Accessories: • Swarf conveyor • Coolant system • Multiple feed Dljdpfxsxwzr He Aduoa • Side guide rollers • Machine roller conveyor • Adjustable side guide rollers • Prepared for bundle clamping device • Multiple feed counter • Clamping force reduction

Condition: used, Year of construction: 1988, cutting diameter 210 mm band length 400 mm Dedpoxz Hhhsfx Adujla capacity 90 degrees: square 190 mm capacity 90 degrees: flat 240 x 190 mm cutting speed 16/32 m/min total power requirement 1,1 kW weight of the machine ca. 180 Kg dimensions 1,2 x 0,8 x 80,8 m Hydraulic hacksaw with: - Coolant device - good condition

Condition: used, max. diameter: 400 Dedpfsih N Shox Adusla

Condition: used, Year of construction: 2001, functionality: limited functionality, Kastotec A4, year of manufacture 2001, in good condition. Feed needs to be repaired as it has fallen down. Dlsdpfxjx A Dw Ns Adusa

Condition: used, Year of construction: 1983, cutting diameter 220 mm band length 400 mm stroke 200 mm cutting speed 16/22/31/45 m/min weight of the machine ca. 500 kg Dedpoxukp Asfx Adujla total power requirement 3 HP (PS) no. of strokes 40/57/80/115 Hub/min range L-W-H 1900 x 1800 x 1400 mm feed in one step 600 mm

Condition: reconditioned (used), functionality: fully functional, saw blade length: 300 mm, cutting range round steel at 45°: 150 mm, cutting height (max.): 150 mm, The fully hydraulic high-speed production hacksaw has universal hydraulics for the exclusive or alternating cutting of thin and thick-walled profiles as well as solid material without changing the saw blade with the uniform tooth pitch of 3 or 4 teeth per inch. Pre-tensioned bow guide, closed oil hydraulics, triple swivel bearing, separate coolant system, infinitely variable hydraulic cutting pressure, lift-off movement and accelerated return stroke, equipped with infinitely variable mitre device as standard. mitre device as standard. Lifting of the saw arm in rapid traverse. Pendulum vice for perfect utilization of the saw blade. Longitudinal guide with ground and and hardened guide rails to transfer the cutting pressure forces to the saw frame. Automatic limit stop. Push-button operation for on, off and up functions of the saw arm Manufacturer KASTO Dljderrvgxjpfx Aduja Metal hacksaw Machine type WBS 150/170 U Drive power: 0,75 KW Stroke rates: 85/170 min Cutting speed: 16/32 m/min Universal hydraulics: standard Saw feed hydraulics Cutting range round: 150 mm Cutting range flat: 150/170 mm Mitre 0-45 ° Material support height: 700 mm Weight: 170 kg. Length/width: 770x700 mm Height: 1370 mm Saw blade dimensions: 300x30x1.5 mm Machine for notching Accessories. coolant device

Condition: used, Year of construction: 2005, cutting diameter 210 mm band length 400 mm capacity 90 degrees: square 190 mm capacity 90 degrees: flat 240 x 190 mm cutting speed 16/32 m/min Dledpfexz Hhbox Adusa total power requirement 1,1 kW weight of the machine ca. 180 Kg dimensions 1,2 x 0,8 x 1,0 m Hydraulic hacksaw with: - Coolant device - good condition
