Used Haco Ppes 135T X 4100 Mm Cnc for sale (76)

Condition: used, Year of construction: 1983, Hydraulic Shear HACO HS 3010 Capacity: 3000 x 10 mm Back gear gauge travel: 1000 mm Year of construction: 1983 Fodpfxj Aihzdj Actjgi Manual adjustment of the clearance between blades Cutting angle: 1° to 3° Voltage: 380 V Dimensions (L x W x H): 4000 x 2100 x 2200 mm Weight: approx 8 T

Condition: used, Year of construction: 2002, Hydraulic Guillotine Shear HACO TS 3006 Capacity: 3100 x 6,5 mm Back gear gauge travel: 1000 mm Year of construction: 2002 Motor power: 7,5 kW SP8 Command Fsdpfxe Aihy So Actjgi Blades with 4 cutting edges Voltage: 380 V Photocells at the back Length: 4000 mm Depth with photocells : 2800 mm Depth without photocells: 2200 mm Height: 1900 mm Weight: approx 5 T

Condition: reconditioned (used), functionality: fully functional, Press Brake Brand: HACO Capacity: 3000 x 135T Distance between uprights: 2600 mm Throat depth: 250 mm Ram stroke: 120 mm Opening: 325 mm Descent speed: 10 mm/s Working speed: 10 mm/s Return speed: 60 mm/s Table height: 915 mm Hydraulic power unit: 10 HP Without pit Fsdpfx Acjyapdqetogi Supplied with AMADA PROMECAM tooling Backgauge with digital display Weight: 8T Equipped with new tooling

Condition: used, Digital ruler for press brakes, bending benches, guillotine shears... Glass ruler, glass measuring rod, scale, digital display, measuring rod, length measuring system, length measuring device, linear scale, positioning display, digital scales, linear encoder -Manufacturer: RSF Elektronik, linear encoder from press brake HACO type PPES 30135 -Type: MSA 3502 -Measuring length: approx. 270 mm -Quantity: 2x encoders available -Price per piece -Dimensions: 500/150/H50 mm -Weight: 5.4 kg/pc. Fodpfx Asrdil Hsctogi

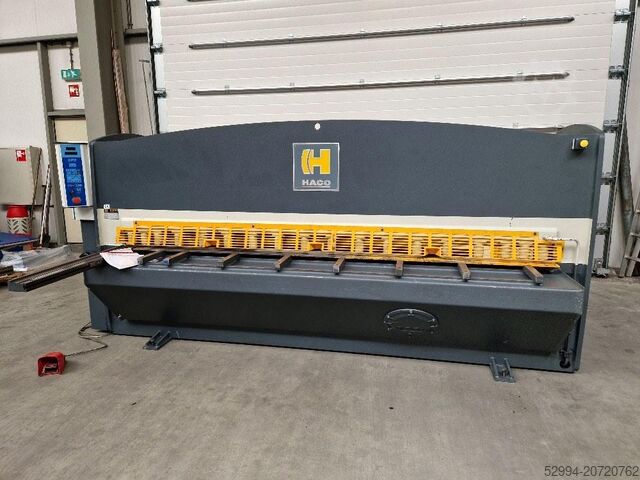

Condition: excellent (used), functionality: fully functional, Year of construction: 2018, operating hours: 400 h, table height: 770 mm, back gauge: 1,000 mm, back gauge travel distance Z-axis: 750 mm, overall weight: 4,500 kg, total length: 3,640 mm, total width: 2,550 mm, total height: 1,575 mm, Equipment: CE marking, angle stop, documentation/manual, finger protection, type plate available, Very well-maintained hydraulic plate shear Haco TSX 3006 with only a few operating hours. Manufacturer: Haco Type: TSX 3006 Year of manufacture: 2018 (acquired: 2019) Operating hours: approx. 400 h Cutting length: 3,050 mm Sheet thickness: 6 mm Cutting angle adjustment: 0.5 - 3 degrees Clamps: 18 pieces Length of back gauge: 1,000 mm Motor power: 7.5 kW Dimensions (L x W x H): 3640 x 2550 x 1575 mm Weight: approx. 4.5 t - Control system: SC 100 T touchscreen control - Blade gap adjustment: Automatic Fgodpfe Ahq Atsx Actsi - Rake angle adjustment: Automatic - Safety equipment: Type II finger protection with moulding, CE certified - Light curtain system and safety fences included A suitable material trolley for collecting the finished sheets is included in the scope of supply. We will gladly send you a video of the machine upon request. The machine can, of course, be inspected while powered on and thoroughly tested. The sale is to commercial businesses, excluding any warranty for defects. No guarantee, warranty, or right of return. Net price.

Condition: used, Year of construction: 1992, gebraucht 1992 090174 Belgien 17800 € 1 3050 mm 6 mm 11 - 25 1/min 0.5 - 3 ° 18 750 mm 11 kW 3850 mm 1750 mm 1720 mm 4600 kg 770 mm SC 5 control for: - Sheet thickness input - Automatic cutting angle and gap adjustment - Cutting length limitation - Programmable backgauge length Motorized backgauge 750 mm Downholder protection guard Foot pedal Table supports with ball bearings Fgodpoyi Hppefx Actoi 1 side fence 1000 mm Operating manual in German Machine does not comply with German accident prevention regulations (UVV) or Austrian AMVO NEW BLADES BUYING USED MACHINERY IS A MATTER OF TRUST - OUR TRANSPARENCY PROMISE We offer you maximum security and complete transparency. • HONEST INSIGHTS: Detailed photos and functional videos of the current condition • LIVE ON-SITE CHECK: Live testing is possible at our facility • DIGITAL DEMONSTRATION: Individual live demonstration via video call • RISK-FREE PURCHASE: 14-day return policy Details:

Condition: used, total length: 3,800 mm, total width: 2,000 mm, total height: 1,900 mm, Year of manufacture: 2011 Colour: Grey Weight: 6.000 kg - Year: 2011 - Documentation available: Yes - CE marking present: Yes - Serial number: 22106 - Drive system: Teach-in - Control system brand: Robosoft - Control system type: SP8 - Drive type: Hydraulic - Configuration: Guillotine - Power [kW]: 11.0 - Max. sheet thickness [mm]: 6 - Max. working width [mm]: 3100 - Cutting speed [mm/min]: 22 - Backgauge type: Electric - Backgauge depth [mm]: 1000 - Sheet support system: None - Finger guard: Fixed - Angle adjustment: Motorized Fgedpfxsy Nk S Ae Actsi - Blade gap adjustment: Manual - Table type: Fixed table - Options: Digital readout - Transport dimensions: 3800mm x 2000mm x 1900mm (l x w x h) - Transport weight [kg]: 6000kg - Transport packages [pcs.]: 2 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: ready for operation (used), Year of construction: 2021, sheet width 6020 mm plate thickness 6.0 mm thickness at "Niro-steel" 4.0 mm back stop - adjustable max. 1000 mm work height max. 1030 mm no. of strokes 5 - 10 Hub/min cutting angle 0.5 - 3.0 ° down holder 33 Stück Control SC 100 T engine output 11.0 kW weight of the machine ca. ca. 27000 kg range L-W-H 7650 x 2400 x 2885 mm New price in 2021 ~ 160.000 Euro Special price upon request - in checked conditions - machinevideo - ?v=qH3uqGNZZp8 Equipment: - Robust electro-hydraulic guillotine shear * Design: Guide rail - HACO CNC control model SC 100 T, pivoting at the front left * Control unit with LCD display * Pre-selected positioning of the backgauge * Digital display of actual position * Electro-hydraulic cutting angle adjustment Fgjdpfsz Hd R Ijx Actei * Electro-hydraulic cutting gap adjustment * Programmable retraction from the backgauge * Programmable cutting length limitation * Automatic + manual programming mode * Emergency stop switch - CNC electro-motor-driven material/backgauge * On recirculating ball screws * Continuous adjustment up to max. 1,000 mm - CNC electro-hydraulic cutting gap adjustment - CNC electro-hydraulic cutting angle adjustment - Hydraulically operated Material/sheet metal clamp - Front finger guard - Front support table with recessed grips - 1x side stop with mm scale - 1x freely movable foot switch - Rear safety device (light barrier) - Operating instructions (PDF) Optional accessories included: - Sheet metal holding device for thin sheet metal blanks * Optimal positioning of thin sheet metal

Condition: used, Year of construction: 1992, Used 4-meter CNC press brake from Haco Fgedpfx Acjzgt Tzstji Type: PPES 40200 Capacity: 4100 x 200 tons FastBend 2D CNC control (refurbished!) 1 set of complete tooling (not visible in the pictures, but included) CNC crowning Euro-style tool clamping system

Condition: good (used), Year of construction: 2002, machine/vehicle number: 69584, Offer 26220 Technical Data: - Cutting length 3050 mm - Cutting thickness at 400 N/mm² tensile strength 16 mm - Cutting thickness at 400 N/mm² tensile strength up to 1000 mm length 18 mm - Cutting angle 0.5 - 3 ° - Number of sheet metal clamps 18 pcs - Stroke rate 10 - 23 min - Motorized back gauge up to 1000 mm - Rear guard with light curtain - Front angle stop 1000 mm - HSLX version: - CNC control HACO SC 5 controller when entering the sheet metal thickness in mm - Automatic cutting angle adjustment based on sheet metal thickness - Cutting length limitation Fodpfx Acezuzrbotegi - Automatic positioning of the back gauge (8 programs – 80 steps) with - Digital display and automatic retraction of the back gauge - Drive 400 V / 22 kW - E - Foot pedal - Space requirement without support arms approx. W 4500 x H 2250 x D 2200 mm - Weight approx. 14500 kg

Condition: used, Year of construction: 1990, Used 4 meter press brake Type: Haco PPES 40110 Capacity: 4100 x 110 tons Y1, Y2 and X CNC controlled Euro tool clamping system PC20 CNC control 1 set of tools included (not shown in pictures) Fjdpoy Nyc Rsfx Actjgi Year of manufacture: 1990

Condition: used, functionality: unexamined, Servo drives for press brakes. Used condition, removed from operational machines. Untested. Fedex Dr Daspfx Actogi Please request further details and photos. We can purchase your faulty press brake.

Condition: excellent (used), Year of construction: 2001, Technical data: Year of manufacture: 2001, service in 2024 Working length: 3100 mm Stand width: 2650 mm Pressing force: 300 tons CNC control: Robosoft BC55 touch graphics 2D Controlled axes: Y1 / Y2; X CNC table bending compensation Projection: 300 mm Stroke: 350 mm Motor power: 18 kW Dimensions (length x width x height): approx. 4200 x 2200 x 3700 mm Fgodpfxsvy H Iie Actei Weight: approx. 19 tons Accessories: various tools The seller is not liable for typing or data transmission errors. The machine's appearance, technology and wear are in keeping with its age; used machines are sold without any warranty.

Condition: excellent (used), functionality: fully functional, Year of construction: 2003, sheet thickness (max.): 6 mm, HACO SHEARING MACHINE 3000 X 6 HYDRAULIC MODEL: HSLX 3006 MOTORIZED BACK GAUGE IN GOOD VISUAL CONDITION USED MACHINE, IN WORKING ORDER Fgedpfx Aez Sbxpectei INTERNAL CODE: SVR 448

Condition: excellent (used), functionality: fully functional, Year of construction: 2018, operating hours: 347 h, Very well-maintained press brake Haco SRM30150 with only 347 operating hours! Manufacturer: Haco Type: SRM30150 Year of manufacture: 2018 (acquired: 2019) Time in run mode: 347 h Pump running time: 451 h Part counter: 8398 Bending length: 3,000 mm Press force: 150 t X-axis: 800 mm (back gauge) Control system: FastBend 2D Multi Touch Control with 18-inch screen Tool clamping (intermediate tension): Intermediate tension for system tools Upper tool clamping: Manual quick clamping for upper tools Support arms: 2 support arms, 750 mm on linear guide Speed control: CE-Slow (max. speed 10 mm/sec) CNC-controlled crowning table with single-V opening Upper tool 1: PS.134.30.R08 L=835 mm (4x) Upper tool 2: PS.134.30.R08 L=805 mm, split/segmented (1x) Die 1: TMR100.40.30 L=500 mm (6x) Die 2: Rolleri M.460.R L=835 mm (4x) Die 3: M.460 R L=805 mm, split/segmented (1x) And many more tools. These were additionally purchased for €20,000 net. We will gladly send you a video of the machine upon request. The machine can, of course, be inspected and thoroughly tested while powered. The sale is to business customers with exclusion of liability for defects. No guarantee, warranty, or right of return. Fgsdpfx Ao Ahqp Sectei

Condition: good (used), Year of construction: 1997, machine/vehicle number: 68868, Offer 25500 Technical Data: - Cutting length: 3050 mm - Cutting thickness at 400 N/mm² tensile strength: 13 mm - Cutting thickness at 400 N/mm² tensile strength (up to 1000 mm length): 15 mm Fsdpfx Acox A Tpnetjgi - Cutting angle: 0.5 – 3° - Number of sheet hold-downs: 18 pcs - Strokes per minute: 10 – 23 min⁻¹ - Motorized backgauge up to: 1000 mm - Rear guard with light barrier - Front angular stop: 1000 mm - HSLX version: – CNC control HACO SC 5 Controller with input of sheet thickness in mm – Automatic cutting angle adjustment according to sheet thickness – Limit for cutting length – Automatic positioning of backgauge (8 programs – 80 sets) with digital display and automatic backgauge retraction – Motorized backgauge adjustment possible via 2 push buttons - Drive: 400 V / 22 kW - Electric foot switch - Space requirement without support arms: approx. W 4200 x H 2250 x D 2200 mm - Weight: approx. 8500 kg

Condition: used, functionality: unexamined, control type: NC control, actuation type: electric, Spare parts for early-model press brakes that were no longer needed during modernization. They are in good condition and can be reused in similar systems. These include CNC controllers, X- and Y-axis servo drivers, R- and Z-axis servo drivers, electric motors and encoders, and various circuit boards. Any individual parts are also available for purchase. Identification via photo and serial number. We can also purchase your faulty or unwanted press brake. Fgjdpfsx Ed H Ajx Actsi

Condition: good (used), CNC control, card slot, control cards, plug-in cards, circuit boards, control rack -Manufacturer: Robosoft, control rack from press brake HACO type PPES 30135 -Type: PC 10-39 -Power supply card: 338-0180V2 -CPU card: 338-0159V2 -Power supply card: 338-0200V3 -Individual components: see photos -Price/sale: complete -Dimensions: 315/215/H210 mm -Weight: 5.1 kg Fedpfx Acerd Admetsgi

Year of construction: 1994, condition: used, CNC control, PLC control, electronic modules, PLC module, plug-in card circuit board, circuit board, circuit board, main relay board -Manufacturer: Robosoft, main relay board from press brake HACO type PPES 30135 -Type: PC15 PPESV2 -Board: 338-0149V3 -Dimensions: 400/200/H85 mm Fgedpfx Acsrgbvnotei -Weight: 2.2 kg.

Condition: used, CNC control, PLC control, electronic modules, PLC module, plug-in card circuit board, circuit board, circuit board -Manufacturer: Baldor, circuit board electronic module circuit board from press brake HACO PPES 30135 -Type: TEM 060-06-01-1 -Individual components: see photos Fsdpfxjrd Adqj Actsgi -Dimensions: 165/100/H250 mm -Weight: 0.9 kg

Condition: good (used), functionality: fully functional, Year of construction: 2000, control type: NC control, controller manufacturer: Robosoft, controller model: SC7, working width: 4,050 mm, sheet thickness (max.): 6 mm, sheet thickness steel (max.): 6 mm, sheet thickness stainless steel (max.): 3 mm, back gauge: 750 mm, overall weight: 9,500 kg, Equipment: documentation/manual, emergency stop, foot remote control, safety light barrier, type plate available, For sale: 1 used hydraulic plate shear Manufacturer: Haco Fedpfx Asz Hv Skoctegi Type: HSLX 4006 Year of manufacture: 2000 Control system: SC7 Robosoft Technical data: Maximum cutting length: approx. 4,050 mm Maximum sheet thickness (steel 42/45): approx. 6.5 mm Maximum sheet thickness (stainless steel): approx. 3.0 mm Cutting angle: Adjustable from 0.5° to 3° Stroke rate: approx. 6 to 11 strokes/min Back gauge: approx. 750 mm, electric NC back gauge Includes: Cutting guard, documentation, light curtains, safety barriers, and some new spare parts (springs and seals for the lower clamping beam). Last inspection: 06/2026 The machine can be inspected at our warehouse in 09599 Freiberg.

Condition: like new (used), functionality: fully functional, Year of construction: 2008, HACO ERMS 2040 (83331) Technical condition: Good Stroke length: 2100 mm Tonnage: 40T Type of press brake: Synchronized Back gauge: X-axis CNC controlled, R-axis adjustable in height (manual) Back gauge length: 800 mm Throat opening: 400 mm Overhang: 200 mm Control system: ATS 595 (CNC control, NEW) Motor power: 4.1 KW 380V Tooling: New set of upper and lower blades Tool holder: European standard Serial number: 83331 Overall width: 3000 mm Overall height: 2250 mm Overall depth: 1800 mm Weight: 3500 kg Year of manufacture: 2008 Fgsdpfe Ahy Scox Actoi

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2008, overall weight: 3,000 kg, HACO ERMS 2040 (83331) Technical condition: Good Stroke length: 2100 mm Tonnage: 40T Type of press brake: Synchronous Back gauge: X-axis CNC controlled, R-axis adjustable in height (manual) Fgsdpfxo Adny Uj Actei Length of back gauge: 800 mm Daylight opening: 400 mm Overhang: 200 mm Control system: ATS 595 (CNC control, NEW) Motor power: 4.1 KW 380V Tooling: New set of upper and lower blades Tooling standard: European standard Serial number: 83331 Overall width: 3000 mm Overall height: 2250 mm Overall depth: 1800 mm Weight: 3000 kg Year of manufacture: 2008

Condition: refurbished (used), functionality: fully functional, Year of construction: 2010, machine/vehicle number: 21780, control type: CNC control, actuation type: hydraulic, back gauge: 750 mm, overall weight: 4,500 kg, total length: 3,800 mm, total width: 1,650 mm, total height: 1,750 mm, number of support arms: 1, warranty duration: 12 months, year of last overhaul: 2026, Equipment: CE marking, documentation/manual, emergency stop, finger protection, foot remote control, safety light barrier, type plate available, HACO HSLX 3006 in new condition Equipped with a new set of blades and a new control system. Fsdpfx Ajzxgu Njctsgi Technical condition: Excellent Capacity for regular steel: 6 mm (400 N/mm2) Length of back gauge: 750 mm Control system: SC 101 (NEW) Max. cutting angle: 3.0° Number of clamps: 18 Strokes per minute at smallest angle: 14 Strokes per minute at largest angle: 8 Working height: 770 mm Motor power: 7.5 kW Total length: 3800 mm Total height: 1750 mm Total width: 1650 mm Total width with CE guarding: 2700 mm Weight approx. 4500 kg Year of construction: 2010 Delivery and installation at your location are, of course, possible; delivery costs and any additional costs will be discussed.

Condition: like new (used), functionality: fully functional, Year of construction: 2015, machine/vehicle number: 83888, overall weight: 8,500 kg, total length: 4,100 mm, total height: 2,500 mm, power: 15 kW (20.39 HP), pressing force: 150 t, distance table to ram: 3,150 mm, Equipment: CE marking, documentation/manual, HACO ERM 36150 (83888) Technical condition: New Bending length: 3600 mm Tonnage: 150T Type of press brake: Synchronized Back gauge: Y1 + Y2 + X CNC controlled, R-axis manual Back gauge length: 800 mm Crowning: Yes (manual) Daylight opening: 400 mm Control system: EASYBEND 2D Motor power: 15.0 kW, 400V Tooling: Yes, multiple sets of bending tools Tooling standard: European standard Total length: 4100 mm Total depth: 1700 mm Total height: 2500 mm Weight: 8500 kg Serial number: 83888 Fgjdpfxszxgrbj Actoi Delivery and installation at your location are possible; delivery costs and any additional charges will be discussed.
