Used Emco Emcomill E350 for sale (148)

Condition: like new (used), Year of construction: 2009, functionality: fully functional, Tool Milling Machine Emco C40 Linear with Digital Display and Path Control – Excellent Condition, Tool Holders, CE-Compliant! Technical Data: >> Year of manufacture: 2009 Machine No.: BA1GX1201 >> Milling table clamping area: 800 x 400 mm Number of T-slots: 8 Slot width: 14 H8 Slot spacing: 50 mm Maximum load: 300 kg >> Infinitely variable spindle speeds: 10–5000 rpm >> Infinitely variable feed rate: 10–2000 mm/min Rapid traverse X-axis: 5000 mm/min >> Travel X/Y/Z: 450/350/400 mm >> Vertical and horizontal spindle – SK40 taper >> Manual drawbar system >> Quill stroke: 80 mm >> Weight: approx. 2000 kg >> Dimensions (approx.): 2.5 x 2 x 2 m >> Main drive motor: 7 kW >> Spindle brake >> Technical documentation, spare parts diagrams, operating manual Gbodpfxsyliffo Aa Eel >> Folding machine enclosure >> Coolant system >> Machine lamp >> Tool trolley with tool holders About the machine: Offered is a tool milling machine Emco C40 Linear with path control. This universal milling machine is in an almost mint condition. It comes from a government facility where it was only used minimally. The control system is very user-friendly. Switching from vertical to horizontal operation is very easy by simply swivelling away the vertical head. The Emco has been mechanically and electrically tested by us. Take the opportunity to view and test the machine under power at our facility.

Condition: like new (used), Year of construction: 2008, functionality: fully functional, Equipment: documentation/manual, Universal Milling Machine Emco C40 Linear with Digital Display and Path Control Very Good CONDITION CE-Compliant!! Technical Data: >> Year of manufacture: 2008 Machine No. BA1DW2501 >> Milling table clamping surface: 800 x 400 mm Clamping slots: 8 Slot width: 14 H 8 Slot spacing: 50 mm Max. load: 300 kg >> Infinitely variable spindle speeds: 10–5000 rpm >> Infinitely variable feed: 10–2000 mm/min Rapid traverse X: 5000 mm/min >> Travel X/Y/Z: 450/350/400 mm >> Vertical and horizontal spindle – SK40 >> Hydraulic drawbar system >> Quill stroke: 80 mm >> Weight approx. 2000 kg >> Dimensions approx.: 2.5 x 2 x 2 m >> Main drive motor: 7 kW Gbedjwxxdfspfx Aa Eol >> Spindle brake >> Technical documentation, spare parts diagrams, operating manual >> Hinged safety enclosure >> Coolant system >> Machine lamp >> Dividing head with tailstock >> Counterholder >> Röhm machine vice About the machine: For sale is a universal milling machine Emco C40 Linear with path control. This universal milling machine is in almost as-new condition. It comes from a government facility where it was only used occasionally. The control system is very user-friendly. Furthermore, the machine is equipped with hydraulic clamping in both vertical and horizontal modes. Switching from vertical to horizontal operation is very simple by folding away the vertical head. The Emco has been mechanically and electrically inspected by us. Take advantage of the opportunity to view and test the machine under power at our location.

Condition: like new (used), Year of construction: 2008, functionality: fully functional, Universal Milling Machine Emco C40 Linear with Digital Display and Path Control, Excellent Condition, CE Compliant! Technical Data: >> Year of manufacture: 2008 Machine No.: BA1DW2503 >> Milling table clamping surface: 800 x 400 mm Clamping slots: 8 Slot width: 14 H 8 Slot spacing: 50 mm Maximum load: 300 kg >> Infinitely variable spindle speeds: 10–5000 rpm >> Infinitely variable feed rate: 10–2000 mm/min Rapid traverse X-axis: 5000 mm/min >> Travel (X/Y/Z): 450/350/400 mm >> Vertical quill and horizontal spindle – ISO 40 (SK40) >> Hydraulic pull-in system >> Quill stroke: 80 mm >> Weight: approx. 2000 kg Gjdpswxxd Eofx Aa Eebl >> Dimensions (LxWxH): approx. 2.5 x 2 x 2 m >> Main drive motor: 7 kW >> Spindle brake >> Technical documentation, spare parts diagrams, operating manual >> Hinged enclosure >> Coolant system >> Machine lamp >> Indexing/Dividing attachment with tailstock >> Steady rest >> Röhm machine vice About the machine: Offered for sale is a universal milling machine Emco C40 Linear with path control. This universal milling machine is in almost as-new condition. It comes from a governmental facility where it saw only limited use. The control unit is very user-friendly. Additionally, the machine features hydraulic clamping both vertically and horizontally. Switching from vertical to horizontal setup is very straightforward by simply swinging away the vertical head. The Emco has been both mechanically and electrically inspected by us. Take the opportunity to view and test the machine under power at our location.

Year of construction: 2013, condition: ready for operation (used), A CNC 3-axis milling machine Emco is available. Travel X/Y/Z: 900mm/500mm/500mm, table dimensions X/Y: 1000mm/520mm, max. table load: 800kg, speed: 10000rpm, spindle power: 11kW, tool holder: SK40, rapid traverse: 24m/min. Machine dimensions X/Y/Z: approx. 2600mm/2450mm/2950mm, weight: approx. 4800kg, control: Siemens Sinumerik 828D. Documentation available. An on-site inspection is possible. Godpfsy H I Hxjx Aa Esbl

Condition: ready for operation (used), Year of construction: 2019, operating hours: 1,612 h, controller manufacturer: SIEMENS, number of axes: 3, This 3-axis EMCO MILL E350 was manufactured in 2019, featuring advanced Siemens control for precise operations. Ideal for complex milling tasks, this vertical machining center ensures reliable performance. Consider the opportunity to buy this EMCO MILL E350 vertical machining center. Contact us for more information. Gbedpfjyfu Uxsx Aa Eol

Condition: ready for operation (used), Year of construction: 2021, Control Unit Brand HEIDENHAIN Model TNC 620 Gbsdpfex D Dzdox Aa Eol Table Table load 1500 kg Main Drive Number of axis 4 Spindle Speed 15000 RPM Tool taper SK 40 Movement X-Axis Movement 1200 mm Z-Axis Movement 500 mm Y-Axis Movement 610 mm Tools Slots in storage 32 This 4-axis EMCO Emcomill EM 1200 was manufactured in 2021. It features a TNC 620 HEIDENHAIN control, a 15,000 rpm spindle, and a SK40 tool carrier. The machine offers X-1200, Y-610, Z-500 strokes and supports a maximum workpiece weight of 1500Kg. With 32 tools and 3300 operating hours, consider the opportunity to buy this EMCO Emcomill EM 1200 vertical machining centre. Contact us for more information. Application Types Milling

Condition: ready for operation (used), Year of construction: 2012, operating hours: 17,300 h, functionality: fully functional, machine/vehicle number: Q4A124301, travel distance X-axis: 350 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 300 mm, spindle speed (max.): 10,000 rpm, number of slots in tool magazine: 20, TECHNICAL DETAILS Gbodexa Araopfx Aa Eel Working Area Travel X-axis: 350 mm Travel Y-axis: 250 mm Travel Z-axis: 300 mm Min. distance spindle nose – table: 120 mm Max. distance spindle nose – table: 420 mm Table Clamping surface: 500 x 300 mm T-slots (number/size/pitch): 5x 45x100 mm Max. table load: 100 kg Table – floor distance: 880 mm Spindle Speed range: 50 – 10,000 rpm Spindle motor power (S6): 8.5 kW Spindle torque (S6): 41 Nm Tool holder: ISO 30 Tool Change Number of tool stations: 20 Max. tool diameter: 63 mm (without adjacent tools) Max. tool length: 200 mm Max. tool weight: 5 kg Tool change time: 2.5 s MACHINE DETAILS Dimensions & Weight Machine dimensions (L x W x H): 1,600 x 1,700 x 1,980 mm Weight: 1,970 kg Power supply: 9 kVA Operating hours: 17,300 h EQUIPMENT 30 holders 2 Gressel vices Note: The machine will remain powered until 21.09.2025.

Condition: excellent (used), EMCO Model E 900 Control type SIEMENS SINUMERIK 810 D Table dimensions 1000 x 520 mm Linear guides ✓ Travel X-axis 900 mm Y-axis travel 500 mm Travel Z-axis 500 mm Axes 3 Spindle speed 12,000 rpm Spindle mounting ISO 40 - DIN 69871 Tool magazine 20 places Coolant supply through the spindle ✓ Spindle motor power 13 kw Year 2017 CE machine ✓ Gsdpfx Aepgng Hea Esbl Overall dimensions 2570 x 2445 x H 2920 mm

Condition: excellent (used), Year of construction: 2019, travel distance X-axis: 450 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 350 mm, feed rate X-axis: 5,000 m/min, feed rate Y-axis: 5,000 m/min, feed rate Z-axis: 5,000 m/min, total height: 2,220 mm, total width: 2,300 mm, total length: 1,990 mm, table width: 400 mm, table length: 800 mm, table load: 300 kg, overall weight: 2,200 kg, CNC milling machine EMCO - FB 450 MC MACH-ID 9401 Make: EMCO Type: FB 450 MC Control: Siemens 828D ShopTurn Year: 2019 Universal milling machine with toolmaker precision  Small-batch production to complex workpieces Vertical milling head with hydraulic tool clamping Y and Z Milling Handwheel in all three axes Linear guideways in all three axes Workspace guard retractable with large chip shield Main motor with spindle brake    X - Travel: 450mm Y - Travel: 400mm Z - Travel: 350mm Table Length: 800mm Table Width: 400mm Table load: 300 Feed rate X-Axis:5000mm/min. Feed rate Y-Axis:5000mm/min. Feed rate Z-Axis:5000mm/min. Spindle Taper: 40ISO/Bt/Mk Power on spindle:10kW Speeds / ranges:5000Rpm Length: 1990mm Width: 2300mm Gedpfx Aajyub Udj Esbl Height: 2220mm Weight: 2200kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: excellent (used), travel distance X-axis: 450 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 350 mm, feed rate X-axis: 5,000 m/min, feed rate Y-axis: 5,000 m/min, feed rate Z-axis: 5,000 m/min, total height: 2,200 mm, total width: 2,300 mm, total length: 1,990 mm, table width: 400 mm, table length: 800 mm, rotational speed (min.): 5,000 rpm, table load: 300 kg, overall weight: 2,200 kg, Universal milling machine with toolmaker precision  Small-batch production to complex workpieces Vertical milling head with hydraulic tool clamping Y and Z Milling Handwheel in all three axes Linear guideways in all three axes Godpfx Aaoyucc Ne Eebl Workspace guard retractable with large chip shield Main motor with spindle brake    X - Travel: 450mm Y - Travel: 400mm Z - Travel: 350mm Table Length: 800mm Table Width: 400mm Table load: 300 Feed rate X-Axis:5000mm/min. Feed rate Y-Axis:5000mm/min. Feed rate Z-Axis:5000mm/min. Spindle Taper: 40ISO/Bt/Mk Power on spindle:10kW Speeds / ranges:5000Rpm Length: 1990mm Width: 2300mm Height: 2220mm Weight: 2200kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: used, Year of construction: 2014, turning diameter: 340 mm, turning length: 2,000 mm, total length: 4,270 mm, total width: 2,130 mm, total height: 1,840 mm, overall weight: 3,900 kg, 2-Axis Teach-In / Cycle controlled CNC Lathe CNC Control Fagor 8055 I Power TC Turning diameter 340/570 mm Turning length 2000 mm Center height 275 mm Spindle bore diameter 108 mm Spindle nose D 1-8 Spindle speed 0-2.500 R/min Gbjdjy Nz Diopfx Aa Esl Movement X-axis 310 mm Movement Z-axis 2000 mm If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail. Feel free to view our other advertisements for a complete overview of our stock.

Condition: used, Year of construction: 2003, control 840D-PCU 50 V1 3 coolant ja Gbedpfx Ajqn A Rroa Eel chip conveyor ja kW generator - rated current 110 A connected load 56 kW

Condition: excellent (used), With DRO Working travels 300 x 200 x 350 mm Table size 600 x 200 mm Godpoy Iz Rmofx Aa Eobl Spindle taper for collets ISO 30 Spindle speeds 80-2'200 rpm Misc.accessories MARCELS MASCHINEN CH

Condition: ready for operation (used), Year of construction: 2006, spindle speed (max.): 4,000 rpm, travel distance X-axis: 48 mm, travel distance Z-axis: 236 mm, spindle motor power: 750 W, total height: 400 mm, overall weight: 85 kg, number of axes: 2, Horizontal turning machine manufactured in 2006. This EMCO Concept Turn 55 features a maximum turning diameter of 52 mm and a maximum part length of 215 mm. It includes a tool turret with 8 positions and a spindle speed range of 120–4000 rpm. If you are looking to get high-quality turning capabilities, consider the EMCO Concept Turn 55 machine we have for sale. Contact us for further details. • Working area • Swing over bed: 130 mm • Swing over cross slide: 60 mm • Maximum turning diameter: 52 mm • Maximum part length: 215 mm • Spindle/Workholding • Spindle connection: factory standard • Spindle bore: 16 mm • Chuck diameter: 74 mm • Through hole in chuck: 15 mm • Automatic chuck diameter: 76 mm • Mechanical speed steps: 2 • Maximum torque: 14 Nm • Tooling • Tool turret positions: 8 • Tool holders (internal/external): 4/4 • Tool shank size: 12 x 12 mm • Boring bar diameter: 10 mm • Feeds/Drives/Accuracy • Feed drives: 3-phase stepper motors; resolution 0.0005 mm • Rapid traverse X/Z: 2 m/min • Working feed X/Z: 0–2 m/min • Feed force X/Z: 1000 N • Position scatter X: 0.008 mm • Position scatter Z: 0.008 mm • Tailstock • Quill stroke: 35 mm • Quill diameter: 22 mm • Taper: MK1 • Automatic tailstock quill stroke: 15 mm • Lubrication • Guideways: oil Gbedpfx Asy H Etcea Eel • Other lubrication points: grease • Pneumatics • Supply pressure: 6 bar • Connection: 10 mm • Electrical • Power supply: 115/230 V • Voltage tolerance: +5/-10 % • Frequency: 50/60 Hz • Connected load: 0.85 kVA • Max fuse: 12 A • Dimensions/Weight/Noise • Axis height above floor: 320 mm • Footprint: 840 x 695 mm • Sound pressure level: 65 dB(A) • Slight corrosion on machine components (common for comparable machines) • 4+4 station tool turret • Tailstock MK1 including quill and center point • 3-jaw chuck installed, no additional jaw sets included • Collets available, but no collet chuck • No drill chuck (MK1) and no drill bits included • Tools available as shown in images • 5.5 mm Allen key included • Siemens Sinumerik 810/840D Turn/Mill control (PC & CD) • License key included, likely transferable • Operating manual and machine documentation included • Data carriers included Technical Specification Driven Tools No Counter Spindle No

Condition: used, Year of construction: 2000, Technical details: turning diameter: 360 mm turning length: 520 mm total power requirement: 20 kW weight of the machine ca.: 3,8 t Gedjx Dcgxepfx Aa Esbl dimensions of the machine ca.: 3 x 2 x 2 m

Condition: used, Year of construction: 2001, Technical details: turning diameter: 220 mm turning length: 700 / 665 mm total power requirement: 17 kW weight of the machine ca.: 2,6 t dimensions of the machine ca.: 2,63 x 1,98 x 1,94 m greates pass round over bed: 430 mm Part length max.: 510 slide travel radial ( X-axis ): 160 mm bore diameter: 45 mm Godpfjx Aq Hkox Aa Esbl

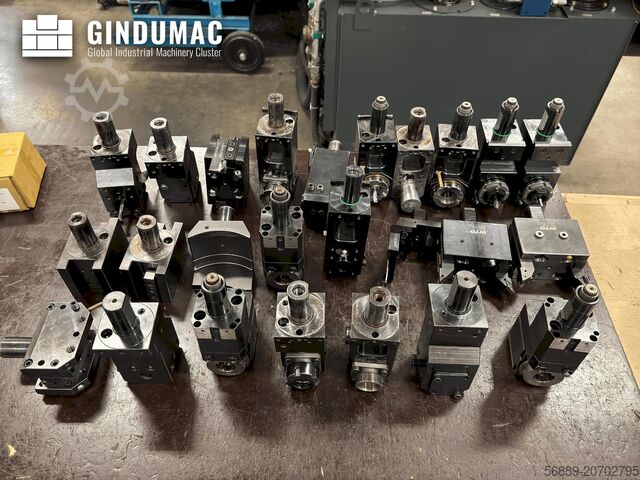

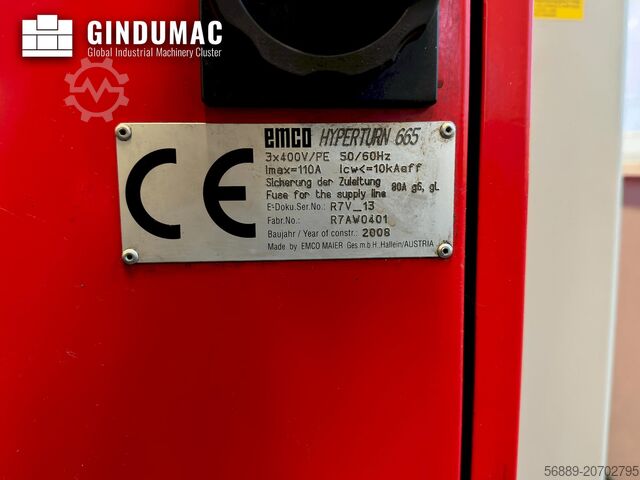

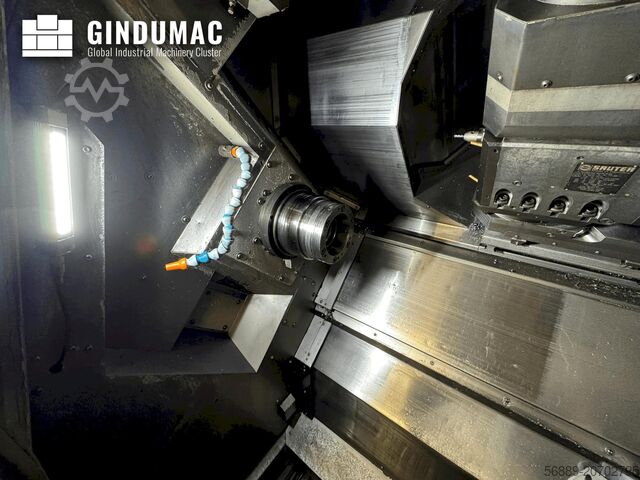

Condition: ready for operation (used), Year of construction: 2008, operating hours: 12,125 h, spindle motor power: 29,000 W, spindle speed (max.): 5,000 rpm, controller manufacturer: SIEMENS, controller model: SINUMERIK 840D, number of axes: 6, This 6-axis EMCO Hyperturn 665MC Plus turn-mill centre was manufactured in 2008. It features a multi-axis CNC system with Y-axis and B-axis for complete machining of turned and milled parts. Equipped with integrated spindle motors on both main and counter spindles, it offers a spindle speed up to 5000 min-1 for the main and 7000 min-1 for the counter spindle. Includes a 24-position tool magazine and SINUMERIK 840D control. If you are looking to get high quality turning and milling capabilities consider the EMCO Hyperturn 665MC Plus machine we have for sale. Contact us for more information about this machine. Additional equipment • Tool turret: 12-position tool VDI 30 radial with directional logic for up to 12 driven tool stations Gsdpfxey Hty Ds Aa Eobl • B-PowerMill: Motorised milling spindle with 24-position tool magazine, 210° swivelling range • Optional tool package: Includes stationary and driven tool holders, collet chuck holders, reducing sleeves, and operating spanners • Hollow clamping cylinder with draw tube / Part ejector and flushing through the counter spindle / Part pick-up device for finished parts • Part pick-up device for finished parts / Coolant device in the chip conveyor / High-pressure pump (14 bar) and fine filter • Flushing pumps (3.7 bar) / Control cabinet air conditioning unit / Electrostatic oil mist separator • Hydraulic unit / Machine light / Interface for foot switch / Signal lamp • Documentation including handwheel, PC keyboard, network preparation, tool monitoring, turning window, cleaning gun • Clamping device for main spindle: Hainbuch BZI 80 centre pull / Machine Benefits Technical Machine Benefits • Counter spindle: 22 kw / counter spindle: 0-7000 rpm • Main spindle: kk 6 (passage 65 mm) / counter spindle: kk 6 • Y-axis travel range: +/- 50 mm • C-axis for main and counter spindle • Counter spindle: 3-jaw chuck 210 mm • Approx. 40 capto c4 holders for milling spindle • Loader lm 1200 • Machine does not have shopturn programming. It must be programmed using iso code, whereby simple cycles are available for drilling, milling, swiveling, etc. • 12-station turret and a milling spindle

Condition: used, Year of construction: 2005, functionality: fully functional, For sale: CNC Turning Center EMCO Turn 325-II (Year 2005) Condition: Good, technically sound. Manufacturer: EMCO Maier GmbH (Austria) Model: Turn 325-II Year of manufacture: 2005 A compact and reliable CNC turning center suitable for metal part machining, threading, and milling in small to medium-sized production runs. Main technical specifications: (based on EMCO Turn 325-II model specification) Gbjdpfx Aexp Iyhja Esl Control: Siemens Max. turning diameter: 250 mm Max. turning length: 500 mm Spindle speed: up to 5000 rpm Tool turret: 12 positions (automatic tool changer) Max. tool length: 100 mm Motor power: approx. 15 kW Cooling: integrated cooling system Power supply: 400 V / 50 Hz Machine weight: approx. 3500 kg If you have additional questions, we are happy to assist.

Condition: excellent (used), EMCO Easy Cycle control Working travels 450 x 350 x 400 mm Table size 800 x 400 mm Boring and milling head turnable + / - 90° Gedpfxsy H Di Ae Aa Eebl Spindle taper SK40 Spindle speeds 10-5'000 rpm Misc.accessories MARCELS MASCHINEN CH

Condition: good (used), Hardness tester, fully functional Upon request, transport and loading can be organized throughout Europe at an additional cost. Prices are exclusive of VAT. Inspection possible by appointment. Please contact us – our team will be happy to assist you. Gedpfxsy H H Nfo Aa Eobl Machine purchase / sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINERY, MACHINE TOOLS, AND MORE. Are you looking for a high-quality yet affordable machine for your production? Or do you wish to sell your equipment? For further information or contact options, please reach out via the contact form.

Condition: ready for operation (used), Year of construction: 2000, travel distance X-axis: 185 mm, travel distance Y-axis: 125 mm, travel distance Z-axis: 200 mm, total height: 850 mm, total width: 780 mm, overall weight: 250 kg, spindle speed (max.): 2,000 rpm, spindle motor power: 750 W, product length (max.): 800 mm, number of axes: 3, This 3-axis EMCO PC MILL 125 was manufactured in 2000. It features an X-axis travel of 185 mm, Y-axis travel of 125 mm, and Z-axis travel of 200 mm. The machine includes an automatic tool changer with 10 stations and a clamping area of 420 x 125 mm. If you are looking to get high-quality machining capabilities, consider the EMCO PC MILL 125 vertical machining centre we have for sale. Contact us for further details. • Tool changer: Automatic, 10 stations • Tool holder: SK 30 (DIN 2080 / DIN 69871) • Feed rate (X/Y/Z): 5–500 mm/min • Rapid traverse: 500 mm/min • Clamping area: 420 x 125 mm • Max. workpiece weight: 10 kg • Power supply: 230 V / 50 Hz Technical Specification Taper Size SK 30 Gsdpfxey E S Uqs Aa Esbl

Condition: ready for operation (used), Year of construction: 2005, spindle speed (max.): 5,000 rpm, bar diameter (max.): 26 mm, total width: 2,200 mm, total height: 2,200 mm, travel distance X-axis: 78 mm, travel distance Y-axis: 210 mm, overall weight: 2,900 kg, controller manufacturer: SIEMENS, controller model: SINUMERIK 840D with EMCO specials, number of axes: 4, This EMCO Turn 420 MC Plus was manufactured in 2005. It features a maximum turning diameter of 100 mm and a maximum part length of 600 mm. The machine is equipped with a powerful spindle speed range of 0–5000 rpm and a tool changer with 24 stations. If you are looking to get high-quality turning capabilities, consider the EMCO Turn 420 MC Plus multi-spindle turning machine we have for sale. Contact us for further details. • Condition: Very good; connected and ready for testing • Tech specs: • Swing above slide: 160 mm • Main spindle to counter-spindle: 408 mm • Max. turning diameter: 100 mm • Max. part length: 600 mm • Max. bar-stock diameter: 26 mm • Travel: • X/Z: 78 mm • Main spindle: • Max. torque: 38 Nm • Spindle adapter: 70 h5 • Spindle bearing (front ID): 60 mm • Spindle bore: 38 mm • Counter-spindle: • Speed range: 0–5000 rpm • Torque: 38 Nm • Spindle adapter: 70 h5 • Spindle bearing (ID): 60 mm • Clamp length (Ø26 mm): approx. 100 mm • Travel (Z2): 233 mm • C-axis: • Resolution: 0.001° • Rapid traverse: 1000 rpm • Positioning: 3° • Drive power: • Power: 9 kW • Tool changer: • Tool stations: 2 × 12 • VDI shaft: VDI 16 • Tool size (square): 16 × 16 mm • Boring bar diameter: 25 mm • Indexing time: 0.4 sec • Driven tools: • Speed range: 0–5000 rpm • Max. torque: 3 Nm • Max. power: 1.6 kW • Number of tools: 2 × 4 • Feed drives: Gbsdpfx Aey E Sp Usa Esl • Rapid traverse X/Z; X1/Z1: 12/20 m/min • Feed force X: 3000 N • Feed force Z: 3000 N • Acceleration time: 0.1 sec • Coolant system: • Tank capacity: 200 L • Pump power: 0.57 kW • Power consumption: • Connected load: 15 kVA • Supply pressure: 6 bar • Supply rate: 300 L/h • Dimensions: • Center height (top/bottom): 1179 / 1030 mm • Footprint (W × D): 2200 × 1386 mm Additional equipment • Set of accessories and tool holders included Technical Specification Counter Spindle Yes Driven Tools Yes

Condition: used, Year of construction: 2012, turning diameter 550 mm turning length 1500 mm control Fagor 8055 x-axis 108 mm z-axis 3000 mm Gbsdpfoy N D Sijx Aa Eol

Condition: good (used), Year of construction: 1993, Emco Turn 360 Siemens R5AC9D1004 Gedpfjy H Ay Tjx Aa Ejbl Year of manufacture: 1993

Condition: ready for operation (used), Year of construction: 2018, spindle motor power: 22,000 W, spindle speed (max.): 5,000 rpm, travel distance X-axis: 260 mm, travel distance Y-axis: 80 mm, travel distance Z-axis: 610 mm, total height: 2,060 mm, total width: 2,800 mm, overall weight: 6,500 kg, controller manufacturer: SIEMENS, controller model: SINUMERIK 828D, product length (max.): 3,450 mm, number of axes: 4, This 4-axis EMCO EMCOTURN E65 was manufactured in 2018. It features a maximum machining diameter of Ø500 mm and a maximum machining length of 520 mm. The machine is equipped with a Siemens SINUMERIK 828D control system and offers driven tools for enhanced versatility. If you are looking to get high-quality turning capabilities, consider the EMCO EMCOTURN E65 turn-mill centre we have for sale. Contact us for further details regarding this machine. • Work area: • Swing over bed: Ø610 mm • Swing over cross slide: Ø360 mm • Distance between centers: 682 mm • Distance between spindle noses: 840 mm • Max. machining diameter: Ø500 mm • Max. machining length: 520 mm • Max. bar capacity: Ø65 mm • Main spindle (belt driven): • Torque (40% DC): 305 Nm • Spindle nose: A2-6 • Bearing Ø: 105 mm • Spindle bore: Ø73 mm • Max. chuck size: Ø250 mm • Counter spindle: • Speed: 60–5000 rpm • Power (40% DC): 11 / 16.5 kW • Torque (40% DC): 80 / 125 Nm • Spindle nose: A2-6 • Spindle bore: Ø73 mm • Max. chuck: Ø200 mm • C-axis: • Resolution: 0.001° • Rapid speed: 100 rpm • Turret (VDI30): • Tool stations: 12 • Driven tools: yes • Max. speed: 5000 rpm • Max. power: 6.7 kW • Max. torque: 25 Nm • Indexing time: 0.2 s • Rotary tools (VDI30): • Speed: 0–5000 rpm • Torque: 25 Nm • Power: 6.7 kW • Feed drives: • Rapid traverse (X/Y/Z): 30 / 15 / 30 m/min • Feed thrust X: 5000 N • Feed thrust Z: 7000 N • Acceleration: 0.4 m/s² • Tailstock: • Travel: 500 mm Gjdpfx Ajy Enr Esa Eobl • Force: 8000 N • Taper: MT4 • Coolant system: • Tank capacity: 230 l • Pump power: 0.57 / 2.2 kW • Pressure: 3.5 bar (optional 14 bar) • Flow rate: 15 / 65 l/min • Hydraulic unit: • Tank: 10 l • Max. pressure: 50 bar • Pneumatics: • Pressure: 6 bar • Air consumption: 5 l/min • Power supply: • Voltage: 3x400V • Frequency: 50/60 Hz • Connected load: 25 / 39 kVA • Noise level: • Average: 75 dB(A) • Key features: • C-axis main spindle • Driven tools • Hydraulic tailstock • ShopTurn programming • USB + Ethernet • 15" touchscreen + 3D simulation • CE documentation Additional equipment • Bar feeder: EMCO SL1200 • Bar diameter: 8–95 mm • Bar length: 150–1200 mm • Feed rate: 60 m/min • Capacity: 10 bars Ø55 mm / 70 bars Ø8 mm • Weight: ~500 kg • Collet chuck: HAINBUCH BZI 100 (A2-8) • Max. capacity: Ø100 mm • Incl. part stop • Max. speed: 5000 rpm • Parts catcher: • Max. length: 175 mm • Max. diameter: 65 mm (optional 95 mm) • Max. weight: 4.5 kg • Chip conveyor: • Length: 1200 mm • Suitable for: long chips, snarled chips, dry & wet machining • Coolant pistol (Multiflow): • Adjustable jet + solenoid valve • Magnetic holder + spiral hose Technical Specification Taper Size VDI 30 Counter Spindle Yes Driven Tools Yes
