Used Cma Robot for sale (17)

Condition: ready for operation (used), functionality: fully functional, Equipment: documentation/manual, SECOND-HAND RECONDITIONED 5 AXIS ROBOT CMA MOD. ROBY 5EX-R - N. 5 controlled axis Nwsdpfjt U Ngajx Aaheb - N. 3 supports - Wrist capacity 3 kg Carrousel - N. 3 supports - Arm capacity 25 kg. - With manual and CE certificate RETROFIT 2024

Condition: new, Hydraulic Thread Tapping Machine Manufacturer: CMA Model: RHR 24D Plus Nwodpfxeyazfye Aahjb Condition: New machine Standard features: - Ball-bearing parallel arm - Hydraulic unit - Digital speed display - Digital depth adjustment - Clamping table 800 x 600 mm (T-slot: 19 mm) - Quick-change chuck - Micro spray system for tool lubrication - Base frame - Operating manual

Condition: like new (used), Year of construction: 2022, functionality: fully functional, machine/vehicle number: 4040, travel distance X-axis: 7,500 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 750 mm, total width: 3,000 mm, total length: 9,000 mm, total height: 2,000 mm, feed length X-axis: 7,500 mm, feed length Y-axis: 600 mm, feed length Z-axis: 645 mm, spindle speed (min.): 1 rpm, spindle speed (max.): 5,000 rpm, input voltage: 400 V, power of the servo motor: 13,100 W, Equipment: rotational speed infinitely variable, sliding door, CMA Drilling/Milling Machine – Efficient Processing for Metalworking Shops & Fabricators Nwodeyc R Rkepfx Aahsb The CMA drilling/milling machine is the ideal solution for metalworking shops and fabricators aiming to process their components quickly, precisely, and economically. With the ability to directly import STEP data or program manually, workpieces can be produced without detours – perfect for single parts, series production, and special constructions. A processing length of up to 7,500 mm and a generous working envelope of 600 mm in both X and Y axes allow multiple parts to be clamped and machined in a single setup. This significantly reduces setup times and boosts productivity. An integrated 16-position tool changer provides maximum flexibility for variable machining operations and noticeably cuts cycle times. Your advantages at a glance: ✔ STEP import or manual programming ✔ Processing length up to 7,500 mm ✔ 600 mm in X and Y axes ✔ 16-position tool changer ✔ Multiple components clampable at once ✔ Ideal for steel and metal construction ✔ High productivity & short setup times

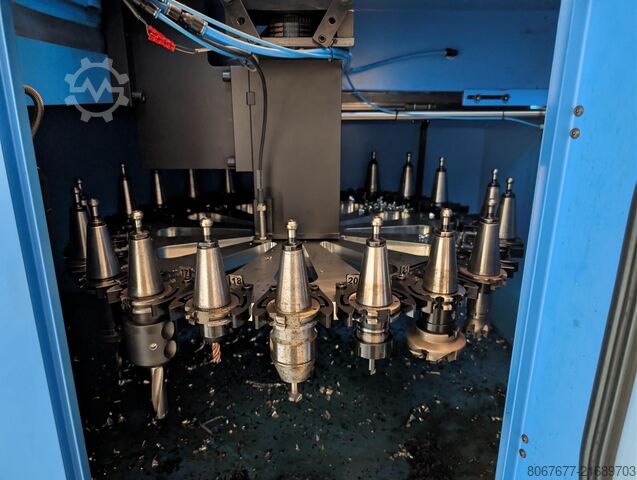

Condition: used, Year of construction: 2022, functionality: unexamined, CNC long-bed machining center, model CMA 3RD-CNC, year of manufacture 2022, serial number 4063. The machine is suitable for drilling, thread cutting, milling, and other machining processes on large-format workpieces. Equipped with a robust steel frame construction and industrial PC-based control system from Omron. Features: Spindle: 13.1 kW, BT-40 taper, speed approx. 2,000–6,000 rpm. Rapid traverse speed: X and Y axes up to 30 m/min. Travel distances: X = 6,000 mm, Y = 600 mm, Z = 450 mm. Drilling capacity: Ø22–Ø42 mm. Thread cutting up to M30. Table width: 580 mm with T-slots. Electrical: 400 V, 50/60 Hz, 32 A, 3-phase. Control voltage 24 V. Weight approx. 7.2 tons. Includes tool changer with carousel magazine. Nodpsx N Ncgefx Aahswb

Condition: new, metric thread diameter (min.): 3 mm, metric thread diameter (max.): 16 mm, overall weight: 500 kg, feed length X-axis: 3,000 mm, feed length Y-axis: 1,500 mm, feed length Z-axis: 200 mm, torque: 24 Nm, spindle speed (max.): 3,000 rpm, spindle speed (min.): 50 rpm, power: 0.005 kW (0.01 HP), The CMA 3-axis controlled tapping center is designed for the post-processing of laser-cut sheet metal parts and complete processing of small parts and tubes, for example. The machine offers the following processing options: - Thread cutting - Drilling (standard / with chip breaking / hollow profile cycle) - countersinking - Flow drilling (with optimum feed curve) - reaming - Simple graphical programming - Import of 2D DXF or DWG files - Machine table according to System 28 (similar to Demmeler and Siegmund welding tables, among others) Njdpfx Ajrbz T Njahowb - Radial compensation of the tool by means of patented tool holder (accessory) - Tool probe for length measurement and as a breakage detector - Intuitive safety system using light barriers Standard version: Automatic tool changer with 10 positions, mounted on the machine portal

Condition: refurbished (used), functionality: fully functional, machine/vehicle number: 279/02, SECOND-HAND RECONDITIONED 5 AXIS ROBOT CMA MOD. ROBY 5EX-G - N. 5 controlled axis Nwodjx Rrg Ropfx Aaheb - N. 3 supports - Wrist capacity 3 kg Carrousel - N. 3 supports - Arm capacity 25 kg. - With manual and CE certificate RETROFIT 2025

Condition: new, Year of construction: 2024, travel distance Y-axis: 600 mm, travel distance Z-axis: 450 mm, - Simple graphic programming, including GoTo function in manual mode - Machining lengths from 3000 - 16500mm, depending on version - Free programming in DIN/ISO (G commands) - 2-axis interpolation for X/Y-axis, including arcs - 3-axis linear interpolation (X/Y/Z) - 3-axis interpolation (X/Y/Z) for helical milling and thread milling - Rapid traverse X-axis = 30 m/min., Y-axis = 25 m/min. Main spindle BT 40 - 5 bearings, diameter 110/60 mm (3x angular contact ball bearings 7212, 2x deep groove ball bearings 6212) - Suitable for both high axial and radial loads = drilling and milling - Maximum tool length : 290 mm - Maximum tool diameter : 88 mm Guide X-axis - 2 pieces 45 mm linear guides with 2 full ball bearing carriages each X-axis drive - helical precision rack, travel 3,000 to 16,500 mm Nedpfx Aaerb Afajhewb Y-axis guide - 2 35 mm linear guides, each with 2 fully spherical carriages Y-axis drive - Ball screw diameter 25 mm, travel 600 mm Z-axis guide - 2 35 mm linear guides, each with 2 fully spherical carriages Z-axis drive - Ball screw diameter 32 mm, travel 450 mm Standard version Automatic tool changer with 10 positions, mounted in the machine column

Condition: used, Year of construction: 2008, Used CMA drilling center Type: TRD 40 CN 9000 Table length: 9000 mm Maximum capacity: 40 mm Nwedowc Ndwspfx Aaheb Automatic tool changer Year of manufacture: 2008

Condition: excellent (used), Year of construction: 2010, functionality: fully functional, CMA automatic coordinate drilling machine type GRD 40 CNC 3030 Nodpfow Tidkex Aahewb table size: 3000x3000 mm X-axis speed: 18 m/min Y-axis speed: 12 m/min Z-axis speed: 5 m/min spindle-to-table distance: 160-660 mm table height: 770 mm Drilling capacity: Steel 60: 40 mm Cast iron: 40 mm spindle speed: 750-3000 rpm Spindle taper: BT40 motor power: 7.5 kW total machine weight: 8,500 kg

Condition: refurbished (used), Year of construction: 1997, 1997 CMA Roby 5 EX Anthropomorphic painting robot (self-learning) complete with electrostatic gun and generator. Nsdpfjxwctfex Aahswb Sames generator and gun.

Condition: as good as new (ex-display), Year of construction: 2022, Working width: 530 mm Planer block: Tersa Number of knives: 4 Planing table length: 2300 mm Planing stop angle adjustable: yes Folding up of the planing tables: electric Maximum thickness throughput of the thicknesser: 250 mm Thicknessing table height adjustment: electric Planing thickness display: digital Feed speed: 5 / 7 / 9 / 12 m/min Infeed roller: steel Outfeed roller: rubber Pressure beam: continuous Table rollers: no Motor power: 7.5 kW Motor brake: yes, automatic Nwodsh Ucg Uspfx Aaheb Extraction connection: 140 mm Machine length: 2300 mm Machine width: 990 mm Weight: 850

Condition: good (used), Year of construction: 2014, machine/vehicle number: 5890, Offer 25118 Technical specifications: - Tapping capacity approx. M 3 - M 8 Nwedpswmnhpsfx Aahjb - Working range (swivel radius) approx. 1800 mm - Multi-position head - Speeds 8 - 700 rpm - Quick-change tool holder size 1, diameter 19 mm - Pneumatic connection 6 - 8 bar - Table base H 900 mm - Space required approx. W 1000 x H 2000 x D 1000 mm - Weight approx. 100 kg

Condition: good (used), Year of construction: 2019, machine/vehicle number: 6284, Offer 24033 Technical data: - Tapping capacity M 3 - M 24 - Working range (swivel radius) 1800 mm - Infinitely variable speed adjustment up to 475 rpm - Digital depth adjustment - Torque 140 Nm - Quick-change tool holder size 2 diam.31 - various inserts for quick-change tool holder - Table surface 1200 x 990 mm - Table height 830 mm - Space requirement approx. W 1250 x H 2000 x D 1000 mm Nwsdpfx Aort Unwoaheb - Weight approx. 300 kg

Condition: used, Year of construction: 2000, Painting plant consisting of: - Painting robot brand CMA, mod. Roby 5 Ex G, used, tested Nwodpfx Aeit Rrrsahob - Circular dry filtering cabin, complete with extractors, water scrubber, external fume extractor for solvent storage, scale and various accessories - electrical panel, use and maintenance manuals, wiring diagrams, etc.

Condition: used, Year of construction: 1999, CMA Roby5-EX-R Painting robot, complete. Nwjdpfjq Sdc Uox Aahjb The supply does not include gun, painting pump and hf generator

Condition: new, Year of construction: 2025, Speeds: Level 1: 37-185 rpm Nedpevu Uhtsfx Aahjwb Level 2 150-750 rpm Torque in Nm 165+42 Holder size 2 diameter 31 Capacity M3-M24 Working range R = 1800mm Working height (without wheels) 805mm Includes: Ball-bearing, wear-free parallel arm radius: 1800mm 400V/3ph hydraulic system Clamping table 800x600mm with 3 T-slots 19mm Working and return speeds can be set separately electronically (using a frequency converter) Digital depth setting D-Touch, work cycle of your choice Manual: direction of rotation right/left using push buttons Automatic: digital input of depth, the direction of rotation is reversed at the set depth. Digital speed display (in the D-Touch control) Micro spray system for tool lubrication (integrated in the machine head) Quick-change holder for Bilz thread cutting holder with slip clutch, among others incl. 1 set of running wheels 1 set of thread cutting holder M4-M22/24 1 piece reducing ring for M4

Condition: new, metric thread diameter (min.): 3 mm, metric thread diameter (max.): 24 mm, Model RE16 to M16, model RE24 to M24 - ball bearing mounted wear-free parallel arm with radii of 1270 or 1800mm - Connection 230V / 1Ph - Infinitely variable speed adjustment - Digital speed display - digital depth control with memory for 5 programs Nwsdpfx Aajrb Akmshob - quick-change holder according to DIN standard Options: Micro spray system for model 1800 Cast iron table Wheels for cast iron table Multifunctional head for cutting at any angle
