Straightening center

Vollmer RC 100

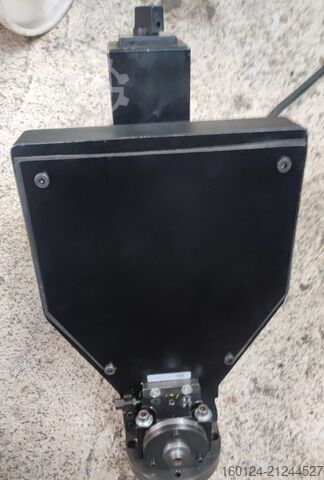

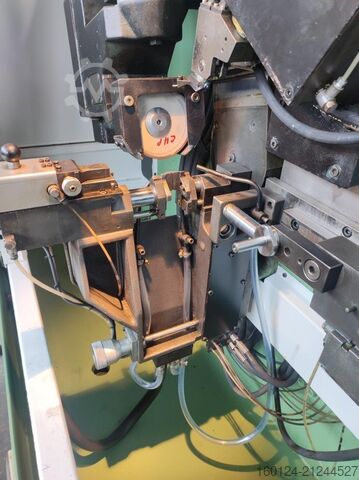

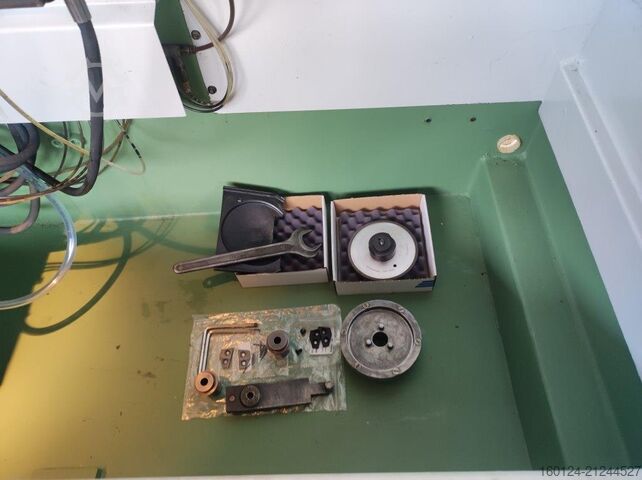

Condition: reconditioned (used), Year of construction: 2005, operating hours: 6,000 h, functionality: fully functional, saw blade diameter: 810 mm, grinding wheel diameter: 125 mm, CHP250 is an automatic machine for grinding the complete tooth geometry of carbide-tipped circular saw blades. Version with two CNC axes and a full enclosure. Technical specifications: Circular saws Outer diameter: 80 to 810 mm Bore diameter: 10 to 220 mm Blade thickness: up to 8 mm Tooth pitch: 6 to 120 mm Rake angle: -30° to +50° Clearance angle: 5° to 45° Tooth height difference: up to 3 mm Gedpjykmxtofx Ah Sstw Back rake bevel: up to 45° Face bevel: up to 15° Grinding path: up to 20 mm Grinding wheel diameter: 125 mm CHP250 On the CHP250, two CNC axes control the bevel grinding and the infeed of the grinding wheel. This is a prerequisite for grinding any tooth geometry on the front (face) or back (flank) of the tooth in a single pass. Central lubrication and exhaust system are included. For effective coolant (oil or emulsion) cleaning, a Seitz-brand band filter system from 2010 is included. Up to 3 machines can be connected to the unit. The base is made of stainless steel. The condition is very good.

Condition: used, Gatter Saw Sharpening Machine Vollmer CNHV Year of manufacture: 1978 Gatter saw blade width: 60-160 mm Toothing length: max. 1450 mm Tooth pitch: 14 – 40 mm Tooth height: max. 25 mm Rake angle: 0° - 30° Blade thickness: 0 – 6 mm Grinding wheel: diameter 200 mm Working speed: 30, 50, 75 teeth per minute Tooth forms: 3 pcs Connected load: 2.1 kW Weight: 500 kg Including gatter saw set device Lorroch SGB 6 (similar to Meinert PH6D) year 1983 Gtsdpfx Aexvz R Heh Ssw

Condition: excellent (used), Carbide saw grinder VOLLMER model CHD350 Gtodpfex Hp Scox Ah Sew

Condition: used, Year of construction: 2013, Suitable for the automatic processing of PCD-tipped milling cutters, shank tools, disc-shaped tools such as saws, milling cutters etc. using the wire-electro-erosion process. Accessories: Total enclosure, Adaptation to A-axis on HSK63-A,E incl. test mandrel Ø 25 mm System HSK63 A,E Integrated loading system and workpiece magazine for automated processing of up to 12 workpieces. Probe, Automatic central lubrication, Coolant system for dielectric fluid, Automatic fire extinguishing system, Mist extractor, Machine lamp. Cutter outside diameter: Max. 320 mm Shank tool diameter: 10-320 mm Outside diameter disc-shaped tools: Max. 320 mm Cutting length: max. 480 mm Tool weight: max. 20 kg X axis travel: 500 mm Y-axis travel: 300 mm W-axis travel: 200 mm A-axis rotation range: 360 ° E-axis swivel range: 180 ° Required space for the machine: 2535 x 2200 x 2280 mm Weight approx.: 4800 kg Gtsdpfsylkvlsx Ah Sow Connected load: 5,4 kW colour: gray RAL 7035/7043

Condition: good (used), functionality: fully functional, Year of construction: 2003, Do you have a problem with the resonator on your TRUMPF laser cutting machine with 5 kW output? Then you’ve come to the right place! TruFlow 5000 / 5 kW resonator for TRUMPF laser cutting machines (L 3050 / L 4050 / L 6050 / TruLaser 5030 / 5040 / 5060) Power measurement during machine dismantling: 5,462 W (end of October 2025) (The machine still delivered 4,930 watts at the cutting head. The resonator is in very good condition in terms of output.) Leak test: 0.02 hPa If you would like to replace your resonator or if you have issues with your turbine, feel free to contact us. All parts are available at short notice. Gtodpfoxzivbex Ah Ssw
