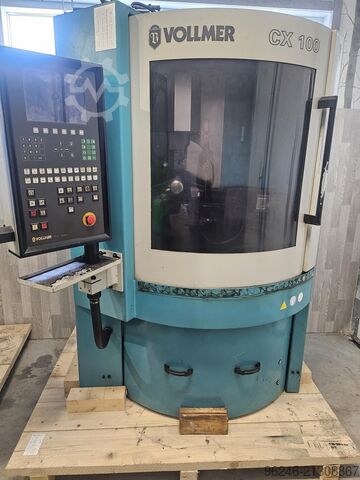

Carbide saw grinder

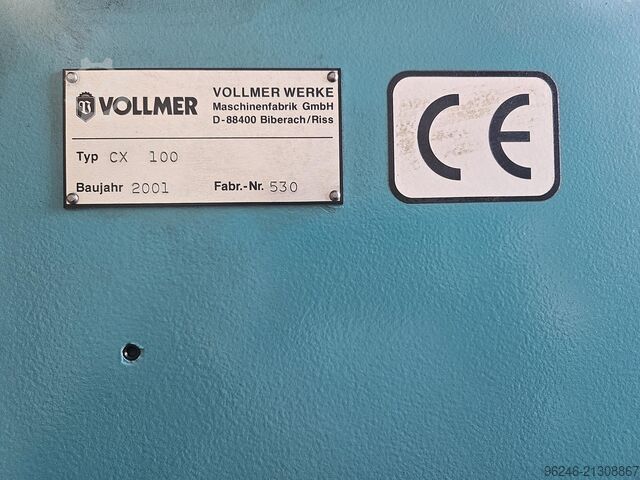

VOLLMER CX100

Condition: excellent (used), Carbide saw grinder VOLLMER model CX100 Rcodpfx Adezi U Ifoqjd

Year of construction: 1980, condition: good (used), Stellite forming machine VOLLMER GF10U Rcsdpfxjgxb Ebo Adqod Sheet thickness: 1 to 4 mm Width of band saw blades: 60 to 420 mm Circular saw blades: 300 to 1,200 mm diameter Electric feed drive via geared motor

Condition: used, Iseli BS 5 sharpening machine Rcjdpfx Ajwgh H Eodqjd Iseli EBW leveling machine

Condition: excellent (used), WEINIG Rondamat 909, S/N 93362, Year 2001 – Ref. No. 119131 WEINIG Rondamat R 909, Machine for the automatic sharpening of straight knives in planing heads • Automatic indexing • Planer head diameter min. 85 mm to max. 225 mm • Max. tool length 330 mm (table stroke 440 mm) • Unlimited number of cutting edges • Continuously adjustable clearance angle 15° – 35° • Grinding spindle speed n=4,000 rpm • Grinding wheel D=125 mm, bore d=20 mm • Grinding motor 1.1 kW, n=2,850 rpm • Feeding motor 0.053 kW, n=1,300 rpm • Grinding feed rate 650 mm/min • Indexing motor 0.033 kW, n=1.00 rpm • Freely selectable grinding passes per tool 1 – 5 • Coolant pump motor 0.065 kW, n=2,900 rpm • Coolant / tank capacity approx. 115 liters • Mounting arbor D=50 x 330 mm • Machine complete with accessories Machine dimensions Redpfjwvql Njx Adqscd • Width 1,150 mm • Depth 820 mm • Height 1,200 mm • Weight 450 kg Condition: 100% function tested = AS NEW condition Price: On request Payment: Prior to handover/loading Inspection: At any time by prior arrangement Subject to error and prior sale

Condition: like new (used), Hollow face carbide saw grinder VOLLMER model MHZ Rcjdpfx Adshcw N Eoqod

Condition: used, Year of construction: 2019, Suitable for the automatic grinding of HM circular saw blades on the face and top in one setting. All known tooth geometries (flat, alternate, trapezoidal teeth, etc.) can be ground automatically and in one pass. Accessories: Total enclosure, Rjdpfx Aoyvgf Dedqecd Coolant system, Equipment for robot operation with automatic loading door ND 230 loader Measuring device for measuring saw blades Chip breaker grinding attachment Stepless variable grinding speed of the two grinding spindles from 1600 to 5500 rpm. Grinding speed and grinding path stepless adjustable for each machining surface on the tooth. Automatic central lubrication Software package for oscillation grinding at rake and clearance angles Automatic shut-off flap Automatic fire extinguishing system Electrostatic oil mist separator N281 Measuring tool Sawblade holder with guide bushing Ø 16 mm Saw holder >ø180 Sawblade holder with guide bushing Ø 16 mm Saw holder >ø320 Grinding wheel mounting flange for chip breaker Centering ring for mounting bolt Ø 16 mm for saw bore Ø 32 mm Centering ring for mounting bolt Ø 16 mm for saw bore Ø 40 mm Centering bolt Ø 10 mm Machine light Sawblade blow-off pistol Data input station DES 400 3 loading trolleys with 30 mm mandrels Oil drip tray Automatic central lubrication. Saw blade diameter: 200 - 840 mm Bore diameter: from 16 mm Sheet thickness: up to 15 mm Tooth pitch: from 6 to 180 mm Cutting length: up to 25 mm Rake angle: from - 35 ° to + 20 ° Clearance angle: 0 ° - 25 ° Angled grinding on the back of the tooth: up to 45 ° Angled grinding on the tooth face: up to 30 ° Angled grinding on the negative tooth face: up to 30 ° Tooth height difference: any Grinding wheel diameter: Max. 200 x 32 mm Dimensions W x D x H: 2770 x 1900 x 2058 mm Weight: 4700 kg Connected load: 8.7 kVA (400 V / 50 Hz) colour: gray RAL 7045 / gray RAL 7047

Condition: like new (used), Year of construction: 2024, functionality: fully functional, Used CA200 grinding machine 2 CNC-controlled axes for sharpening double and single knives Redpfx Adeyupv Ajqscd rear pusher, mist extraction, automatic blade toothing motorized yoke, variable grinding wheel speed blade loading arm

Condition: new, Year of construction: 2025, Dimensions (L/W/H) 1400x1300x1800 mm Rodjv A Hgkjpfx Adqscd Weight 0 kg Total power requirement 2,2 kw

Condition: new, Year of construction: 2025, Dimensions (L/W/H) 1800x930x1500 mm Weight 700 kg Total power requirement 1,65 kw Rcodpfx Ajv A Hgqsdqsd

Condition: used, Year of construction: 2020, Suitable for fully automatic grinding or new toothing and chamfering of HSS and segment circular saw blades as well as solid carbide circular saw blades, jig saw blades / thin-cut saws with chip breaker (diameter from 200-500 mm, tooth pitch from 8-30 mm), in plunge grinding using CBN or diamond grinding wheels. Accessories: Machine with total enclosure and integrated machine room lamp, Loading system including 2 loading mandrels Ø 32 mm, Oil conversion including aerosol extinguishing generator and oil conversion kit, Control cabinet cooling unit, Automatic central lubrication, Marx VTG 0.32 electrostatic mist extractor, HSS/HM fine filter system including external filter unit, with integrated 300-liter coolant tank and cooling unit, Polar 2.9 Software for all standard curved and pointed teeth, Signal light to indicate operating status, Automatic switching of peripheral speed between CBN and DIA grinding wheels, Rcjdsyvgc Njpfx Adqsd F-1477 sawblade holder, Various spacers, Oil collecting pan. Saw diameter max: (40) 130 - 850 mm Saw diameter (unmanned): (75) 130-520 mm Tooth pitch: 1 - 40 mm Tooth height: max. 17 mm Number of teeth: 2 - 998 Saw blade thickness: up to 8 mm Loading capacity: 40 saw blades Grinding wheel diameter: (CBN or DIA - 14F1) Ø 200 mm Grinding wheel bore: 32 mm Coolant pressure: 6 bar Coolant tank: approx. 300 L Drive power grinding motor: 3 kW Connected load approx.: 6.5 kW (400 V / 50 Hz) 8.9 kVA Weight approx: 2000 kg Dimensions W x D x H approx.: 2400 x 1700 x 2200 mm colour: Grey
