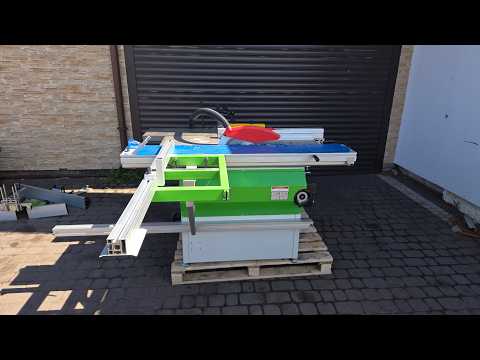

PERFECT multifunction machine tool

perfect 5 in 1

PERFECT Multi-Function Machine

JOINTER:

- Planing width: 310 mm
- Motor power: 3 kW
- Max. width: 310 mm
- Max. chip removal: 5 mm
- Main shaft speed: 5000 rpm
Bwodjy I Efhopfx Abbel
- Shaft diameter: 75 mm, 3-knife
- Adjustable fence: 0°-45°
- Table dimensions: 1300 mm x 310 mm

THICKNESSER:

- Planing width: 310 mm
- Feed speed: 8 m/min
- Max. planing height: 180 mm

PANEL SAW WITH SCORING UNIT:

- Motor power: 3 kW
- Main blade size: 250 mm x 30 mm
- Scoring blade size: 88 mm x 30 mm
- Max. cutting height: 65 mm
- Max. cutting height at 45°: 45 mm
- Main spindle speed: 4050 rpm
- Scoring unit speed: 6300 rpm
- Dust extraction outlet: Ф 100
- Carriage length: 1500 x 310 mm
- Max. rip capacity with side fence: 1400 mm
- Cutting width on right side of the fence: 520 mm

SPINDLE MOULDER:

- Motor power: 3 kW
- Spindle diameter: Ф 30
- Fence adjustment: 130 mm
- Spindle speeds: 3500 / 5500 / 7000 rpm
- Max. cutter diameter: Ф 150
- Max. height: 105
- Dust extraction outlet: Ф 100

DRILLING MACHINE:

- Max. drill bit diameter: Ф 16
- Vertical adjustment (up/down): 140
- Lateral adjustment (left/right):
- Table dimensions: 161 x 368 mm
- Main motor for Jointer, Thicknesser, and Drilling Machine: 3 kW

The listing was translated automatically. Translation errors are possible.
