Condition: ready for operation (used), Year of construction: 2020, functionality: fully functional, machine/vehicle number: NTX26200912, turning length: 1,530 mm, turning diameter: 670 mm, spindle speed (max.): 12,000 rpm, travel distance X-axis: 675 mm, travel distance Y-axis: 300 mm, travel distance Z-axis: 40 mm, rotational speed (max.): 4,000 rpm, number of slots in tool magazine: 76, Simultaneous 5-axis machining with direct drive (DDM) in the B-axis HIGHLIGHTS Milling spindle: compactMASTER with the shortest length of 350 mm Machining option: 6-sided complete machining thanks to powerful counter spindle TECHNICAL DETAILS X1-axis travel: 675 mm (+550 / -125 mm) Y1-axis travel: 300 mm (+/-150 mm) Y2-axis travel: +/-40 mm Machining area Maximum machining area: Ø 670 mm x 1,530 mm Ppedpfjyap Shjx Agpol Control Control type: FANUC F31iB5 with CELOS Operation: CELOS - ERGOline Touch Spindle Main spindle: standard spindle Ø 91 mm, 4,000 rpm Counter spindle: Standard spindle Ø 91 mm, 4,000 rpm Chuck Main spindle chuck: Hollow chuck 10", Ø 254 mm Chuck for counter spindle: KITAGAWA 10" hollow chuck BB210A821 Protection: Double foot switch with protective cover for main and counter spindle Travel control: Automatic travel control of the clamping cylinder for the main spindle and counter spindle Turning-milling spindle Spindle (B-axis): Standard speed 12,000 rpm (FANUC) Tool holder: Capto C6 Positioning: B-axis with 0.0001° accuracy for 5-axis machining Tool turret Type: Turret 2 with tailstock function Equipment: 10-station turret for tool holders attached with screws Milling performance: 6,000 rpm, 40 Nm (turret 2, FANUC) Tool magazine Capacity: 76 tools Tool holder: CAPTO C6 Measuring and monitoring Tool presetting: Manual tool presetting device for main and counter spindle, removable (standard) Distance measuring system: Direct distance measuring system in the X, Y and Z axes of the turning-milling spindle Sensor system: Spindle sensor measuring system with radio signal transmission, Renishaw RMP600 Automation Signal lamp: 4-color (red, yellow, green, blue) Interface: For bar feed device (LNS, IRCO, IEMCA, Edge Technologies, multiple) MACHINE DETAILS Machine dimensions (L x W): 5,825 x 2,830 mm Cooling media and chip disposal Chip conveyor: Ejection on the right, hinged belt + Drum filter Coolant: Use of water-soluble cooling lubricants (emulsion) Pressure: High-pressure coolant system with 70 bar Coolant supply: Through the spindle for the tool spindle and lower turret Filter system: Knoll/Interlit Compressed air system Blow-off system: For chucks on the main and counter spindle Oil mist system Oil mist separator: Extraction opening Ø 200 mm, AFS 1600 Filter and cooling system Filter system: INTERLIT TMF300/980 compact filter system, 70 bar Additional pressure: 15 bar for turret II with lifting pump (FANUC/MITSUBISHI) Cooler: INTERLIT auxiliary cooler, 15 kW

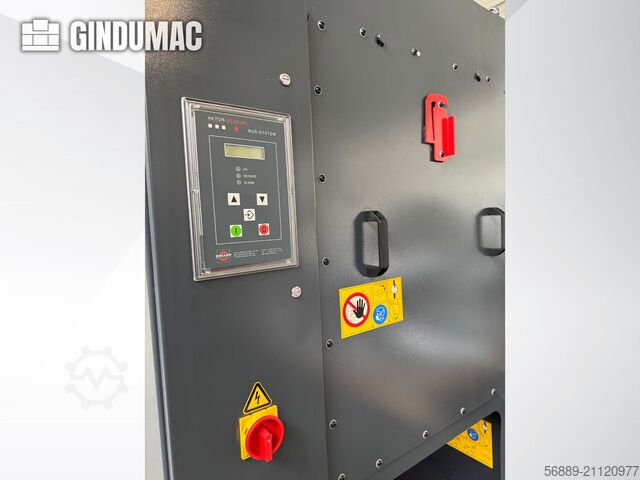

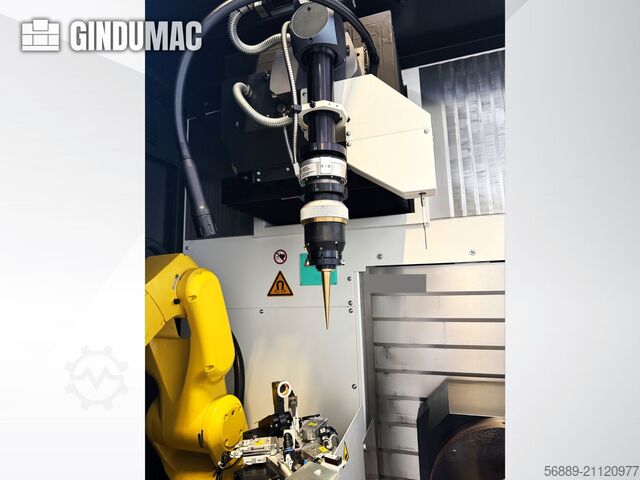

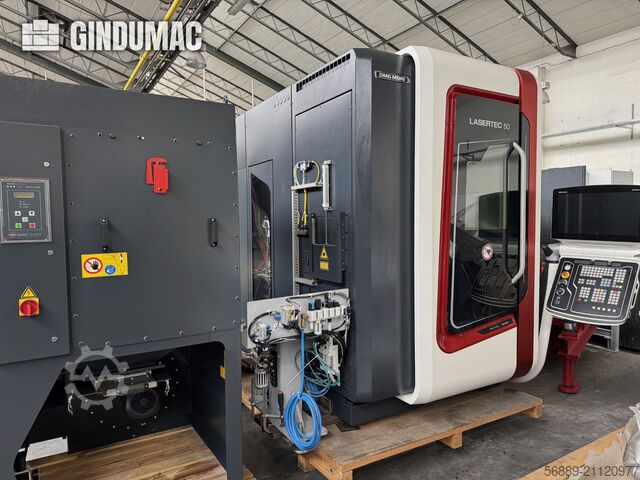

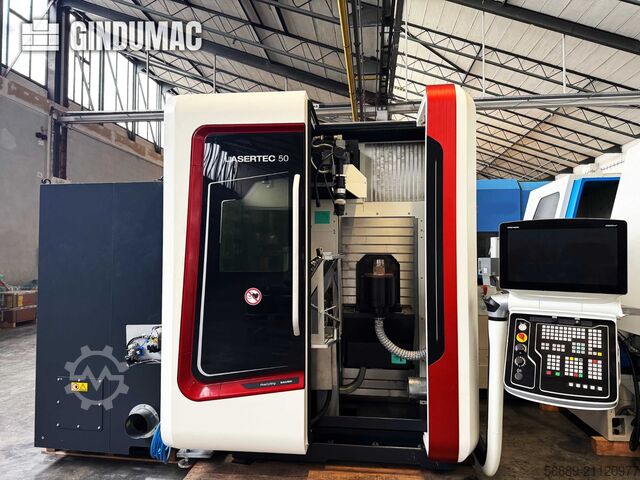

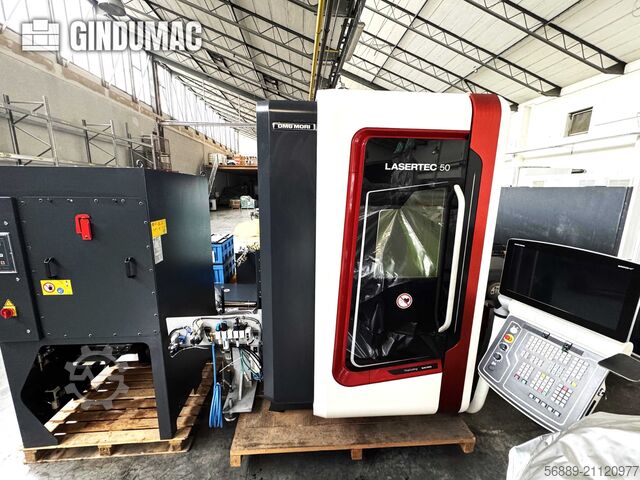

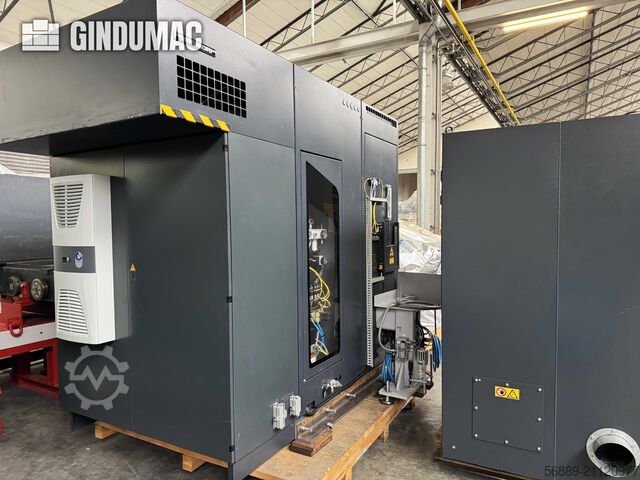

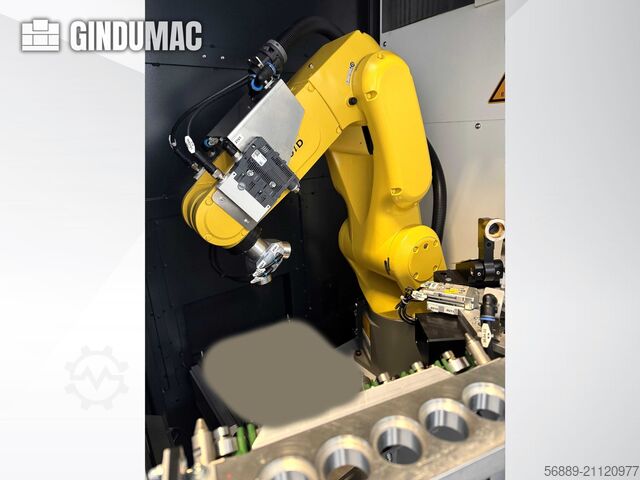

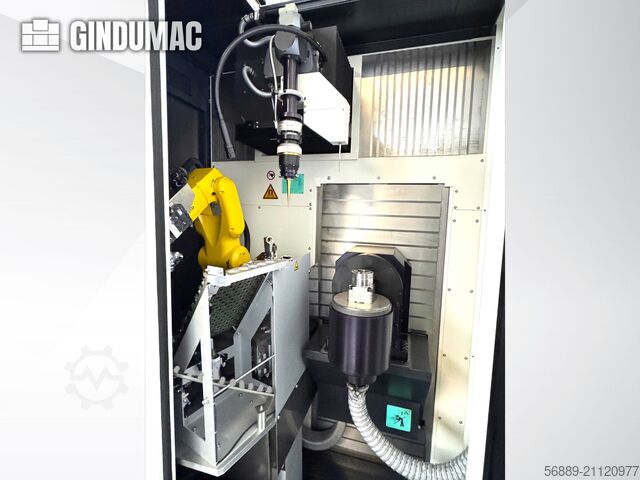

Condition: ready for operation (used), Year of construction: 2019, travel distance X-axis: 540 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 700 mm, controller manufacturer: SIEMENS, controller model: 840D, number of axes: 5, This 5-axis DMG Mori Seiki LaserTec 50 was manufactured in 2019. It features a Celos with Siemens 840D sl Operate control, integrated ytterbium cw fiber laser, and a compact design with a 4 m² footprint. Ideal for machining diamond tools with dimensions up to Ø 355 mm and 420 mm in length. If you are looking to get high-quality laser machining capabilities, consider the DMG Mori Seiki LaserTec 50 machine we have for sale. Contact us for more information. • Control: CELOS with Siemens 840D sl Operate; 21.5" ERGOline Control with multi-touch screen • Processes: Laser fine cutting, laser drilling, laser welding • Work capacity: Machining diamond tools up to Ø 355 mm and 420 mm in length • Axes/table: NC swivel rotary table; 5-axis transformation; high-dynamic torque motors in B and C axes • Drives: Linear drives in X/Y with acceleration > 1 g • Laser source: Integrated ytterbium CW fiber laser; 450 W QCW ytterbium fiber laser with 4,500 W pulse peak power and 450 W average power • Processing head: 80 mm focal length; collision switch • Vision: Camera through beam path for fiber laser • Construction: Solid mineral cast base • Footprint: Approx. 4 m² • Condition/usage: ~100 working hours (as new) • Notes: CNC precision laser machine with high-speed processing; highly dynamic and precise Additional equipment Psdpfx Agjyfv Tvopepl • Fanuc robot automation • Keller automatic extraction system • Basement exhaust extraction system

Condition: ready for operation (used), Year of construction: 2021, operating hours: 13,392 h, spindle motor power: 13,000 W, spindle speed (max.): 6,000 rpm, controller manufacturer: SIEMENS, controller model: 840D with ShopTurn 3G, number of axes: 3, This 3-axis DMG MORI CTX Alpha 500 V6 was manufactured in 2021. A versatile turn-mill centre featuring a Siemens 840D controller, ERGOline interface, and CELOS manufacturing support. It offers a 470 mm machining length, 6000 rpm max speed, and a 12-position Sauter turret with live tooling. Ideal for complex machining tasks. Contact us for more information about this machine. Additional equipment • CELOS Products • DMG MORI Service Agent • DMG MORI NetService • DMG MORI IoT Connector • DMG MORI Messenger V2 SERVICE Camera Psdpfx Agjx D Efwspjpl • Tail Stock • the 2 SMW-Autoblok BBD17/52 which can also be seen on the machine chuck. • and the addition of the software (tccentric turning and milling cycle, as well as a deburring toothing cycle). Machine Benefits Technical Machine Benefits • Hydraulic cylinder with Ø52 mm through-hole • 12-position sauter turret • Vdi 30 tool mounting (din 69880-30) • Live tool interface (din 5480 standard) • Direct measuring scale on the x-axis • Tool system for turret: trifix® system (din 69880, vdi 3425, din 5480) • Y-axis: ±40 mm travel Extra Information Main Spindle Chuck SMW-Autoblok BBD 170/52 Counter Spindle Chuck SMW-Autoblok BBD 175/52 Counter Spindle Option Programmable tailstock force: Adjustable between 80-300 daN Media Coolant filtration: Dual-cartridge filter (50 μm) Coolant cleaning: External flushing system for spindles Coolant tank with 6-bar pump Automation Bar machining package: Fully hydraulic cylinder Ø52 mm Workpiece catcher with conveyor for parts Ø51 × 185 mm (max 3 kg) 4-color operating mode signal light Bar loader interface compatible with IEMCA, Breuning IRCO, LNS

Condition: excellent (used), Year of construction: 2020, Distance between spinles 800mm, Y axis (+/-105mm), C axis 0.001 degrees, B axis -30/+210 degrees, Pjdpfxow Nwfbj Agpepl main spindle speed 5,000rpm, sub spindle speeds 6,000 rpm, milling speed 12,000rpm, bar capacity 65mm, 38 station ATC, spindle power 22/18.5 kw, Siemens 840D control, tool setter, through spindle coolant, magazine barfeed, robot loader,

Condition: used, Year of construction: 2018, control CELOS / F31iB5 / Mapps 4S max. turning diameter 670 mm turning length 1.538 mm bar passage max. 81 mm x1 axis 675 mm y-axis mm z1 axis 1.562 + 164 mm b-axis ° a-axis 1.542 mm x2-axis 200 mm y2-axis + / - 40 mm z2-axis 1.542 mm max. turning speeds 4.000 U/min power capacity 26 / 22 kW spindle passage Ø 91 mm max. turning speeds 5.000 U/min power capacity 22 / 18,5 kW spindle passage Ø 73 mm Ppjdpfx Agoyfh R Hepsl turning speed range 0 – 12.000 U/min power capacity 28/ 23 kW tool taper Capto C6 number of tool places 76 Pos. max. tool diameter Ø 70/ Ø 130 mm max. tool length 400 mm max. tool weight 8 kg Number of tool holders 10 pos. Shank length for square tool 20 mm Shank diameter for boring bars Ø 32 mm power capacity 5,5/ 5,5/ 3,7 kW torque 16,9/ 13,1/ 8 Nm x-axis 50 m/min y-axis 40 m/min z-axis 50 m/min A-axis 36 m/min x2-axis 25 m/min y2-axis 18 m/min z2-axis 40 m/min b-axis 100 U/min Hollow clamping device Ø 67 mm Number of working hours ca. 23.250 h spindle hours ca. 8. h Die Maschine befindet sich unserer Einschätzung nach in einem guten gebrauchten Zustand und kann nach Terminvereinbarung unter Strom besichtigt werden. Technische Merkmale & Zubehör: - Kitagawa- Hohlspannfutter an Haupt- und Gegenspindel - Fußschalter (doppelt) für Spindel 1 und Spindel 2 - Vollindexierung der Werkzeugspindel - Revolver- Reitstockfunktion - Geeignete Kühlmittelart: Wasserlösliches Kühlmittel - Späneförderer - Kühlmittelsystem 70 bar, Fabr. Hydrajet - Blasluft an der Spindel 1 und Spindel 2 - Automatischer Messarm an der Hauptspindel - Werkstückauswurf an der Spindel - Teileentlader - Vorbereitung für Stangenlader - Schnittstelle für Nebelabscheider - 2 Stk. RotorClear - Signalleuchte 4 Farben - Multi-Dry-Filter - Automatisches Antasten und Werkzeugkorrektur - Speichererweiterung - Zyklus für Ebenentransformation - Kühlmittelspritzpistole Zubehör, abgebildete Werkzeuge und Spannmittel gehören nur zum Lieferumfang wenn dies in den Zusatzinformationen vermerkt ist. Aenderungen und Irrtuemer in den technischen Daten und Angaben sowie Zwischenverkauf vorbehalten!

Condition: good (used), Year of construction: 1998, CNC Vertical Machining Center MORI SEIKI SV500-50, Year 1998, Fanuc MSC-518 Control With pallet changer. Table: 1100x600mm BT50 spindle mount, 40-position magazine. Spindle speeds up to 6,000 rpm Travels: X800, Y510, Z510, Rapid traverse 32 m/min Podpfowifzljx Agpspl Machine without magnetic chipboard. Complete machine documentation available.

Condition: good (used), Year of construction: 1997, CNC Vertical Machining Center MORI SEIKI Type: SV500-50 Year 1997 Fanuc MSC-518 Control Table: 1100 x 600 mm Travel: X 800 - Y 510 - Z 510 mm Rapid traverse 32 m/min Spindle mount: BT50 Spindle speeds up to 6000 rpm Complete documentation available. A clamping magnet is not included in the machine delivery. Ppedpfx Agswa Nvujpjl For further information, see data sheets:

Condition: used, CNC lathe Mori Seiki SL403B/800, year of manufacture 2008, Japan 2 axes Pjdpfxjyffcto Agpopl - X axis: 345mm - Z axis: 995mm Control: Fanuc 18-inch chuck Spindle bore: 117mm Turning diameter: 620mm Max turning length: 958mm 12-position turret Tailstock Chip conveyor Renishaw probing system

Condition: used, Year of construction: 2008, functionality: fully functional, Equipment: documentation/manual, rotational speed infinitely variable, Mori Seiki Lathe Model NZ2000T2Y Year 2008 3-phase CNC Fanuc With tooling Ppjdpsyfd Unofx Agpjl

Condition: good (used), Year of construction: 1993, CNC universal milling machine DMG MORI Type: MH 600 C Control MAHO 532 year 1993. with automatic swivel milling head G17/G18 and B -axis rotary table. Without tool changer. Further data see data sheet. Complete machine documentation and data backup available. Good general condition. Ppedeiihxhepfx Agpel
