Used Schaffer 3050 for sale (514)

Condition: excellent (used), functionality: fully functional, Year of construction: 2017, Amada Hydraulic Guillotine Shear Type GX II 630 Bwodpfx Aoxwmycsb Usg Working width: 3050 mm Max. sheet thickness: 6.35 mm Robust CNC electro-hydraulic guillotine shear AMADA CNC touch control, located front left ("GP 37W2") Machine control system including information display Main display with 4 operating panels Control/operation of all machine functions Up to 50 cutting programs, each with up to 15 sequences CNC electromechanical backgauge Travel speed: 100 mm/sec CNC electro-hydraulic cutting angle adjustment CNC electro-hydraulic blade gap adjustment Sight device & cutting line illumination for viewing the scribe line Shearing according to optical scribe mark Manually adjustable table support plates including ball rollers Grip recesses in the front support table 2x movable foot switches Operating manual and circuit diagrams included

Condition: excellent (used), Year of construction: 1972, Precision lathe, turning machine, lathe, center and feed lathe, center and feed lathe -Manufacturer: VDF Heidenreich & Harbeck, lead screw and feed screw lathe type 24R0 -Machine bed: hardened -Turning length: 1230 mm -Turning Ø over bed: 500 -Turning Ø over recess: 355 mm -Turning Ø over support: 290 mm -Spindle bore: Ø 56 mm -Spindle speeds: 19 - 2000 rpm -Wedge bar chuck: Forkardt Ø 250 mm -Tailstock mount: MK4 -Drive: 5.5 kW -Accessories: 1x steady rest, 7x Multifix tool holder, see photos -Dimensions: 1180/3050/H1345 mm Bodpfx Aow Sxgxjb Uowg -Weight: 1907 kg

Condition: used, Brand:CASANOVA Model: PCV 35- 3 RODILLOS Descritción • Capacity 3050 x 20 mm • Voltage 400v/50h Bwodpsvx A Amjfx Ab Usg • Weight 15000 kg

Condition: used, Year of construction: 2002, Technical details: x-travel: 2200/3400 mm y-travel: 550 mm z-travel: 510 mm total power requirement: 36,8 kW table length: 3050 mm Bsdpfx Aoldk Uqjb Uswg Traverse path can be used as a whole or divided into two areas for pendulum machining. 3 axis HSK 100 *

Condition: used, machine/vehicle number: 007361, X axis working area: 3050 mm Y axis working area: 850 mm Bwsdpfsx A Tibex Ab Ujg Main Electrospindle power: 9 KW Number of controlled axes: 3 axes Total number of drilling spindles: 19 Total number of tool changer positions: 3

Condition: new, neu ca. 10 Wochen ab Auftrags Türkei 88113 € 1415.61 € 74900 € 220 to 3050 mm Y1 / Y2 / X Achse 265 mm 2600 mm 450 mm 530 mm hydraulisch 140 mm/s 10 mm/s 140 mm/s 500 mm/s 350 mm/s 250 mm 900 mm 104 mm 250 l 22 kW 4250 mm 1770 mm 3000 mm 12600 kg Special campaign until 07.01.2026 Special price and SKY 22 control free of charge Standard accessories: 3 axes (Y1, Y2,X) CNC control SKY 22 - intuitive touch-screen control (simple drawing of the bending outline with your finger) 21,5“ in full HD - with 2D and 3D working screen - direct programming of the bending angle - user friendly programming in dialogue form optionally in 2D or 3D mode - 2D and 3D simulation of the bending sequence - automatic tool selection in 3D mode - automatic calculation of the blank sheet size - bending order calculation - graphic product and tool memory - correction possibility - USB and Ethernet interfaces for import, backup and programm transportation - OS: Windows - IGES, STEP, DXF files import servo motorized back gauge on linear guides and ball screws back gauge finger blocks on double linear guides CNC crowning table upper tool 1010 / A / 75 °, devidedand cranked 4-V die block 60x60 2009 (V = 16,22,35 and 50 mm) laser safety device Fiessler AKASmounted on the upper beam linear guided sheet support arms according to CE rules oilfilling users manual in English or German ADVANTAGES OF AD-S COMPAIRED TO PDF: - more stroke, installation height and throat - higher approach and retraction speed of the top beam - higher backgauge speed - backgauge finger on double instead of single linear guide - more options available such as: additional backgauge axes (e.g. Z1/Z2, Delta X, up to 6 axes), bending aids, laser angle measuring system, tandem design, other CNC controls ... Bjdpfowiqudjx Ab Uowg OPTIONAL EQUIPMENT: R-Axis R/Z1/Z2-Axis DBend, 3D CAD/CAM importing- and simulation program (step, iges and dxf file import) CNC Control Delem DA66 S CNC Control DELEM DA-69S 3D incl. PC software Profile-S with 3D file import option Hydraulic or pneumatic tool clamping for Euro or Wila tools

Condition: ready for operation (used), Year of construction: 1998, pressure 120 t chamfer lenght 3050 mm distance between columns 2550 mm stroke of upper beam 155 mm throat 350 mm ajustment speed 100 mm/sec working feed 9.0 mm/sec return speed 77.0 mm/sec Bodpfjx Ni Ebox Ab Uswg Control "P 40" work height max. 878 mm table width 104 mm oil volume 150 l total power requirement 11.0 kW weight 7550 kg range L-W-H 3550 x 2150 x 2600 mm Equipment: - NC electro-hydraulic press brakes - with NEW ELGO NC control unit "P40" * New price approx. 4.000 Euro * Control / movement of the backgauge - X axis (target/actual input) * Control / movement of the depth setting - Y axes (target/actual input) * Inching mode for X axis Y axes also possible - Swivel operation, front left - NC controlled axes : Y1 Y2 X - NC electro-motorized backgauge (X axis) * with 2x manually adjustable stop fingers * including lateral and height adjustment (Z R axis) - 1x branded set of upper tools (split) - 1x branded Multi-V bottom die block - Lateral safety guard (hinged doors) - Rear safety guard (hinged door) - 1x free-moving 2-hand/foot control - Operating instructions (PDF)

Condition: used, Year of construction: 2015, Working hours machine: 31888 (17.01.2024) h Working hours laser on: 19090 (17.01.2024) h Working hours beam on: 6475 (17.01.2024) h Laser power: 4000 Watt Max. punching force: 300 kN Control: AMNC 3i Working range laser: 2500 x 1170 mm Working range punching: 3050 x 1525 mm Length: 7870 mm Width: 5880 mm Height: 2666 mm Electrical connected load: 85 kVA x-axis: 100 m / min y-axis: 80 m / min Weight of machine approx.: 30000 kg Standard configuration - Patented servo-electric double drive- Punching force 300 kN- 32 tool stations (4 rotatable stations)- max stroke rate: 400- max material thickness 6mm- Automatic focus adjustment- Automatic gas pressure control- HS sensor cutting head- Nozzle cleaning- Splash guard- Good parts flap Extended machine accessories - TSU tool changer 300 Bwodpfx Ajvb Ubyeb Uog Automation

Year of construction: 2016, condition: ready for operation (used), travel distance X-axis: 3,050 mm, travel distance Y-axis: 1,525 mm, travel distance Z-axis: 37 mm, overall weight: 21,500 kg, total height: 2,342 mm, number of axes: 4, This 4-axis AMADA EMZ3612M2 was manufactured in 2016, featuring a high-speed servo-electric turret punch press with twin AC servo direct drive. It boasts a 33-ton press capacity and an AMNC-F / AMNC-4ie CNC system for enhanced control. The machine handles sheet formats up to 3050x1525 mm and includes a "King" turret with up to 58 stations. Energy efficiency is optimized with AC servo drives. If you are looking to get high-quality punching capabilities consider the AMADA EMZ3612M2 machine we have for sale. Contact us for more information. Additional equipment • Air-blow oil-mist lubrication • Slug-vacuum system • Digital tool ID / barcode system • Integrated tapping: inch/metric taps (M2.5–M8) • Marking & deburring tools: on-board marking and deburring options Machine Benefits Technical Machine Benefits • Type: high-speed servo-electric turret punch press with twin ac servo direct drive • Press capacity: 33 tons (300 kn) • Maximum sheet format (without repositioning): 3050 × 1525 mm • Turret type: “king” turret – triple-track, available in 55-station multi-purpose or 58-station version, with 4 auto-index stations including tapping units • Turret rotation speed: up to 30 rpm • Feed clearance: 25 mm between turret plates • Max sheet thickness: 4. 5 mm • Positioning speed (x/y): 100 m/min / 80 m/min Bedpfx Abjx Nrkts Ujwg Extra Information Machine still under power Dimensions Machine Depth 5436 mm

Condition: new, Technical data for the pallet rack traverse: Racking system: Nedcon Type: NS Included in delivery are: Bedpfx Asib A Saeb Ujwg 01x pallet rack traverse, new Material color: RAL 2008 light red orange box profile: 130 x 50 mm Type of truss: CC1305015A Steel quality: 275 MPa type of agraffes: PR2-5HK90 clear width: 3.600 mm max. load per truss pair 3,200 kg with uniformly distributed load 02x safety pins, new execution: compl. galvanized To secure the longitudinal beams against unintentional lifting out

Condition: used, machine/vehicle number: 007734, X axis working area: 3050 mm Bedpsw Idb Hofx Ab Uowg Y axis working area: 850 mm Main Electrospindle power: 5 KW Total number of drilling spindles: 19

Condition: used, Year of construction: 2018, operating hours: 9,069 h, lifting height: 9,200 mm, free lift: 3,050 mm, fuel type: electric, mast type: triplex, fork length: 1,000 mm, fork width: 600 mm, total height: 3,600 mm, total length: 1,900 mm, total width: 1,270 mm, color: other, Empty weight: 3.992 kg Lifting capacity: 1.400 kg - Year: 2018 - Documentation available: Yes - └ Type Documentation: User manual - CE marking present: Yes - CE certificate present: No - Serial number: 511902J01041 - Operating hours: 9069 - Lifting capacity: 1400kg - Lifting height: 9200mm - Overhead clearance: 3600mm - Free lift: 3050mm - Fork length: 1000mm - Maximum fork width: 600mm - Minimum fork width: 0mm - Attachment: Side-shift - Options: Free-lift, Height meter - Mast: Triplex - Inspection valid until: 09.2025 - Drive: Electric - Brand/Type: Still - Battery year of construction: 2018 - Capacity: 775Ah - Battery voltage: 48V - Driving direction: 2 Road - Transport dimensions: 1900mm x 1270mm x 3600mm (l x w x h) - Transport weight [kg]: 3992kg - Transport packages [pcs.]: 1 Bwjdpfx Aswfnutjb Ujg Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Tess van den Boom

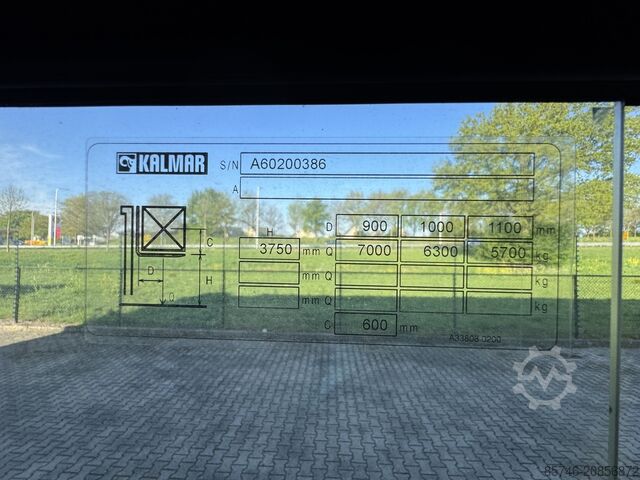

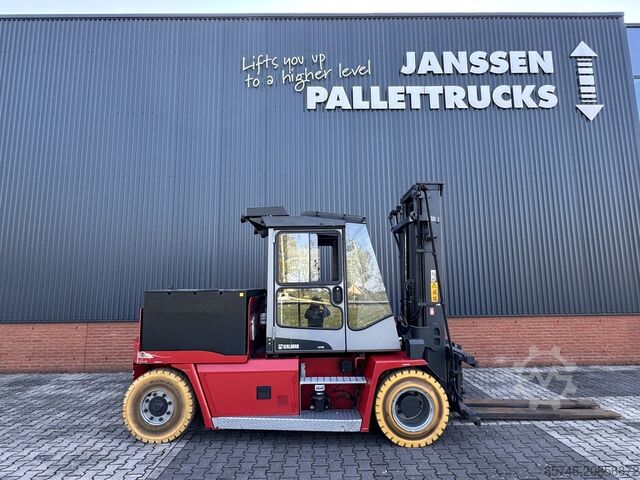

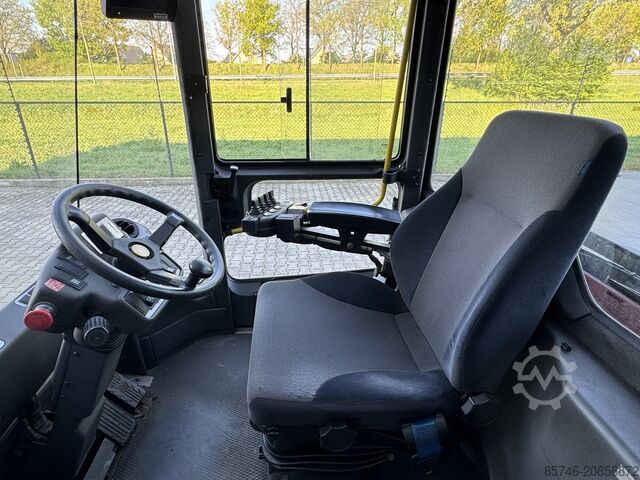

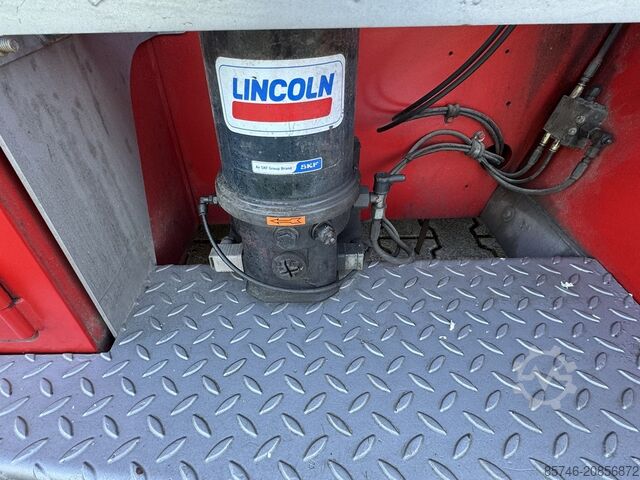

Condition: good (used), Year of construction: 2014, operating hours: 9,998 h, load capacity: 8,000 kg, lifting height: 3,750 mm, fuel type: electric, mast type: duplex, construction height: 3,050 mm, Manufacturer + model:KALMAR ECF 80 / 9 * Mast:2F3750 ID:25052.8386 Cat.:Used Mast:2F3750 Forks:2000 mm Lowered height:3050 mm Lifting height:3750 mm Capacity:8000 kg Year:2014 Hours:9998 hours Capacity:80 v / 1550 ah - NEW - Bj 09 / 2024 Options:Equipped with; - FULL cabin - Air conditioning - Central lubrication Bedpjx Rubkefx Ab Uowg - Joystick control forward/reverse - Spreader / S.s. - Complete street lighting !! - 2 x Bleu spot - LED spotlight - Duplex FFL mast - Camera NON marking tires

Condition: new, Year of construction: 2025, Schnittbereich rund: 420 mm Schnittbereich quadratisch (B x H): 420 x 420 mm kleinste zu schneidende Größe: 10 x 10 mm Einspannbereich: 0 - 420 mm Bündelschnittbereich (Min.B x H - Max. B x H ): 160 x 130 - 260 x 160 mm Bwodpfx Abowqchxj Ujg Kürzeste Länge des abgeschnittenen Stücks : 5 mm Kürzeste Reststücklänge im automatischen Betrieb*: 190 mm Kürzeste Reststücklänge im Einzelschnitt: 20 mm Length: 2220 mm Breite inkl. Späneförderer : 3050 mm Height: 2100 mm Höhe der Materialauflage: 860 mm Weight of machine approx.: 2850 kg Electrical connected load: 9,5 kW Leistung des Sägemotors: 7,5 kW Leistung hydraulischer Motor: 1,5 kW Schnittgeschwindigkeit stufenlos regelbar: 20 - 80 m / min Vorschubgeschwindigkeit der Säge: 1 - 300 mm / min Automatische Materialvorschublänge, Einzelhub: 500 mm Länge des automatischen Materialvorschubs, Mehrfachhub: 9999 mm Abmessungen des Sägeblatts: 5150 x 41 x 1.3mm mm

Condition: ready for operation (used), Year of construction: 2008, General Data Measurements width 6100 mm Measurements depth 5450 mm Measurements height 2800/3050 mm Machine weight 20000 kg Bwedpfjx Nr Ilox Ab Usg Control Unit Brand SIEMENS Model Sinumerik Main Drive Spindle speed range 50 - 16000 rpm Spindle motor power 28 kW Tools Max weight 6 kg Max tool diameter 160 mm Max tool length 320 mm Type of tool holder HSK-A63 This 3-axis SAMAG MFZ 2-3 was manufactured in 2008. It features a working area of 300x500x450 mm, rapid traverse speeds up to 60 m/min, and a tool magazine with 90 positions. The spindle supports a speed range of 50 to 16,000 rpm with a drive power of 28 kW. Ideal for high precision and efficiency in machining tasks. Contact us for more information about this machine. Application Types Milling

Condition: new, Technical data for the pallet rack traverse: Racking system: Nedcon Type: NS Included in delivery are: 01x pallet rack traverse, new Material color: RAL 2008 light red orange box profile: 130 x 50 mm Type of truss: CC1305015A Steel quality: 275 MPa type of agraffes: PR2-5HK90 clear width: 3.300 mm max. load per truss pair 3.500 kg with uniformly distributed load 02x safety pins, new execution: compl. galvanized Bsdpfx Aeib A R Iob Ujwg To secure the longitudinal beams against unintentional lifting out

Condition: new, Year of construction: 2025, table length 3050 mm table width 1530 mm Bwodpfx Aowp Ta Neb Ujg burner heads 1 stroke 350 mm speed 140 m/min

Condition: used, Year of construction: 2017, operating hours: 8,521 h, lifting height: 8,900 mm, free lift: 3,050 mm, fuel type: electric, mast type: triplex, fork length: 1,150 mm, total height: 3,500 mm, total length: 1,900 mm, total width: 1,270 mm, color: other, Empty weight: 4.095 kg Lifting capacity: 1.400 kg - Year: 2017 - Documentation available: Yes - CE certificate present: No - Operating hours: 8521 - Lifting capacity: 1400kg - Lifting height: 8900mm - Overhead clearance: 3500mm - Free lift: 3050mm Bsdpfxswfn I He Ab Uowg - Fork length: 1150mm - Mast: Triplex - Drive: Electric - Brand/Type: Hawker 48V 5 PZS 775 - Battery year of construction: 2019 - Capacity: 775Ah - Battery voltage: 48V - Transport dimensions: 1900mm x 1270mm x 3500mm (l x w x h) - Transport weight [kg]: 4095kg Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Tess van den Boom

Condition: ready for operation (used), Year of construction: 2001, pressure 135 t chamfer lenght 3050 mm distance between columns 2550 mm dayligth 320 - 560 mm stroke 240 mm working feed 10.0 mm/sec return speed 150 mm/sec column arm 400 mm work height max. 1050 mm control DNC 1200 PS/B operating pressure max. 297 bar Bedpfx Absx Ik D Aj Ujwg compressed air 4.5 - 6.0 bar connected load 15.0 kW oil volume 250 ltr. weight 11500 kg range L-W-H 5240 x 2400 x 2900 mm good/well-Maintained conditions used in Aluminum processing - in checked conditions - machine Video - ?v=z-Bxibk_8uE Features: - CNC Electro-Hydraulic Press Brake - CYBELEC CNC Control Model DNC 1200 PS/B * Swiveling Control Panel, Front Right * Numerical Programming * Tool & Program Library - CNC Controlled Axes: Y1 + Y2 + X + R + CNC Crowning - CNC Electro-Motorized Backgauge (X-Axis) * with 3x Manually Adjustable Backgauge Fingers (Z-Axis) * Maximum Travel Speed: 250 mm/sec - CNC electro-motorized height adjustment from the backgauge (R-axis) * Maximum travel speed: 100 mm/sec. - CNC under-table crowning - CNC pneumatic die shifting (I-axis) - Pneumatic upper tool clamping - Pneumatic lower tool clamping - Rear safety guard, including swiveling door - 2x side safety guards - includes LAZER SAFE safety device - front - 2x stable front support arms with sliding system - original EHT split upper and lower tools - 1x freely movable 2-hand/foot control - Wiring diagram + hydraulic diagram

Condition: new, Year of construction: 2025, Laser power: 6000 Watt Working range laser: 3050 x 1550 x 270 mm positioning speed X/Y/Z: 90 m / min simultanious: 120 m / min Max. workpiece weight: 1000 kg Max. steel: 20 mm Max. stainless steel: 16 mm Max. aluminium: 14 mm Max. copper: 8 mm Max. brass: 14 mm Length: 10050 mm Bjdpfx Aboxq Rczs Uswg Width: 5100 mm Height: 2600 mm Machine weight: 8100 kg Electrical connected load: 54 kW

Year of construction: 1999, condition: ready for operation (used), Main Drive Spindle motor power 22 kW Number of axis 3 Movement X-Axis Rapid Traverse 30500 mm/min Z-Axis Rapid Traverse 33000 mm/min Turret Number of turrets 2 Number of tool slots 12 Bjdpfox Nr S Djx Ab Uswg This 3-axis Mazak Multiplex 6200 was manufactured in 1999 and features dual spindles with a maximum speed of 5,000 rpm and a drive power of 22/15 kW each. It includes an ABB robot and turrets on both the right and left with 12 tools each. Rapid traverse rates are 30.5 m/min for the X-axis and 33 m/min for the Z-axis. If you are looking to get high-quality turning capabilities consider the Mazak Multiplex 6200 machine we have for sale. Contact us for more information. Application Types Turning

Condition: used, Year of construction: 2016, TECHNICAL DATA AXES Max. workpiece dimensions X-Y-Z mm 3050 x 800 x 50 Min. workpiece dimensions X-Y-Z mm 300 x 90 x 10 Drilling/slotting working area mm 0 x 800/0 x 800 X axis stroke mm 750 Max. travel speed of X-Y axes m/min 25 DRILLING UNIT Vertical spindles Number 7 (4X-4Y one common) Horizontal spindles (along the Y axis) Number 2 (1+1) Horizontal spindles (along the X axis) Number 1 Fixed grooving saw (direction) X Grooving saw diameter mm 100 Max. grooving saw thickness mm 5 Motor power kW (HP) 1.5 (2) Spindle speed rpm 3350 Grooving saw speed rpm 4300 INSTALLATION Power supply V (Hz) 380 / 400 (50 / 60) Installed power KVA 4.5 Compressed air requirement bar 6 Compressed air consumption Nl/cycle 90 Extraction requirement m3 / h 1200 Extraction air speed m / sec 20 Extraction nozzle diameter mm 80+80 F10L Drilling unit Includes: - 7 independent vertical spindles - Drill chuck D10 mm - Distance between spindles 32 mm - 2 horizontal drilling heads, 1 in X direction with one drill, 1 double drilling head in Y direction (1 + 1 drill chuck D10 mm) - Speed 3350 rpm - 1 integrated sawing unit in X (max. Diameter 100 mm) - Saw blade speed 4300 rpm - Motor power 1.5 kW - Vertical pneumatic travel per spindle 70 mm - Horizontal pneumatic travel of the drilling unit. Positioning of the workpiece and drive of the work unit: A CNC-controlled suction cup clamps the workpiece and positions it sequentially under the work unit during machining. Movement in the X and Y axes takes place on THK guides with transmission to reinforced toothed rails. Movement in the Z axis is pneumatically controlled on ball-bushing guides with adjustable stop positioning. The positioning of the work units is carried out using technology and drives with DC motors. CNC CONTROL The control system was specially developed for use in drilling and milling machines. CN - 7" color screen with touchscreen function - Alphanumeric keyboard - Self-diagnosis and any error messages or malfunctions that may occur, in the operator's language Programming - Programming via the CN - Automatic optimization of drilling operations - Option of plate zero point shift - Option of saving and importing drilling programs via USB dongle - Option of importing drilling programs from CAD-CAM external software Configuration - User interface in the same language as the instruction manual Graphic representation of the unit configuration Vacuum suction cups "B-Power Vacuum suction cups with double vacuum connection, recommended for particularly porous panels (e.g. MDF light). Machine user interface software Xilog Maestro USB Hardware and software requirements: - Operating system: Windows XP Professional (SP2), Windows Vista or Windows 7 - Processor: Intel compatible, 2GHz min; Multicore processor recommended - Memory capacity: 1GB min., recommended 2GB - Free disk space: 5GB - Graphic card: Compatible OpenGL (The code includes a DVD for installation and a USB key) Xilog Maestro Features Programming - Parametric, graphic programming - Assisted programming with graphic and syntax help for drilling operations - Possibility to create and save machining macros Integrated additional functions - Self-diagnosis and possible error messages or malfunctions, in the operator's language - User interface in Bwedpfovvi I Rex Ab Usg

Condition: used, Year of construction: 2009, total length: 4,100 mm, total height: 3,050 mm, total width: 1,800 mm, Empty weight: 5.000 kg Price: On request Bsdpox Ig Svsfx Ab Uswg - Year: 2009 - Documentation available: No - CE certificate present: No - Serial number: 1442 - Main motor power [kW]: 37 - Rotation speed [rpm]: 1480 - Hydraulic unit power [kW]: 2.2 - Rotor width [mm]: 1000 - Number of shafts [pcs.]: 1 - Hydraulic slide present: Yes - Stroke hydraulic slide [mm]: 1000 - Opening width [mm]: 1050 - Opening length [mm]: 1300 - Sieve perforation [mm]: 25 - Number of rotating knives [pcs.]: 26 - Transport dimensions: 4100mm x 1800mm x 3050mm (l x w x h) - Transport weight [kg]: 5000kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Condition: ready for operation (used), Year of construction: 2016, laser power: 6,000 W, overall weight: 15,500 kg, number of axes: 3, This 3-axis Mazak OPT IPLEX 3015 Fiber II was manufactured in 2016. It features a 6 kW fiber laser, Mazatrol Preview 3 control, and a machining size of 3050 × 1525 mm. Equipped with advanced features like auto nozzle changing, auto focus positioning, and intelligent monitoring functions, it ensures precise and efficient operations. Consider the opportunity to buy this Mazak OPT IPLEX 3015 Fiber II fiber laser cutting machine. Contact us for more information. Bwedpex I Sm Esfx Ab Ujg • Working hours: 53,000 h • Control/Controller: MAZATROL Preview 3 • Mazak Control Box: Included • Machining size: 3050 × 1525 mm • Resonator: IPG • Torch: Multi-Control Torch 2.0 (upgraded) • Intelligent Setup Function (ISF) • Auto nozzle changing (8 holders) • Auto nozzle cleaning • Auto focus positioning • Beam diameter change function • Intelligent Monitoring Function (IMF) • Pierce detection • Burn detection • Plasma detection • Protective window sensor • Condensing lens sensor • Elementary diagram: DD628101002 • Rated capacity: 57 kVA • Power supply: 3AC 380 V, 50/60 Hz • Auxiliary voltages: AC 100 V / DC 24 V Additional equipment • Chip conveyor: Yes • Dust collector: Donaldson • Chiller: IPG • Workpiece lifter: Yes

Condition: used, Year of construction: 2018, Startech cn MAIN FEATURES FLEXIBLE AND CUSTOMIZED PRODUCTION COMBINED WITH SPEED AND PRECISION DRILLING FROM ABOVE WITH REFERENCE TO THE TOP OF THE PLATE ALLOWS ABSOLUTELY PRECISION MACHINING NUMERICAL CONTROL WITH 7" COLOR SCREEN: SIMPLE AND INTUITIVE TECHNICAL DATA Startech CN AXES Max. workpiece dimensions X-Y-Z mm 3050 x 800 x 50 Min. workpiece dimensions X-Y-Z mm 300 x 90 x 10 Drilling/slotting work area mm 0 x 800/0 x 800 X-axis stroke mm 750 Max. travel speed of the X-Y axes m / min 25 DRILLING UNIT Vertical spindles number 7 (4X-4Y one of them common) Horizontal spindles (along the Y axis) Number 2 (1+1) Horizontal spindles (along the X axis) Number 1 Fixed groove saw (direction) X Diameter of the groove saw mm 100 Max. thickness of the groove saw mm 5 Motor power kW (HP) 1.5 (2) Spindle speed rpm 3350 Speed of the groove saw rpm 4300 INSTALLATION Power supply V (Hz) 380 / 400 (50 / 60) Installed power KVA 4.5 Compressed air demand bar 6 Compressed air consumption Nl/cycle 90 Extraction demand m3 / h 1200 Extraction air speed m / sec 20 Extraction nozzle diameter mm 120 GENERAL CHARACTERISTICS Universal CNC drilling machine with work table with fixed gantry and movable workpiece for performing the following machining operations: - Vertical drilling on the panel surface - Horizontal drilling on all four sides of the workpiece - Groove Milling with integrated groove saw in the "X" direction. Self-supporting structure. Machine frame made of tubular steel to provide a large base for the work table. The structure is positioned on three self-leveling feet. The electrical control cabinet is integrated into the machine frame. "Easy Motion" central Bakelite support table: - an MDF sector for through-hole drilling, automatically pivoting for horizontal drilling - an infeed roller that facilitates panel loading - a rear roller conveyor that facilitates panel sliding - left and right stops - a central aligner with manual adjustment. The left and right stops are required to drill the two opposite sides of the panel horizontally in the "X" direction. Panel positioning along the X axis is achieved by means of suction cups. Unit support. This is a gantry structure made of tubular steel. The main machining unit is installed on the gantry. F10L drilling unit includes: - 7 independent vertical spindles - Drill chuck D10 mm - Distance between spindles 32 mm - 2 horizontal drilling heads, 1 in X direction with a single drill, 1 double drilling head in Y direction (1 + 1 drill chuck D10 mm) - Speed 3350 rpm - 1 integrated sawing unit in X (max. diameter 100 mm) - Saw blade speed 4300 rpm - Motor power 1.5 kW - Vertical pneumatic travel per spindle 70 mm - Horizontal pneumatic travel of the drilling unit Positioning of the workpiece and drive of the machining unit A CNC-controlled suction cup clamps the workpiece and positions it sequentially under the machining unit during machining. The movement in X and Y axis is carried out on THK guides with transmission on reinforced toothed Movement in Z axis is carried out pneumatically on "ball-bushing" guides with positioning on stop adjustable via the positioning of the working units is carried out via technology and drives with -CONTROL The control was specially developed for use Bwjdpfx Asvwbp Ajb Usg
