Used International 3288 for sale (9,366)

Condition: used, Year of construction: 2012, x-travel 735 mm y-travel 650 mm z-travel 560 mm Control HEIDENHAIN TNC 530 3D Bob Ha Ewsvzhb He Dewl table-size 800 x 650 mm rotary table 650 mm table weight 600 Kg table rotation (C-Achse) 0,001º (±360º) ° b-axis (B-Achse) -120 +120º ° workpiece dia. 840 mm workpiece height max. 500 mm rapid taverse 40.000 mm/min feed 40.000 mm/min taper HSK-A63 engine output 24 kW turning speeds 24.000 U/min Tools place 60 fach Internal cooling system 40 bar Machine on 28.008 Program on 13.900 h total power requirement 39 kW weight of the machine ca. 9.100 kg -Round table -Direct measurement system -Tool charger included -Tank with 500l paper filter -Active refrigerator cabinet -Infrared measuring probe Heidenhain -Blum laser probe meter included -Chip extractor included -Cleaning gun with 2 bar 40 l/min pump -3D quick set -HEIDENHAIN HR-410 Portable Steering Wheel

Condition: used, Year of construction: 2007, Serial number: UH9KK180723HFxxxx Please contact ATS Norway AS for more information Please provide reference number upon request: 19277 Specifications: - 2007 model - Tires (see pictures) - Thermo king unit - 2 zoners - Length: 863 cm - Width: 260 cm - Wheelbase: 182 cm - Net weight: 7,840 kg - Internal length: approx. 720 cm - Internal height: approx. 260 cm - 2000 kg Zepro lift - Tool box - Reversing camera Description: HFR cabinet trailer with Zepro lift and Thermo king unit. The trailer and the unit worked when it was parked, but has stopped for a while. So some repair cost must be taken into account Can be delivered within a short time. Technical approved: no Bwob Hsvgz Svja Ew Del EU-approved until: 12.04.2024 Own weight: 7840 Total Weight: 18000 Payload: 10160 Width: 260 Length: 863

Condition: used, 0 800x600 mm Motor output 18,5 kW 0 0,6 m³ Diameter of the motor 252 mm Dimensions (L/W/H) 1700x1130x1595 mm Weight 1300 kg Number of working hours 1741 h WEIMA shredder WL 4, machine completely checked ----- Note: The machine has been completely checked by us, it is running perfectly, see video. The blade and slide plate have already been replaced by the previous owner. We replaced the V-belt during the inspection. Description: The Weima high-performance shredders with their flexible application options can process all types of wood materials (hardwood, softwood, chipboard, MDF materials, plywood, veneer residues, etc.) into fuel chips and achieve an enormous reduction in the volume of the material in the case of bulky materials. Function: The machine is equipped with a large filling hopper and can be fed using a conveyor belt or by hand. This hopper can be adapted to individual needs and guarantees a continuous and cost-effective material feed without the need for manual assistance. The hydraulically controlled slider feeds the wood waste to be shredded to the cutting area of ??the rotor and is controlled automatically and depending on the load. The internal slider guides are made of highly abrasion-resistant plastic (polyamide) and can be adjusted. The hydraulic cylinders are cardanically suspended to avoid transverse forces on the piston sleeves. The patented and profiled V-rotor made of solid steel has a diameter of 252 mm and works at a rotor speed of 80 - 120 rpm. The concavely ground, aggressive and 4- way rotating knives / cutting crowns are located in milled knife pockets on special knife carriers. This patented system guarantees high throughput, low energy consumption and optimal discharge of the shredded material by reducing the cutting gap between the counter knife and the rotor for the first time. The screen mounted under the rotor determines the chip size (10 - 100 mm). A hydraulically opened screen basket is also available on request. The power is transmitted from the electric motors via V-belts to a strongly dimensioned gear, which is mounted on one side of the rotor on the shaft stub. Bwjb Ha Ejvvx Dzsw Dol Technical data WL 4 / 18.5 kW ----- Feed opening: 600 x 800 mm Standard hopper capacity: 0.6 m³ Rotor working width: 600 mm Rotor diameter: 252 mm Power: 18.5 kW Rotor speed: approx. 90 rpm Sieve diameter: 15 mm Paint finish: Weima standard RAL 2002 / 7016 Connection value: 400 V +/- 5% / 50 Hz Weight: approx. 1,300 kg Includes: Electrical control (Moeller / Siemens / Allen-Bradley) Control cabinet (Rittal / Sarell) Concavely ground cutting crowns (40 x 40 mm ) Sterntriangular start Vibration-damping foundation V-rotor (patented) with knife pockets milled into the profile (technical information according to the manufacturer - no guarantee!)

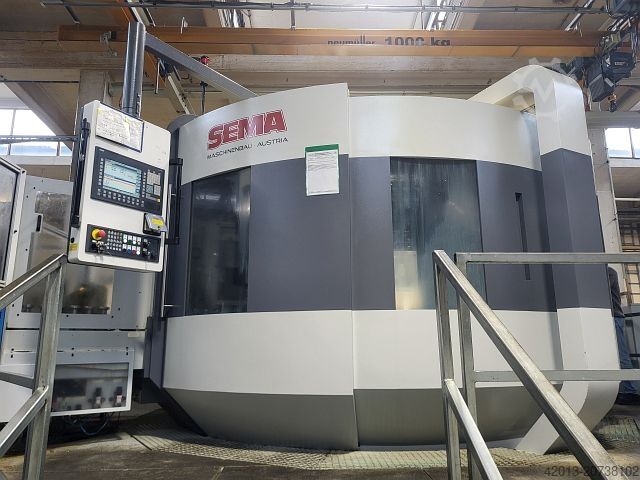

Condition: excellent (used), Year of construction: 2019, total height: 4,532 mm, controller manufacturer: SIEMENS, controller model: 840 D SL, power: 210 kW (285.52 HP), overall weight: 23,000 kg, space requirement length: 13,480 mm, space requirement width: 10,502 mm, CONTROLS .. CNC controls SIEMENS 840 D SL DIMENSIONS / WEIGHTS .. space requirements -left/right-: 13480 mm .. space requirements -front/back-: 10502 mm .. total height: 4532 mm .. total weight approx.: 23000 kg ELECTRICAL SPECIFICATIONS .. total power consumption: 210 kW .. mains voltage: 400 V .. mains frequency: 50 Hz asic machine system with 10 stations Station 1: Component loading (multi-axis handling) Station 2: Sauter 112 crown turret (3 spindle units) HSK 40 with internal cooling (max. 15,000 rpm) Station 3: Sauter 112 crown turret (3 spindle units) HSK 40 with external cooling 1 SEMA AE2-35/50/NC 2-axis unit Station 4: 1 SE – HSK 50C spindle unit including internal cooling (max. 15,000 rpm) Station 5: 1 Sauter 112 crown turret (3 spindle units) HSK 40 with internal cooling Station 6: 1 Sauter 112 crown turret (3 spindle units) HSK 40 with internal cooling 1 SEMA 2-axis unit AE1-35/50/NC Bob Ha Ewev Hglbj Dswl Station 7: 1 hydraulic docking unit including C-axis positioning unit (1 2-axis unit SEMA AE1-35/50/NC) Station 8: 1 hydraulic docking unit including C-axis for positioning 1 permanently integrated angle head Benz or equivalent Station 9: 1 2-axis unit SEMA AE3-35/50/NC Station 10: Permanently integrated angle,S-35/50/NC Station 11: Blow-off inside/outside

Condition: used, Year of construction: 2022, Workpiece return: Conveyor belt Edgeband thickness max: 3 mm Panel thickness max: 60 mm Thickness of coiled edgeband max: 3 mm Continuously variable feed: Yes Electromotoric height adjustment: Yes Top pressure by belt: Yes Places in coil magazine: 24 Glue system granulate: Premelting unit Bsb Ha Ewewhfb Nj Dewl SCM Glue system QMS-P Premelter: Yes Quick-change glue pot: Yes SCM Glue system SGP Smart Glue Pot: Yes Suitable for PUR glue: Yes PUR Aufschmelzeinheit: interner PUR-Aufschmelzer SCM Glue system PU BOX L: Yes Spraying device: Yes SCM Spraying device AAP: Yes SCM Spraying device AAR Anti-adhesive spray unit: Yes Spraying device Cleaning agent: Yes Premilling unit: Yes SCM Premilling unit RT-X: Yes SCM Edsystem: Yes Preheating zone: Yes Andruckzone NC-gesteuert: Yes Trimming saw: 2 motors SCM Trimming saw YU/SP 1000: Yes Flush/radius/chamfer milling units: 2 SCM Flush milling unit R-E: Yes SCM Edsystem: Yes STEFANI Fine milling unit RSU-E: Yes SCM Multi Edge: Yes SCM Edsystem: Yes Corner rounding unit: 4 motors SCM Corner rounding unit ROUND 4: Yes SCM Multi Edge: Yes Nutfräsaggregat: Universalfräsaggregat schwenkbar, Zwei Aggregate SCM Grooving unit MX 80: Yes Scraper unit: Profile scraper, Flat scraper SCM Scraper unit RC S-E: Yes SCM Multi Edge: Yes SCM Scraper unit RC-E MULTILEAF: Yes Buffing unit: Yes SCM Buffing unit SP F: Yes Finishing aggregate: Hot air Suitable for nesting: Profile scraper, Bündig/Radius/Fasestationen Aggregates actuated by control: NC-axes Profilwechsel automatisch: Bündig/Radius/Fasestationen, Profile scraper, Eckenkopieraggregat Type: left-side machine Infeed automatically: Yes Batch size 1: Yes Barcode reader: Yes SCM Easy Size: Yes Control: SCM eye-M Control cabinet cooling: Yes UPS - Uninterruptible Power Supply: Yes Software: SCM MAESTRO ACTIVE EDGE Conformity marking: CE mark

Condition: used, Year of construction: 2019, Weight: 1.750 kg = Rinaldi TDF55 Double Aluminium Mitre Saw = ⚙️ Technical Specifications - Power Supply: Three-phase, 380/400V – 50/60Hz - Motor Power: 2.2 kW - Saw Blade: Ø 550 mm, 2850 rpm - Saw Head Positioning Speed: 25 m/min - Maximum Cutting Length: 4000 mm - Minimum Cutting Length: - 135°: 200 mm - 90°: 300 mm - 22.5°: 200 mm - Mitre Angles: - External: 90° to 22.5° - Internal: 90° to 135° - Weight: 1750 kg 🛠️ Key Features - CNC control via industrial PC (Windows 10, 12.1" touchscreen) - Oleopneumatic saw feed with 15° inclination - 4 horizontal and 2 vertical pneumatic clamps - Pneumatic impulse lubrication system - Dust extraction connection (Ø100 mm) - USB 2.0 and RJ45 Ethernet ports - Multiple cutting modes: single cuts, undercuts, overcuts, etc. 📦 Standard Equipment - 2 carbide-tipped saw blades (Ø 550 mm) - Adjustable feet, air gun, service tools - Pneumatic clamps: Yes - Year: 2019 - Documentation available: No - CE mark available: Yes - Serial number: 215439 - Transport weight [kg]: 1750kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Beb Hajwf Uuys Ew Dowl Glenn Smeets

Condition: used, Year of construction: 2008, operating hours: 38,800 h, Functionality: fully functional, Macpresse MAC 111 / 1 baler, pressing force 170 t, built in 2008 Technical specifications: Manufacturer: Macpresse International S.R.L., Milan, Italy Type: MAC 111 / 1 Beb Howgkfdsa Ew Dowl Year of manufacture: 2008 Operating hours: 38,751 as of March Pressing force: 170 t Drive power: 2 x 55 kW Mains voltage: 400 V / 50 Hz Filling opening: 1,800 x 1,020 mm Press chamber volume: 2.7 m³ Bale size: 1,100 x 1,100 mm (H x W) Throughput / mixed paper: 30–35 t/h Binding: 5-fold horizontal Transport dimensions: approx. 11,500 x 2,300 x 2,845 mm (L x W x H) Press weight: approx. 39,000 kg Accessories: Hopper, turbulator Note: The press is expected to be in operation until May 16, 2025, and can be inspected in operation upon request. The conveyor belt shown in the photos is not included in the scope of delivery. Please note: All technical data refers to the manufacturer's specifications. We assume no liability for the information provided or for any errors. This offer is subject to change without notice, subject to prior sale, and revocable at any time. Inspections are possible by arrangement. Sales against advance payment are ex works, without warranty or guarantee.

Condition: used, operating hours: 5,190 h, Field of application: Internal logistics Please contact ATS Norway AS for more information Please provide reference number upon request: 18995 Specifications: Model year: Unknown (before 2000) Max lifting height: 3.5 m Max lifting capacity: 3,000 kg Weight: 4,680 kg Hours: Approximately 5,190 Diesel Tires: See pictures for details Twin front wheels Videos Services performed by owner Delivery: By arrangement Bwob Ha Ewevgym Sj Dol Description: This forklift, with a maximum lift height of 3.5 meters and a lifting capacity of 3,000 kg, is used in the workshop and in daily operations. The owner is unsure of the model year, but states that it is from before 2000. It has twin front wheels and a diesel engine, and has run approximately 5,190 hours. Delivery can be arranged as needed. Hours: 5190

Condition: like new (used), Year of construction: 2019, operating hours: 46,212 h, travel distance X-axis: 935 mm, travel distance Y-axis: 850 mm, travel distance Z-axis: 650 mm, rapid traverse X-axis: 40 m/min, rapid traverse Y-axis: 40 m/min, rapid traverse Z-axis: 40 m/min, controller manufacturer: Heidenhain, controller model: TNC-640 with CELOS, workpiece length (max.): 600 mm, workpiece diameter (max.): 800 mm, workpiece weight (max.): 800 kg, table load: 1,500 kg, rotary table diameter: 630 mm, spindle speed (min.): 20 rpm, spindle speed (max.): 20,000 rpm, operating hours of spindle: 10,376 h, number of slots in tool magazine: 180, tool length: 365 mm, tool weight: 8 g, Equipment: chip conveyor, CNC control: Heidenhain TNC-640 with CELOS Axes X-axis travel mm: 935 Y-axis travel mm: 850 Z-axis travel mm: 650 C-axis degrees: 360° (0.001) A-axis degrees: +120° to -120° Feed rates m/min: 40 Rapid traverse m/min: 40 Acceleration in axes m/s2: 6 Work table Number of pallets: 6 Table dimensions mm: 630 Maximum workpiece size (D x H) mm: 800 x 600 Maximum workpiece weight kg: 800 in APC - 1,500 in workarea T-Slot version: DIN - 55201-A2 Spindle Spindle speed rpm: SpeedMaster 20 - 20. 000 Spindle power kW: 35 / 25 Spindle torque Nm: 130 / 86 (40%/100% DC) Tool system Tool holder: HSK-A63 Tool magazine positions: 180 With free adjacent positions mm: 200 With occupied adjacent positions mm: 80 Max. tool length mm: 365 Max. tool length mm: 365 of tool mm: 365 Max. tool weight kg: 8 Equipment Electronic handwheel Chip extractor Internal coolant lubricant supply Flushing gun Operating mode 4 Mist collector 3D quickSET Precision package Air blowing through spindle center, selectable via M function MPC - Machine Protection Control Temperature compensation Paper belt filter RENISHAW OMP60 CE Blum laser tool measurement Production package Rotating viewing window with laminated glass Round pallet Stor 10 - 80 Tank capacity liters: 980 L Machine operating times Under voltage: 46. 212 Operating Time: 10.376 Bwsb Hjwgiphsa Ew Del Rated power kVA: 78 Basic machine dimensions / weight Length mm: 5.063 Width mm: 5.093 Height mm: 3.153 Weight kg: 12.300

Condition: ready for operation (used), Year of construction: 2021, Control Unit Brand SIEMENS Model 840d Solutionline Main Drive Number of spindles 1 Spindle speed range 20 to 24000 rpm Number of axis 4 Movement X-Axis Movement 700 Y-Axis Movement 420 Z-Axis Movement 380 Table Outer length 840 mm Outer width 420 mm Media Chip conveyor Yes Internal cooling Yes Additional Equipment Tool holder ISO7388-2 J30 Tool changer 25 places Additional tank 600l Bwsb Ha Eswg Ifhew Dol Oil and emulsion mist separator This DMG MORI DMP 70 with WH3 Vertical Machining centre was manufactured in the year 2021. It is equipped with a DMG MORI control unit. The machine disposes of a spindle with a speed range of 24000 rpm, a internal cooling system and a chip conveyor. Contact us anytime for further questions. Application Types Milling

Condition: used, Year of construction: 2000, x-travel 3.700 mm y-travel 3.050 mm z-travel 1.000 mm Control HEIDENHAIN TNC-430 PA distance between columns 2.300 mm 1.175 mm rapid travel x/y/z 25.000 mm/min feeds 15.000 mm/min tool taper ISO-50 - DIN 69871 table weight 20.000 Kg spindle drive 37 kW milling head -swivable +/- 45 ° milling head AB Achse 360.000 pos. Tools changer 30 fach/tools Chip coveyor Ink. Internal cooling system 20 bar Bsb Hjwg Hrgja Ew Dowl table-size 4.000 x 1.800 mm weight of the machine ca. 42 t

Condition: ready for operation (used), Ebmpapst BCI 63.55 SK 550 0760 08 Brushed internal rotor motor 24V 00004 + BCI 63.55 9316355023 Angular gearbox 24VDC 00009, used, as new condition, 100% functional, scope of delivery as per photos Bwob Ha Esu T Uvcew Dsl

Condition: new, A vertical band saw is an asset to any workshop that processes steel. Sawing, notching and separating external and internal contours - the models in the VB A series are designed for all-round use and are characterized by their rigid construction, stable work table and variable belt guides Bjb Hsuyialja Ew Djwl

Condition: used, Year of construction: 2022, Serial number: SA9FT4A55MH17xxxx Please contact ATS Norway AS for more information Please provide reference number upon request: 19594 Specifications: - 2022 model - 4 axles - Tires (see pictures) - Pull out on the drawbar - Internal total length: 8,843 m - Inside mlp scene 1: 2,748 m - Inside mlp scene 2. 5,780 m - Lift on 3. axle - Swing on 1st and 2nd axle - Ready for delivery Bob Ha Ewevyfq No Dowl Drum brakes Description: The machine trailer is in good condition according to the owner. Everything works as it should. Ready for delivery Technical approved: Yes EU-approved until: 06.02.2026 Own weight: 8600 Total Weight: 36000 Payload: 27400 Width: 254 Length: 1205,5

Condition: good (used), Year of construction: 2004, Technical details x-travel 1300 mm y-travel 1100 mm z-travel 1000 mm Control Mazatrol PC Fusion 640 M total power requirement 64,6 kVA weight of the machine ca. 24 t Additional information Equipment: CNC control Mazak Mazatrol PC Fusion 640 M With Performance CNC package EIA / ISO conversion Internal coolant supply through the work spindle with 70 bar pump pressure but without coolant tank. Preparation of measuring device for Renishaw Tool length measurement up to 600 mm With 10-fold pallet changer PALLETECH B-axis 360° x 1° (deg) Tool changer 240-fold TOOL-HIVE (modified to 50% higher speed) Max. tool length 652 mm Max. tool diameter 135 mm, with free adjacent space 260 mm Tool weight 30 kg Chip conveyor Machine documentation Technical data: Max. workpiece diameter (interference circle) diameter 1250 mm Max. workpiece height 1250 mm Transverse movement of the column, X-axis 1300 mm Vertical movement of the spindle head, Y-axis 1100 mm Longitudinal movement of the table, Z-axis 1000 mm Distance from spindle center to pallet center 150 to 1150 mm Distance from spindle center to pallet surface 100 to 1200 mm Pallet size 800 x 800 mm Workpiece weight (pallet load) evenly loaded 2200 kg Pallet changing time 13 seconds Table switching 1° x 360 positions Spindle speed range 35 to 7000 rpm Torque increased with 2 gear levels Tool holder BT/SK 50 Main motor 15 minute power 30 kW / continuous power 22 kW Max. torque 1177 Nm Inner diameter of spindle bearing 100 mm Rapid traverse speed 40000 mm/min. Cutting feed 40000 mm/min. Machine dimensions (standard specification) Bjb Ha Eewgatqew Djwl Height (measured from ground) 3527 mm Width 4353 mm Depth 6900 mm Weight (standard specification) 24 t Power supply 64.6 kVA

Condition: new, Year of construction: 2025, NEW Mobile loading and unloading ramp with a load capacity of 10T. Technical parameters: 1.) Load capacity 10T 2.) Internal width 2.0m - external width 2,1m 3.) Length 11.3m 4.) Total weight 2.9T 5.) Height adjustment 1.1-1.8 m 5.) Fork holder for the ramp transport truck 6.) Transport wheels 7.) Plumbing The ramp floor is made of BRIDGING GRILLE, which is GALVANIZED!!!. the grating is a great advantage of this ramp, unlike ramps that have a floor made of sheet metal and steel mesh or bars placed on it. the wheels of the forklift do not slip on the ramp, and they clean themselves during the drive, which means that the floor of the loaded container or truck is not contaminated with mud or snow. Bwjb Herqfq Eea Ew Dol ​

Condition: new, A vertical band saw is an asset to any workshop that processes steel. Sawing, notching and separating external and internal contours - the models in the VB A series are designed for all-round use and are characterized by their rigid construction, stable work table and variable belt guides Bwebeqhkkzj Ha Ew Dsl

Condition: used, Year of construction: 2012, Serial number: SZFTN1490CLD0xxxx Bwjbowdvc Ne Ha Ew Dol Please contact ATS Norway AS for more information Please provide reference number upon request: 20131 Specifications: - 2012 model - Eu-approved until: 19.10.25 - 3 Axles - Movable wall - Air suspension - Raise and lower function - Tires (see pictures) - Internal length: 6.608 m - Internal width: 2.495 m - Lashings - Ready for delivery Description: We have a 2012 Istrail 3 axle flatbed trailer for sale. The trailer is Eu-approved until 19.10.25 Is in daily use and functions as it should according to the owner. Ready for delivery Technical approved: Yes EU-approved until: 19.10.2025 Own weight: 6410 Total Weight: 27000 Payload: 20590 Width: 255 Length: 945

Condition: good (used), Year of construction: 2005, Functionality: fully functional, Operating hours 70278 Spindle hours 23335 Please note the enclosed geometry measurement report with the tool pull-in force measurement. Travels X-axis 1040 mm Y-axis 600 mm Z-axis 500 mm Feed 40 m/min (X/Y/Z) Rapid traverse 40/70 m/min. (Y/Z-X) Table surface 1250 x 600 mm Table load 600 kg Spindle speed 1 - 8000 rpm Power 13/19 kW at 100/40% ED Torque 140/200 Nm (S1/S6) Tool holder SK 40 Total power requirement 39 kVA Machine weight 8880 kg Equipment: CNC control Heidenhain iTNC 530 Electronic handwheel Heidenhain HR 410 Motor spindle with increased torque Direct path measuring system in Y-Z axis Preparation for measuring probe 30-station tool changer, tool diameter 100/140 mm, length 300, weight 7 kg ROTOCLEAR Production package 2 Bwebswgarmj Ha Ew Dsl Internal coolant supply through the spindle 20 bar Coolant system with paper belt filter Cooling device blown air through the spindle center selectable via M function Chip conveyor Bed flushing Linear drive in the X-axis Operating mode 4 Program check with extended manual intervention Machine documentation Transport dimensions: 4100 x 2500 x 3000 mm

Condition: new, A vertical band saw is an asset to any workshop that processes steel. Sawing, notching and separating external and internal contours - the models in the VB A series are designed for all-round use and are characterized by their rigid construction, stable work table and variable belt guides Bwob Ha Ewjqhkkto Djl

Condition: used, Year of construction: 2013, Serial number: YG9511307D303xxxx Please contact ATS Norway AS for more information Please provide reference number upon request: 20105   3 axles Lift on axle 1 Swing on axle 3 Good condition with tires, see pictures Air suspension Beb Ha Eewdvkmow Dswl Standard height inside 410-450 cm in height Interior length 1347 cm Internal width 247 cm Total length 1385 cm Wheelbase 136/255 cm Width 255 cm Ready for delivery Technical approved: Yes EU-approved until: 19.09.2025 Own weight: 9900 Total Weight: 45000 Payload: 35100 Width: 255 Length: 1385

Condition: excellent (used), Year of construction: 2021, Functionality: fully functional, Technical details max. workpiece diameter 400 mm workpiece length - max. 300 mm Control SIEMENS 840Dsl swing diameter 520 mm chucking diameter 500 mm travel x / y / z 995/+,-30/580 mm Additional information Operating hours (total): 1848 hours 1.2.2 BASE TURRET UNIT AND Y-AXIS SLIDE UNIT The Y-axis slide unit is mounted on the side of the machine base. Bwebjwgan Uo Ha Ew Del A fast-reacting, position-controlled, and maintenance-free servo motor is used for the axis drive. It drives the slide via a high-precision ball screw. A linear measuring system is built into the Y-axis. Positional accuracy: 2 µm. BASE TURRET UNIT Shortest swivel times thanks to direct swivel drive, cooled for consistent accuracy. MAIN SPINDLE 37.7 KW 1.2.3 HP TURRET DRIVE UNIT FOR DRIVED MACHINE TOOLS (C442) With internal coolant supply to the tool.* Max. speed 6,000 rpm Crosscut speed 3,200 rpm Torque at 100% duty cycle 54 Nm/18.1 kW Torque at 40% duty cycle 83.6 Nm/28.0 kW Torque at 10% duty cycle 100 Nm/33.5 kW 1.2.4 TOOL CARRIER UNIT FOR DRIVED TOOLS TOOLS, 12xBMT75 for BMT75 tool holders 1.2.6 ROTATING WORKPIECE TRANSPORT SYSTEM, O-TYPE Drag frame system for 10 workpieces Max. workpiece height (including workpiece pallet) 300 mm Max. workpiece weight 60 kg 1.2.7 SET (10 pieces) DRAG FRAME for O-type belt For workpiece diameters 150 - 400 mm 1.2.8 BLOW-OFF OF THE WORKPIECE AND THE CLAMPING DEVICE (PICK-UP) 1.2.10 COOLANT SUPPLY 15 bar Coolant pump flow rate approx. 80 l/min at 15 bar. COOLING UNIT (6.5 kW, water-air) A cooling unit (with dual-circuit technology) regulates the machine's thermal balance. The spindle drive, control cabinet, and turret are kept at ambient temperature (10°C - 40°C). Cooling capacity: 6.5 kW 1.2.11 COOLANT DOUBLE FILTER, MANUALLY SWITCHABLE Filter fineness 100 µm, with electrical and mechanical contamination indicator 1.2.12 CHIP CONVEYOR, HINGED BELT VERSION - REAR-FACING Chip discharge height 1100 mm. /With integrated coolant reservoir, capacity approx. 500 l. 1.2.13 EMULSION MIST EXTRACTION Extraction capacity approx. 800 m3/h 1.2.14 FLUSHING GUN 1.2.16 WORKPIECE MEASUREMENT with a measuring probe that is completely protected from chips and coolant outside the work area. 1.2.17 BLOW-OFF PROBE 1.2.19 ENGRAVING SOFTWARE PACKAGE 1.2.20 TOOL LIFE MONITORING - SISTER TOOL MANAGEMENT 1.2.21 TOOL BREAKAGE MONITORING TOOLINSPECT MCU - EUROPE (SIEMENS 840DSL, FANUC 31i/32i) 1.2.23 3-COLOR INDICATOR LIGHT 1.3.2 AXIAL DRILLING AND MILLING HEAD - BMT75 CC 1.3.3 ANGLE DRILLING AND MILLING HEAD 90° - BMT75 CC (i=1:1) 1.3.4 TOOL SET FOR OP10 + OP20 1.3.7 HYDRAULIC FULL-CLAMPING CYLINDER SIZE 150 - with 1 media feedthrough The coolant is supplied to the workpiece through the main spindle and the clamping device. 1.3.10 3-Jaw Power Chuck KNCS-N 500-155 Quick Change n max. = 2200 rpm (Recommended speed according to DIN 6386) - Set of hard base jaws - Set of soft top jaws 1.3.11 Attachments for KNCS-N 500-155 Consisting of: - Chuck flange DIN 55026 A11 - Drawbar adapter with through-hole and shut-off valve for central air or coolant supply - Mounting screws 1.3.12 Irrigation nozzle in chuck bore Additional tool holders with tools

Condition: new, The machine frames of the RSM series are characterized by a heavy design and long, supporting guideways. The table can be swiveled and the finely adjustable hydraulic feed moves smoothly in the longitudinal direction. A large scale ring on the handwheel of the X-axis facilitates precise infeed and the zero stop guarantees compliance with the desired dimension. The standard position indicator with linear scales is used to check the actual values. The headstock is rotated 180 degrees for internal grinding. An extensive accessory package is standard. Bjbencdx Ne Ha Ew Dswl

Condition: good (used), Year of construction: 1995, Functionality: fully functional, Technical details internal diameter 800 mm grinding depth 500 mm swing diameter 850 mm weight of the machine ca. 6,4 t Additional information Used internal cylindrical grinding machine with face grinding device in special design with enlarged swing diameter and extended, hydraulic transverse movement Reconstructed and modernized 1995 in the Glauchau manufacturer’s plant, put into operation 1996 1. TECHNICAL DATA 1.1 Working area Grinding diameter in the workpiece guard internal grinding, min./max. mm 30/630(800) External grinding, max. mm 800 Grinding depth, up to approx. mm 500 Table stroke mm 800 Workpiece diameter, max. mm 800 Swing diameter in workpiece protection, max. mm 800 Without workpiece protection, approx. mm 850 Distance from workpiece spindle head to grinding spindle carrier, max. mm 1225 Adjustment of the internal grinding device on the table, max. mm 545 Bwob Haswgai Se Ew Del 1.2 Workpiece headstock Cross shift, max. mm 650 Cross adjustment via gear motor and positioning device with HEIDENHAIN digital position display Swivel, max. degrees 15 Workpiece spindle Speeds rpm 16/22/32/ 45/63/90/ 125/18/250 Load capacity, max 1000 Spindle head (with bayonet flange) DIN 55021 size 11 Machine accessories: 2-axis digital displays made by HEIDENHAIN Coolant system with magnetic separator Fixators (machine shoes) Various grinding wheels Diamond dresser Large face plate Internal and face grinding device Halogen machine lamp Machine documentation

Condition: new, The machine frames of the RSM series are characterized by a heavy design and long, supporting guideways. The table can be swiveled and the finely adjustable hydraulic feed moves smoothly in the longitudinal direction. A large scale ring on the handwheel of the X-axis facilitates precise infeed and the zero stop guarantees compliance with the desired dimension. The standard position indicator with linear scales is used to check the actual values. The headstock is rotated 180 degrees for internal grinding. An extensive accessory package is standard. Bwjboncdx Ee Ha Ew Del
