Manual Screen Washer, Model 4

Condition: ready for operation (used), Year of construction: 2023, functionality: fully functional, turning length: 300 mm, turning diameter: 300 mm, spindle bore: 52 mm, spindle speed (max.): 4,500 rpm, controller model: FANUC CNC, The machine can be inspected with a lead time of three days. TECHNICAL DETAILS Maximum turning diameter: approx. 300 mm Maximum turning length: approx. 300 mm Spindle bore diameter: approx. 52 mm Maximum main spindle speed: 4,500 rpm Tool turret: 12 stations MACHINE DETAILS Control system: FANUC CNC Machine weight: approx. 2,200 kg Operating hours: approx. 6,458 h Spindle hours: approx. 4,300 h Voltage: AC 380 V (with or without transformer) Rated power: 14.97 kVA Full load current: 22.74 A Interrupting capacity: 5 kA Short-circuit capacity: 10 kA Power of the electric motor according to the manufacturer: 7.5 kW EQUIPMENT Technical documentation Powerful main spindle Robust machine construction for high dimensional accuracy Cedeznb Ntjpfx Aitjha Tool turret with rapid indexing Compact design with low space requirements User-friendly CNC control High reliability Low maintenance requirements Complete technical documentation

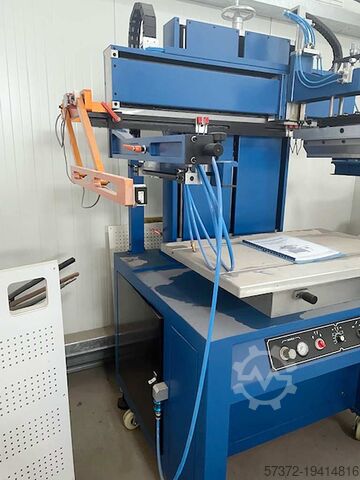

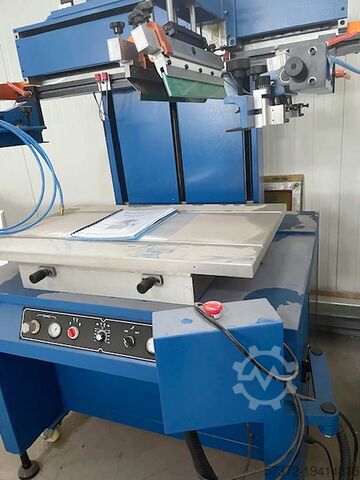

Condition: ready for operation (used), A screen printing system including a feed table with XY adjustment is available. Printing area: 800mm/500mm, max. print object height: 160mm, max. frame dimensions X/Y/Z: 1290mm/760mm/40mm, max. printing speed: 500 prints/h, machine dimensions X/Y/Z: approx. 1700mm/1100mm/2000mm, weight: approx. 450kg. Documentation available. An on-site inspection is possible. Chedpfxswut Hae Aitja

Condition: ready for operation (used), Year of construction: 2017, functionality: fully functional, machine/vehicle number: R17393-376-4-0, overall weight: 32 kg, load capacity: 8 kg, controller model: Yaskawa YRC1000, teach pendant manufacturer: Yaskawa, number of axes: 6, TECHNICAL DETAILS Robot axes: 6 Payload: 8 kg Self-weight of robot arm: 32 kg Codpfxezmwafj Aitoha MACHINE DETAILS Controller: Yaskawa YRC1000 Teach pendant manufacturer: Yaskawa Power supply: 3-phase AC 380–440 V, 50/60 Hz Input current: 15 A Max. device overcurrent protection current: 15 A Short-circuit current: 2.5 kA Power supply type: ERAR-1000-06VX8-E10 EQUIPMENT Yaskawa Motoman GP8 robot arm Yaskawa YRC1000 robot controller

Condition: ready for operation (used), functionality: fully functional, machine/vehicle number: FN498167, Year of construction: 2015, operating hours: 15,254 h, lifting height: 4,700 mm, free lift: 1,490 mm, mast type: triplex, construction height: 2,132 mm, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Free lift: 1,490 mm Lift height: 4,700 mm Overall height: 2,132 mm MACHINE DETAILS Mast type: Triplex Battery voltage: 48 V Battery capacity: 625 Ah Battery year of manufacture: 2015 Hydraulic valves: 3rd/4th valve on the fork carriage Operating hours: 15,254 h EQUIPMENT Triplex lift mast with free lift 3rd/4th hydraulic valve on the fork carriage Codpfx Aiszrlxgetsha Charger External reference: SL9789SP

Condition: new, Year of construction: 2024, machine/vehicle number: 05004TRW090130, Drying Oven TRW, Model II Codpfxjh Tyrws Aitsha For drying racks with max. 50rods, useable size 90x126cm, outer dimensions: approx. 2280mm wide x 1570mm deep x 2280mm high, useable space: approx. 1400x1070x1660mm, fixing and drying temperature: up to max. 180°C, connection: 400V, 50Hz, 21kW, weight: 900kg, lacquering: corps RAL 7035 (light grey), doors RAL 7037 (dust grey). ATTENTION: Not permitted for solvents! Chamber dryer, all-steel construction, with good thermal insulation. Simple insertion of drying racks by means of easy-to-open wing doors. The air is sucked out of the drying chamber by ventilators, is blown through thermostat-controlled heating registers and re-fed temperature-controlled to the drying chamber. The horizontal air guide in the drying chamber guarantees an even temperature control. The required temperature can easily be adjusted via actual and nominal value thermostat. Overheating protection by safety thermostat. Particularly suitable for fixing and drying of textile inks and flock glues up to 180°C. - Various drying racks for different applications available. - Special varnishing upon request. ATTENTION: Not permitted for solvents! Not permitted for foods!

Condition: ready for operation (used), functionality: fully functional, machine/vehicle number: 90621285, Year of construction: 2021, operating hours: 560 h, lifting height: 2,800 mm, construction height: 1,950 mm, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Lifting height: 2,800 mm Overall height: 1,950 mm MACHINE DETAILS Mast type: Standard mast Battery type: Lithium-ion battery Cjdpezrlw Ajfx Aitoha Operating hours: 560 h EQUIPMENT Initial lift Charger External reference: SL1145SP

Condition: ready for operation (used), functionality: fully functional, machine/vehicle number: H2X386H10283, Year of construction: 2017, operating hours: 5,612 h, lifting height: 4,625 mm, free lift: 1,500 mm, construction height: 2,121 mm, Equipment: sideshift, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Lifting height: 4,625 mm Overall height: 2,121 mm Free lift: 1,500 mm MACHINE DETAILS Chedpfx Aozrlwijitja Mast type: Triplex mast with free lift Battery voltage: 48 V Battery capacity: 585 Ah Tires: new Operating hours: 5,612 h EQUIPMENT Cabin Battery Charger Side shifter External reference: SL11370SP

Condition: ready for operation (used), Year of construction: 2010, functionality: fully functional, machine/vehicle number: 18199, travel distance X-axis: 550 mm, travel distance Y-axis: 410 mm, travel distance Z-axis: 450 mm, spindle speed (max.): 20,000 rpm, number of slots in tool magazine: 210, TECHNICAL DETAILS CNC control: FANUC 30iM for 5-axis machining Working area Travel in X-axis: 550 mm Travel in Y-axis: 410 mm Travel in Z-axis: 450 mm Swivel range of B-axis: +110 to −110° Rotational range of C-axis: 360° Feed rate Rapid traverse rate for X, Y and Z axes: 50,000 mm/min Rapid traverse rate for B-axis: 30 min⁻¹ Rapid traverse rate for C-axis: 50 min⁻¹ Tool magazine Number of tool positions (standard): 30 Extension of the tool magazine: 210 tool positions Preparation for expansion to 240 tool positions Pallet system Number of pallets: 10 Pallet size: Ø 130 mm Pallet interface: Capto C6 Workpiece size: max. Ø 250 × H 250 mm Workpiece weight: max. 40 kg Pallet clamping force: 22.5 kN Main spindle Spindle speed: 40 – 20,000 rpm Motor power: 7.5/11 kW Spindle torque: max. 70 Nm up to 1,500 rpm Spindle interface: HSK 63A Special functions: High-speed start-up at machine start, Automatic warm-up cycle MACHINE DETAILS Machine weight: approx. 12,000 kg Coolant system Coolant pressure through the spindle: 70 bar Delivery rate of internal cooling: 24 l/min Pump capacity of internal cooling: 5.5 kW EQUIPMENT Direct linear scale from Heidenhain in the X, Y and Z axes Linear scale with pneumatic locking Direct linear scale via rotary encoder for the B and C axes Cjdpfxszpyh Rj Aitoha CE marking KNOLL coolant system Drag chain chip conveyor Coolant filter CTS25-50T External cooling Coolant shower Compact filter KF200 Cooling water cooler VWK 90-D Coolant spray bars in the working area Two spiral chip conveyors Mechanical air filter TEBARON TEB/BV2 Single column with base plate for the air filter system Measuring probe Renishaw OMP 60 Software Easy Probe Pressure sensor for tool length measurement and tool breakage monitoring

Year of construction: 2002, condition: ready for operation (used), functionality: fully functional, machine/vehicle number: 211 S, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Bar passage max.: 65 mm Diameter of front spindle bearing: 110 / 150 mm Collet clamping system: up to 60 mm HAINBUCH collet system: up to 65 mm Main spindle Spindle speed max.: 3,000 rpm Power of main spindle motor: 11 / 15 kW Main turret Number of tool positions: 8 Tool holder: VDI 30 Max. working stroke Z-axis: 50 mm Rapid traverse speed: 15 m/min Feed force: 6,790 N Additional sub-turret Number of tool positions: 8 Tool holder: VDI 20 Cross slide Number of horizontal slides: 2 Working stroke X1/X2 axis max.: 70 mm Working stroke Z1 axis max.: 230 mm Feed force X1/X2 axis: 8,000 N at 50 bar Vertical slide Number of vertical slides: 2 Working stroke X3/X4 axis max.: 70 mm Manual length adjustment: 50 mm Rapid traverse speed: 15 m/min Feed force X1/X2 axis: 8,000 N at 50 bar Cjdpszpximefx Aiteha MACHINE DETAILS Dimensions & Weight Machine height: 1,700 mm Footprint: 2,900 x 1,700 mm Machine weight: 4,100 kg

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, machine/vehicle number: 142967, turning diameter over cross slide: 300 mm, spindle speed (max.): 5,000 rpm, rapid traverse X-axis: 30 m/min, feed rate X-axis: 5 m/min, controller model: Mazatrol PC Fusion CNC 640T, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Working area Maximum turning diameter: 300 mm Maximum swing diameter: 525 mm Maximum swing diameter over the slide: 350 mm Maximum bar diameter: 51 mm Main spindle Speed range: 35 – 4,000 rpm Drive power: 15 kW Maximum torque: 350 Nm Spindle nose: A2-6 Spindle bore: 61 mm C-axis positioning: 0–360° / 0.001° Counter spindle Speed range: 35 – 5,000 rpm Drive power: 7.5 kW Maximum torque: 57 Nm Indexing: 72 positions / 5° Tool turret Number of tool stations: 12 Equipment: Stationary and driven tools Turret indexing time to station 1: approx. 0.2 s Driven tools Drive power: 3.7 kW Maximum torque: 35 Nm Speed range: 25–4,500 rpm Travel ranges X-axis travel: 190 mm Z-axis travel: 575 mm Chedpfjzpxgxex Aitoa B-axis travel: 585 mm Rapid traverse rates Rapid traverse X-axis: 30 m/min Rapid traverse Z-axis: 30 m/min Rapid traverse B-axis: 18 m/min Feed ranges Feed X-/Z-axis: 0–5,000 mm/min Feed C-axis: 1–2,000 rpm MACHINE DETAILS Control system: Mazatrol PC Fusion CNC 640T EQUIPMENT Counter spindle Bar feeder

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, travel distance X-axis: 600 mm, travel distance Y-axis: 560 mm, travel distance Z-axis: 560 mm, workpiece weight (max.): 600 kg, number of slots in tool magazine: 60, swivel angle C-axis (max.): 360 °, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Codpfx Aozpxd Roiteha Spindle mount: SK40 Travel range X-axis: 600 mm Travel range Y-axis: 560 mm Travel range Z-axis: 560 mm Swivel range B-axis: 360° Number of tool positions in the magazine: 60 MACHINE DETAILS Control system: Siemens Number of pallets: 2 Pallet size: 400 × 500 mm Permissible pallet load: 600 kg Machine weight: 10,500 kg

Condition: ready for operation (used), Year of construction: 2002, operating hours: 18,419 h, functionality: fully functional, travel distance X-axis: 630 mm, travel distance Y-axis: 560 mm, travel distance Z-axis: 560 mm, workpiece weight (max.): 350 kg, number of slots in tool magazine: 24, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Travel range, X-axis: 630 mm Travel range, Y-axis: 560 mm Travel range, Z-axis: 560 mm Tool magazine slots: 24 Tool holder: SK 40 Rotary range, C-axis: 360° Table clamping surface: 600 x 1,000 mm Table diameter: 600 mm Maximum table load: 350 kg Table weight: 800 kg Number of T-slots: 8 / 1 T-slot width: 14 H12 / 14 H7 Chedszpxdwjpfx Aitsa T-slot spacing: 63 mm MACHINE DETAILS Number of axes: 5 (3+2) EQUIPMENT Controlled NC swivel milling head (B-axis) NC rotary table integrated in the fixed table (C-axis)
