TOOL CHANGE MOTOR

HOMAG

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, feed rate X-axis: 35 m/min, controller model: Power Control Steuerung PC22 mit SPS Steuerung, workpiece weight (max.): 50 kg, working height: 950 mm, Auction of an edge banding line! The line consists of the following machines: - BARGSTEDT O TSH200/D/30/12 - HOMAG OPTIMAT KFL 525/M1/C - HOMAG OPTIMAT TDL 510/C turntable - HOMAG OPTIMAT KFL 526/M2/C - HOMAG OPTIMAT TDL 510/C turntable - Wandres cleaning brush - BARGSTEDT O TSH200/D/30/12 HOMAG OPTIMAT KFL 525/M1/C TECHNICAL DETAILS Feed speed: 15–35 m/min Edgebanding capacity: Min. thickness: 0.6 mm Kjdpfeyghwcox Ahwjln Max. thickness: 3 mm Max. width: 30 mm Workpiece dimensions: Thickness: 12–40 mm Min. size: 250 × 240 mm Max. size: 2,500 × 1,200 mm Weight: 50 kg Panel overhang: 30 mm Working height: 950 mm MACHINE DETAILS Control: Power Control PC22 with PLC control HOMAG OPTIMAT KFL 526/M2/C Max. feed rate for panel processing: 30 m/min Max. feed rate for edge processing: 25 m/min Workpiece dimensions: Thickness: 12–40 mm (L/W) min.: 250 × 240 mm (L/W) max.: 2,500 × 1,200 mm Weight: 50 kg Panel overhang: 30 mm Working height: 950 mm MACHINE DETAILS Control: Power Control PC22 with PLC control HOMAG OPTIMAT TDL 310/C TECHNICAL DETAILS Feed: Steplessly adjustable Working height: 950 mm +/- 50 mm HOMAG OPTIMAT TDL 510/C TECHNICAL DETAILS Feed: Steplessly adjustable Working height: 950 mm +/- 50 mm HOMAG OPTIMAT TBH 200/D/30/12 TECHNICAL DETAILS Workpiece dimensions: Min. workpiece size: 240 × 240 × 12 mm Max. size, single track: 3,000 × 1,200 × 60 mm Max. size, double track: 3,000 × 550 × 60 mm Max. workpiece weight: 50 kg Max. stack weight: 3,500 kg Overlay overhang: 0 mm on all sides Protective boards: Min. protective board size: 800 × 240 × 19 mm Max. protective board size: 3,000 × 1,200 × 60 mm HOMAG OPTIMAT TSH 200/D/30/12 TECHNICAL DETAILS Workpiece dimensions: Min. workpiece size: 240 × 240 × 12 mm Max. size, single track: 3,000 × 1,200 × 60 mm Max. size, double track: 3,000 × 550 × 60 mm Max. workpiece weight: 50 kg Max. stack weight: 3,500 kg Overlay overhang: 0 mm on all sides Protective boards: Min. protective board size: 800 × 240 × 19 mm Max. protective board size: 3,000 × 1,200 × 60 mm Note: More detailed information regarding the configuration of individual components can be found in the attached order confirmations.

Condition: ready for operation (used), Year of construction: 2000, machine/vehicle number: 0-201-22-3325, functionality: fully functional, workpiece length (max.): 5,800 mm, workpiece width (max.): 1,200 mm, controller model: Homatic-CNC System PC83 mit Windows NT 4.0, feed rate X-axis: 80 m/min, spindle speed (max.): 18,000 rpm, No minimum price – guaranteed sale to the highest bidder! Bidding obligates the buyer to collect the machine on 20/03/2026! 4-axis CNC machining center for drilling, milling, edge banding, and finishing: - Saw and crosscutting unit for tool changer - Drilling and milling unit (4 spindles) for tool changer - Combination flush-trimming and finishing unit for tool changer - Blow-off nozzle for workpiece edge, compatible with tool changer Attention: Except for the units listed above, no vacuum suction cups, tools, or tool holders (even if visible in images) are included in the scope of delivery! TECHNICAL DETAILS Kljdpfx Ahjyic Tuowjn Console clamping table "K": 12 adjustable consoles for holding vacuum cups with longitudinal and lateral stops, 4-fold occupancy - Max. workpiece length (single occupancy): 5,800 mm - Max. workpiece length (pendulum mode): 2,200 mm - Max. workpiece width: 1,200 mm - Max. workpiece thickness (using standard 100mm-high cups) with edge: 60 mm (if extraction hood is in position 1) - Max. workpiece thickness (using standard 100mm-high cups) without edge: 60 mm - Max. workpiece thickness (using standard 100mm-high cups) without edge: 120 mm (if extraction hood is in position 2) Support equipment - Drilling head: 17 vertical spindles - 2x main spindle 12 kW, water-cooled, for HSK (speed 18,000 rpm with C-axis and 12-position carousel tool changer) - Separate Y-axis for second main spindle and interface for aggregates with integrated pneumatic and electrical connections - Electronic supply and swivel drive - C-axis: swivel range without limitation Edge banding unit, 360°, for insertion into right main spindle - Max. edge height: 65 mm - Pickup station right, for depositing edge banding modules - Pre-cutting station and 3-position roller magazine Adapter units - Combination flush-/radius trimming and finishing unit (profile scraper knife) - Saw and crosscutting unit - 4-spindle drilling/milling unit (crosshead) - Blow-off nozzle for workpiece edge MACHINE DETAILS - Control: HOMATIC control PC 83 with Windows interface (NT 4.0) EQUIPMENT - WOODWOP programming system, version 5.0 - Network connection - Laser positioning aid - Chip conveyor - Safety: pressure-sensitive floor mats at front, side safety cage; rear: wall installation Note: A loading aid can be provided for a deposit of €5,000. Upon return, the deposit will be refunded minus 10%.

Condition: used, machine/vehicle number: 006849, Type of edging: Thin edge, Thick edge, Solid wood Ksdpswd Itmsfx Ahwsln Gluing System: EVA Hotmelt Premilling Unit: yes Corner Rounding Unit: yes Max feed speed: 25 m/min Maximum panel thickness: 60 mm Operating Units: 7 nr

Condition: ready for operation (used), Year of construction: 2012, travel distance X-axis: 6,175 mm, travel distance Y-axis: 1,900 mm, travel distance Z-axis: 300 mm, number of axes: 3, total height: 300 mm, spindle motor power: 15,000 W, spindle speed (max.): 24,000 rpm, This 3-axis HOMAG WEEKE Profi BMG 611/60/15/F/AP was manufactured in 2012. A CNC Wood Machining Centre designed for precision and efficiency in woodworking applications. Consider the opportunity to buy this HOMAG WEEKE Profi BMG 611/60/15/F/AP CNC Wood Machining Centre. Contact us for further details regarding this machine. Additional equipment Kledpfjyap S Ijx Ahwon • Safety devices: Laser, bumper • Torque support: Yes • Grooving saw: 90° pivoting • Vertical drilling spindles: 17 • Horizontal X drilling spindles: 2 • Horizontal Y drilling spindles: 2 • Liquid-cooled milling spindle: Yes • Closed drag chain: Yes • Handheld terminal: Yes • HOMAG SaveScan: Yes Machine Benefits Technical Machine Benefits • High spindle speed • Comprehensive safety features • Independent z-axes: 2 • 4th axis: yes • 5th axis: 5-axis spindle • Workpiece support aids available • Machine table: console table • Number of consoles: 12 • Features: automatic table positioning, homag ap table, two stop rows Extra Information Conformity marking: CE mark Dimensions Machine Depth 6175 mm

Condition: used, Year of construction: 2018, functionality: fully functional, Punching machine, barely used, weight: 8500 kg. Lot includes steel cabinet with contents. Contents consist of tooling, spares and miscellaneous small parts. Kodpfxjxzpvuj Ahwjln

Condition: used, machine/vehicle number: 008016, X axis working area: 3300 mm Kodpfx Aow Idhmjhwsln Y axis working area: 1550 mm Working Table: Pod and Rail Main Electrospindle power: 10 KW Number of controlled axes: 5 axes Total number of drilling spindles: 35 Total number of tool changer positions: 14

Condition: used, functionality: fully functional, Ferwood code: RU0009932 - Manufacturer code: 4-014-12-0207 - Condition: Used - Functionality: Fully operational - Compatible machine: - If interested, we offer an overhaul service. Please contact us. 1KG - 20X20X20 Kodpfeyk Eduox Ahwoln

Condition: used, machine/vehicle number: 008198, X axis working area: 4200 mm Kljdpjx A Hbkefx Ahwon Y axis working area: 1400 mm Working Table: Pod and Rail Main Electrospindle power: 18.5 KW Number of controlled axes: 4 axes Maximum edge height: 60 mm Total number of drilling spindles: 35 Total number of tool changer positions: 26

Condition: good (used), Year of construction: 1998, functionality: fully functional, CNC machining centre • Homag BOF 321, year of manufacture 1998 designed for the production of staircases and other components. • Homag PC83 control system • Working area X = 5200 mm • Working area Y = 1300 mm • Working area Z = 410 mm • Number of milling spindles: 2 • Milling spindle motors: 12 kW • Maximum speed: 24,000 rpm Kjdpsx S Ewrefx Ahwoln • Swivel arm: Yes • 5-axis machine: • Tool clamping system: HSK-F63 • Two tool magazines: 12 tools each • Double working area • Number of operator consoles: 10 • Vacuum pump: 2 • Vacuum pump capacity: 100 m³/h • Safety device: pressure-sensitive mat • CE marking: Yes

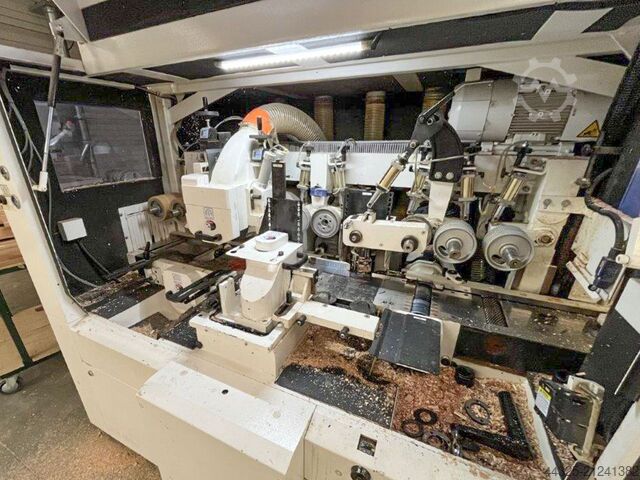

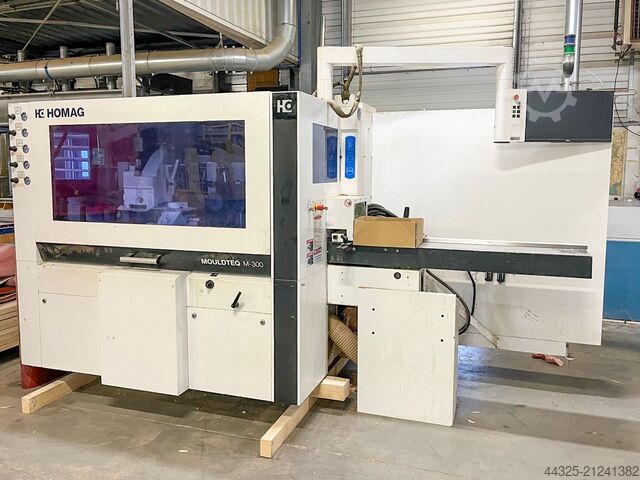

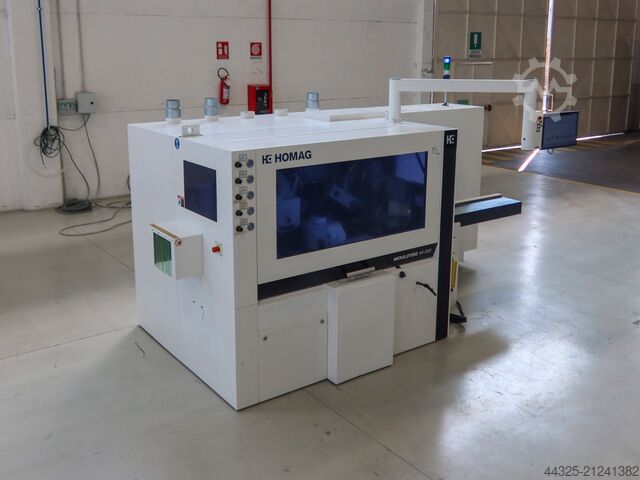

Condition: used, machine/vehicle number: 008403, Max. machinable height: 160 mm Maximum machinable width: 250 mm Max. forward feed speed: 24 m/min Klsdpfx Aeykivhehwjn Operator shafts number: 5
