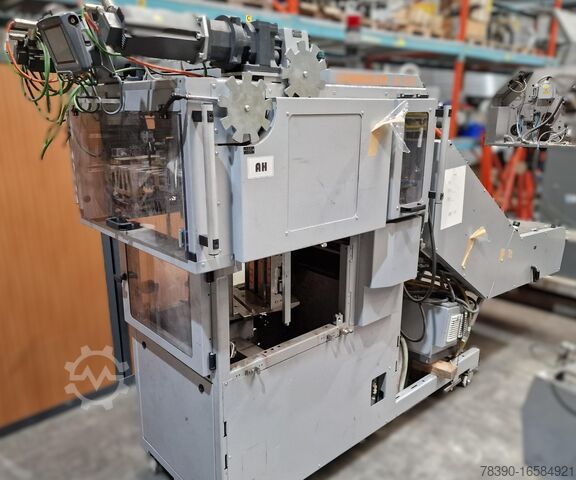

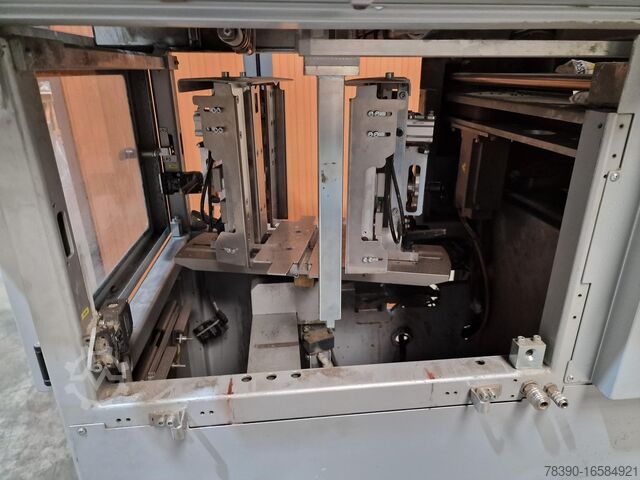

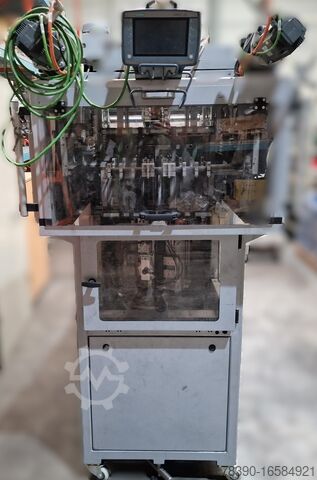

Stacker

Gämmerler KL 540 LPC

Year of construction: 2006, condition: used, Gaemmeler KL 540 Compensating Stacker with attached blocking device VM 500 The compensating stacker KL 540 is equipped with the proven Gaemmerler LiftPack technology. The KL 540 is suitable for bundle heights up to 300 mm. Nummerous options allow to meet the individual customer requirements. Condition: cleaned and ready for production Technical Data: Cycle time ≥ 1,5 sec. (depending on the copy) ≥ 1,2 sec. with Servo pusher (depending on the copy ) Pagination 4 – 96 Heatset / Gravure Ibjdpfx Ajh Nrh Ujf Sof Formats A 105 – 330 mm (with rear-eject 105 – 310 mm) B 140 – 500 mm D max. 560 mm Layer height max. 200 mm Bundle height max. 300 mm Weight: 1.500 kg approx. Gaemmerler VM500 blocking unit Cycle time: (approx. 6.7 sec) per pack with a pack height of 300 mm and a blocking time of 2 sec. The cycle time per pack increases when the blocking time is increased and the pack height is reduced. The cycle time is also strongly influenced by the output speed of the compensating stacker and thus by the product (surface, format). Sizes: Width: 140 to 500 mm - 5.5" to 19.7" Length: 105 to 330 mm - 4.13" to 13" Pile height: 55 to 400mm - 2.16 to 15.7" Inlet height: 890 mm - 35" Outlet height: 890 mm - 35" Connected load: 16A (2KW, 380/480 Volt, 3 phases, neutral) Air requirement: 1000 standard l/min, 6 bar; unoiled, dry air Weight: approx. 500 kg

Condition: as good as new (ex-display), Year of construction: 2024, machine/vehicle number: MA0139_1335, Exhibit immediately available: New Kaeser Aircenter SK 22 - 8 bar screw compressor with integrated refrigeration dryer and 315 liters compressed air tank Control Sigma Control 2 Year: 2024 Operating hours: 1 hr Pressure: 8 bars Rated power: 11KW Delivery quantity: 2.00 m³/min Sound level: 66 dB(A) Compressed air outlet: 1" Compressed air tank: 350 liters volume Pressure dew point refrigeration dryer: + 3°C Electrically level-controlled condensate drain: ECO DRAIN Dimensions length x width x height: 750 x 1335 x 1880 mm Weight: 579 kg Visit our store. We always have a wide range of new and used compressors in stock! Ibodpehwwyrofx Af Sof

Condition: good (used), Size: max 500 x 330 mm min 140 x 150 mm Product thickness: side 4-96 Seiten Speed: max 100.000 Ex./h Pile height 300 mm Infeed height 500-1920 mm Delivery height 890 mm Power requirements 2 kW (220/380V, 50Hz) Length 3077 mm Width 894 mm Ibsdpfxog Du Auj Af Sef Height 1835 mm Weight 960 kg (approx.)

Condition: like new (used), functionality: fully functional, Year of construction: 2000, product width (min.): 148 mm, product width (max.): 500 mm, product length (min.): 105 mm, product length (max.): 340 mm, With corner deflection of the shingle flow if required Iodjryxc Sspfx Af Sjbf

Year of construction: 2013, condition: ready for operation (used), 3x Muller Martini News Stack compensating stacker, year of construction 2013 Ibsdpfet H S Epjx Af Sjf

Condition: used, Year of construction: 1992, Transnorm belt curve conveyor left 90°-1000-800-IR900 RA2001 Belt curves are frequently used in intralogistics for the internal transport of unit loads and are an indispensable part of modern distribution centers. Transnorm belt curves convince with performance and reliability. Thanks to a low-tension drive, over the entire belt width, long operating times are no problem. Conical drums and a specially developed belt guide system ensure the smoothest possible running. Technical data: Type designation: belt curve conveyor Stand width (NB): 1000 mm Belt width (GuB): 800 mm Motor width (MB): +200 mm overall height (BH): 210 mm inner radius (IR): 900 mm Conveying angle: 90° degrees Conveying speed: Please contact Drive: SEW gear motor with Movi-Mot Electrical data: 50Hz V230/400, kW 0,37 /S1 Year of construction: 1992 Ibsdpfx Aek Abr Ijf Sef Included: Side guide on both sides and frame Optionally available: Supports Side guide one-sided and both-sided Prices net plus VAT ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg, Germany If you need other dimensions or individual, professional advice, please contact us. Simply contact us by phone or mail or use our filters on our website We will be happy to help you with the planning and implementation of your projects. We look forward to hearing from you. With kind regards Your team of Dr. Sonntag GmbH & Co. KG Your specialist and contact for intralogistics

Condition: used, Year of construction: 1998, Transnorm curved belt conveyor right 90°-800-600-IR600 RA2162 Make: Transnorm Running direction: 90° right running belt conveyor width (RB): 600 mm Nominal/outer width (NB): 800 mm Nominal/outer width with Motor (MB): 1020 mm Inner radius (IR): 600 mm Height frame (BH): 200 mm Isdpfxeq Uap Hj Af Sebf Height frame with Motor (MH): 400 mm V 220/380, 0,37kW Conveying speed: contat us Optionally available: Supports Side guide one- and both sideds Frequency converter Prices net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg For individual, expert advice, simply get in touch with us. Just contact us by phone or mail or visit our website We will be happy to help you plan and implement your projects. We look forward to hearing from you. With kind regards Your team at Dr. Sonntag GmbH & Co. KG Your specialist and contact for intralogistics

Condition: used, Year of construction: 2017, Transnorm curved belt Conveyor 45° links 670-500 IR1100 RA1083 The Transnorm curved belt is from 2017. It is as good as new (used) and fully functional. It has an engine of the brand SEW. Columns are not included in the scope of delivery. These are optionally available. curved belts are often used in intralogistics for in-house transport of piece goods and are indispensable for modern distribution centers. Transnorm curved belts convince with performance and reliability. Long operating times are no problem thanks to a low-voltage drive over the entire belt width. Conical drums and a specially developed belt guidance system ensure maximum smooth running. Technical data: Manufacturer: Transnorm Type: TS 1600-105 FH2 curved belt 45° links Built: 2017 Condition: as good as new (used) Engine: fully functional Angle: 45° Running direction: left Inner radius (IR): 1100 mm Nominal/outer width (NB): 670 mm Usable width (NUB): 500 mm Side guide: steel sheet outside Drive: SEW gear edgear motor Drive position: external pulling Weight: 120 kg Scope of delivery: without supports (if necessary please enquiries) Optional: supports Price plus VAT from central warehouse Dr. Sonntag KG 97076 Würzburg Payment: after invoicing with advance payment Delivery time: approx. 3 - 5 working days after receipt of payment Isdpjk Aa Dtjfx Af Sjbf Für eine individuelle, fachmännische Beratung setzten Sie sich einfach mit uns in Verbindung. Kontaktieren Sie uns einfach telefonisch oder per Mail. Wir helfen Ihnen gerne bei der Planung und Umsetzung Ihrer Projekte. Wir freuen uns darauf von Ihnen zu hören. Mit freundlichen Grüßen Ihr Team der Dr. Sonntag GmbH & Co. KG Ihr Spezialist und Ansprechpartner für Intralogistik

Condition: used, Year of construction: 1996, Transnorm curved belt conveyor right 150°-780-600-IR600 RA2002 Technical data: Manufacturer: Transnorm Year of manufacture: 1996 Condition: good (used) Motor: will be changed conveying angle: 150° nominal/external width (NB): 780 mm belt width (GB): 600 mm innerradius (IR): 600 mm overall height (BH): 210 mm motor height (MH): 450 mm Motor type: SEW gear motor Motor power: kW 0.55 230/400 V 50Hz Conveying speed: please contact Scope of delivery: without supports (if required, please contact us) Optional: supports Side guides Frequency converter for stepless speed control Price plus VAT ex central warehouse Dr. Sonntag GmbH & Co. KG 97076 Würzburg For individual, expert advice, simply get in touch with us. Simply contact us by phone or email. We will be happy to help you plan and implement your projects. Ibodpjk Abr Sofx Af Sjf We look forward to hearing from you. With kind regards Your team at Dr. Sonntag GmbH & Co. KG Your specialist and contact for intralogistics

Condition: used, Year of construction: 1996, Transnorm curved belt conveyor left 150°-780-600-IR600 RA2017 Technical data: Manufacturer: Transnorm Year of manufacture: 1996 Condition: good (used) conveying angle: 150° nominal/external width (NB): 780 mm belt width (GB): 600 mm innerradius (IR): 600 mm overall height (BH): 210 mm motor height (MH): 450 mm Motor type: SEW gear motor Motor power: will be changed Conveying speed: please contact Scope of delivery: without supports (if required, please contact us) Optional: supports Side guides Ibodpfx Afsk Abubj Sof Frequency converter for stepless speed control Price plus VAT ex central warehouse Dr. Sonntag GmbH & Co. KG 97076 Würzburg For individual, expert advice, simply get in touch with us. Simply contact us by phone or email. We will be happy to help you plan and implement your projects. We look forward to hearing from you. With kind regards Your team at Dr. Sonntag GmbH & Co. KG Your specialist and contact for intralogistics
