Used tunnel freezer for sale (14)

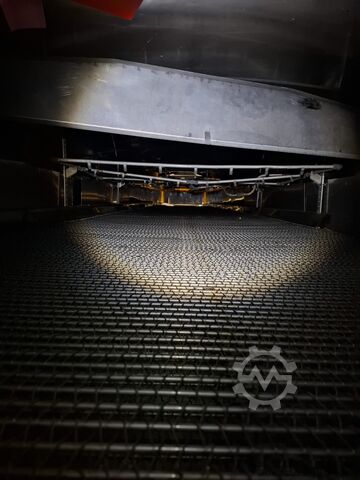

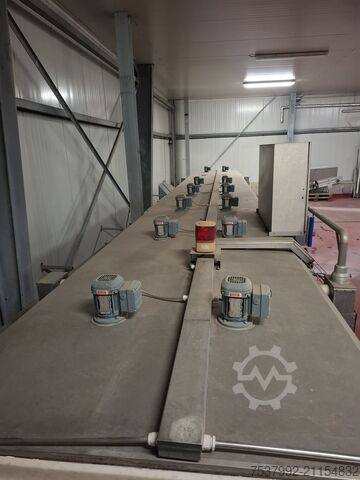

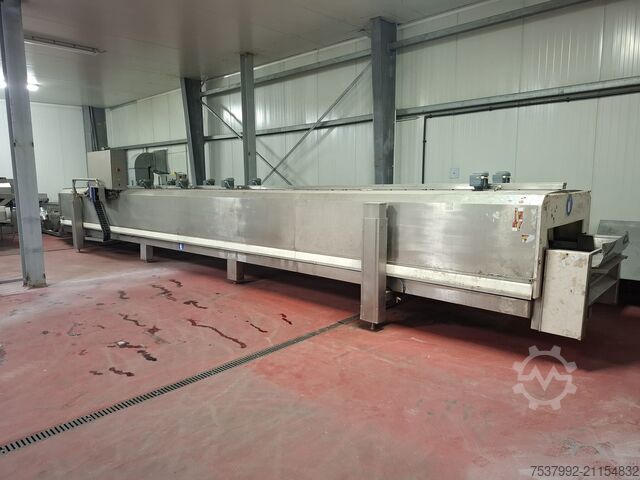

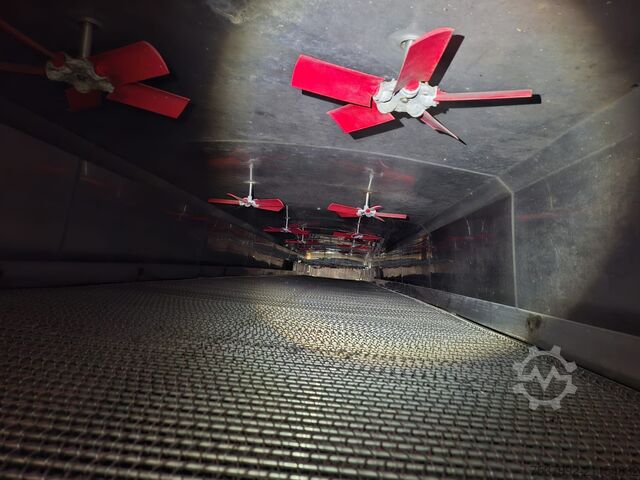

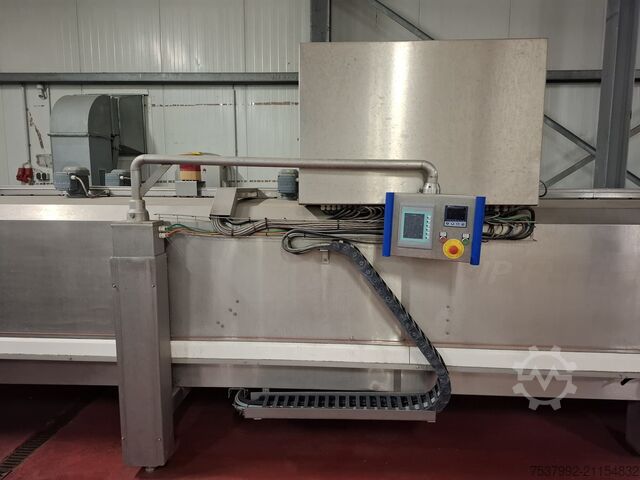

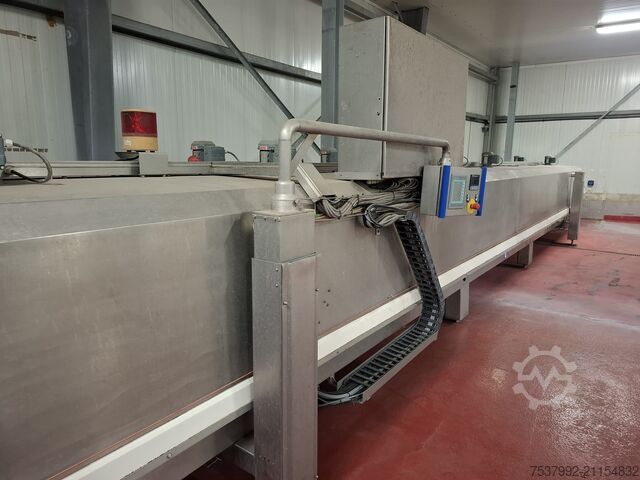

Condition: good (used), functionality: fully functional, Frigoscandia FloFreeze MX62 IQF tunnel freezer in good condition, operating on NH3 (ammonia). Suitable for rapid, individual quick freezing of products such as vegetables, berries, shrimp, and pasta. Supplied complete with infeed/outfeed systems, shaker, optional glazing conveyor, evaporators, control cabinets, Danfoss frequency converters, and Siemens TP1200 Comfort HMI (upgraded in 2020). Products are placed on the infeed shaker (approx. 1200 mm high), where they are separated and desticked. They are then transported into the freezer via a blue plastic conveyor belt. The belt is approximately 7400 mm long and 1190 mm wide, featuring a lowering mechanism that redistributes products and removes ice. The discharge height is 912 mm. The optional Innotec Systems glazing belt can apply a protective ice coating. The MX62 is equipped with two NH3 evaporators and six centrifugal fans, each driven by an ABB M2AA160MA-2 motor (50 Hz, 13.2 kW, 2897 rpm). Cold air is blown up through the conveyor to prevent product sticking. The evaporators can be defrosted with hot air via spray nozzles. The freezer is fitted with three inspection hatches. Includes the original control cabinets with frequency converters and Siemens control system. The FloFreeze MX62 specifications: - Dimensions: 7400 x 4700 x 3000 mm (L x W x H) - Effective belt length: 7400 mm - Effective belt width: 1190 mm - Infeed height: 1200 mm - Discharge height: 912 mm Tunnel freezer capacity (examples): Product: Green peas - Capacity: 3,600 kg/h - Infeed temperature: +10°C - Discharge temperature: -18°C - Evaporator temperature: -40°C Product: Cauliflower - Capacity: 2,520 kg/h - Infeed temperature: +10°C - Discharge temperature: -18°C - Evaporator temperature: -40°C - Piece size: 25 to 40 mm Product: Tomatoes - Capacity: 1,440 kg/h - Infeed temperature: +10°C - Discharge temperature: -18°C - Evaporator temperature: -40°C - Piece size: approx. 30 mm Product: Strawberries - Capacity: 2,520 kg/h - Infeed temperature: +10°C - Discharge temperature: -18°C - Evaporator temperature: -40°C - Piece size: 25 to 35 mm Product: Potatoes - Capacity: 1,800 kg/h - Infeed temperature: +10°C - Discharge temperature: -18°C - Evaporator temperature: -40°C - Piece size: approx. 25 mm Product: Meat - Capacity: 2,340 kg/h Dcjdpfx Aexz Eacef Doc - Infeed temperature: -3°C - Discharge temperature: -18°C - Evaporator temperature: -40°C - Piece size: cubes of 20 mm

Condition: new, Year of construction: 2026, functionality: fully functional, Blast freezing containers are designed to rapidly freeze your fresh products at temperatures down to -36/-45 °C. By freezing fresh goods immediately after production, long shelf life and safe consumption are ensured. Dedpfx Aeydlv Dsf Djcc SIZE: 10,000 x 2,940 x 3,100 mm CABIN: 7,000 x 2,600 x 2,200 mm CAPACITY: 6,500–8,000 KG/24H MOTOR: 65 HP DORIN DEFROST: 36 KW RESISTANCE EVAPORATOR: 4 x 630 mm BLAST FAN COMPLETE STAINLESS-STEEL PANEL, 200 mm

Condition: excellent (used), Year of construction: 2010, Advanced Optifreeze Spiral Freezing Tunnel/Spiral Freezer Manufacturer: Advanced Model: Optifreeze Year of manufacture: 2010 Voltage: 400V 80A Belt: stainless steel mesh Belt width: 1300 mm Overall dimensions: 8700 × 2500 × 3200 mm Control cabinet: incomplete The Advanced Optifreeze spiral freezing tunnel is an industrial machine designed for quick and efficient freezing of food products. The spiral design allows for maximum space usage while maintaining a high freezing performance. The tunnel is equipped with a 1300 mm wide stainless steel mesh conveyor belt, enabling continuous freezing of various products such as meat, poultry, fish, bakery goods, or ready meals. Dsdjx Timmopfx Af Dscc

Condition: used, Spiral Freezer Frigoscandia GyroCompact GCA76A-6-20-15 // 20 Layers // Effective Belt Width: 720 mm // Belt Width: 760 mm // Product Clearance: 50 mm // Belt lenght: 236 mtr. // Stainless steel mesh FRIGoBELT Dedpfx Ajrlk Inef Decc

Condition: used, Used DSI V-5 32/100 vertical plate freezer on Freon/NH3 with 32 stations. Inner dimensions 1 station: 810x100x580 mm (LxWxH). Total block dimensions with a volume of 239 liter: 4100x840x580 mm (LxWxH).It is possible to freeze 507,7 kg of fish fillet each hour with a thickness of 100 mm. Dsdpferlk H Rjx Af Decc

Condition: used, Used Jackstone vertical plate freezer with 20 stations and a capacity of 45kW (for example freezing 365 kg fish fillet per hour). Including adjustable block dividers to make 40 stations. Inner dimensions 1 full block per station : 1060x520x100 mm (55 liter) Inner dimensions 2 blocks per station: 527x520x100 mm (27 liter) Capacity and example based on: 56,2 kg fish fillet per station 20x 55 liter freezing stations temperature from +10°C to -18°C duration of one cycle: 185min including defrost, loading and undloading times evaporation temperature: -34°C Dcsdpjrlk Icofx Af Dsc

Condition: used, Spiral Freezer Meyn. This used spiral freezer is overhauled in 2010 (all layers are new). Stages: 31 // Belt Width: 810 mm and effective belt width: 750 mm // Total belt Lenght: 500 m and effective belt length 430 meters // Product Clearance: 95 mm // 1x Goedhart SS pump evaporator (550 kW). Dedpforlk Igjx Af Docc

Condition: used, Used and in good condition Koma Multi-deck KMD-4-240-1500 Z-profile freezer with 3x hand over of product. Effective belt width 2.380 mm and effective belt length 4 x 15.000 mm. Belt speed can vary between 0,07 m/min and 2,30 m/min. Belt drive motors 4x Flender This multi-deck comes with a complete installation. 6x Bitzer S6F-30.2Y-40P (x2) compressor set with liquid reciever, oil separator, filter, pressure safety switches and gauges. 6x Koma CAV L09 1x2A condensors with 2 fans. Installation complete with control panel with Somron sysdrive inverters. drives and automation. 6x Evaporators from Goedhart LLK.p 187 M2 with a capacity of 27 kW at 25.000 m³/h per piece. Fans have a downblow of 45°C. This tunnel freezer is currently assembled in our warehouse as you can see in the last photo, ready for a viewing. 800 piece/h apple pie in 60 minutes ( 2200 grams/piece) +40ºC to -18ºC. Dcjdpfx Asrlk Ikef Doc

Condition: excellent (used), Year of construction: 2017, functionality: fully functional, Dohmeyer Cryogenic Spiral Freezer with Pre-freezing Tunnel Dohmeyer's spiral cryogenic freezers are designed for rapid freezing or chilling of food products using liquid nitrogen (LIN – Liquid Nitrogen). They are mainly used in the food industry, especially for products requiring quick freezing such as meat, seafood, pastries, ready meals, and other delicate products. Model: DOH-SPK-D244-W26-E21-LIN-2017 Type: Cryogenic Freezer Spiral Serial number: 201703033177 Year of manufacture: 2017 Cryogenic gas/operating pressure: LIN / 2…4 bar Compressed air/pressure range: 6…8 bar Dedpfowp Uhbex Af Dscc Power supply: 3x400V + N + PE, 50 Hz Weight: 16,000 kg Pre-freezing tunnel/cryogenic tunnel freezer Brand: ENT Edelstahl- und Nahrungsmitteltechnik Type: CFP 600 Serial number: 03 133/2 Year of manufacture: 2017

Condition: used, Spraying the full product with cold water to cool it down to approx. 40 °C. Allows clean labelling and creates a vacuum in the bottle. With cooling tower for recooling the spray water from the tunnel cooler with recirculation. Additional title: full product cooler, with splash water recooling Capacity of filling line: 5000 bo/h Features: Cooling tower for spray water recooling with circulation (Richter Cooling Systems, 2015) Dodjw Tmpdspfx Af Djcc

Condition: excellent (used), Year of construction: 1999, functionality: fully functional, DSI Horisontal freezer 6 stations for direct connection to refrigeration plant or self-contained semi-hermetic compressor package using HFC refrigerants. Including in package is hydraulic block extruder and 144 stainless steel trays with trolleys Dcsdpfx Afjwcf Hbe Doc

Condition: good (used), Year of construction: 1996, functionality: fully functional, machine/vehicle number: type: 1250-6-N, The machine is in good condition and works fine. We have two of these freezers. Dsdpfxswixhfe Af Djcc

Condition: good (used), Two complete Frigoscandia spiral freezing tunnels with Sabroe compressor unit The set consists of: 2 × Frigoscandia Gyrocompact GC76 spiral freezers Sabroe SAB163HF refrigeration compressor unit with insulated pressure vessel 1–2. Frigoscandia Spiral Freezer Model: Gyrocompact Dcjdew Hlz Hepfx Af Dec Type: GC76 Airflow configuration: North–South Number of tiers: 29 Tier spacing: 80 mm Belt type: stainless steel mesh Belt width: 710 mm Internal dimensions: 4810 x 6100 mm Overall dimensions: 9140 x 9000 x 3900 mm Both freezers are identical in design and specifications. 3. Sabroe Refrigeration Compressor Unit Compressor type: SAB163HF (2 units) Year of manufacture: 1995 Refrigerant: R717 (ammonia) Pressure vessel: insulated, 1305 litres Application: the unit served both spiral freezers

Condition: good (used), Complete Frigoscandia spiral freezing line (2 units) with Sabroe compressor set Line composition: Dedpfx Ajw Hlzajf Djcc 1. Frigoscandia Spiral Freezer (1 of 2) Model: Gyrocompact Type: GC76 (configuration: North–South) Number of tiers: 29 Tier spacing: 80 mm Belt type: mesh, stainless steel Belt width: 710 mm Internal dimensions: 4810 x 6100 mm Overall dimensions: 9140 x 9000 x 3900 mm 2. Frigoscandia Spiral Freezer (2 of 2) Model: Gyrocompact Type: GC76 (configuration: North–South) Number of tiers: 29 Tier spacing: 80 mm Belt type: mesh, stainless steel Belt width: 710 mm Internal dimensions: 4810 x 6100 mm Overall dimensions: 9140 x 9000 x 3900 mm 3. Sabroe Refrigeration Compressor Set Manufacturer: Sabroe Compressor type: SAB163HF (x2) Year of manufacture: 1995 Refrigerant: R717 (ammonia) Insulated pressure vessel: 1305 liters Application: the complete set serviced both spiral freezers
