Alois Podaril

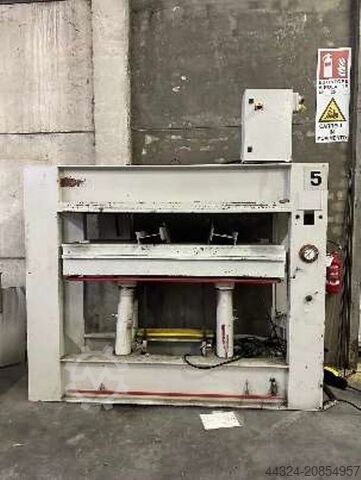

Condition: used, functionality: fully functional, machine/vehicle number: 17, opening width: 900 mm, working width: 2,000 mm, SECOND-HAND PRESS PELLEGRINI - Platens dim. mm. 2000X800 - Opening mm. 900 Bodpfx Afex Rrgqo Soct - S/N 17

Condition: used, Year of construction: 2003, functionality: fully functional, overall weight: 3,500 kg, pressing force: 60 t, input frequency: 50 Hz, operating temperature: 100 °C, input voltage: 380 V, cylinder diameter: 65 mm, SECOND-HAND UNIVERSAL HOT PRESS FOR VENEER AND SOLID WOOD GLUED PANELS WITH SIDE PRESSURE CYLINDERS ORMA MOD. NPC/L Vertical thrust - Total thrust – 60 tons - Specific pressure – 2 kg/cm2 - Plate dimensions – 2500x1300 mm - Cylinders – 4 - Cylinder diameter – 70 mm - Electric boiler thermal power – 18 kW - Voltage – 400/3/50 Hz Horizontal thrust - Total thrust – 25 tons - Cylinders – 5 - Cylinder diameter - ø 65/40 mm - Operating temperature - 100°C - Weight - 3.5 tons - Power - 21 kW 29 A - Voltage - 380/3/50 Hz - Dimensions - 3100 x 1650 x 1800 mm - CE standard Bcodpfxsx Rrb Ie Af Sot - Year 2003

Condition: used, Year of construction: 2007, functionality: fully functional, overall weight: 9,000 kg, pressing force: 240 t, operating temperature: 130 °C, cylinder diameter: 85 mm, SECOND-HAND ORMA NPC/L DIGIT30/13AF-BO (2007) POWERFUL UNIVERSAL PRESS FOR VENEERING, THREE-LAYER PANEL PRODUCTION AND WITH SIDE PRESSURE BLADES FOR WOOD PANEL PRODUCTION Vertical thrust: - Total thrust - 240 tons - Specific pressure - 6.15 kg/cm2 Bcsdpfx Afox Rraqs Sst - Plate dimensions - 3000 x 1300 mm - Cylinders - 12 pcs. - Cylinder diameter – 85 mm - Hydraulic unit – 4 kW - Electric boiler thermal power – 18 kW Horizontal thrust: - Total thrust – 30 tons - Cylinders – 6 pcs. - Cylinder diameter – ø 65/40 mm - Operating temperature – 130°C - Weight – 9 tons - Power – 33.6 kW 54 A - Voltage – 400/3/50 Hz - Dimensions – 3600x1650x1800 - CE standard - Year 2007

Condition: used, functionality: fully functional, working width: 3,000 mm, HOT PRESS MANNI - Platen dimensions 3000x1300 mm - N. 6 cylinders - Boiler with hot water - wooden waste Bcjdpfxsx Rqtio Af Sst

Condition: used, Platters 350cm/130cm Height 40cm 8 cylinders Bcodpfsx Nygpex Af Sst Oil heating Power 34kw

Condition: good (used), Code: 0124 Brand: ORMAMACCHINE Model: P30/3 Hydraulic cold press for furniture, kitchens, wooden doors, custom-made furniture, composite materials, aluminium, plastics and various materials Bjdpfjx I Az Tox Af Soct Technical data: Platen size mm 3000 x 1200 N° 3 hydraulic pistons Opening mm 500 Total thrust ton 15 Motor Hp 1,5 Overall dimensions mm 3300 x 1300 x 2100 h Weight kg 1100

Condition: good (used), Code: 0276 Brand: ORMAMACCHINE Model: NPC - CE Standard Hot press for carpentry, furniture, custom-made furnishings, veneering, panels, doors, wooden window frames, composite materials and various - CE Standard Bcjdpfx Afex Iu Hus Sot Technical data: Working platens dimensions 3000 x 1300 mm Opening between platens 400 mm N° 6 pistons Total thrust 90 ton Platens with coils Platens heating with hot water via boiler complete with circulation pump and expansion tank Motor 2 Hp Overall dimensions mm 4600 x 1600 x 2000 h Weight 3800 kg

Condition: used, Year of construction: 1968, 1 piece veneer press OTT JU 60-S 380V, 12kW, as per images and inspection Bodox Ifpmepfx Af Sjct Color: green Year of manufacture: 1968 Condition: used Payment method: advance bank transfer Storage location: workshop Shipping: Pickup only – shipping is not offered for this item!

Condition: like new (used), shelf length 3000 mm; shelf width 1300 mm; water heating; 6 hydraulic cylinders; piston diameter 70 mm; new Teflon films on the shelves Bedpfx Aex Hwnfsf Ssct

Condition: used, functionality: fully functional, total width: 1,200 mm, total length: 2,500 mm, total height: 1,900 mm, type of input current: three-phase, transport width: 1,350 mm, space requirement length: 3,270 mm, transport height: 1,900 mm, Hydraulic cold platen press, brand JOOS, number of cylinders: 6 Bcsdpfex E Ullsx Af Sot

Condition: used, functionality: fully functional, For sale: ItalPresse R3/130 glue rollers The machine is fully operational, but the glue application rollers require refurbishment. No grooves present. Generous working area and adjustable settings. Bedpfx Afsx E Np Eo Sjct Technical data: Dimensions: 2100x700x1500 mm Roller diameter: 180 mm Maximum gap between rollers: 80 mm Maximum working width: 1300 mm Motor power: 0.07 KW – 640 rpm, ensures energy-efficient operation with sufficient pressing force — ideal for bonding and at the same time gentle enough for delicate materials. Applications & Advantages The ItalPresse R3/130 is a robust, compact unit designed for gluing and processing flat materials — such as veneers, furniture boards, laminates or foils. With a working width of up to 1300 mm and an adjustable gap between rollers (up to 80 mm), it is suitable for both thin, precise components and thicker materials. The 180 mm diameter rollers provide stable guidance and even pressure distribution. Machine viewable in Sitaniec 127, 22-40 Zamość.

Condition: good (used), Code: 0262 Brand: ITALPRESSE Model: UT 6/P - CE Standard Bcjdpfx Afox E Axgs Sot Hydraulic hot press with electric boiler using diathermic oil for carpentry, furniture, custom-made furnishings, doors, window frames, panels, composite materials and various - CE Standard Technical data: Assembled steel platen dimensions: mm 2500 x 1300 Intermediate table Opening 400 mm N° 6 pistons Thrust 90 ton Diathermic oil heating by electric boiler Two-hand control for closing the press Timer Perimeter safety emergency rope Overall dimensions mm 3200 x 1700 x 1950 h Weight kg 3300

Condition: good (used), functionality: fully functional, SIMI Shelving Press 300x130 cm Specification: • condition – used, serviced and fitted with new seals • manufacturer – SIMI • shelves dimensions: 300 x 130 cm • max clearance between shelves: 460 mm • shelves are straight, clean, without dents or damage • 6 pistons, each 80 mm diameter • new seals on all pistons • pump motor: 1.5 kW • max pressure: 400 bar • automatic pressure compensation in case of pressure drop • glueing cycle timer • shelves prepared for water heating from central heating (top shelf is leaking) • original paintwork • weight approx. 4500 kg • overall dimensions: 380 x 155 x 225 cm (L x W x H) Bcjdpfxjx Ezr Ee Af Sjt Additional information: • perfect, factory technical condition • displayed photos show the actual condition of the item for sale • possibility to switch on and test the device on site

Condition: used, Year of construction: 1976, pressing area: 2500mm x 1250mm opening: 360mm heating plate top: elektric heating plate bottom: defective plate surface: ALU - anodized pressure: 90t number of cylinder: 4 electricity: ca. 33A Bcsdpex Edl Ejfx Af Sot machine length: 3000 mm machine width: 1500mm weight: 4000kg

Condition: excellent (used), Shelf Press Felder Format 4 HVP PL90 Shelf length: 300cm Width: 130cm Very nice aluminium shelves Water heating, the machine has its own circuit option for connection to an external circuit Piston diameter 70mm, 6 pistons Safety switch – emergency cut-off pull cord Bcsdpfsx Ebtmjx Af Set Pressure 3kg/cm2 Weight 3200kg The machine is in stock, can be inspected and tested, the condition is very close to a new machine

Condition: ready for operation (used), Year of construction: 1994, Ott 2513 Stabil Veneer Press 4 cylinders Bodjx Dzvxopfx Af Sect Pressing area 2500 x 1300 mm Electric heating Electric opening and closing Pressing force 90 tons Year of manufacture 1994 Price 7,500.-

Condition: good (used), Year of construction: 1975, Veneer press - 3300 x 1350 mm - External dimensions: 4000 x 1650 x 2450 mm - Year of manufacture: 1975 - Approx. 5500 kg - Electrically heated platen, no dents - HP 120 - Press area height: 400 mm - 6 cylinders - Rack and pinion guide Bodpfx Ajx Akuzsf Sjct

Condition: good (used), Year of construction: 1983, functionality: fully functional, Bürkle U60 veneer press hydraulic Year of manufacture: 1983 The press comes from a training workshop and is in good condition. Press area: 2200 x 1250 mm Opening height: 400 mm 4 cylinders, pressing force: 600 kN Connected load per heating plate: 7 kW Weight: 3000 kg Bjdpfsx Af Sbsx Af Sjct Dimensions: 2750x1380x1785 mm

Condition: used, Technical data: Number of pistons: 4 Piston diameter: 45 mm Connection to central heating: NO Shelf dimensions: 2500x1200 mm Bcjdpfxsxzrt Ao Af Sjt Clearance: 460 mm Hydraulic pressing Motor power: 2 kW Power supply: 380 V Overall dimensions: Length: 2900 mm Width: 1370 mm Height: 2150 mm

Condition: new, Year of construction: 2024, Pressing area: 3000 mm x 1800 mm Bedpfx Ajxzfw Ujf Soct Design: Freestanding Working area: 1460 mm x 2900 mm Number of manual hydraulic cylinders: 4 Pressing pressure per cylinder: 2000 kg Cylinder stroke: 70 mm Pressure clamps: 1 Machine length: 2900 mm Machine width: 900 mm Machine height: 2000 mm

Condition: excellent (used), Shelf press Manni 2500×1300 Shelf length: 2500 mm Shelf width: 1300 mm Press with 4 hydraulic cylinders Shelves heated by water from central heating Bsdpexyvykjfx Af Sect

Condition: like new (used), shelf length 3000 mm shelf width 1300 mm water heating 6 vertical hydraulic pressing pistons Bsdpfx Aoxygcief Ssct diameter of pistons 70 mm 3 hydraulic thrust pistons for stop movement diameter of pistons 80 mm 6 horizontal hydraulic cylinders loading table 1800x3000 mm unloading table 1500x3000 mm

Condition: excellent (used), total width: 1,300 mm, total length: 3,500 mm, overall weight: 7,000 kg, operating pressure: 300 bar, transport width: 1,600 mm, transport height: 2,350 mm, transport length: 4,350 mm, Simimpiantin Shelf Press for Veneering 3500×1300 Shelf length: 3500 mm Shelf width: 1300 mm Two loads Press with 8 cylinders Shelves heated with water from central heating Max. working pressure: 300 bar Piston diameter: 80 mm Bcedpfx Afexxpgbo Set Machine weight: 7000 kg Machine dimensions: 435×160×235 cm (H)

Condition: like new (used), Year of construction: 2021, functionality: fully functional, Shelf length: 3000 mm Shelf width: 1300 mm 6 hydraulic pistons Emergency stop switch (pull cord) Electric oil heater Weight: 3300 kg Bjdpexxkmiefx Af Soct Touchscreen display Time programmer Year of manufacture: 2021

Condition: used, Year of construction: 1990, No. 04502 Veneer press Ott JU 2511/70 Used, year of construction 1990 Electro-hydraulic, approx. 15 kW Aluminum heating plates 2550 x 1100 mm LW Heating electric Bjdpfexwp S Ijx Af Sect 4 hydraulic cylinders each 80 mm diameter Total pressing pressure 70 tons Specific pressing pressure 2.5 - 3.5 kg/cm2 Opening width 400 mm Button control for opening - closing - stop Pressure monitoring with automatic readjustment Adjustable limit switch for specific opening width HAWE pump Safety rip cord Incl. electric cable and plug 32 A Incl. electric plans, operating instructions as .pdf file Transport dimensions approx. 2900 x 1400 x 2000 mm LWH Weight approx. 3000 kg To avoid possible misunderstandings, an on-site inspection is possible and recommended by appointment Sold as is Technical specifications, condition description, year of construction and scope of delivery according to manufacturer's brochure or previous owner, without guarantee Subject to prior sale For used machines, any warranty is excluded, the following applies: “sold as seen” Terms of payment: Prices plus VAT, payment before collection or dispatch Terms of delivery: ex warehouse
