Used Haco Ppes 400 Ton X 4100 Mm Cnc for sale (88)

Condition: new, Year of construction: 2024, 3050 mm Hsdpfx Abewp Tfrjxew 06,5 mm 0,5-2,5 ° 1000 mm

Condition: used, Year of construction: 1983, sheet width 3050 mm plate thickness 6,0 mm distance between columns 3000 mm cutting angle 0,5 - 3 ° no. of strokes 9 / 14 Hub/min Hjdevxlpijpfx Abxjw down holder 18 total power requirement 10 kW weight of the machine ca. 4800 kg dimensions of the machine ca. 3750 x 1600 x 1650 mm

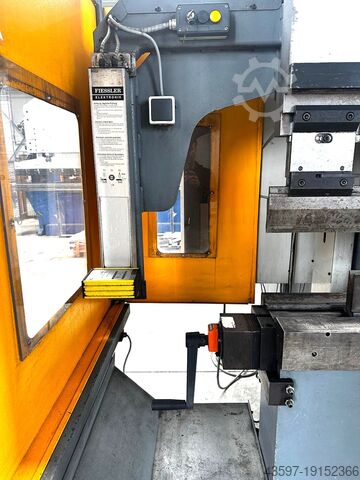

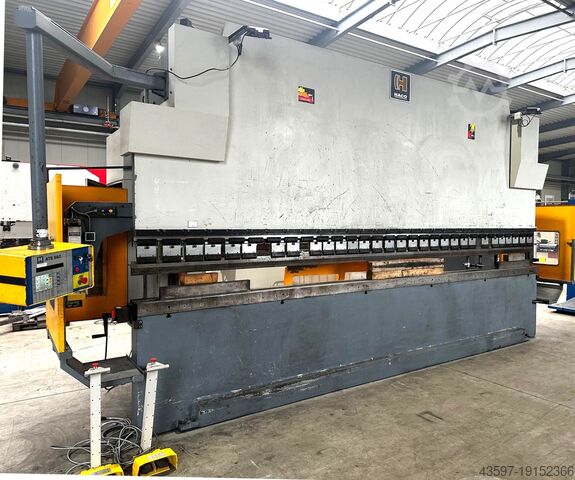

Condition: used, Year of construction: 2003, pressing force: 260 t, Hydraulic press brake Manufacturer: HACO Type: ERMS 60-260 Year of manufacture: 2003 Technical specifications Manufacturer: HACO Type: ERMS 60-260 Year of manufacture: 2003 Pressure capacity: 260 t Bending length: 6000 mm Dimensions (L x W x H): approx. L 7.0 x W 2.0 x H 3.70 m Weight: approx. 31 t Equipment • ATS 560 digital control system Hjdpfowkttrjx Abxjw • Fiessler light barrier at the front • Centrally adjustable crowning • Amada tool system • Controlled axes: Y1, Y2, X • Manual R-axis • 1 set of upper tools • 1 set of lower tools All information is subject to change. A demonstration is available at any time in the exhibition hall.

Condition: used, Year of construction: 2008, machine/vehicle number: 08880472, Width 510mm Table length 285cm Tree 4 sharpening irons Hjdsrr Hn Sspfx Abxew Tree protector 5.5kw motor Voltage: 380V

Condition: like new (used), functionality: fully functional, Year of construction: 2000, machine/vehicle number: 80983, Used hydraulic cnc press brake Hjdpfsr En Snex Abxow Brand: HACO Model: ERM 60225 Year: 2000 Serial No.: 80983 Characteristics: Numerical control NEW: Cybelec Cybtouch 8 3 axes (Y1, Y2, X) Force: 225tn Bending length: 6,000mm Distance between uprights: 5050mm Neckline: 300mm Opening: 450mm Fast lowering speed: 80mm/s Motor: 18,7KW Weight: 29.500kg Includes 60mm cradle at 6 meters. Standard 88º punch at 6 meters.

Condition: excellent (used), Year of construction: 2011, pressure 100 t chamfer lenght 2250 mm distance between columns 2050 mm Stroke beam 275 mm max. opening beam/table 410 mm C-recess 300 mm max travel X-axes 550 mm Z1+Z2 axes controlled by cnc manuell, 4 Anschlagfinger mm max. distance R-axes 130 mm Quick speed,inspeed 100 mm/sec bendingspeed 0-10 mm/sec Hodpfsvzcm Dsx Abxew opening speed 100 mm/sec Number of working hours 13000 h length 3500 mm width 2000 mm height 2600 mm weight 5700 kg total power requirement 9 kW dimensions of the machine ca. 4x2x2,7 m All machines can be viewed under power at all times. Demonstrations of the machines possible at any time. All machines can be inspected at any time under power and demonstrations of the machines are possible at any time. Light barrier protection front motorized adjustable (Fissler) Rear Sick light barrier protection Manual crowning Promecam tool holders

Condition: new, functionality: fully functional, Year of construction: 2025, laser power: 6,000 W, travel distance X-axis: 3,048 mm, travel distance Y-axis: 1,524 mm, travel distance Z-axis: 270 mm, workpiece weight (max.): 950 kg, TECHNICAL DETAILS X-axis: 3,048 mm Y-axis: 1,524 mm Z-axis: 270 mm Control: CNC-ALPHA T2.0 Laser power: 6 kW Dynamics Max. X-axis speed: 100 m/min Max. Y-axis speed: 100 m/min Positioning accuracy: ± 0.05 mm/m Repeatability: ± 0.05 mm Cutting Cutting gas: Nitrogen Cutting gas: Oxygen Material thickness: Mild steel: 25 mm (depending on cutting gas) Material thickness: Stainless steel: 20 mm (depending on cutting gas) Material thickness: Aluminum: 16 mm (depending on cutting gas) Material thickness: Brass: 12 mm (depending on cutting gas) Cutting table Number of pallets: 2 Number of motors: 1 Max. Table load: 950 kg MACHINE DETAILS Length: 8,900 mm Width / Depth: 2,260 mm Height: 2,220 mm Max. power consumption: 90 A / 44 kW Total weight: 7,500 kg EQUIPMENT - Welded frame construction made of carbon steel - Aluminum gantry made of an aerospace alloy with a honeycomb structure - Two-stage shuttle table with short table changeover times for high productivity - Table with synchronous motor and frequency drive for high positioning and repeatability - Pull-out drawers in the table for cleaning and disposal of small parts and slag - Modular cutting table with easy module replacement for easy maintenance - Manganese steel plates as table covers to protect the internal table structure - Effective fume extraction from the table through 6 individually controlled dampers - 4 fans in the machine roof ensure a continuous supply of fresh air and, in combination with a Powerful extraction system for a clean cutting chamber Hedjv N Hdiepfx Abxjw - Programmable automatic lubrication of the rack and pinion drive - Servo drive system from ALPHA/WITTENSTEIN or GUDEL - HIWIN/PMI precision linear guides for high precision and motion accuracy - PANASONIC drive motors for high speed and stability - Wireless CNC handwheel for controlling machine functions such as start/stop, calibration, edge detection, marking, and emergency stop - Industry 4.0 through cloud solution and real-time machine monitoring, remote diagnostics, and maintenance - Tricolor machine status display with LED and 360° visibility - Cameras for monitoring the cutting chamber and shuttle table with monitor - Machine with HSG P06 laser cutting head - Water cooler with dual-circulation cooling system and high cooling capacity - Voltage stabilizer for protection against overvoltage and undervoltage - SICK M4000 light barrier for the cutting table - Wear parts set with 2 protective lenses, 10 nozzles, and 1 ceramic ring - Machine complies with CE standards - Machine documentation in German, electronic

Condition: used, Year of construction: 1983, pressure 180 t chamfer lenght 3050 mm distance between columns 2550 mm throat 250 mm stroke 150 mm return speed 65 mm/sec ajustment speed 50 mm/sec work height max. 1010 mm oil volume 150 l total power requirement 11 kW weight of the machine ca. 9500 kg Hodpfx Aswa Dyzebxow dimensions 3100 x 1750 x 2850 mm Furnishing: - DELEM CNC control DA65 - controlled axes: Y1 + Y2 + X + R - Electric crowning device WILA, controlled via CNC - Electric back stop, travel range 600 mm - hydr. Upper tool holder WILA - hydr. WILA lower tool holder - front laser protection device FIESSLER - 5x manually adjustable stop fingers, foldable - 2x front support arms “sliding system” - side + back protection device - Hand and foot controls - Operation manual ?

Condition: excellent (used), Year of construction: 1991, Haco hydraulic shear Model PSX 3010 Year : 1991 Capacity : 3020 x 10 mm. Power back gauge Sheet support Hsdpfx Abewh R Alexjw

Condition: excellent (used), Year of construction: 2001, HACO UITHOEKER MINI 220/4 Fully hydraulic machine Automatic blade gap adjustment Fixed cutting angle - Max plate thickness: 4mm - Blade length: 220mm - Cutting angle: 90° Hsdpfx Abswnfnijxjw - Strokes/Min: 35 - Table dimensions: 650x650mm - Working height: 890mm - Motor: 2.2 KW - Dimensions: 650x750x1050mm - Weight: 550 kg

Condition: good (used), functionality: fully functional, Longueur de pliage: 4050 mm Hodpfx Aevt Azrebxow Force: 150 tons Butée électrique Distance between montants: 3600 mm Col de cygne: 250 mm Dimensions: 4400 x 1600 x 2520 mm Poids: 11 tonnes

Condition: repair required (used), Year of construction: 2015, Manufacturer Haco Machine No. HSLX 3006 Description Hydraulic Shears Hjdpfxet Rh Dij Abxsw Replacement Blades Type: HSLX 3006 Manufacturer: Haco Year: 2015 Control: SC 100 Graphic touchscreen Automatic adjustment of cutting gap and cutting angle Programmable cutting length Memory capacity: 500 programs The machine is in good condition and fully operational. The Haco HSLX 3006 is a hydraulic guillotine shear, a machine used in metalworking for cutting sheet metal with precision. These machines are commonly used in various industries, including metal processing and manufacturing. Here are some possible specifications and features of the Haco HSLX 3006 1. Cutting capacity: The "3006" in the model name typically refers to the shear's maximum cutting capacity. In this case, the shear may be capable of cutting materials up to 3 mm thick and 6,000 mm (or 6 meters) long. 2. Hydraulic Operation: Guillotine shears like the Haco HSLX 3006 are powered by hydraulic systems that provide the power required to cut through metal. 3. Precision Cutting: These machines are known for their accuracy and precision, making them suitable for various cutting tasks in metalworking. 4. Backgauge: Many guillotine shears are equipped with a backgauge system that enables accurate and repeatable cuts by controlling the position of the workpiece. 5. Safety Features: Guillotine shears are equipped with safety features to protect the operator, including guards and emergency stop mechanisms. The guillotine shear has been dismantled for 4 years and is stored in a closed warehouse. It also comes with a new set of blades. Unfortunately, the computer/control unit is missing. According to the manufacturer, this will cost €4,000. We would be happy to organize transport for you and also take care of proper loading. The system is open for inspection; it is located in the city of Ptuj, Slovenia.

Condition: new, functionality: fully functional, Year of construction: 2025, working width: 3,100 mm, distance between stands: 2,600 mm, operating speed: 200 mm/s, back gauge: 1,000 mm, overall weight: 8,500 kg, total length: 3,770 mm, total width: 1,855 mm, total height: 2,540 mm, pressing force: 150 t, HACO OPTIFORM 30150 (IN STOCK) HACO OptiForm. Compact, powerful and quickly available. With over 60 years of experience in sheet metal working, HACO introduces the new OptiForm press brake: a compact, high-quality machine built in Europe that combines premium performance with a surprisingly competitive price. Despite its compact size, the machine is built on the basis of the proven technology of the Synchromaster series. Think of the same hydraulic connections and high-quality components – a solid basis for reliability and a long service life. Press brake features: Working length: 3100 mm Capacity: 150 tons Distance between the cheeks: 2600 mm C-frame discharge: 400 mm Daylight opening: 480 mm Table height: 965 mm Rapid travel Y-axis: 200 mm/s Press travel Y-axis: 10 mm/s Return travel Y-axis: 130 mm/s Motor power: 15.0 kW Total length: 3770 mm Total depth: 1855 mm Total height: 2540 mm Weight approx. 8,500 kg The machine is also equipped with: ===== - EASYBEND 2D CNC control - 4-axis back gauge X-R axis travel 1000 - CNC controlled crowning - Equipped with DSP lasersafe finger detection - Fast manual clamping for European Standard Hjdpswnddvjfx Abxsw tools, intermediate pieces height 150 mm or 100 mm - Movable support arms Delivery + installation at your location is of course possible, delivery costs and additional costs in consultation. We have been the Dutch dealer for HACO press brakes and shears since 2019. In addition to the sale of sheet metal working machines, we offer a total package for service, maintenance and repairs.
