Used Pbr for sale (7)

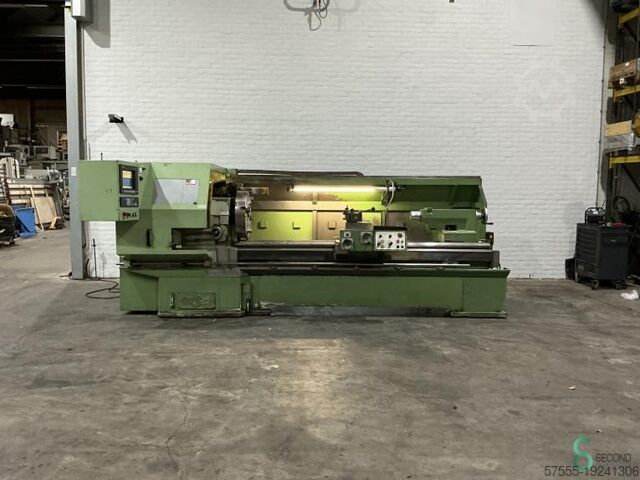

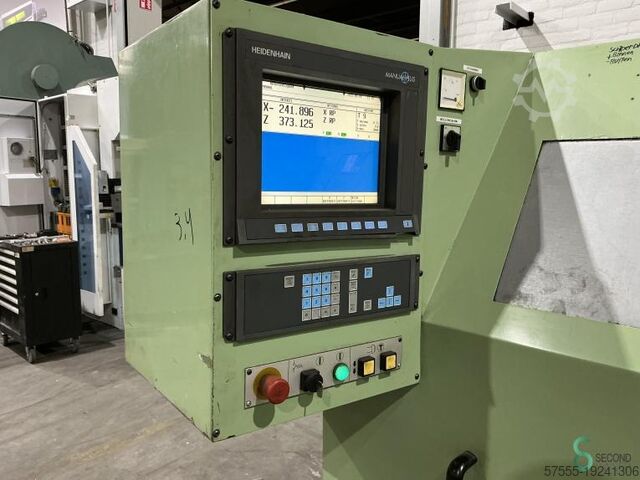

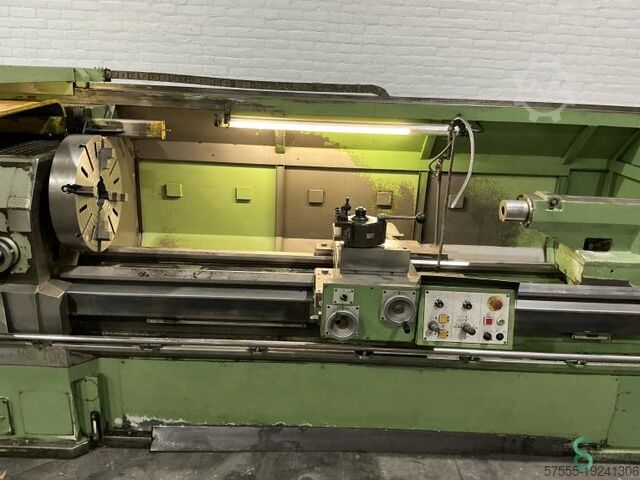

Condition: used, total height: 2,500 mm, total length: 5,000 mm, total width: 2,200 mm, Empty weight: 5.500 kg Price: On request - Documentation available: Yes - └ Type Documentation: Maintenance history, Electrical diagrams, Technical data, User manual - └ Language: DE, EN - └ Type: Hardcopy - CE marking present: Yes - CE certificate present: No - Serial number: 12598 - Drive system: Teach-in - Control system brand: Fagor Klodpfx Aswnhm Ijbnsp - Control system type: 8055 - Power [kW]: 15.0 - Centre height [mm]: 350 - Swing over bed [mm]: 700 - Carriage turning diameter [mm]: 425 - Distance between centres [mm]: 2000 - Bed width [mm]: 450 - Spindle bore [mm]: 105 - Min. spindle speed [rpm]: 310 - Max. spindle speed [rpm]: 2000 - Max. workpiece weight [kg]: 4000 - Options: Digital readout, Removable bed - Type of digital readout: Heidenhain Manualplus - Control: CNC - Transport dimensions: 5000mm x 2200mm x 2500mm (l x w x h) - Transport weight [kg]: 5500kg Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: used, turning diameter over bed 1420 mm turning diameter over slide rest 1040 mm turning length 6000 mm turning diameter in the gap 1460 mm spindle bore 150 mm Speed 2,5 - 500 (24x) U/min. total power requirement 30 kW weight of the machine ca. . t Kledpfx Abjyuqd Ijnjp dimensions of the machine ca. . m

Condition: ready for operation (used), - USED - CONVENTIONAL LATHE WITH DIGITAL READOUT SYSTEM CENTRE HEIGHT: 500 mm DISTANCE BETWEEN CENTRES: 6000 mm MAX TURNING DIAMETER OVER BED: 1000 mm MAX TURNING DIAMETER OVER CARRIAGE: 310 mm Ksdpfoyry Spox Abnjlp BAR CAPACITY: 150 mm ACCESSORIES: RAPID FEEDS OVER CARRIAGE ; STEADY REST ; PLATEAU

Condition: used, turning diameter over cross slide: 690 mm, spindle bore: 180 mm, turning diameter: 1,300 mm, turning diameter over bed slide: 1,040 mm, center height: 500 mm, quill diameter: 130 mm, quill travel distance: 2,000 mm, spindle speed (max.): 800 rpm, spindle speed (min.): 4 rpm, overall weight: 8,700 kg, tailstock quill stroke: 420 mm, Lathe in excellent condition, ready for use. Viewed. Kljdpfoypbfxex Abnsp

Condition: reconditioned (used), functionality: fully functional, turning diameter over cross slide: 690 mm, spindle bore: 150 mm, turning diameter: 1,040 mm, turning diameter over top slide: 690 mm, center height: 500 mm, center width: 2,000 mm, spindle speed (max.): 5,000 rpm, travel distance X-axis: 160 mm, travel distance Z-axis: 380 mm, bar passage: 55 mm, Center height: 500 mm Distance between centers: 2.000 mm Maximum turning diameter: Over cross slide: 690 mm Over bed: 1.040 mm Over gap: 1.070 mm Bed width (hardened guides): 670 mm Gap length: 480 mm Gap length in front of the faceplate: 320 mm CARRIAGE Length of bed guideways: 1.020 mm Cross slide travel: 640 mm Compound slide travel: 360 mm SPINDLE Spindle nose: ASA 15’’ Spindle bore diameter: 150 mm Front bearing size (NN): 200 / 310 / 82 mm Rear bearing size (NNU): 190 / 260 / 69 mm Internal Morse taper reduction sleeve: No. 6 Number of spindle speeds: 24 Speed range: 4 ÷ 800 rpm THREADING Total number of threads: 398 Metric threads: 0.5 ÷ 224 mm Module threads: mod. 0.25 ÷ 11 Whitworth threads: 56 ÷ 1/8 TPI Diametral pitch threads: 112 ÷ 1/4 DP FEEDS Number of feeds: 108 Longitudinal, cross and compound feeds: 0.05 ÷ 22.4 mm/rev RAPID TRAVERSES Longitudinal, cross and compound: 2.500 mm/min Longitudinal return: 5.000 mm/min TAILSTOCK Quill diameter: 130 mm Quill Morse taper: No. 6 Quill travel: 420 mm STEADY RESTS Bed steady rest capacity: 140 ÷ 500 mm Carriage steady rest capacity: 40 ÷ 350 mm Kodpoyhhuwofx Abnjlp PERMISSIBLE LOAD Cantilever load: approx. 1.500 kg Between centers, without steady rest: approx. 5.000 kg Between centers, with steady rest: approx. 6.000 kg Machine weight: approx. 7.800 kg

Year of construction: 1997, condition: excellent (used), PBR T35SNC x 3000 cycle turning machine Year of manufacture: 1997 Control: Fagor Center distance: 3000 mm Kedsil Hzzspfx Abnelp Max. turning diameter: 630 mm Center height over bed: 300 mm center height over slide: 165 mm spindle bore: 105 mm Rotational speed: 2000 rpm weight: 6200 kg Accessories incl: Multifix set (without steels), chuck (See photos) + additional chuck. No responsibility is taken for the accuracy, completeness and timeliness of the information.

Condition: used, Year of construction: 1972, turning diameter over bed:980 mm turning diameter over slide rest:600 mm turning length:2200 mm turning diameter in the pit:1200 mm lenght of the pit:450 mm turning speeds:24 speeds:8 - 800 U/min spindle bore:150 mm x-axis:x = 2000, x² = 350 mm y-axis:500 mm thread pitch -number:398 Stück thread pitch:0,5 - 224 mm thread pitch:0,25 - 112 Teil. mod. Klodpjcxxqlefx Abnjp thread pitch:56 - 1/8 Gang je Zoll thread pitch:112 - 1/4 D.P. feeds::108 feeds - longitudinal:0,032 - 15,2 mm/U feeds - cross:0,016 - 7,6 mm/min quill::MK6 quill stroke:380 mm voltage:380 V frequency:50 Hz total power requirement:25 PS weight of the machine ca.:7,9 t dimensions of the machine ca.:4,4 x 1,8 x 1,7 m
