Used Ipsen Furnace for sale (13)

Year of construction: 1988, condition: as good as new (ex-display), machine/vehicle number: 1116/87, MANUFACTURER: ELTERMA/IPSEN MODEL: VDFC-413 DESCRIPTION: Vacuum tempering furnace YEAR OF PRODUCTION: 1988 STATUS: New unused, need revamping of the obsolete parts ( Cabinets ) Pgodpfxjm E Tvho Ag Hju Max Load Dimensions: 610x900x500mm Max Load Weight: 500 kg Working temperature: 150-750⁰C Approximate warm-up time of the vacuum chamber at 550 ° C for 30 minutes

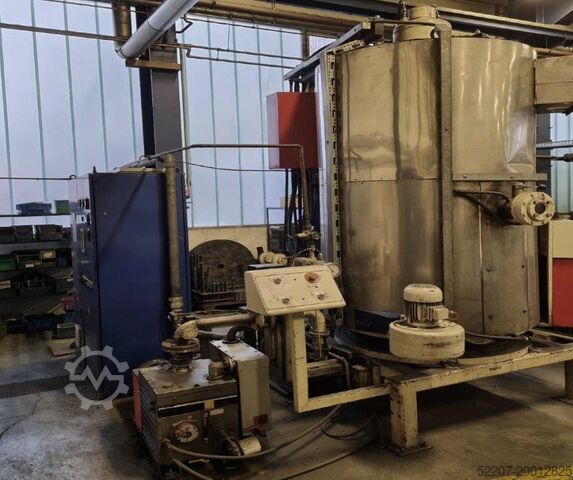

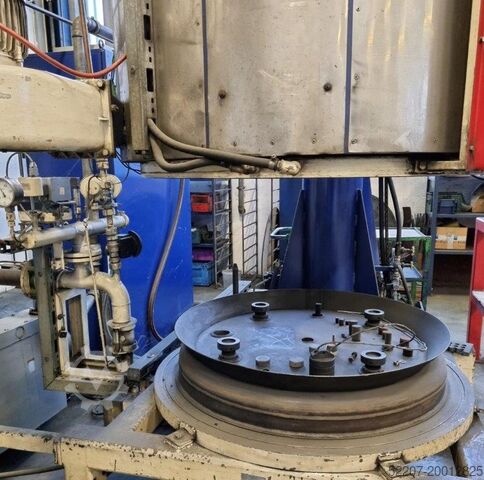

Condition: used, Plasma-nitriding furnace, make Ipsen type: VVPH useable dimensions: ø800 x 1200 (H) mm charge weight: 600 kg gross heating power: 100 kW working temperature: 150 – 600°C PLC: Siemens S5 plasma generator: MAG-Puls QT 800/50/150-UP plasma generator: MAG-Puls was newly acquired in 2008 Pgedsxc D E Hopfx Ag Hou

Year of construction: 1996, condition: used, functionality: fully functional, load capacity: 650 kg, IPSEN DAQ 7-8 Pgjdexivumepfx Ag Hju Manufacturing Year : 1996 Heating : Gas Heaters : Recon 2 (x3) Charge Capacity : 650kg Brutto Charge dimensions : W:650mm L:1173mm H:550mm Protective Gasses : Endogas Ammonia Nitrogen The furnace can be operated with existing conditions.

Year of construction: 1988, condition: used, functionality: unexamined, machine/vehicle number: 26535, Heating: gas Fuel gas: propane Psdpovkwifefx Ag Hegu Gas overpressure: 80-100 mbar Working temperature: 150-750 °C Heating output: 550 °C (300 kg/h steel) Max. permissible load weight: 350 kg gross Type of loading: automatic with loading device Type of unloading: manually via loading device Max. batch dimensions: 610x910x460 mm

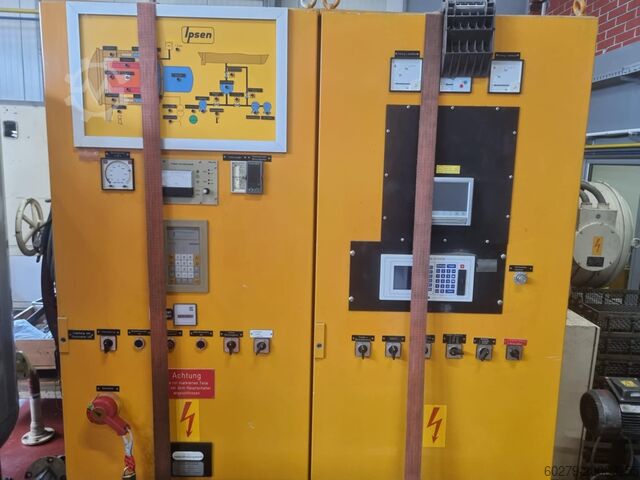

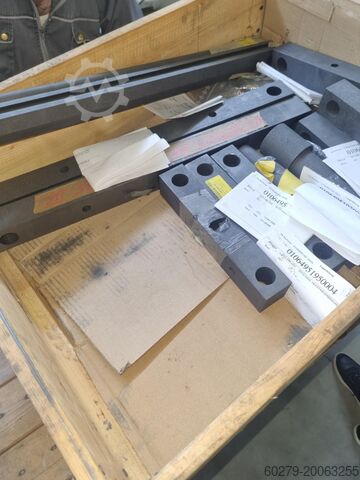

Condition: used, Year of construction: 1988, operating hours: 30,000 h, functionality: fully functional, machine/vehicle number: 20992, Dear Mr. / Mrs., we have opportunity to offer you IPSEN VTTC-324 from 1988. Characteristic of vacuum furnace: Sn = 165 kVA Un = 400 V, 50Hz In = 240 A Useful dimension: 450mm x 600mm x 900mm Power of heaters = 120 kW Voltage of heaters = 43V, 50Hz Pgodjwah R Ropfx Ag Hou Current of heaters = 1613 A Temperature range = 350 - 1320 C Absolute vacuum = 1 x 10e-5 (diffusion pump) Absolute pressure = 5 bar Also, with furnace is coming lot of spare parts and equipment for thermal heating process (tank for gas, heaters, lot of controllers, chargers and everything). For all information that you need, please contact me.

Year of construction: 1986, condition: used, functionality: unexamined, machine/vehicle number: 43563, Heating: Gas Pgodpfx Agevkwqve Hsu Fuel gas: Propane Gas overpressure: 10-50 mbar Working temperature: 150-450 °C

Year of construction: 1999, condition: used, Useful dimensions 600*600 H500 Load capacity 300 kg Diffusion pump (vacuum 10-5) Quenching under pressure 6 bar There is a lot of additional equipment for this furnace: gas tank, Podpexfla Dsfx Ag Hegu chargers, spare graphite parts, full cabinet of temperature controllers and equipment, which I will also provide with the furnace.

Year of construction: 2018, condition: used, with mesh safety enclosure, welded mesh fence, 1 sliding door for loading, 14 storage positions made of steel frame (blue), mobile loading trolley, IPSEN loading and unloading system, year of manufacture: 2018, serial number: 30.5185-60, 2 hinged doors, IPSEN hardening furnace DL(M)-5-E, year of manufacture: 2018, serial number: 30.5185-50, min./max. working temperature: 150/450°C, connection values: 49 kVA/38 kW/400 V/50 Hz, IPSEN autoclave "Electromagnetic Field Emission Category 2 (EN12198)", Ø approx. 180x400 cm, type: RUHT-524 (FV)AvaC(N), year of manufacture: 2018, serial number: 30.5185-10, min./max. working temperature: 150/1,320°C, 1 cooling unit KKT cBoxX, no.: 909120-00575, year of manufacture: 2018, water softening unit, pressure vessel MASCHINEN- UND BEHÄLTERBAU MB170512-3.14300L, volume: 14,300 l, year of manufacture: 2018 Pedexnahzjpfx Ag Hogu

Year of construction: 2001, condition: good (used), Ipsen TQ 27 line consist with ; Manufacturer : IPSEN 2 X TQ27 (1520X1220X910MM 1300KG/CHARGE ) MANUFACTURED YEAR : 1997/2001 ATHMOSPHERE : N2/METHANOL CONTROL : S7-300 / CARB-O PROOF HEATING : GAS / RECON3 BURNERS 2 X DL27-G PRE HEATING MANUFACTURED YEAR : 1999/2001 CONTROL : S5 1 X TIPPING STATION 2 X WASHING MACHINE 1 X ELECKTRIC HEATING 2010 1 X GAS HEATING 2010 CONTROL : S7-300 4 X TEMPERING FURNACE 2004 – 2010 – 2016 CONTROL : S7-300 1 X UNILOADER 2017 S7-300 WORK FOR BOTH SIDES BETWEEN – FURNACE LOADING, TILTING STATION, WASHING MACHINE AND TEMPERING FURNACE Podpfx Ajw Ugpgog Hogu 1 X LOADER S7-300 ONLY ONE SIDE WORK

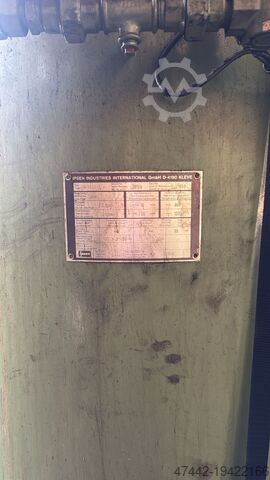

Year of construction: 1989, condition: excellent (used), ipsen tq 11 line CHAMBER FURNACE RTQPF-11-GRM DAC-11-GRR year 1989 Pjdpfx Agowu A T As Hsgu

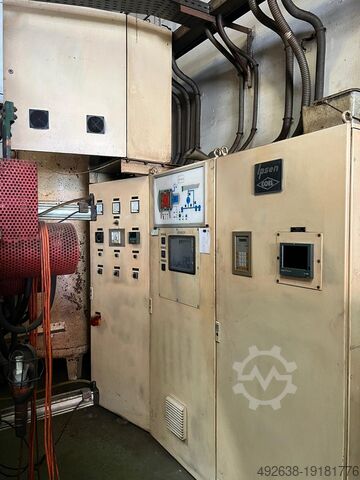

Condition: used, Year of construction: 1991, functionality: fully functional, VTTC 224 - R Useful dimensions: 350*600*450 Load: 180 Kg Vacuum level 10*5 (diffusion pump) Maximum temperature 1320°C Podpfx Agewlphuj Hjgu Cooling pressure 5 Bars 1 spare Casing + turbine + spare parts

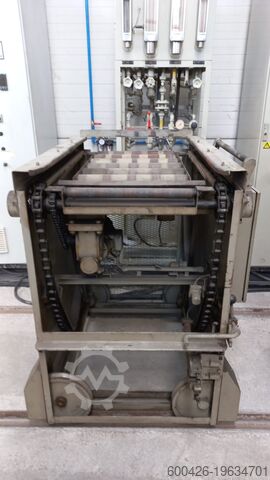

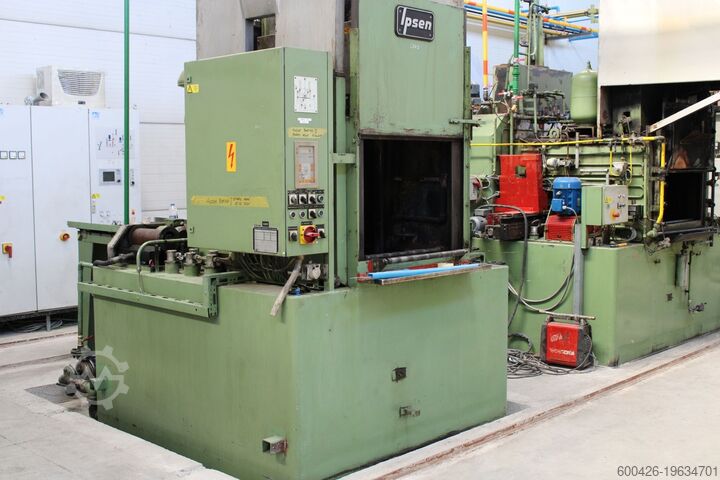

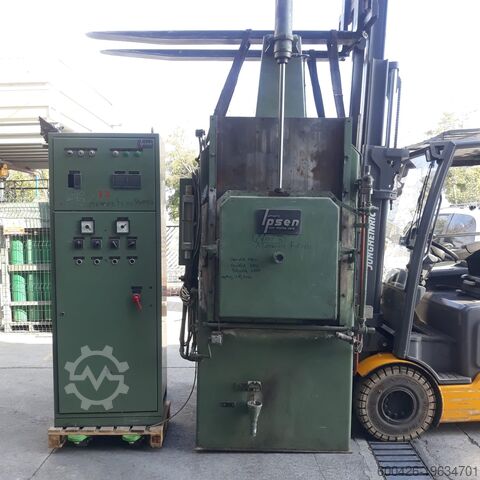

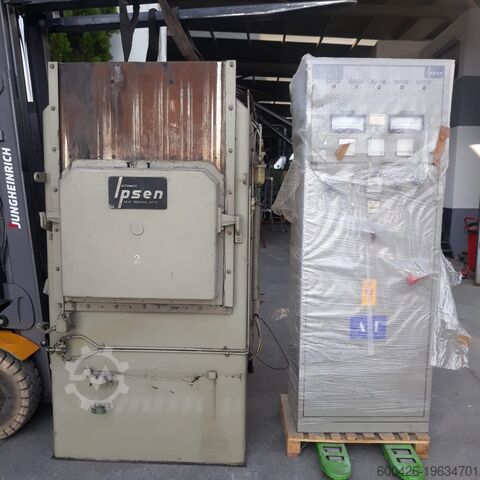

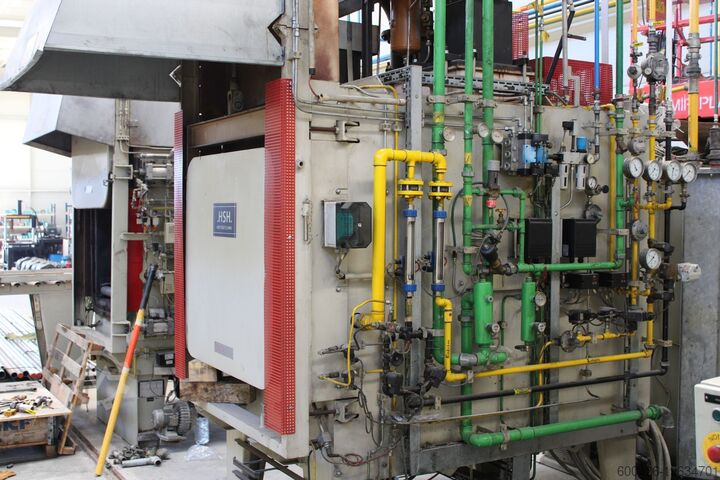

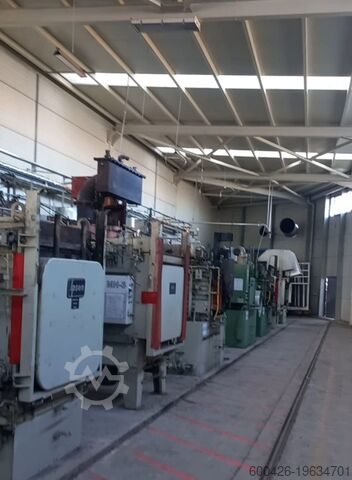

Condition: used, Complete Heat Treatmet House for Sale The Line includes ; (All modernised at 2023) 1. 1 ea AKF1 IPSEN TQF 4 EM 1977 Athmosphere Controlled Furnace 2. 1 ea AKF2 IPSEN TQFRA 5 EM 1991 Athmosphere Controlled Furnace 3. 1 ea AKF3 IPSEN T4 EM 1972 Athmosphere Controlled Furnace Pgodpfxew Dhuqe Ag Heu 4. 1 ea AKF4 IPSEN TU-5 EM 1970 Athmosphere Controlled Furnace 5. 1 ea HSH 2011 Stress Releiving, Bright Annealing 6. 1 ea Ipsen Dac 5 ER 2011 Nitration, stress releiving 7. 1 ea Ipsen DAC 4 1980 Stress Releiving, Bright Annealing 8. 1 ea HSH 2007 Stress Releiving, Bright Annealing 9. 1 ea BOREL 1987 Pit Type Stress Releiving 10. 2 ea Ipsen 1972 model Stress Releiving 11. 1 ea Loading Car 12. 1 ea Unloading Car All furnaces has already beed dismantled and ready for shiping.

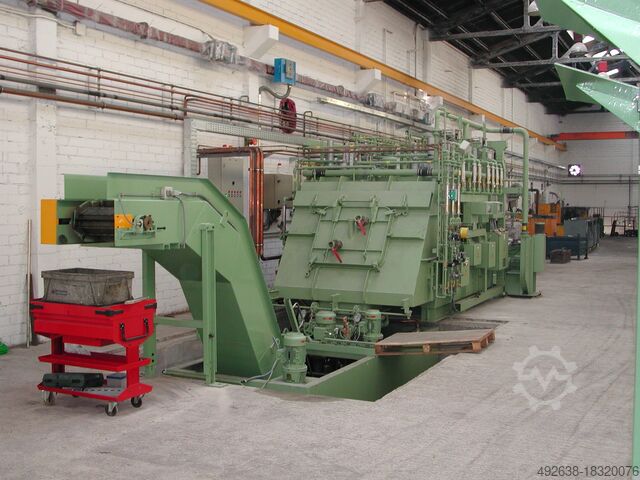

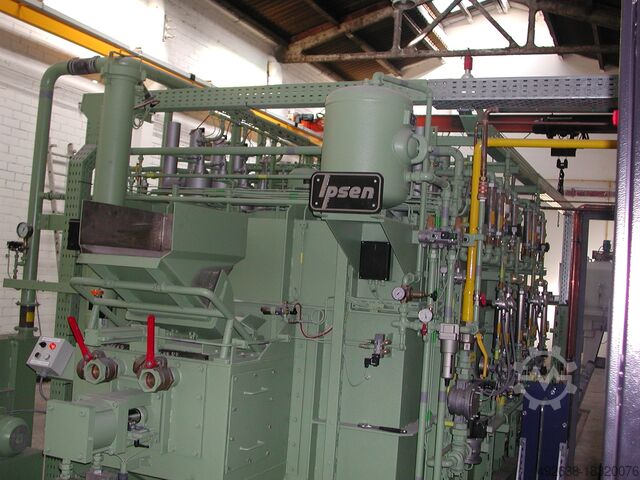

Year of construction: 2002, condition: as good as new (ex-display), functionality: fully functional, Maximum operating temperature Zone 2.. 925ºC Zone 1..700ºC Dimensions of shaker shot Width..510mm Pgedpfx Asvtc Apjg Hju Length 3410mm Height 130mm Useful hearth area 1.23m2 Throughout (approximate value, depending from bulk density, shape and dimensions of parts) - Carbonitriding/Carburising case depth 0.1 - 0.2 mm; 550 HV.. - Hardening... 225kg/h Heating Connected load 156kW Idling consumption, 850 °C 50kW Number of radiation tubes Zone 1... 8 Zone 2....6 Removal space above smoke.. Atmosphere circulating Number of fans 2 Total connected load of the furnace apron kVA25
