Used Dmg Mori Sprint 32|8 for sale (3)

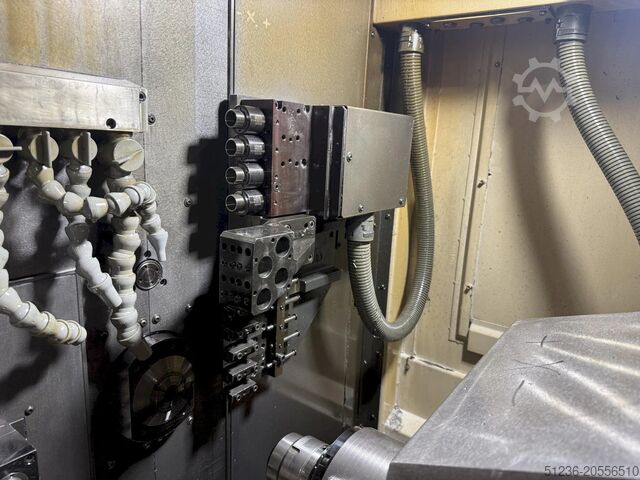

Condition: used, Year of construction: 2018, DMG Mori Sprint 32/8 CNC Swiss Lathe Mfd. 2018 Control: Fanuc 32-B Plus 8-Axis Power: 75 HP RPM 8,500 Diameter: 32mm With 12-ft Patriot 338 Bar Feed Equipped as pictured Machine concept Number of linear axes + C-axes 6 + 2 Number of spindles 2 Number of channels 2 Main spindle Maximum bar capacity mm | in 32 | 1.26 Speed rpm 8,500 Power (S2 30 min/S1) kW | hp 7.5/5.5 | 10.1/7.4 S2 15 min/S1 Torque (S2 30 min/S1) Nm | ft lbs 51.9/40.4 | 38.3/29.8 S2 15 min/S1 Counter spindle Maximum bar capacity mm | in 32 | 1.26 C-axis (0.001°) Speed rpm 8,500 Power (S2 30 min/S1) kW | hp 3.7/2.2 | 5.0/3.0 Torque (S2 30 min/S1) Nm | ft lbs 23.6/14 | 17.4/10.3 Working area/ travels Z1 travel (spindle travel) mm | in 100 | 3.94 Rapid traverse speed on linear axes X1, Z1, X2, Z2/Y1, Y2 m / min | in/ min 40/30 | 131/98 Acceleration in linear axes m /s² | ft 5 | 0.02 Tool holder on slide 1 Fixed turning tools 6 Tools for front machining/back-working 4/4 Driven tools 2 + 2 Maximum speed rpm 6,000 Power (S3 40 % /S1) kW | hp 1.9/1 | 2.5/1.3 Maximum torque (S3 40 % /S1) Nm | ft lbs 3. The 2018 DMG Mori Sprint 32/8 is a high-performance CNC screw machine built for precision, speed, and versatility in complex small-part production. Featuring an 8-axis configuration with 6 linear axes and 2 C-axes, the machine is powered by the FANUC 32i-B Plus control system with a 10.4” color display. The Sprint 32/8 is designed with dual spindles capable of 8,500 RPM, with the main spindle delivering 7.4 hp and 29.8 ft-lbs of torque, and the counter spindle generating 3 hp and 10.3 ft-lbs. Both spindles handle bar stock up to 32mm (1.26"), making it ideal for precise machining in medical, aerospace, and automotive industries. Lrsdpjxxm A Tsfx Aduow The machine supports simultaneous machining with up to 2 tools and offers advanced back-working capabilities. The working area includes Z1, X1/Y1, and X2/Z2/Y2 travels, allowing for intricate multi-sided operations. Tooling includes 8 driven tool stations and multiple configurations for both front and back machining, with speeds up to 6,000 RPM and torque of 2.2 ft-lbs. The Tool Monitoring System offers graphical tool load display, aiding in predictive maintenance and minimizing downtime. Additional features include high-pressure coolant and an integrated air handler, contributing to stable thermal conditions and chip evacuation. Its compact footprint of 30.1 ft² and total weight of 7,826 lbs make the Sprint 32/8 a space-efficient and powerful addition to any high-volume CNC shop. This machine is engineered to streamline part production while ensuring repeatable accuracy, robust power, and operational efficiency.

Condition: excellent (used), Year of construction: 2017, operating hours: 2,138 h, functionality: fully functional, machine/vehicle number: 8107000122B, rotational speed (max.): 8,500 rpm, feed length X-axis: 70 mm, feed length Y-axis: 405 mm, feed length Z-axis: 100 mm, bar diameter (max.): 32 mm, No reserve price - guaranteed sale at the highest bid! New price: €215,000 TECHNICAL DETAILS CNC control type: Fanuc 32i-B Number of spindles (C-axes): 2 Lredpfov Stutex Aduew Number of axes: 5 Number of channels: 2 Main spindle data Maximum bar capacity: 32 mm Draw tube bore: 38 mm Maximum speed: 8,500 rpm Torque (S2 15 min / S1): 51.9 / 40.4 Nm Power (S2 15 min / S1): 7.5 / 5.5 kW Counter spindle data Maximum bar capacity: 32 mm Draw tube bore: 38 mm Maximum speed: 8,500 rpm Torque (S2 30 min / S1): 23.6 / 14 Nm Power (S2 30 min / S1): 3.7 / 2.2 kW Axis Data X1/Y1/Z1 Travel X1/Y1/Z1 (with rotary spindle): 70 / 405 / 100 (240) mm Maximum Speed X1/Y1/Z1: 40 / 30 / 40 m/min Maximum Acceleration X1/Y1/Z1: 5 m/s² Nominal Thrust (S1) X1/Y1/Z1: 2,200 / 4,400 / 2,200 N Axis Data X2 / Y2 / Z2 Travel X2 / Y2 / Z2: 300 / 135 / 200 mm Maximum Speed X2 / Y2 / Z2: 40 / 30 / 40 m/min Maximum Acceleration X2 / Y2 / Z2: 5 m/s² Nominal thrust (S1) X2 / Y2 / Z2: 2,200 N Toolholder data for slide 1 Number of fixed tools for internal machining: 4 + 4 Toolholder diameter: 25 mm Number of fixed tools for external machining: 6 Toolholder system: 16 x 16 mm Number of driven tools: 4 Collet type: ESX20 Max. speed of driven tools (GEO 7-9): max. 4,000 rpm Nominal torque (S3 40% / S1): 5.25 / 4.5 Nm Nominal power (S3 40% / S1): 1.9 / 1 kW Max. speed of driven tools (GEO 8-10): max. 6,000 rpm Nominal torque (S3 40% / S1): 3.5 / 3 Nm Nominal power (S3 40% / S1): 1.9 / 1 kW Toolholder data for slide 2 Number of fixed tools for internal machining: 4 Toolholder diameter: 25 mm Number of driven tools: 4 Collet type: ESX20 Max. speed of driven tools (GEO 8-9-10-11): max. 6,000 rpm Nominal torque (S3 40% / S1): 3.5 / 3 Nm Nominal power (S3 40% / S1): 1.9 / 1 kW Toolholder data for counter spindle slide Number of fixed tools for internal machining: 2 Toolholder diameter: 25 mm Lubrication system data Capacity: 1.8 L Operating pressure: 20 bar Downtime: 7 min Operating time: 30 s Lubricant: ENI EXIDIA HG 68 Pneumatic Unit Specifications Min. operating pressure: 5 bar Max. operating pressure: 6 bar Consumption of base machine: 180 NL/min MACHINE DETAILS Dimensions: 2,309 x 1,448 x 2,087 mm Connected load: 16 kVA Weight: 3,450 kg Noise level: 75 dB(A) On-time: 3,743 h Spindle hours: 2,138 h EQUIPMENT - With 32 x 3000 mm bar feeder - Various channels for bar feeders - High-pressure system - Conversion kit for fixed lathe - Various collets, guide bushings, and tools

Condition: excellent (used), Year of construction: 2022, operating hours: 11,543 h, functionality: fully functional, machine/vehicle number: 8107000628B, CNC lathe SPRINT 32 - 8, year 2022, with IEMCA bar feeder CNC control: Fanuc 32i-B Main spindle: Max spindle bore: 32 mm Max spindle speed: 8,500 rpm Power: 7.5/5.5 kW Sub spindle: Max spindle bore: 32 mm Max speed: 8,500 rpm Ljdpfoxfq I Hjx Aduerw Power: 3.7/2.2 kW Travel axes: X1 70mm, Y1 405mm, Z1 100mm, X2 300mm, Z2 200mm, Y2 135mm Tool holders: Slide 1: 4 x internal machining, 6 x external machining, 4 x driven tools Slide 2: 4 x internal machining, 4 x driven tools Total power requirement: 16 kVA Dimensions (L x W x H): 2,309 x 1,448 x 2,087 mm Weight: 3,450 kg
