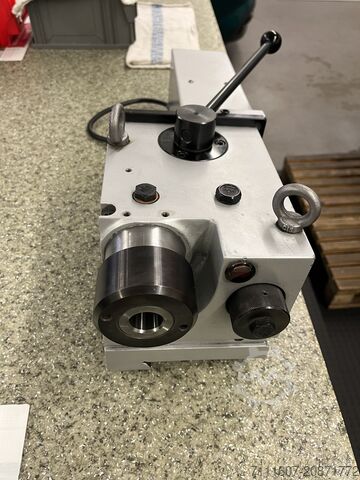

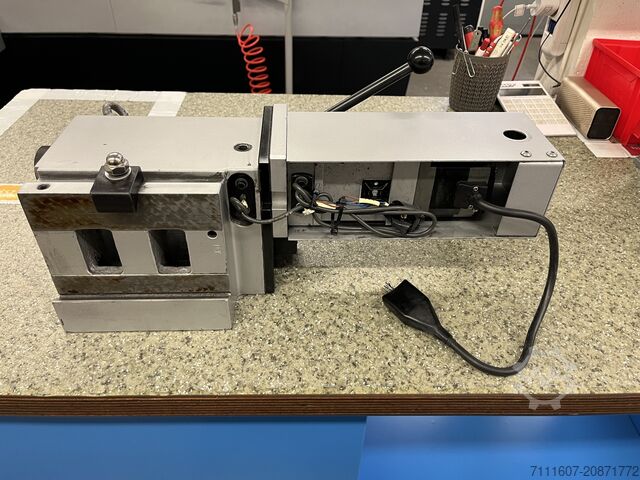

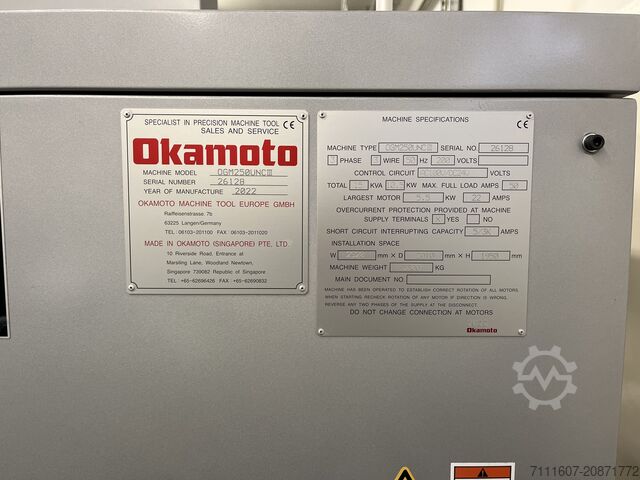

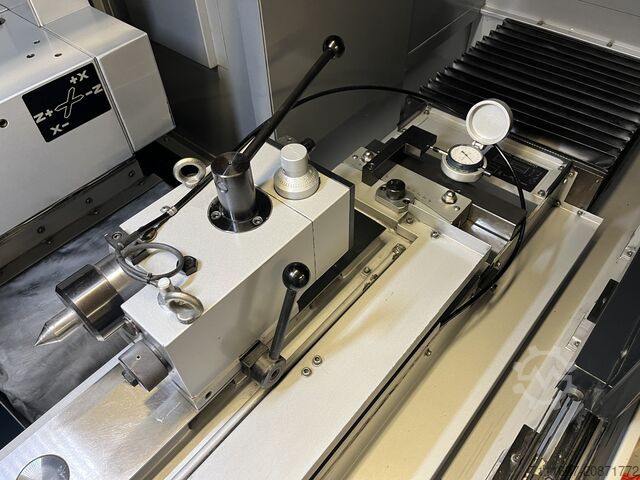

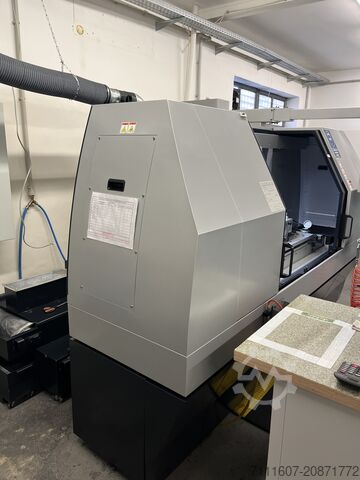

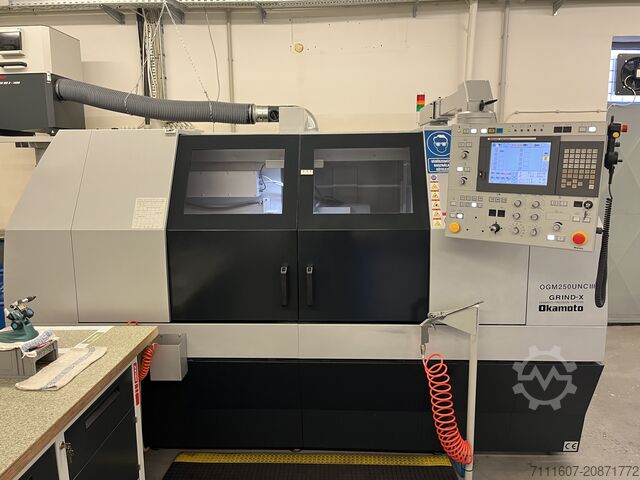

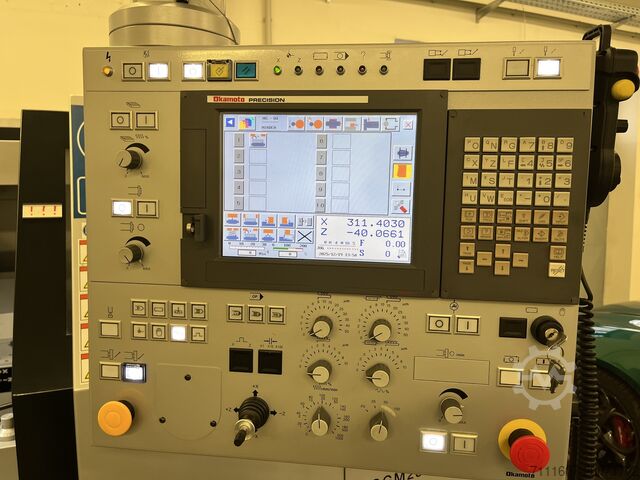

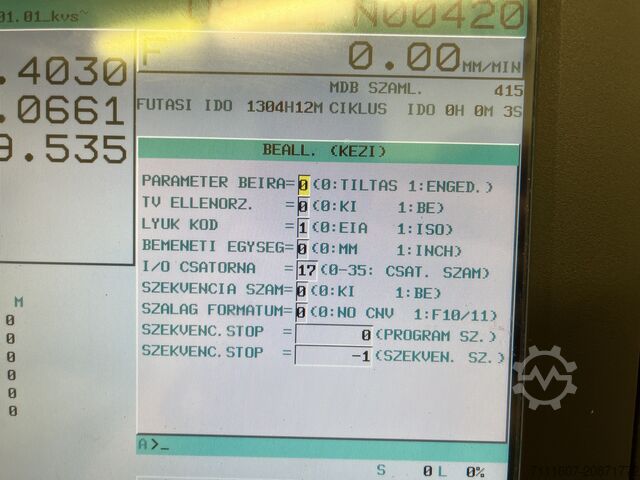

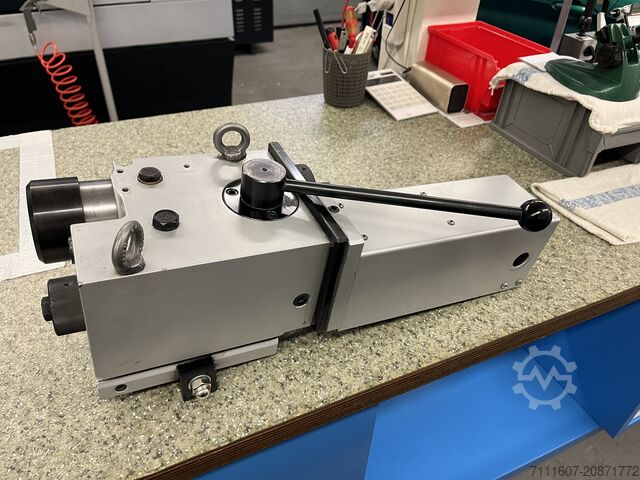

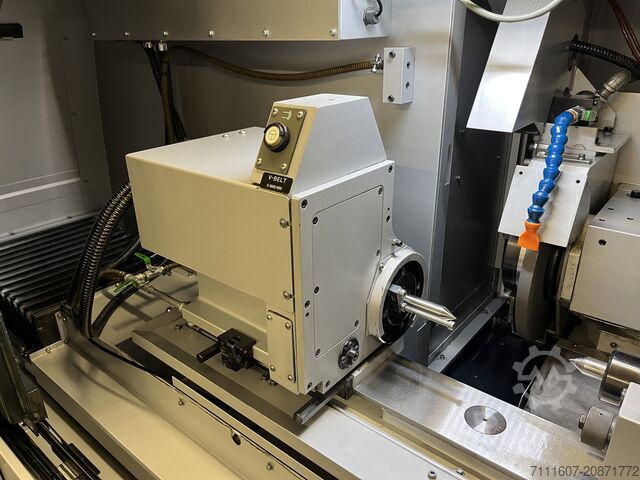

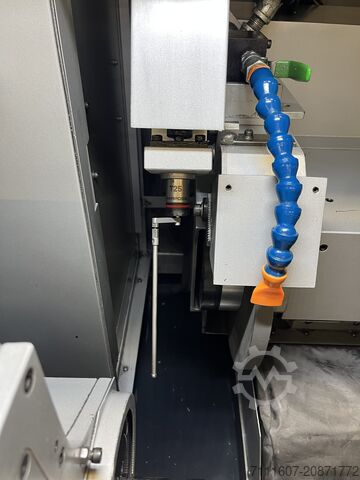

Condition: like new (used), Year of construction: 2022, operating hours: 1,034 h, functionality: fully functional, machine/vehicle number: 26128, Okamoto OGM 250 UNC III Machine Characteristics: - OKAMOTO touch-screen NC controller with advanced OKAMOTO software - 2-axis interpolation - Step (shoulder) automatic probe for setting starting reference and face grinding - Automatic wheel dressing with automatic compensation - Up to 21 programs can be stored - 6 types of grinding cycles, up to 10 steps each - 5 types of wheel dressing cycles - Zero point measuring device and air gap measuring device (optional) - Extremely rigid, stress-relieved cast iron bed construction - Double V-type prismatic slideways, only OKAMOTO machines are manufactured this way (with unique hand-scraped surfaces) Technical Data: Capacity - Max. swing diameter over table: Ø 220 mm - Distance between centers: 500 mm - Max. grindable diameter: Ø 200 mm - Max. workpiece weight between centers: 50 kg - Max. workpiece weight in chuck, gross: 20 kg - Grinding wheel size for universal grinder: Ø305 mm x 50 mm x Ø127 mm - Max. peripheral speed (with inverter): 45 m/sec - Wheel spindle X-travel: 215 mm - Universal swiveling range: +/- 30° - Diameter resolution: 0.0001 mm - Rapid traverse in diameter: 4 m/min - Table Z-travel: 762 mm - Swivel angle: 0° ~ -9° - Resolution: 0.0001 mm - Rapid traverse: 8 m/min - Workhead type: fixed and rotating centers, taper MK3 - Workhead bore diameter: Ø18 mm, speed 10 – 500 rpm - Swivel angle - universal: 30°/ -90° - Tailstock sleeve stroke: 20 mm, sleeve taper MK3 - Motors: Wheel spindle 3.7 kW, workhead AC servo 1.8 kW, table feed AC servo 1.2 kW, wheel feed AC servo 1.2 kW - Total power requirement: 15 kVA - Machine dimensions: length 3,400 mm, width 2,330 mm, height 1,950 mm - Net weight: 3,300 kg Standard grinding and wheel dressing software features: - 10-step automatic grinding cycle - Straight wheel dressing cycle - Plunge oscillation grinding cycle - Offset plunge (roughing) + cross-feed finishing grinding cycle - Shoulder wheel dressing cycle for both left and right sides - Profile wheel dressing cycle, programmable in ISO G-code - Grinding cycle for workpiece shoulders, left and right sides Standard Accessories: Codpfxsx R Tw Rj Abropt - Grinding wheel Ø305x50xØ127 mm (UNC III), 1 pc - 2 wheel arbors - 3.7 kW spindle motor - Max. grinding wheel peripheral speed: 45 m/sec - Speed controller for workhead spindle - FANUC 0i D CNC control (simultaneous 2-axis) - 10.4" color OKAMOTO controller – vertical and cross-feed display - Graphical teach software for creating grinding and dressing cycles - Complete Fanuc push-button panel for ISO G-code programs with corner radius compensation - Electronic handwheel (graduations: x1/x10/x100) - Rapid traverse control lever (joystick) for cross and longitudinal directions - Enclosed guard with safety interlocked sliding door - LED machine lamp - Automatic lubrication during operation - Coolant nozzles and piping - Coolant system for wheel dressing - Permanent coolant installation to the table - Carbide centers - Step (shoulder) positioning device and software - Gap sensor and software - Leveling screws and base plates - Tool kit - Operating manual - CE version - Table rotation measuring device - Coolant system with paper filter, DGS, 200 l - Rinsing gun - 2-point manual steady rest - 130 mm manual chuck with backplate - Motorized tailstock sleeve with foot pedal - Status lamp (green/yellow/red) - Balancing arbor - Spare wheel arbor

Condition: ready for operation (used), Year of construction: 2013, grinding length: 800 mm, grinding width: 400 mm, total height: 500 mm, automatic Cpjdpjx R Th Nsfx Abrjt visual accuracy magnetic table 800x400 mm travel paths 800x400 mm grinding wheel 406x50x127 mm, spindle 5 HP, flanges, wheel holder, coolant tray weight 2900 kg

Condition: excellent (used), Year of construction: 1991, feed length X-axis: 470 mm, feed length Z-axis: 400 mm, table length: 450 mm, table load: 100 kg, table width: 150 mm, Auto cyclus with down feed Coolant system Digital read out system positioning axis Digital read out system feed rate / rapid X - Travel: 470mm Y - Travel: 171mm Z - Travel: 400mm Table Length: 450mm Table Width: 150mm Table load: 100 Feed rate X-Axis: 25000mm/min. Feed rate Z-Axis: 5000mm/min. Grinding stone dimensions:200 x 19 x 31,75mm Power: 1,5kW Speeds: 2640Rpm Cooling system: Yes Cpodpfxjx R Su Io Abrot Length: 2000mm Width: 1200mm Height: 1800mm Weight: 1200kg

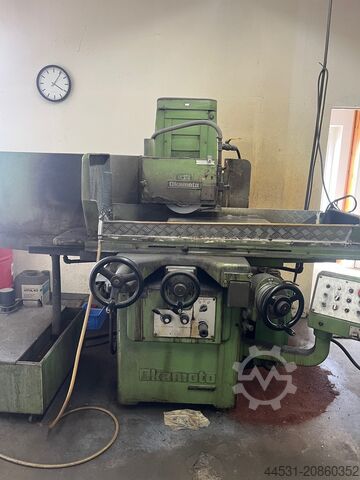

Condition: ready for operation (used), Year of construction: 1988, Horizontal surface grinding machine Okamoto Model PSG 63 – UAN Year of manufacture 1988 Grinding length 600 mm Grinding width 320 mm Maximum workpiece height 500 mm Table longitudinal travel 750 mm Table cross travel 340 mm Grinding wheel diameter 350 mm Grinding wheel width 40 mm Spindle speed 1,500 rpm Rapid vertical traverse 400 mm/min Power 3.7 kW Automatic feed Magnetic chuck Cpodpfx Abex Rxrajrot Coolant system Weight 2,500 kg Price: €2,500 plus VAT, ex-site

Condition: used, Year of construction: 2007, grinding range 600 x 450 mm Csdjx I Siaepfx Abropt magnetic plate size 600 x 400 mm grinding wheel size 300 x 50 x 76,2 mm total power requirement 11 kW weight of the machine ca. 2,1 t In our opinion, the machine is in good used condition and can be inspected condition and can be inspected under power by appointment. Accessories, illustrated tools and clamping devices are only included in the scope of delivery if this is noted in the additional information . Changes and errors in the technical data and information as well as prior sale reserved. subject to prior sale

Condition: excellent (used), Year of construction: 1980, Grinding length: 600 mm Grinding width: 200 mm Clamping area of table: 600 x 200 mm Maximum distance between table and grinding spindle center: 500 mm Grinding wheel dimensions: 250 x 25 x 51 mm Table longitudinal feed hydraulically steplessly adjustable: 1 - 24 m/min Table cross feed per handwheel revolution: 4 mm Cpedsx Ir I Aspfx Abrot Grinding spindle speed steplessly adjustable via DC drive: 800 - 4200 rpm DC drive: 1.5 - 5.0 kW Net weight with control cabinet approx.: 2000 kg Space requirement approx.: 3100 x 1700 x 1900 mm

Condition: used, total height: 2,000 mm, total length: 2,250 mm, total width: 1,560 mm, Empty weight: 3.500 kg - Documentation available: No - CE certificate present: No - Serial number: 761 - Drive system: Conventional - Power [kW]: 11.0 - Number of axes [pcs]: 3 Cpjdpjx Igd Eefx Abrjt - X-axis travel [mm]: 650 - Y-axis travel [mm]: 350 - Z-axis travel [mm]: 600 - Table width [mm]: 1020 - Table depth [mm]: 300 - Magnet width [mm]: 700 - Magnet depth [mm]: 200 - Options: Tiltable magnet, Digital readout, External cooling - └ Type of digital readout: Heidenhain - Transport dimensions: 2250mm x 1560mm x 2000mm (l x w x h) - Transport weight [kg]: 3500kg - Transport packages [pcs.]: 2 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: good (used), 1x electromagnet with coolant connection, 500 x 200 x height 125 mm, and 1x electromagnet without coolant connection. Items are sold individually. Cpsdpfjx Igcusx Abret

Condition: used, Year of construction: 2018, functionality: fully functional, TABLE SIZE 400 X 800MM MAXIMUM GRINDING LENGTH 810MM MAXIMUM GRINDING WIDTH 405MM MAXIMUM VERTICAL DISTANCE 620MM (TABLE SURFACE TO SPINDLE CENTRE LINE) LONGITUDINAL TRAVEL 850MM (HYDRAULIC) / 900MM (MANUAL) LONGITUDINAL FEED RATE 5-25M/MIN Cpjdpfsx H S I Hsx Abrst RAPID TRAVEL APPROX 60HZ/12FPM (3.5M/MIN) 50HZ/10FPM (2.9M/MIN) AUTOMATIC TRAVEL TRAVERSE INCREMENT 3-32MM AUTOMATIC TRAVEL CROSS FEED 405MM MANUAL TRAVEL CROSS FEED 460MM HAND WHEEL/REVOLUTION 6MM HAND WHEEL GRADUATION 0.1MM HAND WHEEL MICRO FEED GRADUATION 0.001MM HAND WHEEL VERTICAL INFEED 001-0.04MM VERTICAL RAPID TRAVEL APPROX 500MM/MIN STANDARD GRINDING WHEEL DIAMETER 355MM STANDARD GRINDING WHEEL WIDTH 50MM STANDARD GRINDING WHEEL BORE 127MM HYDRAULIC SYSTEM 2HP/6P CROSS FEED 1/6HP/4P ELEVATING DRIVE AC SERVO 1KW MACHINE FLOORSPACE 3340 X 1730 X 2080MM WEIGHT 2900KG

Condition: ready for operation (used), Year of construction: 1974, TECHNICAL DATA: Max. grinding length: 1,200 mm Max. grinding width: 600 mm Max. working height with new grinding wheel: 500 mm Max. working height with worn wheel: 880 mm Max. workpiece weight: 1,000 kg static Cedpfx Abjx H Rmzjrspt Max. table load: 1,500 kg/m dynamic

Condition: excellent (used), Year of construction: 1999, Geibel & Hotz FS 60 Compact Surface Grinding Machine Geibel & Hotz FS 60 Compact, Year of Manufacture 1999, Excellent CONDITION The machine comes from the technical center of a renowned German mechanical engineering company. Technical Data: Surface Grinding Machine GEIBEL & HOTZ Type FS 60 AC Year of manufacture: 1999 Electromagnetic chuck: 600 x 400 mm Table clamping area: 960/620 x 400 mm Max. longitudinal table movement: 660 mm Grinding width: 400 mm Max. cross movement with cross feed: 400 mm Max. cross movement with manual adjustment: 425 mm Max. distance spindle center to magnet plate: 425 mm Codjx H Nn Dopfx Abrspt Table speed: 2 - 28 m/min, infinitely variable Grinding wheel dimensions: Ø 300 x 50 x 76 mm Manual vertical feed: 1 graduation = 0.002 mm Manual cross feed: 1 graduation = 0.01 mm Power supply: 400 Volt, 50 Hz - Electromagnetic chuck GEIBEL & HOTZ, Type HPM 600 x 400, installation height 99 mm - Automatic depth feed for surface and plunge grinding with actual value digital display - Setting of depth increment via decade switch - Cross feed for surface grinding driven by motor or manually via handwheel - Hydraulic longitudinal table movement - Central lubrication for longitudinal table movement, Y+Z axis movements and lead screws - Mounted grinding wheel Ø 300 mm (actual Ø 290 mm) - Electrical control cabinet adjacent - Hydraulic unit integrated in machine base - Coolant device with paper band filter Required space (L x W x H): 2850 x 2250 x 2500 mm Weight approx. 2 tons (complete) Very good condition About the machine: Offered here is a Geibel & Hotz FS 60 Compact surface grinding machine. This universal surface grinder is in very good original condition. It comes from a facility where it was only occasionally used in the technical center for sample grinding. Very user-friendly controls. A grinding travel of 600 mm in the longitudinal axis and a cross travel of 400 mm makes it ideal for toolmaking, jig manufacture, and small-batch production. The comprehensive standard equipment and user-friendly handling distinguish this machine series. The robust spindle head design and dual V-guideway construction for the longitudinal and cross axes guarantee lasting precision. The intuitive operation of the controls simplifies use and significantly increases productivity. The guideways are lubricated regularly through the central lubrication system. The Geibel & Hotz was mechanically and electrically inspected by us. Take advantage of the opportunity to inspect and test the Geibel & Hotz under power on our premises. Further surface grinding machines from renowned manufacturers can be found on our website.

Condition: excellent (used), Year of construction: 2023, operating hours: 1,400 h, functionality: fully functional, machine/vehicle number: 23/1389, grinding length: 600 mm, grinding width: 430 mm, total height: 600 mm, overall weight: 3,000 kg, power: 10 kW (13.60 HP), Equipment: documentation/manual, Axes: X, Y, Z, S - X-axis: Longitudinal movement (table) - Y-axis: Vertical movement (grinding head) - Z-axis: Cross movement (column) - S-axis: Rotational movement of the grinding wheel Main Head: Performs surface grinding of the workpiece. Grinding Capacity: - Max. grinding length: 600 mm - Max. grinding width with 50 mm wheel: 430 mm - Max. table height to wheel center: 715 mm - Usable table area: 600 × 400 mm - T-slot: 1 × 14 mm Cpodjx Hh N Hopfx Abrjt Axis Speeds and Resolution: X-axis: - Max. speed: 28 m/min - Min. speed: 2 m/min - Drive: Hydraulic 1.5 kW or optional servomotor (10.5 Nm) Y-axis (Vertical): - Max. speed: 5 m/min - Min. speed: 0.001 m/min - Resolution: 1 µm - Servomotor torque: 3.7 Nm Z-axis (Cross): - Max. speed: 5 m/min - Min. speed: 0.001 m/min - Resolution: 1 µm - Servomotor torque: 3.7 Nm Handwheel and Grinding Wheel: Electronic Handwheel: - Resolution: 0.001, 0.01, or 0.1 mm/increment Grinding Wheel Head: - Standard wheel: 300 × 25 × 76.2 mm - Max. wheel: 300 × 50 × 76.2 mm - Side dresser: 155 × 10 × 10 mm - Max. peripheral speed: 45 m/s - Motor power: 4 kW General Machine Specifications: - Total connected power: approx. 9 kW - Dimensions (L×W×H): 3,530 × 3,200 × 2,900 mm - Sound pressure level in operation: < 70 dB(A) (EN 31201) - Coolant tank capacity: 230 liters - Hydraulic/lubrication oil capacity: 14 liters Supply Voltage: 400 V / 3-phase / 50 Hz

Condition: excellent (used), Year of construction: 1996, grinding length 600 mm grinding width 350 mm Cpjdex Haryjpfx Abrst total power requirement 7,5 kW

Condition: used, Year of construction: 2000, ABA surface grinding machine Codpfx Ajx Ezgvebrspt

Condition: used, Year of construction: 2017, functionality: fully functional, machine/vehicle number: UK5451004, SPECIFICATION Motor 3Kw Contact wheel size 250 x 152mm Cpedpfx Abox Ea Euoret Voltage 415 volt Grinding plane 475mm Grinding belt 152 x 2000mm Working height 990 Weight 130Kg MACHINE EQUIPPED WITH Dust extractor for use with wood

Condition: used, Year of construction: 2017, functionality: fully functional, machine/vehicle number: UK5451006, SPECIFICATION Motor 3Kw Contact wheel size 250 x 152mm Voltage 415 volt Grinding plane 475mm Grinding belt 152 x 2000mm Working height 990 Weight 130Kg Cjdex Ea Ehepfx Abrept MACHINE EQUIPPED WITH Dust extractor for use with aluminium

Condition: used, Year of construction: 2010, functionality: fully functional, 1 pc Surface Grinding Machine FS 640 SC with Fagor control Make: Geibel & Hotz Year of manufacture: 2010 Technical Data Working Area: Grinding area - Maximum grinding area 600 x 450 mm - Standard magnetic chuck size 600 x 400 mm - Clamping area (table to spindle center) 140 - 525 mm - Standard grinding wheel 300 x 50 x 76.2 mm - Table load incl. magnet 600 kg - Grinding spindle motor power approx. 3.7 kW - Total connected load approx. 11 kW - Table speed 2 to 28 m/min - Cross/vertical feed speed 100-1000 mm/min Cedpjx Dgvqsfx Abrspt Required space 3.95 x 3.16 x 2.47 m Machine weight approx. 2.1 t Equipment Machine-specific accessories, belt filter system, magnetic separator, extraction unit Magnetic chuck with adjustable holding force, automatic wheel dressing incl. compensation, Dressing diamond, balancing device, clamping device, 4 grinding wheels Technical data subject to change.

Condition: ready for operation (used), Elb SWE 6 VA II Worklenth without magnetic table: 600 mm Grindingwidth: 400 mm Longitudinal travel X-axis (autom.): 600 mm Cross-travel Y-axis (autom.): 400 mm Csdpfex Dd Idsx Abrjpt Travel Z-axis (autom.): 450 mm Dimensions of the table: 1100 x 450 mm Dimensions magnetic table: 700 x 200 mm Max dia grindingstone: 300x50x76 mm Spindlespeeds: 1400 x 1800 rpm Motorpower: 5.5 kW, total 13 kW Tension needed: 400V

Condition: used, Year of construction: 1976, operating hours: 123,456,789 h, functionality: fully functional, machine/vehicle number: SWBE 9 VA 2, grinding length: 900 mm, grinding width: 500 mm, feed length X-axis: 900 mm, table length: 900 mm, table width: 400 mm, spindle speed (min.): 3,000 rpm, grinding spindle speed: 3,000 rpm, Equipment: documentation/manual, rotational speed infinitely variable, The machine is still in use and everything is operational. However, it should be overhauled at some point. Pickup date is negotiable. Heavy machine bed👍 Automatic feed. Unfortunately, there is no operating hours counter. Cpjdpfxox Aknhj Abrot

Condition: good (used), LOG-O-MATIC (Mainaschaff/FRG) Surface Grinding Machine FS 5030 AH Year: 4/1991 Grinding area: approx. 500 x 300 mm Automatic vertical feed Manual longitudinal/cross/vertical feed Accessories/Equipment: Electromagnetic chuck approx. 500 x 300 mm Manual wheel dresser on support arm Paper band filter Coolant system Machine lamp Machine supports Accessories: Side, angular and radius dressing device Balancing scale Demagnetizing plate Csdjxz R Niopfx Abrept The machine is in very good condition and comes from a training facility Available from March 2026

Condition: used, Type Amb 6/4 VAI-Z In our assessment, the machine is in good used condition and can be inspected under power by appointment. Accessories, tools, and clamping devices shown are only included in the scope of delivery if this is noted in the additional information. Cpodpfxjxzuyre Abrst Subject to changes and errors in the technical data and specifications, as well as prior sale!

Condition: refurbished (used), Year of construction: 2000, functionality: fully functional, grinding length: 600 mm, grinding width: 300 mm, total height: 400 mm, table length: 500 mm, table width: 200 mm, JUNG surface grinding machine JF525. The machine was completely overhauled by Geiger in 2020. The machine bed was newly scraped, new control system, new display, etc. The cost for this overhaul was approximately €100,000. Magnet size: 500 x 200 mm. Cpedpfx Ajxzra Nsbret

Condition: used, Type of machine: CNC lathe Manufacturer: WEILER Model: Orion PD 180 CNC #10 Control: Sinumerik 810 T Siemens Location: D-59302 Oelde Country of origin: Germany Additional information: CNC lathe WEILER - Orion PD 180 CNC Maximum turning diameter: 80 mm Maximum turning length: 180 mm Cpedpfoxzi E Aex Abrot Control: Sinumerik 810 T Siemens Maximum swing diameter over bed cover: 190 mm Swing diameter over cross slide: 80 mm Distance spindle center to floor: 1,015 mm Main spindle: Speed range - main spindle: 50 - 8,000 rpm Drive power - main spindle: 5.5 kW Spindle bore: 36 mm Maximum bar capacity: 24 mm Chuck diameter: 110 mm Spindle nose: DIN 55036 MK 4 Tool turret: Number of tool positions: 8 positions Shank diameter: VDI 3425 / 20 mm

Condition: excellent (used), Year of construction: 1965, grinding length 600 mm grinding width 250 mm Csdexy S D Espfx Abrjpt

Condition: excellent (used), Year of construction: 2015, grinding length 500 mm Cpjdpfx Aboxy S Dxsrjt grinding width 250 mm
