Condition: used, Year of construction: 1993, operating hours: 26,785 h, functionality: limited functionality, machine/vehicle number: 054 204, turning length: 1,500 mm, turning diameter over cross slide: 290 mm, turning diameter: 500 mm, spindle motor power: 11,000 W, spindle speed (min.): 8 rpm, spindle speed (max.): 2,800 rpm, spindle bore: 70 mm, overall weight: 3,000 kg, A very precise lathe. The X-rail guides, spindle bearings and rail scrapers have been replaced and have had a maximum of 20 hours of operation. The control is Philips_Grundig ManualPlus Cyclecontrol. Kdodpfsyl Nidex Ahweh The backup battery expired and the machine data was lost. We have almost all the machine data on paper but a few still need to be entered. We have the full dokumentation for the control. Forkard F 315mm centering chuck with many extra jaws. Multifix type B steel holder. We cannot load the lathe with a forklift. It must be picked up by a crane truck.

Condition: good (used), Year of construction: 2015, functionality: fully functional, QUICK TURN SMART 200 L Universal 500 Specifications Chuck diameter main spindle: 8" Max. swing diameter: 660 mm Standard machining diameter: 212 mm Max. machining diameter: 350 mm Max. bar diameter main spindle: 65 mm Note: Max. bar diameter depends on the clamping system used Distance between spindle end and turret: 132–687 mm Max. workpiece weight for chucking operation main spindle: 200 kg Note: depends on the center of gravity position Max. workpiece weight for shaft machining main spindle: 500 kg Note: depends on the center of gravity position Main Spindle Max. speed: 5,000 rpm (depends on chucking system used) Min. speed: 35 rpm (depends on chucking system used) Spindle nose: A2-6" Spindle bore: 76 mm Motor power (30 min duty): 15.0 kW Rated power (continuous duty): 11.0 kW Max. torque: 233 Nm Tailstock Tailstock taper: MT 5 (fixed center) Tailstock body travel: 565 mm Max. thrust: 1,000 Nm Turret Number of tools: 12 Turning tool holder cross-section: 25 mm Max. boring bar diameter: 40 mm Index time per turret station: 0.17 s Index time for full turret rotation: 0.54 s Feeds Rapid traverse X-axis: 30.0 m/min Rapid traverse Z-axis: 33.0 m/min Max. constant feed X-axis: 60 mm/sec Max. constant feed Z-axis: 80 mm/sec Travel X-axis: 195 mm Travel Z-axis: 560 mm Other Tank capacity: 180 l Power consumption (30 min duty): 29.1 kVA Power consumption (continuous duty): 23.3 kVA Machine dimensions Center height: 1,020 mm Length: 2,630 mm Width: 1,680 mm Height: 1,700 mm Weight: 4,500 kg Note: machine + coolant tank, without chip conveyor, without coolant Kdodpsyl I Hnsfx Ahwjh STANDARD EQUIPMENT General machine options Transformer for the European market Roller guides Spindle bore 76 mm 1 set of manuals (electronic on CD) 1 set of adjustment tools Machine feet/leveling pads Mazak standard color Spindle orientation at a fixed position Main spindle motor (AC 15 kW) Spindle speed 5,000 rpm Tool turret with 12 stations NC-controlled tailstock Tailstock pressure adjustment Live tailstock center type NSK/LC-5SW 5,000 rpm Tailstock with fixed quill MT5 (500U) Safety features Operator door with interlock switch Double foot switch Separate switches for opening and closing the chuck Hydraulic pressure lock Hydraulic pressure monitoring of the machine If pressure drops, the machine stops and an alarm is displayed Fully enclosed working area Protection against chips, coolant, and access to the working area during automatic machining Work area lighting Safety devices according to worldwide standards Coolant supply High-performance coolant system 520 W Max. flow rate 11.5 l/min Complete coolant system includes: pumps, valves, piping, and nozzles for efficient production of quality components Chuck etc. Chuck condition monitoring Status feedback via sensors 8" chuck with through-hole BB208A615 Measuring system Automatic Tool Eye Tool measurement inside the machine during setup, as well as for tool wear compensation and tool breakage detection during automatic mode Absolute positioning system Chip disposal Preparation for chip conveyor (side-mounted) Control MAZATROL Smart Control

Condition: excellent (used), Year of construction: 2024, MAZAK QUICK TURN 200MSY Machine has only approx. 400 spindle hours!!! Kedpfx Ahsyl An Hswedh Max. turning diameter: 380 mm Max. milling speed: 5,000 rpm Max. spindle speed: 5,000 rpm Max. bar diameter: 65 mm Machine is equipped with: - Mazatrol SmoothG CNC control - KITAGAWA 3-jaw chuck BB-208 for main spindle, diameter 210 mm - KITAGAWA 3-jaw chuck B-206 for sub spindle, diameter 169 mm - Tool Eye - C-axis - Y-axis - automatic parts catcher - interface for bar feeder - signal tower (3-color LED) - reinforced coolant pump - chip conveyor - standard MAZAK tool package

Condition: excellent (used), Year of construction: 1998, functionality: fully functional, CNC: OSP7000L X-axis: 485 mm Y-axis: 170 mm Z-axis: 815 mm Ø490 x 1500, Ø720 x 340 Kdjdpfx Ahjylxn Aoweh Spindle bore: Ø78 mm Spindle speed range: 2800 rpm Number of axes: 4 Turret: Tool positions: 8 Tools: magazine positions: 32 Machine weight: 10,500 kg Machine dimensions: W=5988 x D=4169 x H=2754 mm

Condition: used, Year of construction: 2019, Control: MITSUBISHI M730UM with CELOS Main spindle with integrated motor spindle ISM 80: 15/18.5 kW Speed range: 10–4000 rpm 10" hollow chuck 254mm KITAGAWA BB210A821 Counter spindle with integrated motor spindle ISM 65 Speed range: 10–5000 rpm 10" hollow chuck 254mm KITAGAWA BB208A621 20-position BMT star turret KNOLL high-pressure coolant system 70 bar Kodpfx Aheylxkqjwsdh Y-axis with 100mm travel Gantry loading system LG-10AI

Condition: excellent (used), Year of construction: 2019, functionality: fully functional, Main spindle 10” 4000 rpm Turret 12 stations Kdjdpfx Aeylxbiohweh Live tool speed 4500 rpm Spindle bore 91 mm X-axis: 215 mm Z-axis: 605 mm Machine dimensions: 2700 x 1690 x 1725 mm Weight: 4600 kg Without chip conveyor

Condition: ready for operation (used), Year of construction: 2003, operating hours: 92,000 h, controller manufacturer: SIEMENS, controller model: 840D, number of axes: 5, This 5-axis Index G 200 RATIO LINE was manufactured in 2003. It features a Y-axis travel of 120 mm, a main spindle diameter of D65, and a counter spindle diameter of D60. The machine is equipped with a turret that has 12 stations and driven tools on turret 1 and 2. If you are looking to get high-quality turning and milling capabilities, consider the Index G 200 RATIO LINE turn-mill centre we have for sale. Contact us for further details. • C-axis on main and counter spindle • Thread cutting without compensating chuck • Electronic shaft • Additional V24 RS232 interface in control cabinet • Transmit-/Tracyl function • MDE interface (machine on, machine running, parts counter) • Marposs (Brankamp) collision monitoring CMS100 • 3D machine model for kinematic simulation in CAM programming system • Control cabinet cooling unit • Main spindle D65 • Counter spindle D60 • Coolant flushing of counter spindle (electrically controlled shut-off valve) • Foot switch • Turret (12 stations) bottom and top • Driven tools on turret 1 and 2 • Control function “synchronous tailstock” for turret 2 • Y-axis 120 mm • Automatic sliding door (hydraulic) • Coolant pump 80 l / 8 bar • High-pressure coolant connection slide 1 and 2 with solenoid valve • Coolant flushing gun • Preparation for extraction and filter system connection • Operating hours approx. 92,000 h Additional equipment • Portal unloading device with actuated gripper, NC-controlled • Gripper fingers D4–45 mm and D40–65 mm • Indexed conveyor belt Ksdpfx Aheylw Dcewsdh • UNIMAG interface • Chip conveyor (hinged belt), discharge height 1250 mm • Vacuum rotary filter KNOLL (emulsion use) • High-pressure pump 80 bar • Workholding: • Collet chucks for draw tube, HAINBUCH (main and counter spindle) • Power chucks D210 with quick jaw change, Schunk (main and counter spindle) • Stop device

Condition: like new (used), Year of construction: 2008, turning length: 1,542 mm, turning diameter: 660 mm, spindle speed (min.): 12,000 rpm, travel distance X-axis: 195 mm, travel distance Z-axis: 1,525 mm, workpiece weight (max.): 8 kg, total height: 2,900 mm, total length: 6,800 mm, total width: 3,200 mm, overall weight: 25,600 kg, CNC controller: FS-31IA5 (MAPPS 3) Capacity Z-axis travel mm: 1.550 + 100 Turning length mm: 1.542 Max. turning diameter mm: ø: 660 Swing over bed mm: ø: 730 Bar work capacity mm: 80 / 80 Turning diameter f. lower turret mm: 350 Distance between spindle centers mm: 1.862 Turn-mill spindle X-axis travel mm: 750 Y-axis travel mm: ±210 B-axis degree: ±120° (Index 1°) C-axis degree: 360º (0,001º) Speed spindle rpm: 12.000 Drive power kW: 18,5 / 11 (30min/cont) Tool magazine Magazine places: 100 Tool holder: CAPTO C6 Tool length max. mm: 400 Tool diameter max. mm: 140 Tool weight max kg: 8 Lower turret X-axis travel mm: 195 Z-axis travel mm: 1.525 Kedpfx Ahsylwx Towsdh Number of tool slots St .: 12 Speed driven tools RPM: 6.000 Milling function: PROVIDED Main spindle Speed spindle rpm: 4.000 Drive power spindle kW: 22 / 18,5 (30min/cont) Spindle bore mm: 91 Counter spindle Speed spindle rpm: 4.000 Drive power spindle kW: 22 / 18,5 (30min/cont) Spindle bore mm: 91 Coolant system High-pressure bar: 28 Equipment Electronic Handwheel Chip conveyor Tool breakage probe Workarea light Blowing air outside the spindle Coolant gun Internal coolant supply Measuring probe Gantry loader LG-10; 10 Pallets, 10kg per Hand, pieces of Ø200 x 150 (W x H) Basic machine dimensions / weight Length mm: 6.800 Width mm: 3.200 Height mm: 2.900 Weight kg: 25.600

Condition: ready for operation (used), Year of construction: 2006, operating hours: 115,000 h, travel distance Y-axis: 120 mm, controller manufacturer: SIEMENS, controller model: 840D, number of axes: 5, This 5-axis Index G 200 RATIO LINE was manufactured in 2006. It features a Y-axis travel of 120 mm, a turret with 12 stations, and driven tools on both turrets. The machine is equipped with a Siemens 840D control system and includes a collision monitoring system. If you are looking to get high-quality turning and milling capabilities, consider the Index G 200 RATIO LINE turn-mill centre we have for sale. Contact us for further details. • C-axis on main spindle and sub spindle • Electronic gearbox • Additional V24 RS232 interface in electrical cabinet • Transmit / Tracyl function • MDE interface (machine on, machine running, part counter) • Collision monitoring system Marposs (Brankamp) CMS100 • 3D machine model for kinematic simulation in CAM system • Electrical cabinet cooling unit (2 units) • Main spindle D65 with HAINBUCH pull-type collet clamping • Sub spindle D60 with HAINBUCH pull-type collet clamping • Stop device • Coolant flushing of sub spindle (electrically controlled shut-off valve) • Foot switch • Turret (12 stations) upper and lower • Driven tools on turret 1 and 2 • Control function “synchronous tailstock” for turret 2 • Automatic sliding door (hydraulically actuated) • ROTOCLEAR viewing window • Coolant pump 80 liters / 8 bar • High-pressure pump 80 bar Ksdpfeylwuhex Ahwjdh • High-pressure coolant connection for slide 1 and 2 with solenoid valve • Coolant flushing gun • Preparation for extraction and filter system connection • UNIMAG interface • Operating hours: approx. 115,000 h Additional equipment • Portal unloading unit with actuated NC-controlled gripper • Gripper fingers D4–45 mm and D40–65 mm • Indexed conveyor belt • Chip conveyor (hinged belt), discharge height 1250 mm • KNOLL vacuum rotary filter (for emulsion use) • Multi-channel bar loader: Breuning / IRCO PROFImat 65.8 PR*270/8 • Year of manufacture: 2006 • Bar capacity: up to 3 m length • Maximum bar diameter: D65

Condition: excellent (used), Year of construction: 2008, X-axis: 255 mm Y-axis: 110 mm Z-axis: 670 mm Bar diameter: 80 mm Turning diameter: 410 mm Control unit: FANUC 31I-T Spindle power: 22 kW Kdjdpfx Ahjylwprewjh Spindle speed: 3,500 rpm Machine weight approx.: 6,200 kg

Condition: ready for operation (used), Year of construction: 2009, functionality: fully functional, turning length: 2,000 mm, spindle speed (max.): 1,000 rpm, travel distance Z-axis: 2,000 mm, overall weight: 40,000 kg, turning diameter over bed slide: 1,270 mm, controller model: Fanuc Serie 18i-TB, TECHNICAL DETAILS Turning length: 2,000 mm Swing diameter over bed: 1,550 mm Swing diameter over cross slide: 1,270 mm Spindle speed: 1,000 rpm Spindle diameter at front bearing: 240 mm Spindle bore: 185 mm Spindle power: 37/30 kW Bar capacity: 165 mm Travel in longitudinal direction (Z-axis): 2,000 mm Cross travel: 685 mm Kdsdpfx Ahsylwl Tswsh Rapid traverse speed X-axis: 10 m/min Rapid traverse speed Z-axis: 12 m/min MACHINE DETAILS CNC control: Fanuc Series 18i-TB Dimensions & Weight Dimensions (L x W x H): 9,800 x 3,695 x 5,292 mm Machine weight: approx. 40 t EQUIPMENT 12-position turret

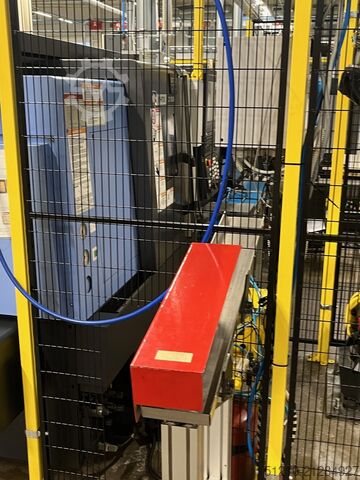

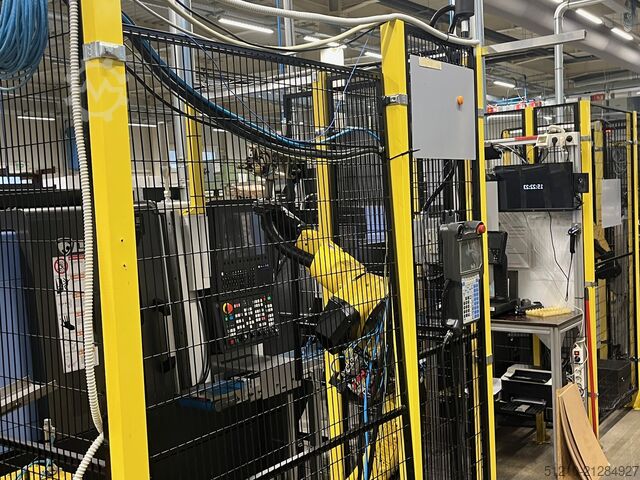

Condition: ready for operation (used), Year of construction: 2021, operating hours: 10,000 h, functionality: fully functional, turning length: 330 mm, turning diameter: 350 mm, spindle speed (max.): 4,500 rpm, 2 production lines with two machines each, including an infeed conveyor for parts up to Ø100 mm for the first machining operation and full integration with robotic handling, an intermediate conveyor connecting machine 1 to machine 2, and an outfeed conveyor, as well as comprehensive safety systems with robot cells. Kjdpfx Ahjylwb Ujwjdh The machines have approximately 10,000 operating hours, manufactured in 12/2021, commissioned for production in 7/2022. We are selling due to project completion. The machines are in excellent condition and have been regularly maintained. Each line comprises: • 2 x Doosan LYNX 2100 B with CNC tailstock, Renishaw tool measurement arm, additional M codes (6x), chip breaking machining function, chip conveyor, automatic door opening, signal beacons, axis and spindle load control system, 12-position turret, oil skimmer • 2 x Fanuc M-10 iD 12 Robots, 12 kg payload The lines can be purchased as a complete set or as individual machines.

Condition: excellent (used), Year of construction: 2022, Turning diameter 376mm, turning length 760mm, bar capacity 76mm, Y axis -/+ 52.5mm, C axis 0.001 degrees on both spindles, 12 station turret, 22KW Motor, Main spindle 4000rpm, Kedpfx Aheyll Txswodh sub-spindle 4500rpm, 3 jaw chucks, swarf conveyor, tool setter,

Condition: good (used), Year of construction: 2022, functionality: fully functional, Fanuc control, two turrets, turret 1 with Y-axis, spindle bore 65 mm, sub-spindle, Tool-Eye, parts catcher, conveyor belt, short bar loader. Kdedpfxsylig Ns Ahwoh

Condition: ready for operation (used), Year of construction: 2013, operating hours: 35,000 h, functionality: fully functional, DMG CTX 500 with Y-axis, year of manufacture 2013, including bar feeder. 100% fully functional. Free on truck (loaded). Kdjdeylbppjpfx Ahwoh

Condition: excellent (used), Year of construction: 2020, Sub-spindle, Y-axis, C-axis FANUC 31i B5-NT-SmartX control Kodpoyla Spjfx Ahwsdh Turning diameter max 305mm Turning length -870 mm Main-spindle speeds 6'000 rpm Sub-spindle speeds 6'000 rpm Milling head B-axis +/- 95 ° Tool changer with 72 positions Turret head: 24 positions with 12 driven positions Tool presetting device Workpiece pick-up attachement Tool breakage control device Bar loader Misc. accessories MARCELS MASCHINEN CH

Condition: excellent (used), Year of construction: 2018, swing over cross-slide 808mm, Maximum cutting diameter 430mm, Maximum cutting length 1260mm, Bar capacity 102mm, Spindle speed 3,000rpm, milling speed 10,000rpm, Main spindle power 25Kw, C axis 0.001 degrees, Kodpfeyk Slrjx Ahwsdh Y axis -/+ 60mm, 12 station turret. Celos-Fanuc control, equipped with Toolsetter, swarf conveyor, 3 jaw chuck, Parts catcher

Condition: excellent (used), Year of construction: 2000, Nominal diameter: 4,500 mm Swing diameter over bed: 820 mm Swing diameter over steady rest carriage: 650 mm Ksdpeyk R Dyefx Ahwodh Spindle bore: 115 mm Main spindle drive power: 40 kW Milling spindle drive power: 25 kW Milling spindle tool holder: HSK 100 Tool changer: 3 x 30 positions Control: SINUMERIK 840 C Including chip conveyor Including documentation Machine is under power and will be available in approximately 2 weeks!

Condition: excellent (used), Year of construction: 2014, CNC Turning and Milling Center Okuma Multus U4000 1SC 1500 BigBore Control: OSP-P 300S Year of manufacture: 2014 Kdjdpfx Ahoyk Ddgowjh X-axis: 695 mm Y-axis travel: +150/-150 = 300 mm Z-axis: 1,600 mm B-axis: 240°, positioning in 0.001° increments C-axis: 360°, positioning in 0.001° increments Turning diameter: 650 mm Turning length: 1,500 mm Spindle interface: Capto C6 Total tool stations: 80 Equipment: - NC tailstock - Travelling hydraulic steady rest AX 5 on NC axis - Coolant system with band filter - Kitagawa BB 212-11 hydraulic 3-jaw chuck - Automatic tool touch setter - High-pressure coolant system (IKZ) - Software option High Cut Pro (High-accuracy package with Super Nurbs) - CAS collision avoidance system - Main spindle orientation, electric - Multitool with turning function for Y-axis - Helix function - Automatic main power shut-off - DNC-DT interface - Machining Navi M-i (milling), speed control to minimize vibration - One-Touch IGF - Chip conveyor

Condition: used, Year of construction: 2009, 1 used CNC lathe Make: Mazak Model: Nexus 400 II Year of manufacture: 2009 Control system Mazatrol Matrix 2 Max. turning diameter: 580 mm Max. turning length: 2,075 mm Main spindle Drive power: 30 kW Kjdpfxsyknk Rs Ahwsdh Max. spindle speed: 2,500 rpm Spindle nose: A2-11 Travel X-axis: 340 mm Z-axis: 2,210 mm Tool turret 12-station turret 7.5 kW Max. speed: 4,000 rpm Tailstock Tooleye Chip conveyor

Condition: like new (used), Year of construction: 2019, CMZ TD45Y (2019) CNC LATHE WITH LIVE TOOLING AND “Y” AXIS Z 2,250 CNC FANUC 32i B 15” Color LCD Manual-Guide - Swing over bed: 950 mm - Swing over carriage: 715 mm - Max. turning diameter: 550 mm - Max. turning length: 2,200 mm - Travels: X: 380 mm Y: +80 / -60 mm Z: 2,200 mm - Chuck diameter: 315/400 mm Kdodjyklzmopfx Ahwoh - Bar capacity: 127 mm - Spindle nose: ASA 11” A2 - Spindle speed: 2,200 rpm - 51 kW (S3 25%), 39 kW (S1) - Maximum torque: 3,600 Nm (max), 3,000 Nm (S2 25%), 2,000 Nm (S1) - Powered turret: 12 stations (16) (1 station indexing: 0.25 s) - Tool size: 25 x 25 mm (diameter 50 mm) - Live tooling: 13.7 / 11 kW, 12,000 rpm - C axis indexing: 0.001 mm INCLUDED EQUIPMENT: - 3-jaw hydraulic chuck CGH-21 diameter 530 mm - C axis 360° (0.001°) - Tool presetter - Integrated tailstock - Programmable tailstock - High-pressure pump 30 bar - Chip conveyor - Circuit, base, and logic for steady rest - Programmable hydraulic steady rest SMW AUTOBLOK SLU-X-4-ZS (30–245 mm) - Set of internal/external toolholders and live toolholders - Set of CMZ and FANUC manuals CONDITION: Machine in excellent, semi-new condition. Can be inspected under power. Immediate delivery.

Condition: excellent (used), Year of construction: 2017, MAZAK QUICK TURN 250MY Max. turning diameter: 380 mm Max. milling speed: 5,000 rpm Max. spindle speed: 4,000 rpm Max. bar capacity: 80 mm Machine is equipped with: Kdsdpfx Aheyki Tajwjh - Mazatrol SmoothG CNC control - KITAGAWA three-jaw chuck BB-210, diameter 254 mm - Tool Eye - C-axis - Y-axis - automatic parts catcher - interface for bar feeder - signal light (3-color LED) - reinforced coolant pump - chip conveyor - standard MAZAK tool package

Condition: excellent (used), Year of construction: 2007, Type: CNC lathe (horizontal) Manufacturer: Spinner Model: TC 52 Year of manufacture: 2007 Serial No.: 123456 Control: Fanuc Three-axis machine: XZ C (C-axis is a pure positioning axis; no driven tools) Kodpfxjyki Hmj Ahwjdh Operating/spindle hours: approx. 32,500 h / 6,400 h (read as of 11/2025) Accessories: chip conveyor, coolant center (IKZ), chuck, tool holders, documentation Condition: Good

Condition: good (used), Year of construction: 2014, functionality: fully functional, turning length: 760 mm, turning diameter: 376 mm, spindle speed (max.): 3,500 rpm, quill diameter: 78 mm, overall weight: 6,000 kg, Equipment: documentation/manual, rotational speed infinitely variable, Main parameters: Controller: FANUC 0iD/31iA Chuck.: SAMCHULLY 10" Spindle bore: 86mm Kdjdpjykikxsfx Ahwsh With jacket tube.:78mm Turret head: 12 main positions 12 secondary positions, BMT65 connection, Programmable hydraulic tailstock: MT5 Main spindle power: 22kW S1max=3500 1/min Living tool power: 5.5kw S2max=5000 1/min X movement range: 260mm Z axis movement range: 830mm Y axis movement range: + - 52mm (104mm) C axis Maximum turning length: L=760 Largest turning diameter: D=376mm Fast travel speed: 30m/min Automatic tool measurement with probe arm Weight: 6000 kg

Condition: good (used), Year of construction: 2007, operating hours: 24,276 h, Gildemeister Lathe NEF 600 Year of manufacture: 2007 Control: Heidenhain Plus Max. turning diameter: 600 mm Centre distance: 1,250 mm Swing over bed: 600 mm Cross travel: 320 mm Main spindle: Speed range - main spindle: max. 3,000 rpm Spindle bore: 90 mm Chuck diameter: 320 mm Tool turret: Number of tool positions: 8 positions Kdjdpfsykbk Rex Ahwsh Total power requirement: 42 kVA Machine weight approx.: 5.0 t Space requirement approx.: 3.6 x 2.14 x 1.95 m Accessories: Rinsing gun, Schunk chuck 315 mm, Tailstock MK 5
