Condition: excellent (used), Year of construction: 1995, Like-new pneumatic punch / stamping press from a training workshop, with a base frame. Punching force: 5 t Double strokes/min at max. stroke: 30 Stroke length: 40 mm Installation height: 240 mm Overhang: 110 mm Table size: 250 x 200 mm Operating pressure: 10 bar Dimensions L x W x H: 250 x 370 x 1450 mm Weight: approx. 100 kg Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 Gisdpfxezcpv Sj Acfju DE - 44143 Dortmund - Wambel / Germany

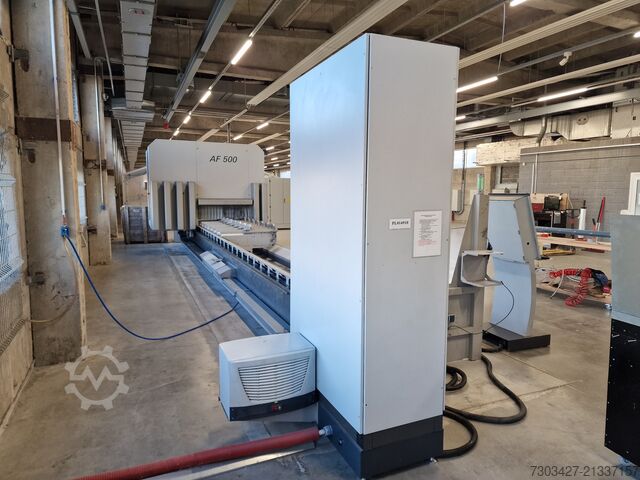

Year of construction: 2009, condition: used, The machine is powered and can be inspected by appointment! Technical data / machine components: Year of manufacture: 12/2009 Manufacturer: PRESSTA-EISELE Voltage: 400 V Rated current: 19.2 A Operating pressure: 250 bar Dimensions: approx. 18-20 m long, approx. 3 m wide Weight, unpacked: 4.5 to 5 tons Horizontal loading magazine: 5-strand toothed belt conveyor, toothed belt width 32 mm, with teeth on the running side 17 compartments, 90 mm wide, for holding the profiles, with a pusher 40 x 10 mm (H x W) 2 sliding supports between the toothed belts as additional support Depth, max: 2,380 mm, length: 7,400 mm Loading weight, max: 1,000 kg Conveyor length: 1,850 mm Profile length, min: 1,000 mm Profile length, max: 7,300 mm Common drive via geared motor: 0.55 kW, 400 V, 50 Hz Conveyor speed: 4 m/min Material stop on the left Magazine "empty" sensor, manual cycling Tactile switch for the first loading 5 pneumatic cylinders for aligning the profiles in the longitudinal direction 6 lifting rollers for lifting the profile from the loading magazine and transferring it to the pusher Pusher, electronically positionable feed system: Reinforced design Feed length, max: 9,000 mm Gijdpfx Acozbac Tofeu Mounted on the right side of the machine Profile feed from right to left Guide profile with linear guide rail Carriage: plate construction with ball bearing carriage Drive via linear motor, positioning via magnetic strip Pneumatic material gripper All 8 profiles can be automatically clamped without adjustment Repeat accuracy: +/- 0.15 mm Rapid traverse speed, max: 180 m/min Input of the profile tube length into the control system 1 light barrier for detecting the beginning of the profile before the first punching head Punching unit: Drive: hydraulic Punching force per cylinder: 3.0 t, designed for 55 punching cycles per minute Only a maximum of 2 tools can be in operation Vertical punching head with 2 cylinders Punching stroke: 15 mm including 2 punching tools for hole ø 6.5 mm, spacing 65 mm Punching cylinders can be selected individually, guide for the profile 2 horizontal punching heads Punching stroke: 15 mm including 1 punching tool each for hole ø 6.5 mm and 1 punching tool for oblong hole 7 x 12 mm, guide for the profile Cycling lubrication system with 4 nozzles for lubricating the punches 3 l oil tank, level monitoring Saw: Drive: 5.5 kW, 400 V, 50 Hz Saw blade: ø 500 mm Saw feed: pneumatic with hydraulic control, from below Pneumatic profile clamping device: vertical and horizontal Cycling lubrication system with one nozzle Flap after the saw for removing cut-off pieces and scrap, max. 200 mm length Parts fall downwards into the provided box Longer scrap pieces are disposed of with good parts Needle marking system: Character size: 2 – 7 mm Marking window: 80 x 20 mm, 15 characters including spaces Marking always approx. 190 mm after the saw cut Data transfer from an Excel file via interface Each profile can have a different designation

Condition: excellent (used), Year of construction: 2017, functionality: fully functional, ■ Punching machine, complete with base frame ■ Hydro-pneumatic drive ■ Operated via foot valve ■ Max. stroke length: 40 mm ■ 25 double strokes/min. ■ Max. installation height: 250 mm ■ Throat depth: 130 mm ■ Throat depth with rotary table: 90 mm ■ Table top height: 950 mm ■ Ram force: 90 kN at 10 bar Gsdpfxey S Abbs Acfsiu

Condition: excellent (used), Year of construction: 2000, functionality: fully functional, machine/vehicle number: 280022, Schüco profile punching tool for facade series FWS50 and FWS60 with base frame Gijdpfx Ajy R D Akscfju

Year of construction: 2017, condition: excellent (used), functionality: fully functional, ■ Punching machine, complete with base frame ■ Hydro-pneumatic drive ■ Operated via foot valve ■ Max. stroke length: 40 mm ■ 25 double strokes/min. ■ Max. installation height: 250 mm ■ Throat depth: 130 mm ■ Throat depth with rotary table: 90 mm Gedpfxjy Hriws Acfsiu ■ Table top height: 950 mm ■ Ram force: 90 kN at 10 bar

Year of construction: 2019, condition: excellent (used), functionality: not functional, Compact hydraulic C-frame punching machine with 160 kN punching force for precise applications on smaller profile cross-sections. The torsion-resistant frame design ensures accurate punching in aluminium, steel or plastic. Gijdpfxsy Agqns Acfsu

Year of construction: 2005, condition: ready for operation (used), Pressing force: 6-8 bar Air consumption: 8 l/stroke Ram stroke height: 12 mm; 134 mm Number of strokes: 400 strokes/min Max. punching force: 3500 kp Machine weight approx.: 80 kg Pneumatic press Schüco for Schüco punching tools Article no. Schüco: 290 124 Manual included Various crimping tools included! Tool numbers: 283073, 280162, 299259, 283492, 283072, 282867, 282644, 282663, 282868, 283071, 283072 2 quick-release levers for safe and fast clamping of the crimping tools The data for this listing was created using ModulMWS — software from LogoTech oHG. Manufacturer: SCHÜCO Model: Pneumatikpresse Machine type: Pressure: 6-8 bar Air consumption: 8 l/stroke Ram stroke: 12 mm : 134 mm Number of strokes: 400 strokes/min Max. punching force: 3500 kp Machine weight approx.: 80 kg Pneumatic Schüco press for Schüco punching tools Schüco article no.: 290 124 Manual included Gjdpfx Acjyzkifefeiu Various crimping tools included! Tool no.: 283073, 280162, 299259, 283492, 283072, 282867, 282644, 282663, 282868, 283071, 283072 2 quick-release levers for safe and rapid clamping of crimping tools Data for this offer was created with ModulMWS – software by LogoTech oHG.

Year of construction: 1996, condition: used, Hydropneumatic operation Punching force: 50 kN Work hub: 35 mm Gijdpfxjyxpw Ne Acfou Overhang: 110 mm Installation height: 140 mm

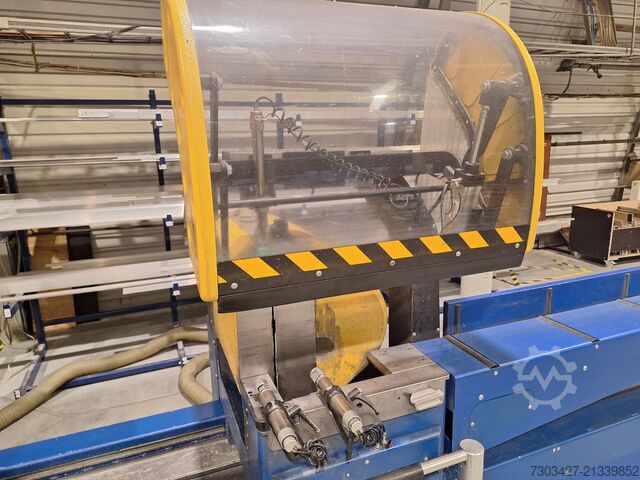

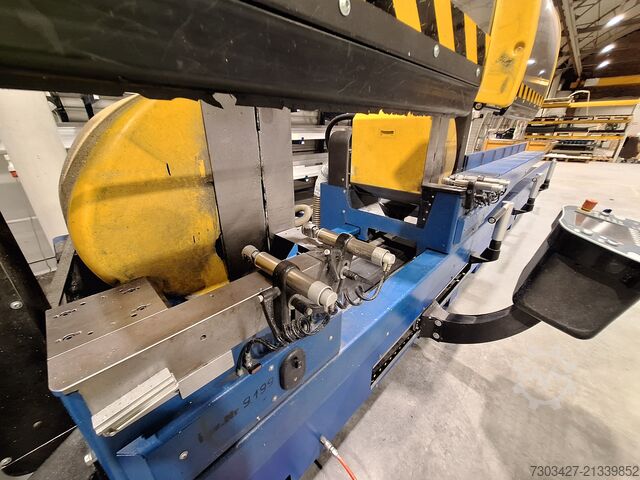

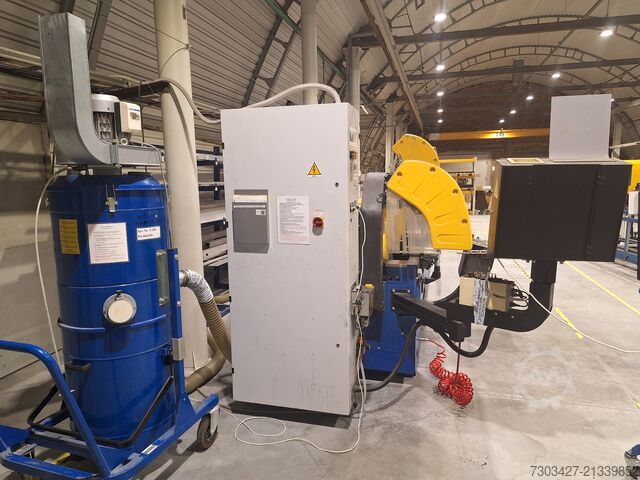

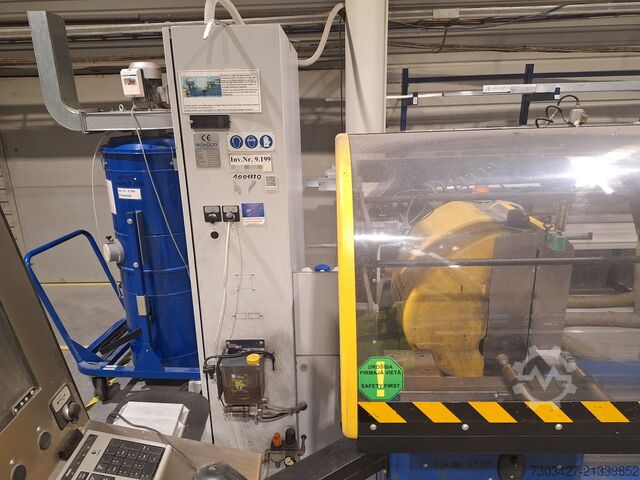

Condition: used, Schüco PDG E CUT Gedpsyni Apjfx Acfsiu

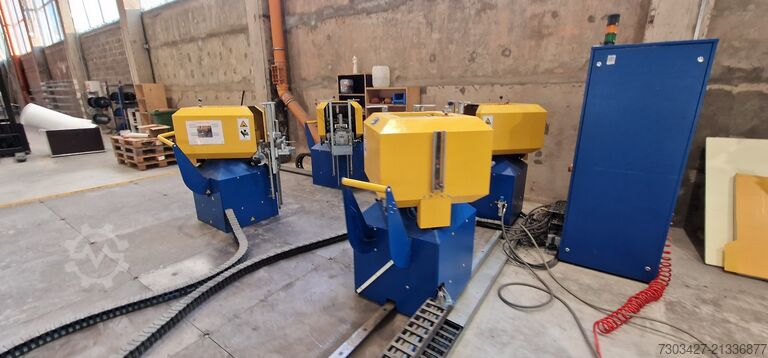

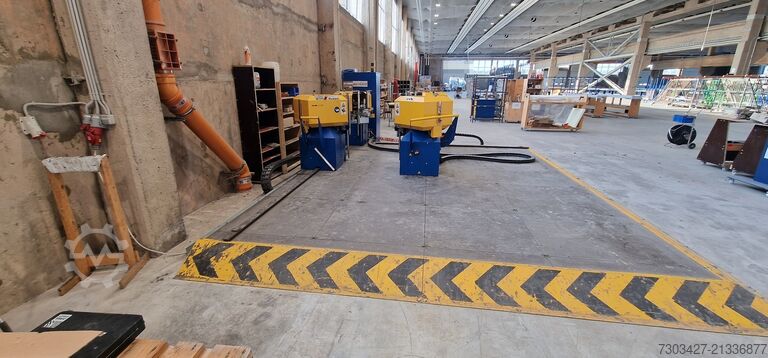

Year of construction: 2011, condition: used, Schüco EVM S4 Giedpfx Asynf Hqocfju

Year of construction: 2002, condition: excellent (used), functionality: fully functional, machine/vehicle number: 661 1401, For sale is a Schüco gasket insertion machine, item no.: PR 280010. The machine has only been used sparingly due to limited space, which explains its like-new condition. The machine can be inspected at our facility. Godpfxjyc Sn Ds Acfoiu

Year of construction: 2002, condition: excellent (used), functionality: fully functional, machine/vehicle number: 109 262, For sale is a corner connection press complete with automatic adhesive injection unit from Schüco, Art. No.: EVM 280106, including an extensive range of accessories for various profile series, manual, and CE certification. The machine has seen very little use due to lack of space and is therefore in like-new condition. Gedpfx Aceyc Sinofeiu

Condition: used, Max. punching force: 100 kN Adjustable stroke, max. 50 mm Stroke activation via foot switch Weight: approx. 600 kg Giedpfx Acoxrmz Asfju

Year of construction: 2000, condition: good (used), Power: 5.5 kW Giedpfxjw S Nycj Acfsu Weight: 2,200 kg

Year of construction: 2000, condition: used, Pressure power 6-8 bar Air consumption 8 l/Hub height of stroke 12 mm 134 mm no. of strokes 400 Hub/min punching force max. 3500 kp weight of the machine ca. 80 kg Schüco pneumatic press for Schüco punching tools Art. No. Schüco: 290 124 manual included various pressing tools included! Gedpfswva Rbex Acfsiu tool nr. 283073, 280162,299259,283492, 283072, 282867, 282644, 282663, 282868, 283071, 283072 2 quick-release levers for secure and quick fastening of the press tools

Year of construction: 1995, condition: used, punching pressure ca. 3,2 t air pressure 8 bar stroke max. 20 mm distance between columns ca. 250 x 200 mm weight of the machine ca. 52 kg incl. various tools, see pictures Giedpjwva Nwofx Acfou

Year of construction: 2014, condition: used, Max. Stanzkraft: 50 kN Stroke activation via foot switch Good condition Gjdpfx Aewb Eucjcfjiu

Year of construction: 1994, condition: good (used), multi-function punch, punch, hole punch, pneumatic hole punch Godpfx Acevmq Utjfeiu -Article number: 296 346 -Dimensions: 800/400/H1200 mm -Weight: 170 kg

Condition: good (used), Year of construction: 1996, Punch, complete with base frame Hydro-pneumatic drive ■ Operation via foot valve ■ Stroke length max. 40 mm ■ 25 double strokes / min. ■ Installation height max. 250 mm Godpfx Acotk Ul Rsfoiu 130 mm projection ■ Projection with turntable 90 mm ■ Table top height 950 mm ■ Tappet force 90 KN at 10 bar

Condition: new, Year of construction: 2026, functionality: fully functional, machine/vehicle number: SÇ 902 S Hidrolik Alüminyum Köşe Presi Makinesi, • Complies with CE standards • Corner press machine designed for joining aluminium profiles at 90 degrees • 2 upper presses and blade movement are hydraulic • Equipped with a mm scale system for adjusting blade height and feed • Centering square stop is hydraulic • Drain button for fine adjustment is available • Machine comes with 2 pieces of 4 mm blades • 2 pedals are used for hydraulic pressing and profile clamping Gsdpsrbk Tfefx Acfeiu • Polyamide plate is provided to prevent damage to profile surfaces • Left and right profile support arms are available

Condition: good (used), Multifunctional punch, punch press, hole punch, pneumatic hole punch -pneumatically operated Giedpfsn Sru Hsx Acfju

Year of construction: 1990, condition: good (used), machine/vehicle number: 8988, Offer 22523 Technical data: - Pressure capacity at 10 bar 35 KN - ram stroke 12 mm - throat 95 mm Gisdpfx Acjk Rugvefeu - Installation height approx. 134 mm - table size approx. 230 x 190 mm - Air consumption per stroke 8,0 l - Air inlet 6 - 10 bar - Space requirement approx. W 520 x H 1450 x D 600 mm - weight approx. 100 kg - with: - foot switch - pressure gauge + pressure regulator - 4 x punching tool

Year of construction: 2019, condition: good (used), machine/vehicle number: 157, Offer 22273 Technical data: Godpfx Asiv Hz Decfjiu - Stroke 30 mm - Air consumption per stroke 5 l - Pneumatic connection 8 bar - Space requirement approx. W 500 x H 550 x D 500 mm - weight approx. 70 kg - with: - foot switch - machine base mobile W 600 x H 830 mm - Div. tools HUECK

Year of construction: 2000, condition: used, Pneumatic press, pneumatic punch, multifunctional punch, punch, universal punch, punching machine, pneumatic hole punch -Manufacturer: All Mecanic, multifunctional punch -Type: 994.500-1 Gisdpjgurw Esfx Acfju - Execution: pneumatically operated, with foot control -Punching tool: see photos -Dimensions: 400/270 / H370 mm -Weight: 28 kg

Condition: used, Pneumatic press, pneumatic punch, multifunctional punch, punch, universal punch, punching machine -Pneumatic cylinder: Festo type DC-100-050-PPV -Stroke: 50 mm -Holder: Ø approx. 9 mm Gjdjf Sa Rcepfx Acfoiu -Dimensions: 350/200/H515 mm -Weight: 31 kg
